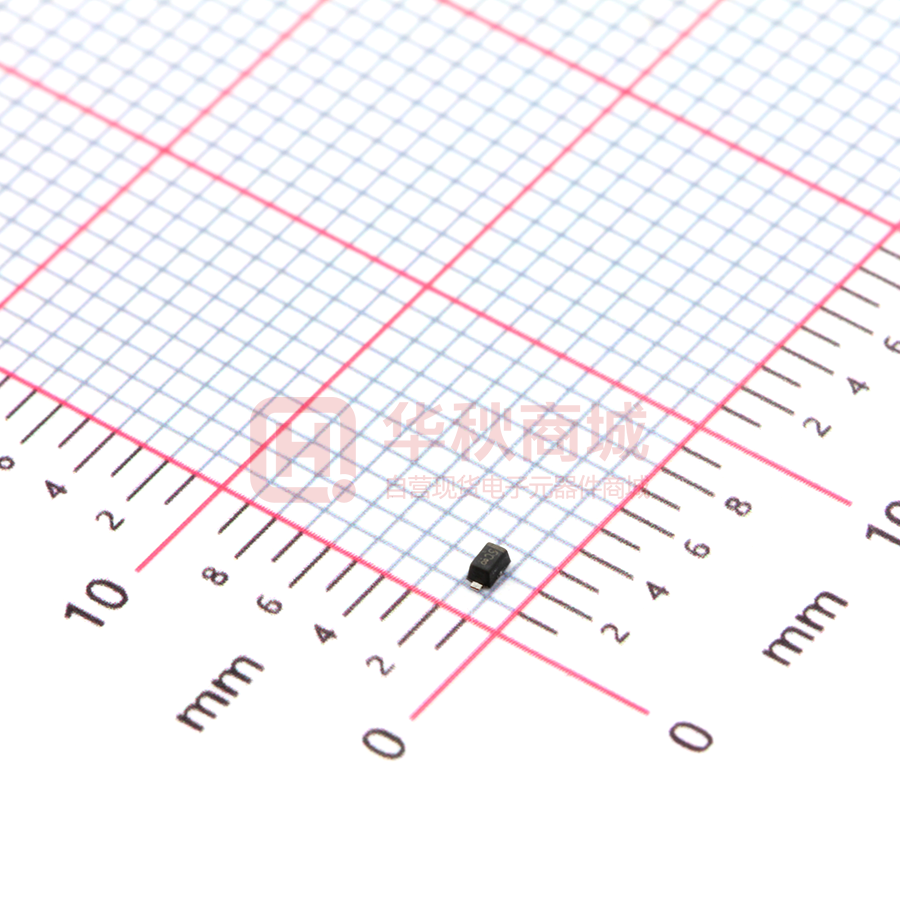

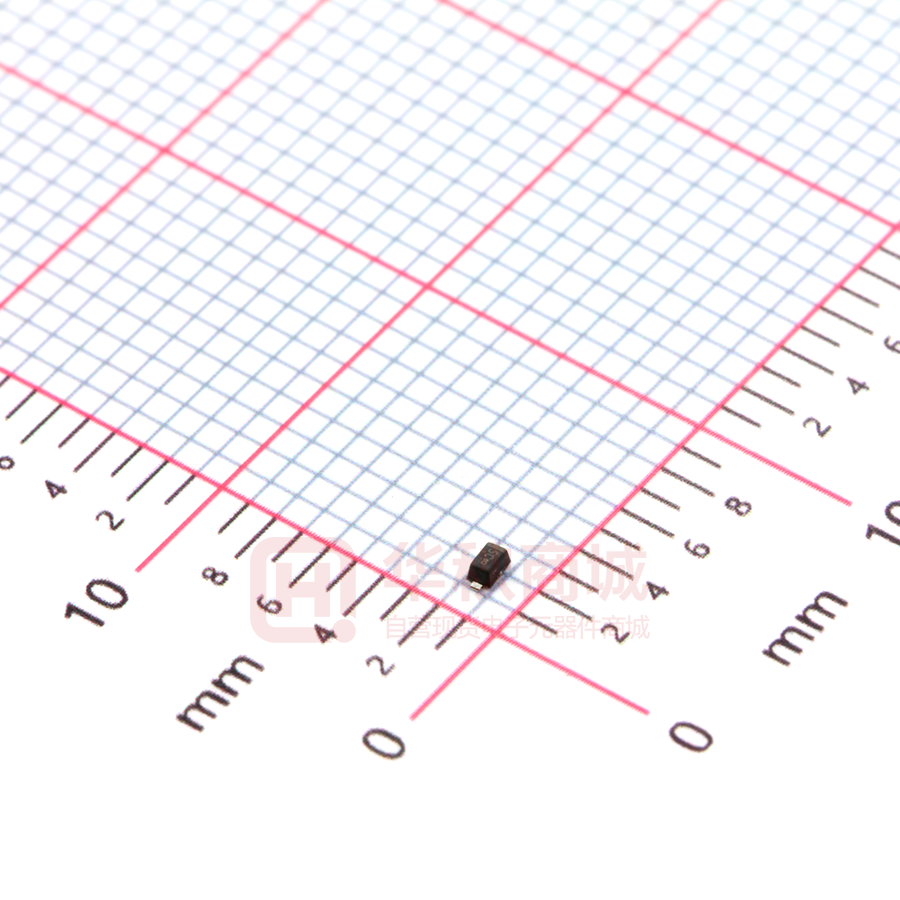

ESD5Z5V0C

ESD5Z5V0C Transient Voltage Suppressors for ESD Protection Applications 2 1 • Cellular phones • Portable devices • Digital cameras • Power supplies Top View Features Simplified outline SOD-523 and symbol • Small Body Outline Dimensions • Low Body Height • Peak Power up to 200 Watts @ 8 x 20 _s Pulse • Low Leakage current • Response Time is Typically < 1 ns • ESD Rating of Class 3 (> 16 kV) per Human Body Model • IEC61000−4−2 Level 4 ESD Protection • IEC61000−4−4 Level 4 EFT Protection Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP Peak Pulse Power (tp = 8/20μs) 200 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +155 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C ±15 ±8 KV IEC61000-4-2 (ESD) air discharge contact discharge IEC61000-4-4 (EFT) ESD Voltage www.tw-gmc.com Per Human Body Model 1 40 A 16 KV ESD5Z5V0C Transient Voltage Suppressors for ESD.Protection Electrical Parameter Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM IT Test Current VBR Breakdown Voltage @ IT Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA Device Device Marking ESD5Z5V0C 5C IR(uA) VBR (V)@ IT VC (V) VC (V) VRWM (V) @ VRWM (Note 1) Max Max Min Max mA Typ Max 5.0 1.0 5.6 1.0 11.6 18.6 7.8 IT IPP @ IPP=5 A* @ Max IPP* (A)* PPK (W)* (pF) Max Max Typ 9.4 174 25 8 10 1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃． 0.07 100 90 0.06 80 70 0.04 Cj (pF) IR (uA) 0.05 0.03 20 10 0 25 50 75 100 0 125 Fig 1. Reverese 2 4 6 SAMPLE T(℃) www.tw-gmc.com 50 30 0.01 0 60 40 0.02 Fig 2. Capacitance character character 1 2 C ESD5Z5V0C Transient Voltage Suppressors for ESD Protection Package Outline Dimensions SOD-523 NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. −X− A −Y− B 1 2 DIM A B C D J K S D 2 PL 0.08 (0.003) M T X Y MILLIMETERS MIN NOM MAX 1.10 1.20 1.30 0.70 0.80 0.90 0.50 0.60 0.70 0.25 0.30 0.35 0.07 0.14 0.20 0.15 0.20 0.25 1.50 1.60 1.70 C J K S −T− SEATING PLANE SOLDERING FOOTPRINT* 1.40 0.0547 0.40 0.0157 0.40 0.0157 www.tw-gmc.com SCALE 10:1 1 3 mm (inches ) MIN 0.043 0.028 0.020 0.010 0.0028 0.006 0.059 INCHES NOM MAX 0.047 0.051 0.032 0.035 0.024 0.028 0.012 0.014 0.0055 0.0079 0.008 0.010 0.063 0.067
