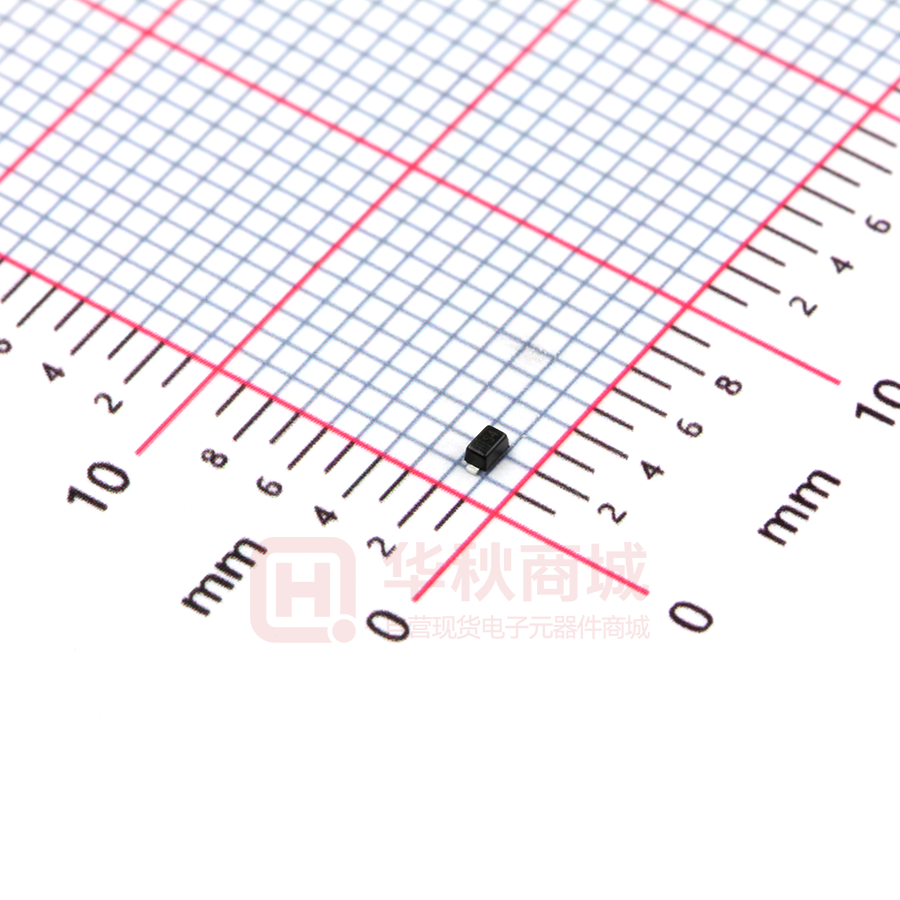

SD103AX

SD103AX FEATURES SCHOTTKY BARRIER RECTIFIERS M etal silicon junction, majority carrier conduction PINNING PIN G uarding for overvoltage protection DESCRIPTION 1 Cathode L ow power loss, high efficiency 2 Anode H igh current capability l ow forward voltage drop H igh surge capability 2 F or use in low voltage, high frequency inverters, 1 free wheeling, and polarity protection applications Top View Marking Code: S4 MECHANICAL DATA Simplified outline SOD-523 and symbol Case: SOD-523 Terminals: Solderable per MIL-STD-750, Method 2026 Absolute Maximum Ratings (Ta = 25 C) O Parameter Symbol Value Unit VRRM 40 V VR 40 V Average Forward Rectified Current IF(AV) 350 mA Non-Repetitive Peak Forward Surge Current at t = 1 s IFSM 2 A Power Dissipation Ptot 200 mW Tj, Tstg - 65 to + 125 Peak Repetitive Reverse Voltage Reverse Voltage Operating and Storage Temperature Range C O Characteristics at Ta = 25 C O Symbol Parameter Reverse Breakdown Voltage at IR =10uA V(BR)R Reverse Leakage Current at VR =30V Min. 40 Typ. Max. - - Unit V IR - - 5 µA Forward Voltage at IF = 20 mA at IF = 200 mA VF - - 0.37 0.6 V Total Capacitance at VR = 0 V, f = 1 MHz CT - 50 - pF Reverse Recovery Time at IF = IR = 200 mA, Irr = 0.1 IR, RL = 100 Ω trr - 10 - ns www.tw-gmc.com 1 SD103AX www.tw-gmc.com 1 2 SD103AX    PACKAGE OUTLINE Plastic surface mounted package; 2 leads           ∠                     ALL ROUND         A       C                 HE   D   www.tw-gmc.com                           UNIT mm     bp   E                             A     A 0.70 0.60 bp 0.4 0.3 C 0.135 0.100 D 1.25 1.15 1 3 E 0.85 0.75 HE 1.7 1.5 ∠ V   0.1 5 O
