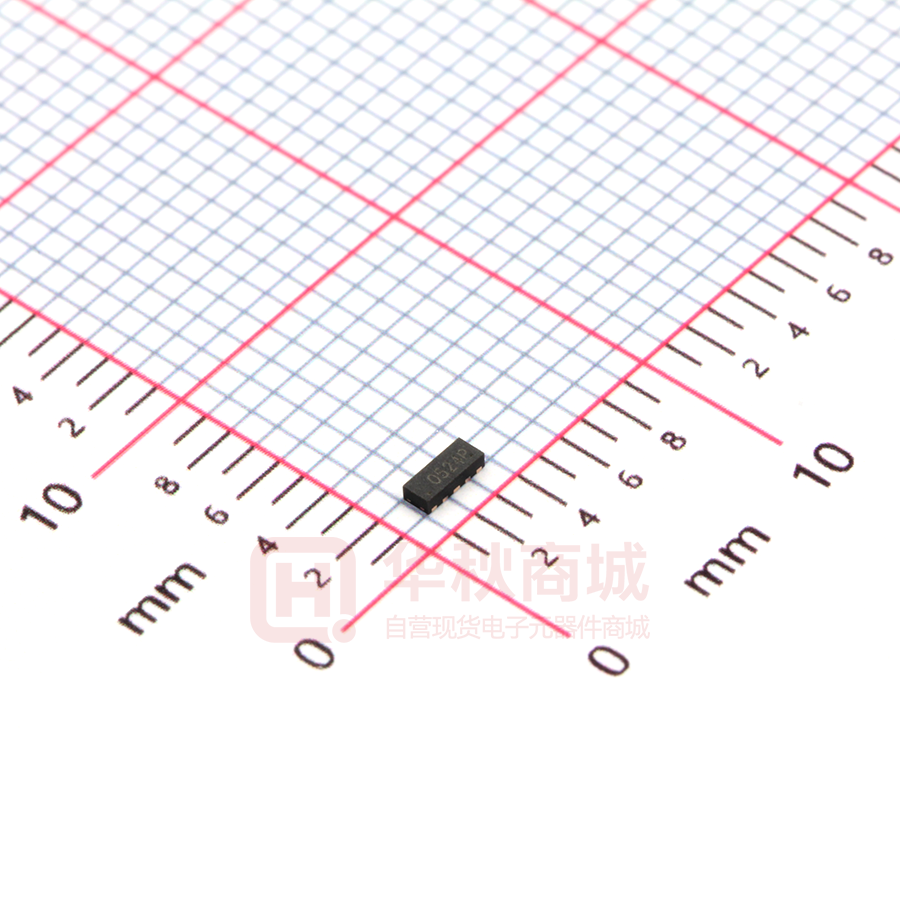

RCLAMP0524P

RCLAMP0524P 4-Lines, Uni-directional, Ultra-low Capacitance Transient Voltage Suppressors Features DFN2510-10L NC NC GND NC  Protects 4 I/O Lines   Low Working Voltage: 5 V  Low Capacitance: 0.3pF (I/O to I/O) Low Clamping Voltage  Response time is typically < 1 ns  IEC61000−4−2 (ESD) ±20 kV (air), ±15 kV (contact)  IEC61000−4−5 (Surge) 4 A (I/O to GND)  Pb-Free, RoHS compliant NC 10 9 8 7 6 1 2 3 4 5 Applications I/O1 I/O2 GND I/O3 I/O4 1 4 2 5 3, 8  High Definition Multi-Midia Interface (HDMI)  Digital Visual Interface (DVI)  DisplayPortTM Interface  MDDI Ports  PCI Express  SATA and eSATA Interface  USB3.0 and USB2.0 up to 480Mb/s  IEEE1394 up to 3.2 Gb/s  Ethernet port:10/100/1000 Mb/s Absolute maximum ratings Parameter Symbol Rating Unit Peak pulse power (tp = 8/20μs) Ppk 52 W Peak pulse current (tp = 8/20μs) IPP 4 A ESD according to IEC61000-4-2 air discharge VESD ESD according to IEC61000-4-2 contact discharge Junction temperature TJ Operating temperature TOP Lead temperature TL Storage temperature www.tw-gmc.com TSTG 1 ±20 ±15 kV 125 o -40~85 o 260 o -55~150 o C C C C RCLAMP0524P Electrical Characteristics (TA=25℃ unless otherwise specified) Electrical Characteristics (TA=25℃ unless otherwise specified) Paramete Symbol Min Typ Max Unit VRWM -- -- 5 V VBR 6.5 -- 8.5 V IT=1mA Leakage Current ILeak IR -- -- 100 nA VRWM=5V Clamping Voltage（I/O-GND） VC -- -- 13 V IPP=4A,Tp=8/20μs CJ -- -- 0.7 pF VR=0V, f=1MHz CJ -- 0.3 0.4 pF VR=0V, f=1MHz Reverse Working Voltage Breakdown Voltage Junction Capacitance (I/O to GND) Junction Capacitance % of Rated Power or IPP (I/O to I/O ) 110 110 100 100 90 90 80 80 70 70 60 60 50 50 40 40 30 30 20 20 10 10 0 Test Condition Waveform Parameters: tr = 8µs td = 20µs e-t td = IPP/2 0 0 25 50 75 100 125 150 0 o Ambient Temperature - TA ( C) 10 15 20 Time (µs) Power Derating Curve www.tw-gmc.com 5 Pulse Waveform 1 2 25 30 RCLAMP0524P PACKAGE OUTLINE DIMENSIONS DFN2510-10L Dimensions in Millimeters Symbol Min. Typ. Max. A 0.500 0.575 0.650 A1 0.000 - 0.050 A3 0.150 Ref. D 2.400 2.500 2.600 E 0.900 1.000 1.100 D1 0.300 0.400 0.500 E1 0.300 0.455 0.610 b 0.130 0.190 0.250 e 0.500 BSC L 0.280 0.390 Recommended land pattern (Unit: mm) 0.50 0.20 0.60 0.50 0.20 www.tw-gmc.com 0.40 1 3 0.500
