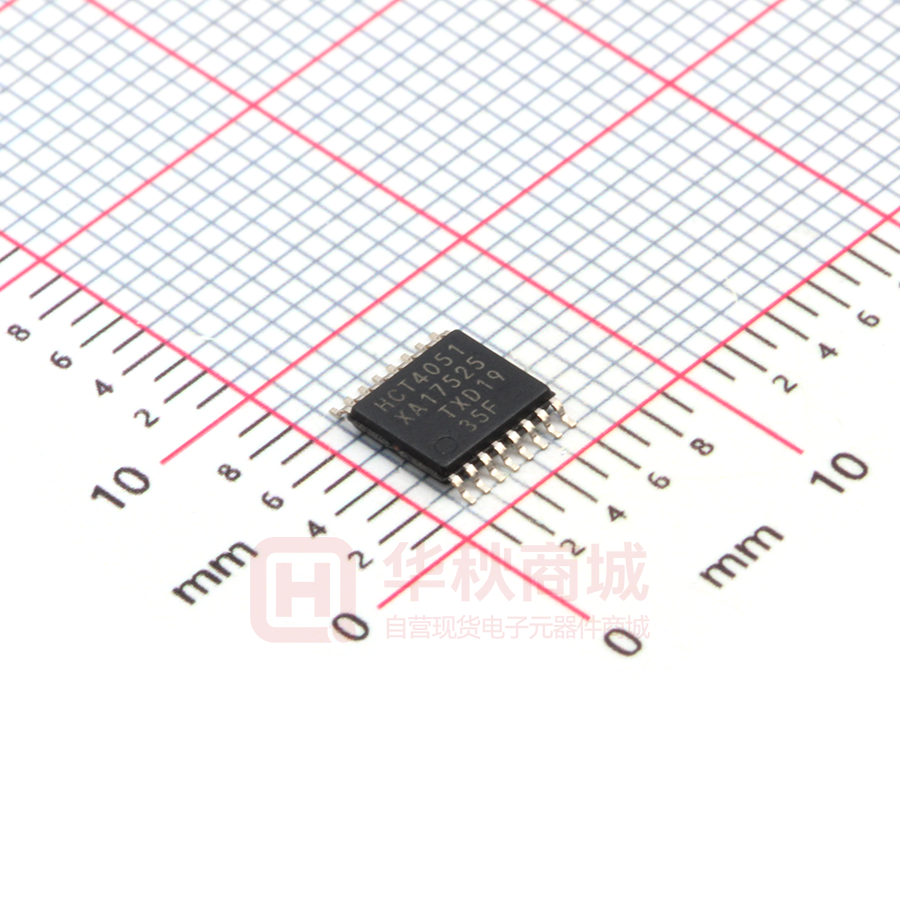

74HCT4051PW,118

74HC4051; 74HCT4051 8-channel analog multiplexer/demultiplexer Rev. 10 — 8 September 2021 Product data sheet 1. General description The 74HC4051; 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits • • • • • • • • • • • Wide analog input voltage range from -5 V to +5 V CMOS low power dissipation High noise immunity Complies with JEDEC standards • JESD8C (2.7 V to 3.6 V) • JESD7A (2.0 V to 6.0 V) Latch-up performance exceeds 100 mA per JESD 78 Class II Level B Low ON resistance: • 80 Ω (typical) at VCC - VEE = 4.5 V • 70 Ω (typical) at VCC - VEE = 6.0 V • 60 Ω (typical) at VCC - VEE = 9.0 V Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals Typical ‘break before make’ built-in ESD protection: • HBM JESD22-A114F exceeds 2000 V • MM JESD22-A115-A exceeds 200 V • CDM JESD22-C101E exceeds 1000 V Multiple package options Specified from -40 °C to +85 °C and -40 °C to +125 °C 3. Applications • • • Analog multiplexing and demultiplexing Digital multiplexing and demultiplexing Signal gating 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 4. Ordering information Table 1. Ordering information Type number Package 74HC4051D Temperature range Name Description Version -40 °C to +125 °C SO16 plastic small outline package; 16 leads; body width 3.9 mm SOT109-1 -40 °C to +125 °C TSSOP16 plastic thin shrink small outline package; 16 leads; body width 4.4 mm SOT403-1 -40 °C to +125 °C DHVQFN16 plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads; 16 terminals; body 2.5 × 3.5 × 0.85 mm 74HCT4051D 74HC4051PW 74HCT4051PW 74HC4051BQ 74HCT4051BQ SOT763-1 5. Functional diagram VCC 16 13 Y0 S0 11 14 Y1 15 Y2 S1 10 12 Y3 LOGIC LEVEL CONVERSION 1 Y4 1-OF-8 DECODER S2 9 5 Y5 2 Y6 E 6 4 Y7 3 Z 8 GND Fig. 1. 7 VEE 001aad543 Functional diagram 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 2 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 11 10 9 6 13 S0 S1 S2 11 14 10 15 9 12 1 5 2 E 6 4 3 0 8X 2 G8 Y0 Y1 MUX/DMUX 0 Y2 13 14 1 Y3 15 2 Y4 12 3 3 Y5 1 4 Y6 5 5 Y7 2 6 4 7 Z 001aad542 001aad541 Fig. 2. 0 7 Logic symbol Fig. 3. IEC logic symbol Y VCC VEE VCC VCC VCC VEE from logic VEE Z 001aad544 Fig. 4. Schematic diagram (one switch) 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 3 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 6. Pinning information 6.1. Pinning 1 Y4 terminal 1 index area Z 3 14 Y1 4 13 Y0 Y5 5 E 6 15 Y2 VEE 7 Z 3 14 Y1 Y7 4 13 Y0 Y5 5 12 Y3 E 6 11 S0 VEE 7 10 S1 GND 8 9 001aad540 Transparent top view (1) This is not a supply pin. There is no electrical or mechanical requirement to solder the pad. In case soldered, the solder land should remain floating or connected to VCC. S2 001aad539 Fig. 5. 11 S0 10 S1 9 2 12 Y3 VCC(1) S2 Y6 15 Y2 8 16 VCC 2 GND 1 Y6 Y7 74HC4051 74HCT4051 Y4 16 VCC 74HC4051 74HCT4051 Pin configuration SOT109-1 (SO16) and SOT403-1 (TSSOP16) Fig. 6. Pin configuration SOT763-1 (DHVQFN16) 6.2. Pin description Table 2. Pin description Symbol Pin Description E 6 enable input (active LOW) VEE 7 supply voltage GND 8 ground supply voltage S0, S1, S2 11, 10, 9 select input Y0, Y1, Y2, Y3, Y4, Y5, Y6, Y7 13, 14, 15, 12, 1, 5, 2, 4 independent input or output Z 3 common output or input VCC 16 supply voltage 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 4 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 7. Function description Table 3. Function table H = HIGH voltage level; L = LOW voltage level; X = don’t care. Input Channel ON E S2 S1 S0 L L L L Y0 to Z L L L H Y1 to Z L L H L Y2 to Z L L H H Y3 to Z L H L L Y4 to Z L H L H Y5 to Z L H H L Y6 to Z L H H H Y7 to Z H X X X switches off 8. Limiting values Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to VSS = 0 V (ground). Symbol Parameter Min Max Unit -0.5 +11.0 V VI < -0.5 V or VI > VCC + 0.5 V - ±20 mA switch clamping current VSW < -0.5 V or VSW > VCC + 0.5 V - ±20 mA ISW switch current -0.5 V < VSW < VCC + 0.5 V - ±25 mA IEE supply current - ±20 mA ICC supply current - 50 mA IGND ground current - -50 mA Tstg storage temperature -65 +150 °C Ptot total power dissipation - 500 mW P power dissipation - 100 mW VCC supply voltage IIK input clamping current ISK [1] [2] Conditions [1] [2] per switch To avoid drawing VCC current out of terminal Z, when switch current flows into terminals Yn, the voltage drop across the bidirectional switch must not exceed 0.4 V. If the switch current flows into terminal Z, no VCC current will flow out of terminals Yn, and in this case there is no limit for the voltage drop across the switch, but the voltages at Yn and Z may not exceed VCC or VEE. For SOT109-1 (SO16) package: Ptot derates linearly with 12.4 mW/K above 110 °C. For SOT403-1 (TSSOP16) package: Ptot derates linearly with 8.5 mW/K above 91 °C. For SOT763-1 (DHVQFN16) package: Ptot derates linearly with 11.2 mW/K above 106 °C. 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 5 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 9. Recommended operating conditions Table 5. Recommended operating conditions Symbol Parameter Conditions VCC 74HC4051 74HCT4051 Unit Min Typ Max Min Typ Max 2.0 5.0 10.0 4.5 5.0 5.5 V see Fig. 7 and Fig. 8 supply voltage VCC - GND 2.0 5.0 10.0 2.0 5.0 10.0 V VI input voltage VCC - VEE GND - VCC GND - VCC V VSW switch voltage VEE - VCC VEE - VCC V Tamb ambient temperature -40 +25 +125 -40 +25 +125 °C Δt/ΔV input transition rise and fall rate VCC = 2.0 V - - 625 - - - ns/V VCC = 4.5 V - 1.67 139 - 1.67 139 ns/V VCC = 6.0 V - - 83 - - - ns/V VCC = 10.0 V - - 31 - - - ns/V 001aad545 10 VCC - GND (V) 001aad546 10 VCC - GND (V) 8 8 6 6 operating area operating area 4 4 2 2 0 Fig. 7. 0 2 4 6 Guaranteed operating area as a function of the supply voltages for 74HC4051 74HC_HCT4051 Product data sheet 0 8 10 VCC - VEE (V) Fig. 8. 0 2 4 6 8 10 VCC - VEE (V) Guaranteed operating area as a function of the supply voltages for 74HCT4051 All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 6 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 10. Static characteristics Table 6. RON resistance per switch for 74HC4051 and 74HCT4051 VI = VIH or VIL; for test circuit see Fig. 9. Vis is the input voltage at a Yn or Z terminal, whichever is assigned as an input. Vos is the output voltage at a Yn or Z terminal, whichever is assigned as an output. For 74HC4051: VCC - GND or VCC - VEE = 2.0 V, 4.5 V, 6.0 V and 9.0 V. For 74HCT4051: VCC - GND = 4.5 V and 5.5 V, VCC - VEE = 2.0 V, 4.5 V, 6.0 V and 9.0 V. Symbol Parameter Conditions Min Typ Max Unit - - - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA - 100 180 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - 90 160 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - 70 130 Ω - 150 - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA - 80 140 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - 70 120 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - 60 105 Ω - 150 - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA - 90 160 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - 80 140 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - 65 120 Ω - - - Ω VCC = 4.5 V; VEE = 0 V - 9 - Ω VCC = 6.0 V; VEE = 0 V - 8 - Ω VCC = 4.5 V; VEE = -4.5 V - 6 - Ω Tamb = 25 °C RON(peak) ON resistance (peak) Vis = VCC to VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 μA RON(rail) ON resistance (rail) [1] Vis = VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 μA [1] Vis = VCC VCC = 2.0 V; VEE = 0 V; ISW = 100 μA ΔRON ON resistance mismatch between channels 74HC_HCT4051 Product data sheet [1] Vis = VCC to VEE VCC = 2.0 V; VEE = 0 V [1] All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 7 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Symbol Parameter Conditions Min Typ Max Unit Tamb = -40 °C to +85 °C RON(peak) ON resistance (peak) Vis = VCC to VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 μA RON(rail) ON resistance (rail) - - - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA [1] - - 225 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - - 200 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - - 165 Ω Vis = VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 μA - - - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA [1] - - 175 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - - 150 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - - 130 Ω Vis = VCC VCC = 2.0 V; VEE = 0 V; ISW = 100 μA - - - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA [1] - - 200 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - - 175 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - - 150 Ω - - - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA - - 270 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - - 240 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - - 195 Ω - - - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA - - 210 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - - 180 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - - 160 Ω - - - Ω VCC = 4.5 V; VEE = 0 V; ISW = 1000 μA - - 240 Ω VCC = 6.0 V; VEE = 0 V; ISW = 1000 μA - - 210 Ω VCC = 4.5 V; VEE = -4.5 V; ISW = 1000 μA - - 180 Ω Tamb = -40 °C to +125 °C RON(peak) ON resistance (peak) Vis = VCC to VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 μA RON(rail) ON resistance (rail) [1] Vis = VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 μA [1] Vis = VCC VCC = 2.0 V; VEE = 0 V; ISW = 100 μA [1] [1] When supply voltages (VCC - VEE) near 2.0 V the analog switch ON resistance becomes extremely non-linear. When using a supply of 2 V, it is recommended to use these devices only for transmitting digital signals. 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 8 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer mnb047 110 (1) RON (Ω) 90 70 Vsw VCC Sn Yn Vis 30 Z GND VEE 10 Isw Test circuit for measuring RON 0 1.8 3.6 5.4 7.2 Vis (V) 9.0 Vis = 0 V to (VCC - VEE). (1) VCC = 4.5 V (2) VCC = 6 V (3) VCC = 9 V 001aan389 Vis = 0 V to (VCC - VEE). Fig. 9. (3) 50 V from select input (2) Fig. 10. Typical RON as a function of input voltage Vis Table 7. Static characteristics for 74HC4051 Voltages are referenced to GND (ground = 0 V). Vis is the input voltage at pins Yn or Z, whichever is assigned as an input. Vos is the output voltage at pins Z or Yn, whichever is assigned as an output. Symbol Parameter Conditions Min Typ Max Unit VCC = 2.0 V 1.5 1.2 - V VCC = 4.5 V 3.15 2.4 - V VCC = 6.0 V 4.2 3.2 - V VCC = 9.0 V 6.3 4.7 - V VCC = 2.0 V - 0.8 0.5 V VCC = 4.5 V - 2.1 1.35 V VCC = 6.0 V - 2.8 1.8 V VCC = 9.0 V - 4.3 2.7 V VCC = 6.0 V - - ±0.1 μA VCC = 10.0 V - - ±0.2 μA per channel - - ±0.1 μA all channels - - ±0.4 μA - - ±0.4 μA VCC = 6.0 V - - 8.0 μA VCC = 10.0 V - - 16.0 μA Tamb = 25 °C VIH VIL II IS(OFF) HIGH-level input voltage LOW-level input voltage input leakage current OFF-state leakage current VEE = 0 V; VI = VCC or GND VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 11 IS(ON) ON-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 12 ICC supply current VEE = 0 V; VI = VCC or GND; Vis = VEE or VCC; Vos = VCC or VEE 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 9 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Symbol Parameter CI input capacitance Csw switch capacitance Conditions Min Typ Max Unit - 3.5 - pF independent pins Yn - 5 - pF common pins Z - 25 - pF VCC = 2.0 V 1.5 - - V VCC = 4.5 V 3.15 - - V VCC = 6.0 V 4.2 - - V VCC = 9.0 V 6.3 - - V VCC = 2.0 V - - 0.5 V VCC = 4.5 V - - 1.35 V VCC = 6.0 V - - 1.8 V VCC = 9.0 V - - 2.7 V VCC = 6.0 V - - ±1.0 μA VCC = 10.0 V - - ±2.0 μA per channel - - ±1.0 μA all channels - - ±4.0 μA - - ±4.0 μA VCC = 6.0 V - - 80.0 μA VCC = 10.0 V - - 160.0 μA VCC = 2.0 V 1.5 - - V VCC = 4.5 V 3.15 - - V VCC = 6.0 V 4.2 - - V VCC = 9.0 V 6.3 - - V VCC = 2.0 V - - 0.5 V VCC = 4.5 V - - 1.35 V VCC = 6.0 V - - 1.8 V VCC = 9.0 V - - 2.7 V Tamb = -40 °C to +85 °C VIH VIL II IS(OFF) HIGH-level input voltage LOW-level input voltage input leakage current OFF-state leakage current VEE = 0 V; VI = VCC or GND VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 11 IS(ON) ON-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 12 ICC supply current VEE = 0 V; VI = VCC or GND; Vis = VEE or VCC; Vos = VCC or VEE Tamb = -40 °C to +125 °C VIH VIL HIGH-level input voltage LOW-level input voltage 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 10 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Symbol Parameter Conditions II VEE = 0 V; VI = VCC or GND IS(OFF) input leakage current OFF-state leakage current Min Typ Max Unit VCC = 6.0 V - - ±1.0 μA VCC = 10.0 V - - ±2.0 μA per channel - - ±1.0 μA all channels - - ±4.0 μA - - ±4.0 μA VCC = 6.0 V - - 160.0 μA VCC = 10.0 V - - 320.0 μA Conditions Min Typ Max Unit VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 11 IS(ON) ON-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 12 ICC supply current VEE = 0 V; VI = VCC or GND; Vis = VEE or VCC; Vos = VCC or VEE Table 8. Static characteristics for 74HCT4051 Voltages are referenced to GND (ground = 0 V). Vis is the input voltage at pins Yn or Z, whichever is assigned as an input. Vos is the output voltage at pins Z or Yn, whichever is assigned as an output. Symbol Parameter Tamb = 25 °C VIH HIGH-level input voltage VCC = 4.5 V to 5.5 V 2.0 1.6 - V VIL LOW-level input voltage VCC = 4.5 V to 5.5 V - 1.2 0.8 V II input leakage current VI = VCC or GND; VCC = 5.5 V; VEE = 0 V - - ±0.1 μA IS(OFF) OFF-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 11 per channel - - ±0.1 μA all channels - - ±0.4 μA - - ±0.4 μA VCC = 5.5 V; VEE = 0 V - - 8.0 μA VCC = 5.0 V; VEE = -5.0 V - - 16.0 μA per input; VI = VCC - 2.1 V; other inputs at VCC or GND; VCC = 4.5 V to 5.5 V; VEE = 0 V - 50 180 μA - 3.5 - pF IS(ON) ON-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 12 ICC supply current VI = VCC or GND; Vis = VEE or VCC; Vos = VCC or VEE ΔICC additional supply current CI input capacitance Csw switch capacitance 74HC_HCT4051 Product data sheet independent pins Yn - 5 - pF common pins Z - 25 - pF All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 11 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Symbol Parameter Conditions Min Typ Max Unit Tamb = -40 °C to +85 °C VIH HIGH-level input voltage VCC = 4.5 V to 5.5 V 2.0 - - V VIL LOW-level input voltage VCC = 4.5 V to 5.5 V - - 0.8 V II input leakage current VI = VCC or GND; VCC = 5.5 V; VEE = 0 V - - ±1.0 μA IS(OFF) OFF-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 11 per channel - - ±1.0 μA all channels - - ±4.0 μA - - ±4.0 μA VCC = 5.5 V; VEE = 0 V - - 80.0 μA VCC = 5.0 V; VEE = -5.0 V - - 160.0 μA per input; VI = VCC - 2.1 V; other inputs at VCC or GND; VCC = 4.5 V to 5.5 V; VEE = 0 V - - 225 μA IS(ON) ON-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 12 ICC supply current VI = VCC or GND; Vis = VEE or VCC; Vos = VCC or VEE ΔICC additional supply current Tamb = -40 °C to +125 °C VIH HIGH-level input voltage VCC = 4.5 V to 5.5 V 2.0 - - V VIL LOW-level input voltage VCC = 4.5 V to 5.5 V - - 0.8 V II input leakage current VI = VCC or GND; VCC = 5.5 V; VEE = 0 V - - ±1.0 μA IS(OFF) OFF-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 11 per channel - - ±1.0 μA all channels - - ±4.0 μA - - ±4.0 μA VCC = 5.5 V; VEE = 0 V - - 160.0 μA VCC = 5.0 V; VEE = -5.0 V - - 320.0 μA per input; VI = VCC - 2.1 V; other inputs at VCC or GND; VCC = 4.5 V to 5.5 V; VEE = 0 V - - 245 μA IS(ON) ON-state leakage current VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; |VSW| = VCC - VEE; see Fig. 12 ICC supply current VI = VCC or GND; Vis = VEE or VCC; Vos = VCC or VEE ΔICC additional supply current from select input VCC Sn Isw A nYn Vis nZ GND Isw A VEE Vos 001aah827 Vis = VCC and Vos = VEE. Vis = VEE and Vos = VCC. Fig. 11. Test circuit for measuring OFF-state current 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 12 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer HIGH from select input VCC Sn Isw A nYn Vis nZ GND Vos VEE 001aah828 Vis = VCC and Vos = open-circuit. Vis = VEE and Vos = open-circuit. Fig. 12. Test circuit for measuring ON-state current 11. Dynamic characteristics Table 9. Dynamic characteristics for 74HC4051 GND = 0 V; tr = tf = 6 ns; CL = 50 pF; for test circuit see Fig. 15. Vis is the input voltage at a Yn or Z terminal, whichever is assigned as an input. Vos is the output voltage at a Yn or Z terminal, whichever is assigned as an output. Symbol Parameter Conditions Min Typ Max Unit VCC = 2.0 V; VEE = 0 V - 14 60 ns VCC = 4.5 V; VEE = 0 V - 5 12 ns VCC = 6.0 V; VEE = 0 V - 4 10 ns VCC = 4.5 V; VEE = -4.5 V - 4 8 ns VCC = 2.0 V; VEE = 0 V - 72 345 ns VCC = 4.5 V; VEE = 0 V - 29 69 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 22 - ns VCC = 6.0 V; VEE = 0 V - 21 59 ns - 18 51 ns VCC = 2.0 V; VEE = 0 V - 66 345 ns VCC = 4.5 V; VEE = 0 V - 28 69 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 20 - ns VCC = 6.0 V; VEE = 0 V - 19 59 ns VCC = 4.5 V; VEE = -4.5 V - 16 51 ns Tamb = 25 °C tpd ton propagation delay Vis to Vos; RL = ∞ Ω; see Fig. 13 turn-on time E to Vos; RL = ∞ Ω; see Fig. 14 [1] [2] VCC = 4.5 V; VEE = -4.5 V Sn to Vos; RL = ∞ Ω; see Fig. 14 74HC_HCT4051 Product data sheet [2] All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 13 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Symbol Parameter Conditions Min Typ Max Unit toff turn-off time E to Vos; RL = 1 kΩ; see Fig. 14 VCC = 2.0 V; VEE = 0 V - 58 290 ns VCC = 4.5 V; VEE = 0 V - 31 58 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 18 - ns VCC = 6.0 V; VEE = 0 V - 17 49 ns VCC = 4.5 V; VEE = -4.5 V - 18 42 ns VCC = 2.0 V; VEE = 0 V - 61 290 ns VCC = 4.5 V; VEE = 0 V - 25 58 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 19 - ns VCC = 6.0 V; VEE = 0 V - 18 49 ns VCC = 4.5 V; VEE = -4.5 V - 18 42 ns - 25 - pF VCC = 2.0 V; VEE = 0 V - - 75 ns VCC = 4.5 V; VEE = 0 V - - 15 ns VCC = 6.0 V; VEE = 0 V - - 13 ns VCC = 4.5 V; VEE = -4.5 V - - 10 ns VCC = 2.0 V; VEE = 0 V - - 430 ns VCC = 4.5 V; VEE = 0 V - - 86 ns VCC = 6.0 V; VEE = 0 V - - 73 ns VCC = 4.5 V; VEE = -4.5 V - - 64 ns VCC = 2.0 V; VEE = 0 V - - 430 ns VCC = 4.5 V; VEE = 0 V - - 86 ns VCC = 6.0 V; VEE = 0 V - - 73 ns VCC = 4.5 V; VEE = -4.5 V - - 64 ns VCC = 2.0 V; VEE = 0 V - - 365 ns VCC = 4.5 V; VEE = 0 V - - 73 ns VCC = 6.0 V; VEE = 0 V - - 62 ns VCC = 4.5 V; VEE = -4.5 V - - 53 ns VCC = 2.0 V; VEE = 0 V - - 365 ns VCC = 4.5 V; VEE = 0 V - - 73 ns VCC = 6.0 V; VEE = 0 V - - 62 ns VCC = 4.5 V; VEE = -4.5 V - - 53 ns Sn to Vos; RL = 1 kΩ; see Fig. 14 CPD power dissipation per switch; VI = GND to VCC capacitance [3] [3] [4] Tamb = -40 °C to +85 °C tpd ton propagation delay Vis to Vos; RL = ∞ Ω; see Fig. 13 turn-on time E to Vos; RL = ∞ Ω; see Fig. 14 Sn to Vos; RL = ∞ Ω; see Fig. 14 toff turn-off time E to Vos; RL = 1 kΩ; see Fig. 14 Sn to Vos; RL = 1 kΩ; see Fig. 14 74HC_HCT4051 Product data sheet [1] [2] [2] [3] [3] All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 14 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Symbol Parameter Conditions Min Typ Max Unit VCC = 2.0 V; VEE = 0 V - - 90 ns VCC = 4.5 V; VEE = 0 V - - 18 ns VCC = 6.0 V; VEE = 0 V - - 15 ns VCC = 4.5 V; VEE = -4.5 V - - 12 ns VCC = 2.0 V; VEE = 0 V - - 520 ns VCC = 4.5 V; VEE = 0 V - - 104 ns VCC = 6.0 V; VEE = 0 V - - 88 ns VCC = 4.5 V; VEE = -4.5 V - - 77 ns VCC = 2.0 V; VEE = 0 V - - 520 ns VCC = 4.5 V; VEE = 0 V - - 104 ns VCC = 6.0 V; VEE = 0 V - - 88 ns VCC = 4.5 V; VEE = -4.5 V - - 77 ns VCC = 2.0 V; VEE = 0 V - - 435 ns VCC = 4.5 V; VEE = 0 V - - 87 ns VCC = 6.0 V; VEE = 0 V - - 74 ns VCC = 4.5 V; VEE = -4.5 V - - 72 ns VCC = 2.0 V; VEE = 0 V - - 435 ns VCC = 4.5 V; VEE = 0 V - - 87 ns VCC = 6.0 V; VEE = 0 V - - 74 ns VCC = 4.5 V; VEE = -4.5 V - - 72 ns Tamb = -40 °C to +125 °C propagation delay Vis to Vos; RL = ∞ Ω; see Fig. 13 tpd ton turn-on time E to Vos; RL = ∞ Ω; see Fig. 14 Sn to Vos; RL = ∞ Ω; see Fig. 14 toff turn-off time E to Vos; RL = 1 kΩ; see Fig. 14 Sn to Vos; RL = 1 kΩ; see Fig. 14 [1] [2] [3] [4] [1] [2] [2] [3] [3] tpd is the same as tPHL and tPLH. ton is the same as tPZH and tPZL. toff is the same as tPHZ and tPLZ. CPD is used to determine the dynamic power dissipation (PD in μW). 2 2 PD = CPD x VCC x fi x N + Σ{(CL + Csw) x VCC x fo} where: fi = input frequency in MHz; fo = output frequency in MHz; N = number of inputs switching; 2 Σ{(CL + Csw) x VCC x fo} = sum of outputs; CL = output load capacitance in pF; Csw = switch capacitance in pF; VCC = supply voltage in V. 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 15 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Table 10. Dynamic characteristics for 74HCT4051 GND = 0 V; tr = tf = 6 ns; CL = 50 pF; for test circuit see Fig. 15. Vis is the input voltage at a Yn or Z terminal, whichever is assigned as an input. Vos is the output voltage at a Yn or Z terminal, whichever is assigned as an output. Symbol Parameter Conditions Min Typ Max Unit VCC = 4.5 V; VEE = 0 V - 5 12 ns VCC = 4.5 V; VEE = -4.5 V - 4 8 ns VCC = 4.5 V; VEE = 0 V - 26 55 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 22 - ns - 16 39 ns VCC = 4.5 V; VEE = 0 V - 28 55 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 24 - ns VCC = 4.5 V; VEE = -4.5 V - 16 39 ns VCC = 4.5 V; VEE = 0 V - 19 45 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 16 - ns VCC = 4.5 V; VEE = -4.5 V - 16 32 ns VCC = 4.5 V; VEE = 0 V - 23 45 ns VCC = 5.0 V; VEE = 0 V; CL = 15 pF - 20 - ns VCC = 4.5 V; VEE = -4.5 V - 16 32 ns - 25 - pF VCC = 4.5 V; VEE = 0 V - - 15 ns VCC = 4.5 V; VEE = -4.5 V - - 10 ns VCC = 4.5 V; VEE = 0 V - - 69 ns VCC = 4.5 V; VEE = -4.5 V - - 49 ns - - 69 ns - - 49 ns VCC = 4.5 V; VEE = 0 V - - 56 ns VCC = 4.5 V; VEE = -4.5 V - - 40 ns VCC = 4.5 V; VEE = 0 V - - 56 ns VCC = 4.5 V; VEE = -4.5 V - - 40 ns Tamb = 25 °C tpd ton propagation delay turn-on time Vis to Vos; RL = ∞ Ω; see Fig. 13 E to Vos; RL = 1 kΩ; see Fig. 14 [1] [2] VCC = 4.5 V; VEE = -4.5 V Sn to Vos; RL = 1 kΩ; see Fig. 14 toff turn-off time E to Vos; RL = 1 kΩ; see Fig. 14 Sn to Vos; RL = 1 kΩ; see Fig. 14 CPD power dissipation capacitance [2] [3] [3] per switch; VI = GND to VCC - 1.5 V [4] Vis to Vos; RL = ∞ Ω; see Fig. 13 [1] Tamb = -40 °C to +85 °C tpd ton propagation delay turn-on time E to Vos; RL = 1 kΩ; see Fig. 14 Sn to Vos; RL = 1 kΩ; see Fig. 14 [2] [2] VCC = 4.5 V; VEE = 0 V VCC = 4.5 V; VEE = -4.5 V toff turn-off time E to Vos; RL = 1 kΩ; see Fig. 14 Sn to Vos; RL = 1 kΩ; see Fig. 14 74HC_HCT4051 Product data sheet [3] [3] All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 16 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Symbol Parameter Conditions Min Typ Max Unit VCC = 4.5 V; VEE = 0 V - - 18 ns VCC = 4.5 V; VEE = -4.5 V - - 12 ns VCC = 4.5 V; VEE = 0 V - - 83 ns VCC = 4.5 V; VEE = -4.5 V - - 59 ns VCC = 4.5 V; VEE = 0 V - - 83 ns VCC = 4.5 V; VEE = -4.5 V - - 59 ns - - 68 ns - - 48 ns VCC = 4.5 V; VEE = 0 V - - 68 ns VCC = 4.5 V; VEE = -4.5 V - - 48 ns Tamb = -40 °C to +125 °C tpd propagation delay ton turn-on time Vis to Vos; RL = ∞ Ω; see Fig. 13 E to Vos; RL = 1 kΩ; see Fig. 14 Sn to Vos; RL = 1 kΩ; see Fig. 14 toff turn-off time E to Vos; RL = 1 kΩ; see Fig. 14 [1] [2] [2] [3] VCC = 4.5 V; VEE = 0 V VCC = 4.5 V; VEE = -4.5 V Sn to Vos; RL = 1 kΩ; see Fig. 14 [1] [2] [3] [4] [3] tpd is the same as tPHL and tPLH. ton is the same as tPZH and tPZL. toff is the same as tPHZ and tPLZ. CPD is used to determine the dynamic power dissipation (PD in μW). 2 2 PD = CPD x VCC x fi x N + Σ{(CL + Csw) x VCC x fo} where: fi = input frequency in MHz; fo = output frequency in MHz; N = number of inputs switching; 2 Σ{(CL + Csw) x VCC x fo} = sum of outputs; CL = output load capacitance in pF; Csw = switch capacitance in pF; VCC = supply voltage in V. Vis input 50 % tPLH tPHL 50 % Vos output 001aad555 Fig. 13. Input (Vis) to output (Vos) propagation delays 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 17 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer VI VM E, Sn inputs 0V tPLZ tPZL 50 % Vos output 10 % tPHZ tPZH 90 % 50 % Vos output switch ON switch ON switch OFF 001aad556 For 74HC4051: VM = 0.5 x VCC. For 74HCT4051: VM = 1.3 V. Fig. 14. Turn-on and turn-off times VI negative pulse tW 90 % VM 0V VI positive pulse 0V VM 10 % tf tr tr tf 90 % VM VM 10 % tW VCC Vis PULSE GENERATOR VI VCC Vos RL DUT RT S1 open CL GND VEE 001aae382 Definitions for test circuit; see Table 11: RT = termination resistance should be equal to the output impedance Zo of the pulse generator. CL = load capacitance including jig and probe capacitance. RL = load resistance. S1 = Test selection switch. Fig. 15. Test circuit for measuring switching times 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 18 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Table 11. Test data Test Input Load VI [1] Vis at fmax other [2] tPHL, tPLH VCC pulse < 2 ns tPZH, tPHZ VCC VCC tPZL, tPLZ VCC VEE [1] [2] tr, tf S1 position CL RL 6 ns 50 pF 1 kΩ open < 2 ns 6 ns 50 pF 1 kΩ VEE < 2 ns 6 ns 50 pF 1 kΩ VCC For 74HCT4051: VI = 3 V tr = tf = 6 ns; when measuring fmax, there is no constraint to tr and tf with 50 % duty factor. 11.1. Additional dynamic characteristics Table 12. Additional dynamic characteristics Recommended conditions and typical values; GND = 0 V; Tamb = 25 °C; CL = 50 pF. Vis is the input voltage at pins nYn or nZ, whichever is assigned as an input. Vos is the output voltage at pins nYn or nZ, whichever is assigned as an output. Symbol Parameter Conditions dsin fi = 1 kHz; RL = 10 kΩ; see Fig. 16 sine-wave distortion Min Typ Max Unit Vis = 4.0 V (p-p); VCC = 2.25 V; VEE = -2.25 V - 0.04 - % Vis = 8.0 V (p-p); VCC = 4.5 V; VEE = -4.5 V - 0.02 - % Vis = 4.0 V (p-p); VCC = 2.25 V; VEE = -2.25 V - 0.12 - % Vis = 8.0 V (p-p); VCC = 4.5 V; VEE = -4.5 V - 0.06 - % fi = 10 kHz; RL = 10 kΩ; see Fig. 16 αiso isolation (OFF-state) Vct crosstalk voltage f(-3dB) [1] [2] -3 dB frequency response RL = 600 Ω; fi = 1 MHz; see Fig. 17 VCC = 2.25 V; VEE = -2.25 V [1] - -50 - dB VCC = 4.5 V; VEE = -4.5 V [1] - -50 - dB VCC = 4.5 V; VEE = 0 V - 110 - mV VCC = 4.5 V; VEE = -4.5 V - 220 - mV peak-to-peak value; between control and any switch; RL = 600 Ω; fi = 1 MHz; E or Sn square wave between VCC and GND; tr = tf = 6 ns; see Fig. 18 RL = 50 Ω; see Fig. 19 VCC = 2.25 V; VEE = -2.25 V [2] - 170 - MHz VCC = 4.5 V; VEE = -4.5 V [2] - 180 - MHz Adjust input voltage Vis to 0 dBm level (0 dBm = 1 mW into 600 Ω). Adjust input voltage Vis to 0 dBm level at Vos for 1 MHz (0 dBm = 1 mW into 50 Ω). VCC Sn Vis 10 µF Yn/Z Z/Yn VEE GND Vos RL CL dB 001aan385 Fig. 16. Test circuit for measuring sine-wave distortion 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 19 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer VCC Sn 0.1 µF Vis Yn/Z Z/Yn VEE GND Vos RL CL dB 001aan386 VCC = 4.5 V; GND = 0 V; VEE = -4.5 V; RL = 600 Ω; RS = 1 kΩ. a. Test circuit 001aae332 0 α iso (dB) - 20 - 40 - 60 - 80 - 100 102 10 103 104 105 fi (kHz) 106 b. Isolation (OFF-state) as a function of frequency Fig. 17. Test circuit for measuring isolation (OFF-state) 2RL Sn, E Vct Yn G 2RL 2RL VCC Z VEE GND 2RL oscilloscope 001aan387 Fig. 18. Test circuit for measuring crosstalk between control input and any switch 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 20 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer VCC Sn Vis 10 µF Yn/Z Z/Yn VEE GND Vos RL CL dB 001aan385 VCC = 4.5 V; GND = 0 V; VEE = -4.5 V; RL = 50 Ω; RS = 1 kΩ. a. Test circuit 001aad551 5 Vos (dB) 3 1 -1 -3 -5 10 102 103 104 105 f (kHz) 106 b. Typical frequency response Fig. 19. Test circuit for frequency response 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 21 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 12. Package outline SO16: plastic small outline package; 16 leads; body width 3.9 mm SOT109-1 D E A X c y HE v M A Z 16 9 Q A2 A (A 3) A1 pin 1 index θ Lp 1 L 8 e w M bp 0 2.5 detail X 5 mm scale DIMENSIONS (inch dimensions are derived from the original mm dimensions) UNIT A max. A1 A2 A3 bp c D (1) E (1) e HE L Lp Q v w y Z (1) mm 1.75 0.25 0.10 1.45 1.25 0.25 0.49 0.36 0.25 0.19 10.0 9.8 4.0 3.8 1.27 6.2 5.8 1.05 1.0 0.4 0.7 0.6 0.25 0.25 0.1 0.7 0.3 inches 0.069 0.010 0.057 0.004 0.049 0.01 0.019 0.0100 0.39 0.014 0.0075 0.38 0.16 0.15 0.05 0.039 0.016 0.028 0.020 0.01 0.01 0.004 0.028 0.012 0.244 0.041 0.228 θ o 8 o 0 Note 1. Plastic or metal protrusions of 0.15 mm (0.006 inch) maximum per side are not included. REFERENCES OUTLINE VERSION IEC JEDEC SOT109-1 076E07 MS-012 JEITA EUROPEAN PROJECTION ISSUE DATE 99-12-27 03-02-19 Fig. 20. Package outline SOT109-1 (SO16) 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 22 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer TSSOP16: plastic thin shrink small outline package; 16 leads; body width 4.4 mm D SOT403-1 E A X c y HE v M A Z 9 16 Q A2 pin 1 index (A 3 ) A1 A θ Lp 1 L 8 detail X w M bp e 0 2.5 5 mm scale DIMENSIONS (mm are the original dimensions) UNIT A max. A1 A2 A3 bp c D (1) E (2) e HE L Lp Q v w y Z (1) θ mm 1.1 0.15 0.05 0.95 0.80 0.25 0.30 0.19 0.2 0.1 5.1 4.9 4.5 4.3 0.65 6.6 6.2 1 0.75 0.50 0.4 0.3 0.2 0.13 0.1 0.40 0.06 8o 0o Notes 1. Plastic or metal protrusions of 0.15 mm maximum per side are not included. 2. Plastic interlead protrusions of 0.25 mm maximum per side are not included. OUTLINE VERSION SOT403-1 REFERENCES IEC JEDEC JEITA EUROPEAN PROJECTION ISSUE DATE 99-12-27 03-02-18 MO-153 Fig. 21. Package outline SOT403-1 (TSSOP16) 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 23 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer DHVQFN16: plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads; SOT763-1 16 terminals; body 2.5 x 3.5 x 0.85 mm B D A A E A1 c detail X terminal 1 index area terminal 1 index area C e1 e b 2 7 y y1 C v M C A B w M C L 1 8 Eh e 16 9 15 10 Dh X 0 2.5 5 mm scale DIMENSIONS (mm are the original dimensions) UNIT A(1) max. A1 b c D (1) Dh E (1) Eh e e1 L v w y y1 mm 1 0.05 0.00 0.30 0.18 0.2 3.6 3.4 2.15 1.85 2.6 2.4 1.15 0.85 0.5 2.5 0.5 0.3 0.1 0.05 0.05 0.1 Note 1. Plastic or metal protrusions of 0.075 mm maximum per side are not included. REFERENCES OUTLINE VERSION IEC JEDEC JEITA SOT763-1 --- MO-241 --- EUROPEAN PROJECTION ISSUE DATE 02-10-17 03-01-27 Fig. 22. Package outline SOT763-1 (DHVQFN16) 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 24 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 13. Abbreviations Table 13. Abbreviations Acronym Description CDM Charged Device Model DUT Device Under Test ESD ElectroStatic Discharge HBM Human Body Model MM Machine Model 14. Revision history Table 14. Revision history Document ID Release date Data sheet status Change notice Supersedes 74HC_HCT4051 v.10 20210908 Product data sheet - Modifications: • • • 74HC_HCT4051 v.9 20170926 Modifications: • • Type numbers 74HC4051DB and 74HCT4051DB (SOT338-1/SSOP16) removed. Section 2 updated. Section 8: Derating values for Ptot total power dissipation have been updated. 20160205 Modifications: • 74HC_HCT4051 v.7 20120719 Modifications: • 74HC_HCT4051 v.6 20111213 Modifications: • 74HC_HCT4051 v.5 20110513 74HC_HCT4051 v.4 74HC_HCT4051 v.3 Product data sheet Product data sheet - 74HC_HCT4051 v.8 The format of this data sheet has been redesigned to comply with the identity guidelines of Nexperia. Legal texts have been adapted to the new company name where appropriate. 74HC_HCT4051 v.8 74HC_HCT4051 74HC_HCT4051 v.9 Product data sheet - 74HC_HCT4051 v.7 Type numbers 74HC4051N and 74HCT4051N (SOT38-4) removed. Product data sheet - 74HC_HCT4051 v.6 - 74HC_HCT4051 v.5 Product data sheet - 74HC_HCT4051 v.4 20110117 Product data sheet - 74HC_HCT4051 v.3 20051219 Product specification - 74HC_HCT4051_CNV_2 CDM added to features. Product data sheet Legal pages updated. All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 25 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 15. Legal information injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Data sheet status Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Document status [1][2] Product status [3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the internet at https://www.nexperia.com. Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal 74HC_HCT4051 Product data sheet Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Non-automotive qualified products — Unless this data sheet expressly states that this specific Nexperia product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Nexperia accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Nexperia’s warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Nexperia’s specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Nexperia for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Nexperia’s standard warranty and Nexperia’s product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 26 / 27 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer Contents 1. General description...................................................... 1 2. Features and benefits.................................................. 1 3. Applications.................................................................. 1 4. Ordering information....................................................2 5. Functional diagram.......................................................2 6. Pinning information......................................................4 6.1. Pinning.........................................................................4 6.2. Pin description............................................................. 4 7. Function description.................................................... 5 8. Limiting values............................................................. 5 9. Recommended operating conditions..........................6 10. Static characteristics..................................................7 11. Dynamic characteristics...........................................13 11.1. Additional dynamic characteristics........................... 19 12. Package outline........................................................ 22 13. Abbreviations............................................................ 25 14. Revision history........................................................25 15. Legal information......................................................26 © Nexperia B.V. 2021. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 8 September 2021 74HC_HCT4051 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 10 — 8 September 2021 © Nexperia B.V. 2021. All rights reserved 27 / 27
