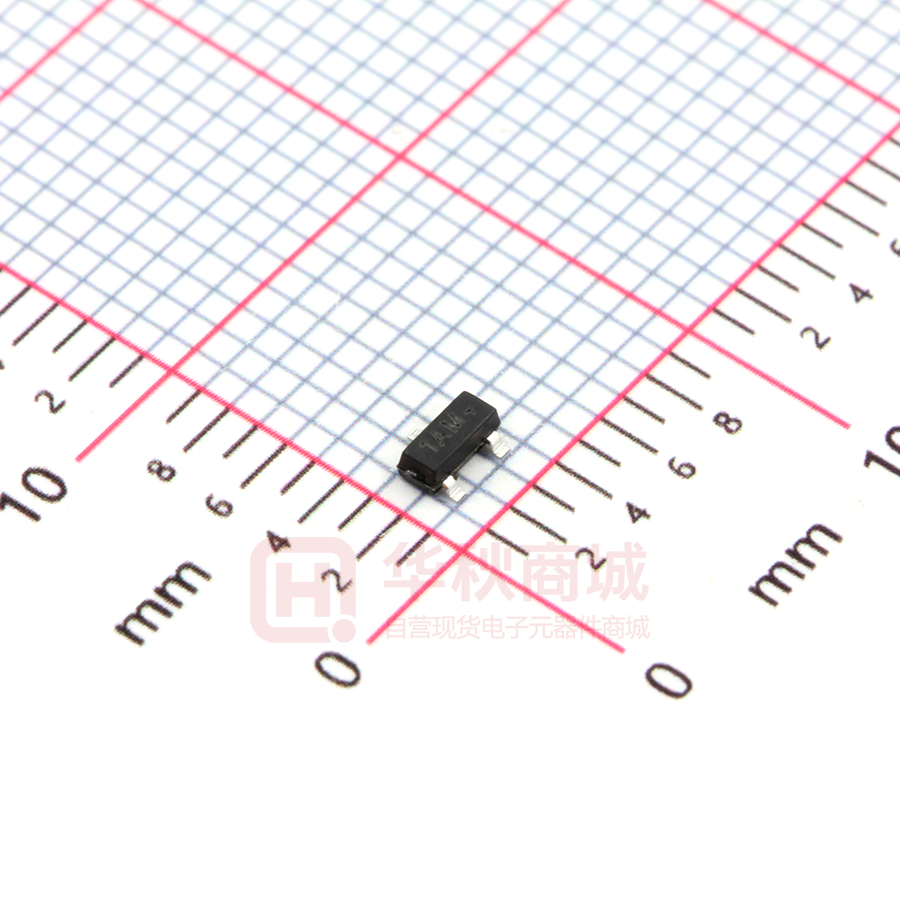

MMBT3904

MMBT3904 BIPOLAR TRANSISTOR (NPN) FEATURES  Complementary to MMBT3906  Surface Mount device MECHANICAL DATA      SOT-23 Case: SOT-23 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Weight: 0.008 grams (approximate) MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Symbol VCBO VCEO VEBO IC PC RθJA TJ Value 60 40 6 200 200 625 150 Unit V V V mA mW °C/W °C TSTG -55 ~+150 °C Storage Temperature ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol Min Typ Max Unit Conditions V(BR)CBO Collector-base breakdown voltage IC=10uA，IE=0 60 V Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation voltage Base-emitter saturation voltage Transition frequency Delay time Rise time Storage time Fall time ICBO 0.1 V V uA ICEX 0.05 uA VCE=30V, VBE(OFF)=3V 0.1 300 uA 0.3 0.95 35 35 200 V V MHz ns ns ns VEB=5V, IC=0 VCE=1V, IC=10mA VCE=1V, IC=50mA VCE=1V, IC=100mA IC=50mA，IB=5mA 50 ns V(BR)CEO V(BR)EBO IEBO hFE1 hFE2 hFE3 VCE(sat) VBE(sat) fT td tr tS 40 6 100 60 30 300 tf CLASSIFICATION OF hFE Rank Range Marking ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD L 100-200 IC=1mA，IB=0 IE=10uA，IC=0 VCB=60V, IE=0 IC=50mA，IB=5mA VCE=20V, IC=10mA,f=100MHz VCC=3V, VBE(OFF)=0.5V, IC=10mA，IB1=1mA VCC=3V, IC=10mA IB1=IB2=1mA H 200-300 1AM E-mail:hkt@heketai.com 1/4 MMBT3904 BIPOLAR TRANSISTOR (NPN) Typical Characteristics ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 2/4 MMBT3904 BIPOLAR TRANSISTOR (NPN) SOT-23 Package Outline Dimensions Symbol Dimensions In Millimeters Dimensions In Inches Min. Max. Min. Max. A 0.900 1.150 0.035 0.045 A1 0.000 0.100 0.000 0.004 A2 0.900 1.050 0.035 0.041 b 0.300 0.500 0.012 0.020 c 0.080 0.150 0.003 0.006 D 2.800 3.000 0.110 0.118 E 1.200 1.400 0.047 0.055 E1 2.250 2.550 0.089 0.100 e e1 0.950 TYP 1.800 L 0.037 TYP 2.000 0.071 0.550 RE F 0.079 0.022 REF L1 0.300 0.500 0.012 0.020 θ 0° 8° 0° 8° SOT-23 Suggested Pad Layout Note: 1.Controlling dimension: in millimeters 2.General tolerance: ±0.05mm 3.The pad layout is for reference purposes only ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/4 MMBT3904 BIPOLAR TRANSISTOR (NPN) SOT-23 Tape and Reel SOT-23 Embossed Carrier Tape DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 SOT-23 Tape Leader and Trailer SOT-23 Reel DIMENSIONS ARE IN MILLIMETER REEL OPTION 7’’ DIA TOLERANCE D D1 D2 G H I W1 W2 Ø178 54.40 13.00 R78 R25.60 R6.50 9.50 12.30 ±2 ±1 ±1 ±1 ±1 ±1 ±1 ±1 ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 4/4
