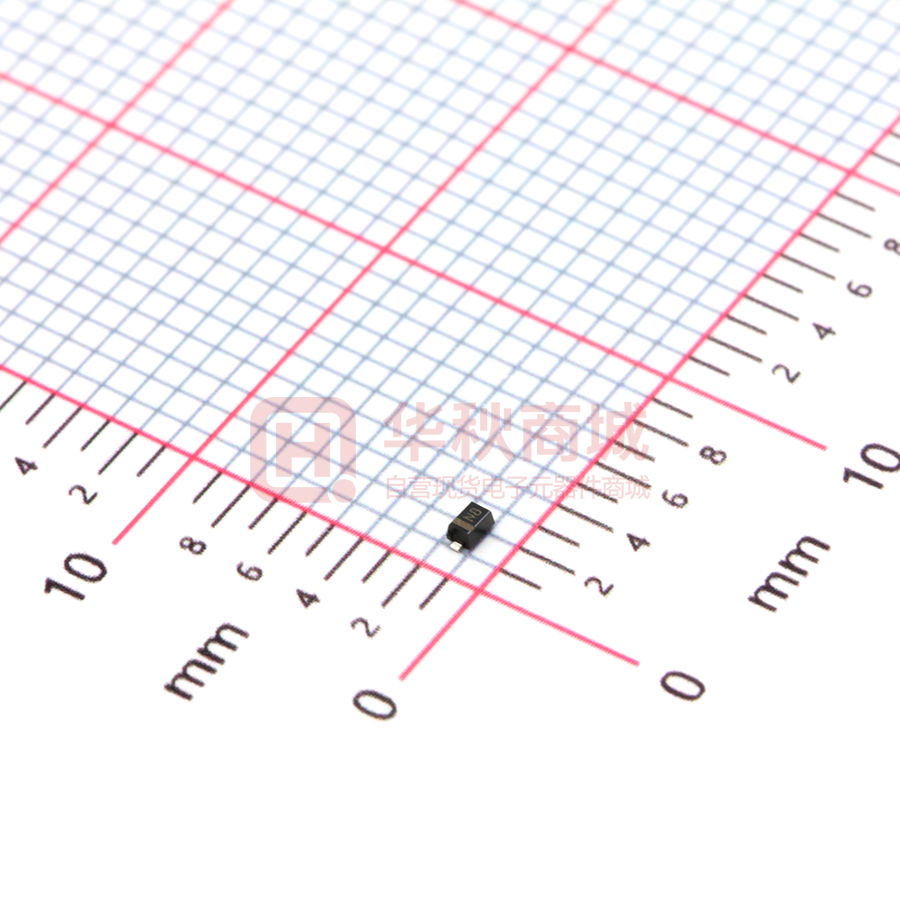

PESD5Z3.3,115

PESD5Z3.3 Low capacitance unidirectional ESD protection diodes 6 April 2021 Product data sheet 1. General description Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. 2. Features and benefits • • • • • • • ESD protection of one line Low diode capacitance Max. peak pulse power: PPPM = 260 W Low clamping voltage: VCL = 8 V Low leakage current: IRM = 8 nA ESD protection up to 30 kV (IEC 61000-4-2) IEC 61000-4-5 (surge); IPPM = 20 A 3. Application information • • • • • • • • Computers and peripherals Audio and video equipment Cellular handsets and accessories 10/100/1000 Mbit/s Ethernet Communication systems Portable electronics SIM card protection High-speed data lines 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VRWM reverse standoff voltage Tamb = 25 °C - - 3.3 V IPPM rated peak pulse current tp = 8/20 µs [1] [2] - - 20 A VCL clamping voltage IPP = 20 A; Tamb = 25 °C [1] [2] - - 18 V [1] [2] Non-repetitive current pulse 8/20 μs exponentially decaying waveform according to IEC 61000-4-5. Measured from pin 1 to pin 2. PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes 5. Pinning information Table 2. Pinning information Pin Symbol Description 1 K cathode 2 A anode Simplified outline 1 Graphic symbol 2 A K 006aaa152 SC-79 (SOD523) 6. Ordering information Table 3. Ordering information Type number Package PESD5Z3.3 Name Description Version SC-79 plastic, surface-mounted package; 2 leads; 1.2 mm x 0.8 mm x 0.6 mm body SOD523 7. Marking Table 4. Marking codes Type number Marking code PESD5Z3.3 N8 PESD5Z3_3 Product data sheet All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 2 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit PPPM rated peak pulse power tp = 8/20 µs [1] [2] - 260 W IPPM rated peak pulse current [1] [2] - 20 A Tj Tamb junction temperature - 150 °C ambient temperature -65 150 °C Tstg storage temperature -65 150 °C - 30 kV HBM MIL-STD 883 (human body model) - 10 kV machine model - 400 V ESD maximum ratings VESD [1] [2] [3] electrostatic discharge voltage IEC 61000-4-2 (contact discharge) [3] [2] Non-repetitive current pulse 8/20 μs exponentially decaying waveform according to IEC 61000-4-5. Measured from pin 1 to pin 2. Device stressed with ten non-repetitive ESD pulses. 001aaa630 120 IPP 100 % 100 % IPP; 8 µs IPP (%) 80 90 % e-t 50 % IPP; 20 µs 40 10 % 0 Fig. 1. 0 10 20 30 t (µs) 8/20 µs pulse waveform according to IEC 61000-4-5 PESD5Z3_3 Product data sheet t tr = 0.6 ns to 1 ns 40 30 ns 60 ns Fig. 2. ESD pulse waveform according to IEC 61000-4-2 All information provided in this document is subject to legal disclaimers. 6 April 2021 001aaa631 © Nexperia B.V. 2021. All rights reserved 3 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes 9. Characteristics Table 6. Characteristics Symbol Parameter Conditions Min Typ Max Unit VRWM reverse standoff voltage Tamb = 25 °C - - 3.3 V VBR breakdown voltage IR = 1 mA; Tamb = 25 °C 5 - - V IRM reverse leakage current VRWM = 3.3 V; Tamb = 25 °C - 8 50 nA Cd diode capacitance f = 1 MHz; VR = 0 V; Tamb = 25 °C - 172 200 pF VCL clamping voltage IPP = 5 A; Tamb = 25 °C [1] [2] - 8 10 V IPP = 20 A; Tamb = 25 °C [1] [2] - - 18 V - - 10 Ω rdif [1] [2] differential resistance IR = 5 mA; Tamb = 25 °C Non-repetitive current pulse 8/20 μs exponentially decaying waveform according to IEC 61000-4-5. Measured from pin 1 to pin 2. aaa-032451 104 001aaa193 1.2 PPP (W) PPP PPP(25°C) 103 0.8 102 0.4 10 1 1 102 10 103 tp (ms) 0 104 Tamb = 25 °C Fig. 3. Peak pulse power as a function of exponential pulse duration; typical values Fig. 4. aaa-032457 250 0 50 100 150 Tj (°C) 200 Relative variation of peak pulse power as a function of junction temperature; typical values aaa-032463 10 Cd (pF) 200 IR IR(25°C) 150 1 100 50 0 0 1 2 3 4 VR (V) 10-1 -100 5 f = 1 MHz; Tamb = 25 °C Fig. 5. Product data sheet 0 50 100 Tj (°C) 150 VRWM = 3.3 V Diode capacitance as a function of reverse voltage; typical values PESD5Z3_3 -50 Fig. 6. Relative variation of reverse current as a function of junction temperature; typical values All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 4 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes I V -VCL -VBR -VRWM -IRM -IR - + P-N -IPP 006aaa407 Fig. 7. V-I characteristics for a unidirectional ESD protection diode ESD TESTER 4 GHz DIGITAL OSCILLOSCOPE RG 223/U 50 Ω coax Rd 40 dB ATTENUATOR Cs 50 Ω DUT (DEVICE UNDER TEST) IEC 61000-4-2 ed.2 Cs = 150 pF; Rd = 330 Ω 10 2 V (kV) 8 V (kV) 0 6 -2 4 -4 2 -6 0 -8 -2 -10 0 10 20 30 40 50 t (ns) 60 70 unclamped +8 kV ESD pulse waveform (IEC 61000-4-2 network) -10 -10 0 10 20 30 40 50 t (ns) 60 70 unclamped -8 kV ESD pulse waveform (IEC 61000-4-2 network) aaa-003952 Fig. 8. ESD clamping test setup and waveforms PESD5Z3_3 Product data sheet All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 5 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes aaa-032468 VCL (V) 80 120 VCL (V) 80 40 40 0 0 -40 -40 -80 -80 120 -120 -100 Fig. 9. 0 100 200 300 400 500 t (ns) Clamped +8 kV ESD pulse waveform (IEC 61000-4-2 network) PESD5Z3_3 Product data sheet -120 -100 600 aaa-032469 0 100 200 300 400 500 t (ns) 600 Fig. 10. Clamped -8 kV ESD pulse waveform (IEC 61000-4-2 network) All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 6 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes 10. Application information The device is designed for the protection of one unidirectional data or signal line from the damage caused by ESD and surge pulses. The device may be used on lines where the signal polarities are either positive or negative with respect to ground. The device provides a surge capability of 260 W per line for an 8/20 μs waveform. line to be protected (positive signal polarity) line to be protected (negative signal polarity) PESD5Zx PESD5Zx ground ground unidirectional protection of one line 006aab071 Fig. 11. Unidirectional protection of one line Circuit board layout and protection device placement Circuit board layout is critical for the suppression of ESD, Electrical Fast Transient (EFT) and surge transients. The following guidelines are recommended: 1. 2. 3. 4. 5. 6. 7. 8. PESD5Z3_3 Product data sheet Place the device as close to the input terminal or connector as possible. The path length between the device and the protected line should be minimized. Keep parallel signal paths to a minimum. Avoid running protected conductors in parallel with unprotected conductors. Minimize all Printed-Circuit Board (PCB) conductive loops including power and ground loops. Minimize the length of the transient return path to ground. Avoid using shared transient return paths to a common ground point. Use ground planes whenever possible. For multilayer PCBs, use ground vias. All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 7 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes 11. Package outline Plastic surface-mounted package; 2 leads SOD523 A c v M A HE A D 1 E 0 0.5 1 mm scale 2 DIMENSIONS (mm are the original dimensions) bp (1) UNIT A bp c D E HE v mm 0.65 0.58 0.34 0.26 0.17 0.11 1.25 1.15 0.85 0.75 1.65 1.55 0.1 Note 1. The marking bar indicates the cathode. REFERENCES OUTLINE VERSION IEC JEDEC EUROPEAN PROJECTION JEITA SOD523 ISSUE DATE 02-12-13 06-03-16 SC-79 Fig. 12. Package outline SC-79 (SOD523) 12. Soldering 2.15 1.4 solder lands solder resist 0.5 0.6 (2×) (2×) 1.2 solder paste occupied area Dimensions in mm 0.4 (2×) 0.5 (2×) sod523_fr Fig. 13. Reflow soldering footprint for SC-79 (SOD523) PESD5Z3_3 Product data sheet All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 8 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes 13. Revision history Table 7. Revision history Data sheet ID Release date Data sheet status Change notice Supersedes PESD5Z3_3 v.3 20210406 Product data sheet - PESD5ZX_SER_2 Modifications: • • • • • The format of this data sheet has been redesigned to comply with the identity guidelines of Nexperia. Legal texts have been adapted to the new company name where appropriate. Family data sheet reduced to single type data sheet. Figure "ESD clamping test setup and waveforms" updated. Figure "Reflow soldering footprint for SOD523" updated. PESD5ZX_SER_2 20080404 Product data sheet - PESD5ZX_SER_1 PESD5ZX_SER_1 20070813 Product data sheet - - PESD5Z3_3 Product data sheet All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 9 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer's own risk. 14. Legal information Data sheet status Document status [1][2] Product status [3] Definition Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the internet at https://www.nexperia.com. Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use in automotive applications — This Nexperia product has been qualified for use in automotive applications. Unless otherwise agreed in writing, the product is not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or PESD5Z3_3 Product data sheet All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 10 / 11 PESD5Z3.3 Nexperia Low capacitance unidirectional ESD protection diodes Contents 1. General description...................................................... 1 2. Features and benefits.................................................. 1 3. Application information............................................... 1 4. Quick reference data....................................................1 5. Pinning information......................................................2 6. Ordering information....................................................2 7. Marking.......................................................................... 2 8. Limiting values............................................................. 3 9. Characteristics.............................................................. 4 10. Application information............................................. 7 11. Package outline.......................................................... 8 12. Soldering..................................................................... 8 13. Revision history..........................................................9 14. Legal information......................................................10 © Nexperia B.V. 2021. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 6 April 2021 PESD5Z3_3 Product data sheet All information provided in this document is subject to legal disclaimers. 6 April 2021 © Nexperia B.V. 2021. All rights reserved 11 / 11
