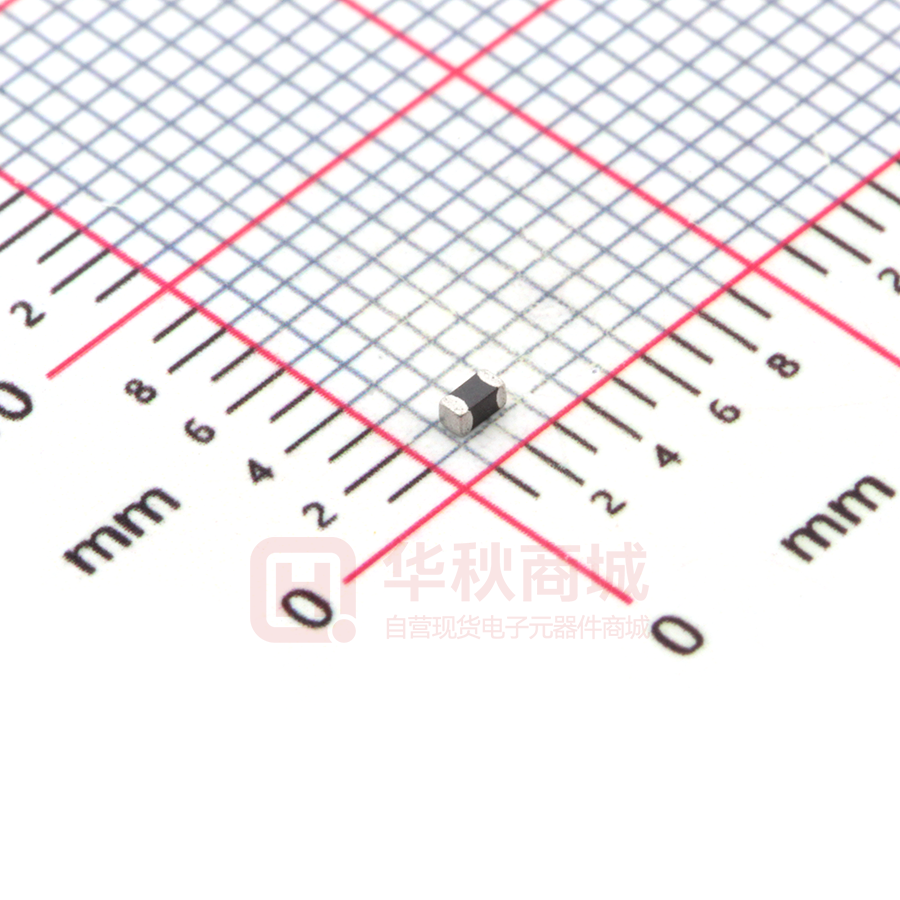

HCB1608KF-121T20

TAI-TECH High Current Ferrite Chip Bead(Lead Free) HCB1608-Series 1. Features 1. Monolithic inorganic material construction. Halogen 2. Closed magnetic circuit avoids crosstalk. 3. Suitable for reflow soldering. Halogen-free 4. Shapes and dimensions follow E.I.A. spec. 5. Available in various sizes. 6. Excellent solder ability and heat resistance. 7. High reliability. 8.100% Lead(Pb) & Halogen-Free and RoHS compliant. 9. Low DC resistance structure of electrode to prevent wasteful electric power consumption. 10. Operating Temperature:-55~+125℃(Including self-temperature rise) 2. Dimensions Chip Size A B C D 1.60±0.15 0.80±0.15 0.80±0.15 0.60±0.15 0.30±0.20 Units: mm 3. Part Numbering HCB 1608 KF A B C A: Series B: Dimension C: Material D: Impedance E: Packaging F: Rated Current - 121 T 20 D E F LxW Lead Free Material 121=120Ω T=Taping and Reel, B=Bulk(Bags) 20=2000mA 4. Specification Tai-Tech Part Number ● ● Thickness C size (mm) Impedance (Ω) Test Frequency (MHz) DC Resistance (Ω) max. Rated Current (mA) max. HCB1606ZF-260T60 0.60±0.15 26±25% 100 0.01 6000 HCB1608KF-300T30 0.80±0.15 30±25% 100 0.04 3000 HCB1608KF-800T30 0.80±0.15 80±25% 100 0.04 3000 HCB1608KF-121T20 0.80±0.15 120±25% 100 0.10 2000 HCB1608KF-151T20 0.80±0.15 150±25% 100 0.10 2000 HCB1608KF-221T20 0.80±0.15 220±25% 100 0.10 2000 HCB1608KF-301T10 0.80±0.15 300±25% 100 0.20 1000 HCB1608KF-471T10 0.80±0.15 470±25% 100 0.20 1000 HCB1608KF-601T10 0.80±0.15 600±25% 100 0.20 1000 Rated current: based on temperature rise test In compliance with EIA 595 www.tai-tech.com.tw Downloaded From Oneyac.com TAI-TECH Impedance Frequency Characteristics(Typical) HCB1608KF-800T30 HCB1608KF-300T30 HCB1606ZF-260T60 40 120 30 90 Z 20 X 60 Z 30 R 0 10 100 1000 10000 1 FREQUENCY(MHz) 250 250 200 Z 150 100 50 0 100 1 1000 R Z 100 300 Z 200 100 X X R 1 10 R 0 100 1 1000 100 1000 HCB1608KF-601T10 HCB1608KF-471T10 HCB1608KF-301T10 10 FREQUENCY(MHz) FREQUENCY(MHz) FREQUENCY(MHz) 800 800 400 1000 HCB1608KF-221T20 150 1000 100 400 200 0 100 10 FREQUENCY(MHz) 50 X 10 10 HCB1608KF-151T20 300 IMPEDANCE(Ohm) IMPEDANCE(Ohm) HCB1608KF-121T20 1 X R FREQUENCY(MHz) 300 0 Z 80 X R 0 1 120 40 IMPEDANCE(Ohm) 10 IMPEDANCE(Ohm) IMPEDANCE(Ohm) IMPEDANCE(Ohm) 160 Z Z 200 X 100 600 IMPEDANCE(Ohm) IMPEDANCE(Ohm) IMPEDANCE(Ohm) Z 300 400 200 600 400 200 X R R 0 0 1 10 100 FREQUENCY(MHz) 1000 1 10 1000 FREQUENCY(MHz) www.tai-tech.com.tw Downloaded From Oneyac.com X R 0 100 1 10 100 FREQUENCY(MHz) 1000
