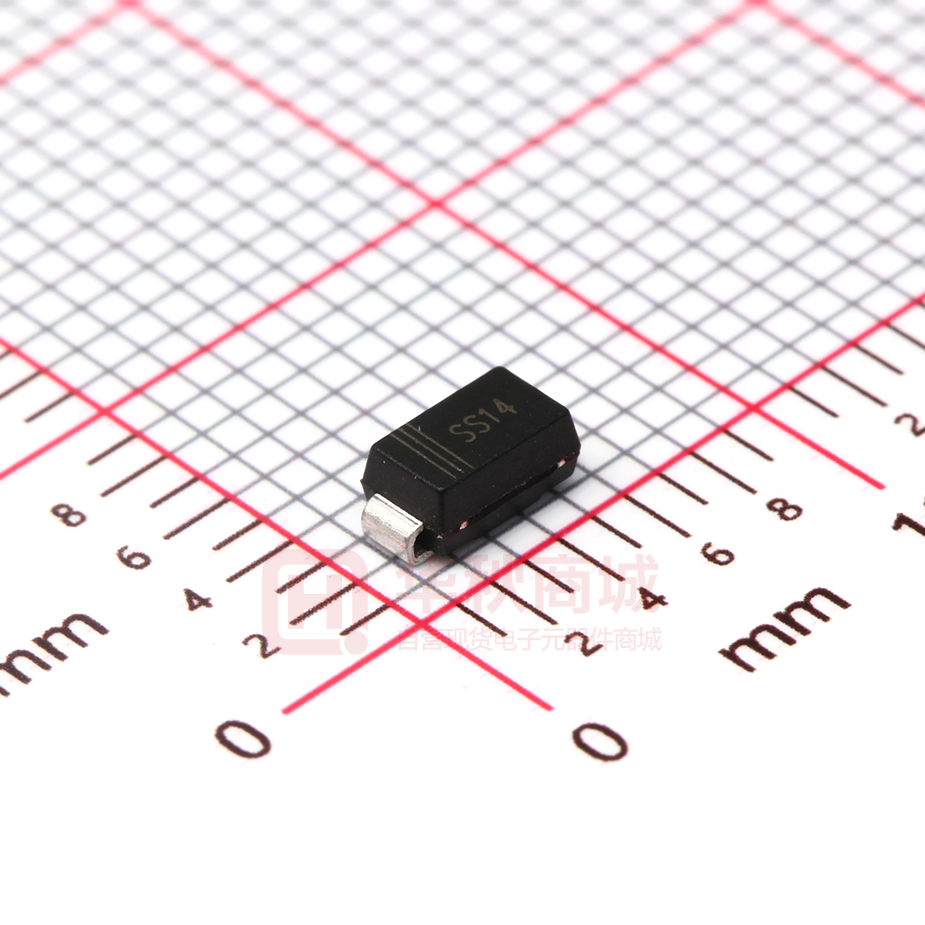

SS14

SS12 THRU SS110 Surface Mount Schottky Barrier Rectifiers Reverse Voltage - 20 to 100 V Forward Current - 1 A PINNING PIN Features • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 • For surface mounted applications • Metal silicon junction, majority carrier conduction • Built-in strain relief, ideal for automated placement • Low power loss, high efficiency. • High forward surge current capability 1 DESCRIPTION Cathode 2 Anode 1 2 Top view Plastic Package : SMA(DO-214AC) Mechanical Data • Case: SMA (DO-214AC) molded plastic body • Terminals: leads solderable per MIL-STD-750, Method 2026 • Polarity: color band denotes cathode end Maximum Ratings and Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, resistive or inductive load, for capacitive load, derate by 20 % Symbols SS12 SS13 SS14 SS15 SS16 SS18 SS110 Unit Parameter Marking SS12 SS13 SS14 SS15 SS16 SS18 SS110 - Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 50 60 80 100 V Maximum RMS Voltage VRMS 14 21 28 35 42 56 70 V Maximum DC Blocking Voltage VDC 20 30 40 50 60 80 100 V Maximum Average Forward Rectified Current IF(AV) 1 A Peak Forward Surge Current 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method) IFSM 30 A Maximum Instantaneous Forward Voltage at 1 A VF Maximum DC Reverse Current Ta = 25℃ at Rated DC Blocking Voltage Ta = 100℃ Typical Junction Capacitance 1) Typical Thermal Resistance 2) Operating Junction Temperature Range Storage Temperature Range 1) Measured at 1MHz and applied reverse voltage of 4 V D.C. 2) P.C.B. mounted with 2" X 2" (5 X 5 cm) copper pad areas. 0.55 0.75 0.5 IR 0.85 V mA 20 Cj 110 pF RθJA 90 ℃/W Tj - 55 to + 125 ℃ Tstg - 55 to + 150 ℃ 1/3 ® Dated：28/10/2020 JD Rev：03 SS12 THRU SS110 Electrical characteristic curves 2/3 ® Dated：28/10/2020 JD Rev：03 SS12 THRU SS110 Package Outline Dimensions in inches (millimeters) SMA(DO-214AC) Marking information " **** " = Part No. " III " = Cathode line Font type: Arial **** 3/3 ® Dated：28/10/2020 JD Rev：03
