nSMD035-13.2V

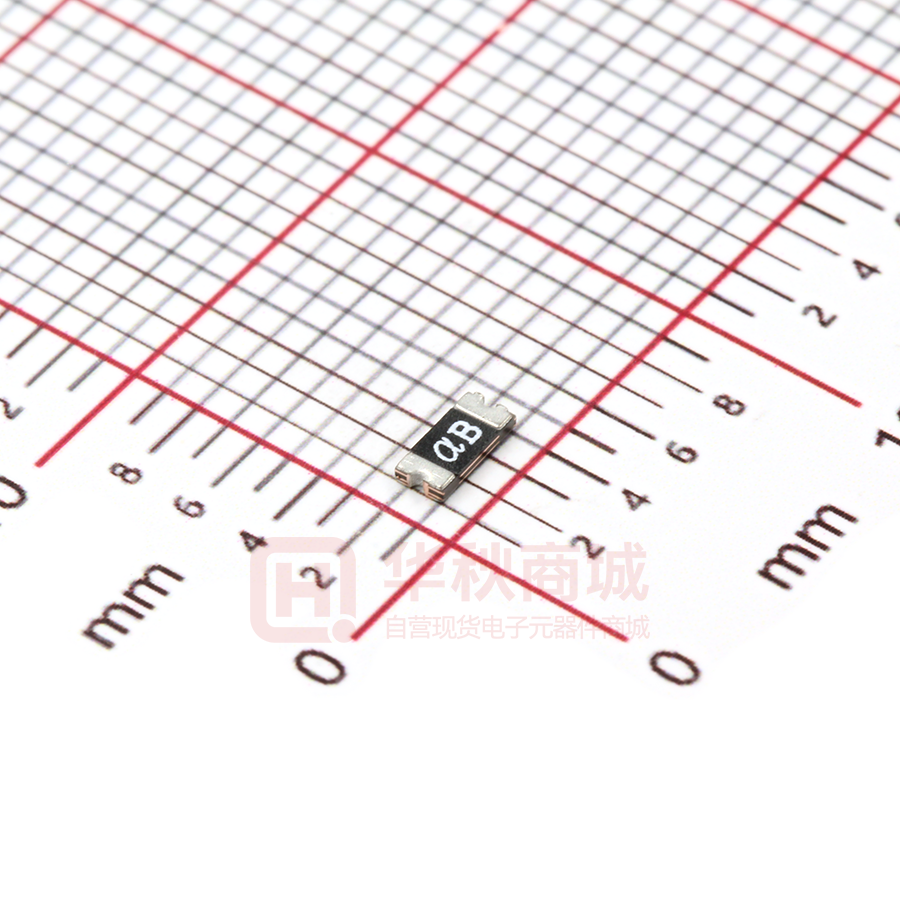

SEA & LAND ELECTRONIC CORP. www.sealand-pptc.com APPROVAL SHEET nSMD035-13.2V MODEL NO.： CUSTOMER： CUSTOMER'S APPROVAL： AUTHORIZED SIGNATURE/STAMP： DATE MANUFACTURER: HEAD OFFICE: 13F.,No.120-10,Sec.3,Zhongshan Rd.,Zhonghe Dist.,New Taipei City 23544,Taiwan Tel: 886-2-8221-2567 Fax:882-2-2225-7268 E-mail:service@chipfast.com.tw Submitted by: Approved by: DATE: Jay Chen YC Lin 2014/12/24 SEA & LAND ELECTRONIC CORP. 第1页 Features Applications ■ Surface Mount Devices Almost anywhere there is a low voltage ■ Lead free device power supply, up to 60V and a load to be ■ Size 3.2*1.6 mm/0.12*0.06 inch protected, including: ■ Surface Mount packaging ■ Computer mother board, Modem. USB hub for automated assembly ■ PDAs & Charger, Analog & digital line card nSMD035-13.2V ■ Digital cameras, Disk drivers, CD-ROMs, Performance Specification Maximum Time To Trip Pd Ihold Itrip @25°C @25°C Max. Current Time (Vdc) (A) (A) (A) (W) (A) (Sec) nSMD035-13.2V αB 13.2 100 0.35 0.75 0.6 8.00 0.10 Ihold = Hold Current. Maximum current device will not trip in 25°C still air. Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air. Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax). Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C. R1max = Maximum device resistance is measured one hour post reflow. CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame. Model Marking Vmax Resistance Imax Environmental Specifications Test Conditions Passive aging +85°C, 1000 hrs. Humidity aging +85°C, 85% R.H. , 168 hours Thermal shock +85°C to -40°C, 20 times Resistance to solvent MIL-STD-202,Method 215 Vibration MIL-STD-202,Method 201 Ambient operating conditions : - 40 °C to 85 °C Maximum surface temperature of the device in the tripped state is 125 °C Agency Approvals : UL pending Regulation/Standard: 2002/95/EC Rimin (W) 0.250 R1max (W) 1.300 Agency Approval UL TUV Resistance change ±5% typical ±5% typical ±33% typical No change No change EN14582 ` Ihold Versus Temperature Model nSMD035-13.2V Maximum ambient operating temperature (Tmao) vs. hold current (Ihold) -40°C 0.50 -20°C 0.45 0°C 0.40 25°C 0.35 40°C 0.30 50°C 0.27 60°C 0.24 70°C 0.21 85°C 0.15 · Use PPTC beyond th · PPTC are intended f · Device performance · Use PPTC with a lar · Avoid impact PPTC · Contamination of the · Requests that custom NO. R-50141892 E201504(Alpha-Top)/E319079(Sea&Land) 第2页 nSMD035-13.2V Construction And Dimension (Unit:mm) A Model Min. 3.00 nSMD035-13.2V B Max. 3.50 C Min. 1.50 Max. 1.80 Dimensions & Marking Min. 0.50 E Min. 0.10 Recommended Pad Layout (mm) A 1.0 士0.1 1.9士0.1 1.0士0.1 B B D Min. 0.15 Max. 1.20 α = Trademark B = Part identification D E C 2.0士0.1 Termination Pad Characteristics Terminal pad materials： Terminal pad solderability： Tin-plated Nickel-Copper Meets EIA specification RS186-9E and ANSI/J-STD-002 Category 3. Rework Use standard industry practices, the removal device must be replaced with a fresh one. Thermal Derating Curve Typical Time-To-Trip At 25°C Derating Curves for nSMD Series Average Time Current Curves 100 140 10 120 Time In Seconds Percentage of Derated Current 160 100 80 60 1 0.35A 0.1 40 20 0 -40 -20 0 20 40 60 80 0.01 0.1 Temperature (°C) 1 Current In Amperes · Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. · PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. · Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. · Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. · Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space. · Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the performance of the devices. PPTC SMD can be cleaned by standard methods. · Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper board layouts or reflow profile could negatively impact solderability performance of our devices. 第3页 10 nSMD035-13.2V Recommended Solder Reflow Conditions Preheating 300 Soldering ‧Recommended reflow methods：IR, vapor phase oven, hot air oven. ‧Devices are not designed to be wave soldered to the bottom side Cooling 250 of the board. 200 ‧Recommended maximum paste thickness is 0.25 mm (0.010 inch). 190 ‧Devices can be cleaned using standard method and solvents. 160 Note：If reflow temperatures exceed the recommended profile, 100 0 devices may not meet the performance requirements. 60-120 sec. 30~60sec. Tape And Reel Specifications (mm) 120 sec. EIA Tape Component Dimensions Governing Specifications W P0 P1 P2 A0 B0 B1max. D0 F E1 E2min. Tmax. T1max. K0 Leader min. Trailer min. Reel Dimensions A max. N min. W1 W2 EIA 481-1 8.15 ± 0.3 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.95 ± 0.10 3.45 ± 0.10 4.35 1.5 + 0.1, -0 3.5 ± 0.05 1.75 ± 0.10 6.25 0.6 0.1 1.04 ± 0.1 390 160 178 60 9 ± 0.5 12.6 ± 0.5 P0 T Embossment P2 D0 E1 Cover tape A0 F B1 K0 T1 P1 EIA Reel Dimensions W2(measured at hub) N(hub dia.) A 2 Cover tape 2 0 2 W1(measured at hub) Carrier tape Embossed cavity Storage And Handling ‧ Storage conditions：40°C max, 70% R.H. ‧ Devices may not meet specified performance if storage conditions are exceeded. Order Information Packaging nSMD Product name Size 3216 mm / 1206 inch SMD：surface mount device 035 Hold Current 0.35A -13.2V Max Voltage Tape & reel packaging per EIA481-1 Labeling Information Sea & Land Electronic Corp. Pb RoHS Model: Part no.: Spec.: Lot no.: Q'ty: 倉儲：密封！溫度：18～33℃/濕度：30～60％ A 第4页 W E2 B0 Tape & Reel Quantity 3500 pcs/reel
