Application Note:AN_SY7208C
High Efficiency 1MHz, 600mA Step Up Regulator
General Description
Features
The SY7208C is a high efficiency boost regulator
targeted for general step-up applications.
•
•
•
•
•
•
•
•
Ordering Information
SY7208□(□□)□
Temperature Code
Package Code
Optional Spec Code
Ordering Number
SY7208CABC
Package type
SOT23-6
Wide input range: 3-25V bias input, 25Vout max
1MHz switching frequency
Minimum on time: 100ns typical
Minimum off time: 100ns typical
Low RDS(ON): 150mΩ
RoHS Compliant and Halogen Free
Accurate Reference: 0.6VREF
Compact package: SOT23-6
Applications
Note
----
•
•
WLED Drivers
Networking car s powered from PCI or PCIexpress slots
2
Typical Applications
Figure 1. Schematic Diagram
Figure 2. Efficiency vs Load Current
AN_SY7208C Rev. 0.9 Silergy Corp. Confidential- Prepared for Customer Use Only
1
SY7208C
Pinout (top view)
LX 1
GND
6 IN
2
5 NC
FB 3
4 EN

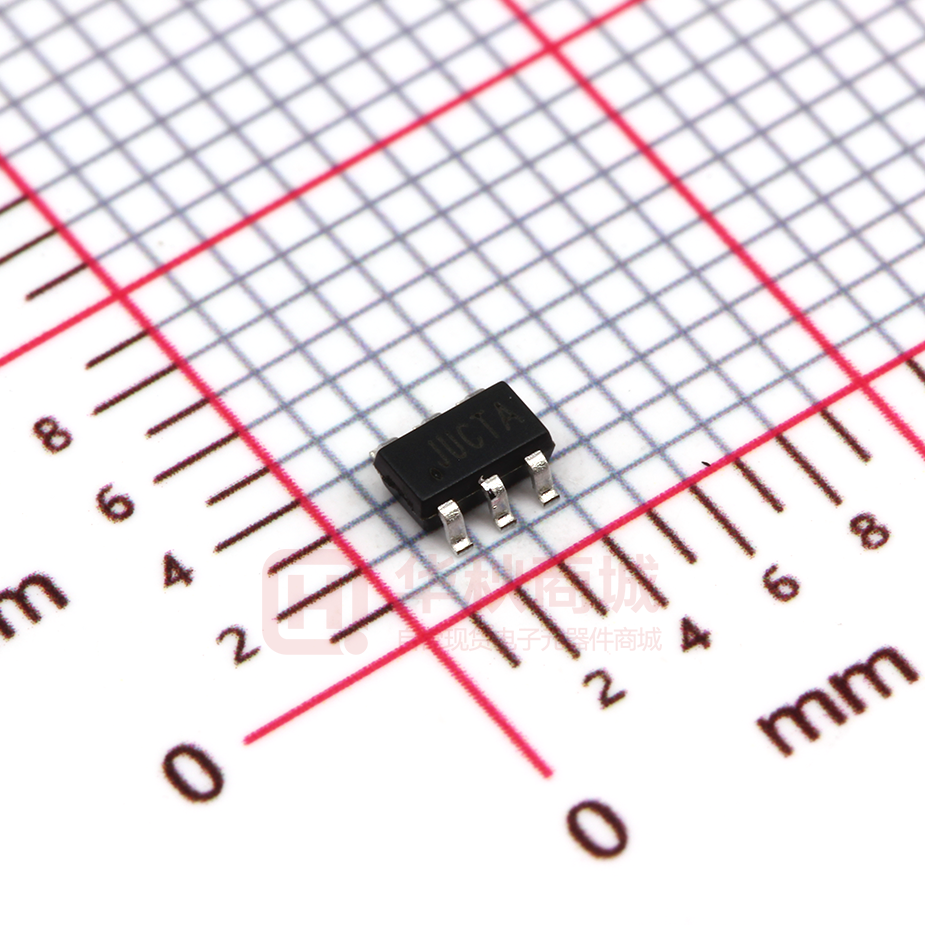

(SOT23-6)
Top Mark: JUxyz (Device code: JU, x=year code, y=week code, z= lot number code)
Pin Name
IN
GND
LX
FB
Pin Number
6
2
1
3
EN
4
Pin Description
Input pin. Decouple this pin to GND pin with 1uF ceramic cap.
Ground pin
Inductor node. Connect an inductor between IN pin and LX pin.
Feedback pin. Connect a resistor R1 between VOUT and FB, and a
resistor R2 between FB and GND to program the output voltage:
VOUT=0.6V*(R1/R2+1).
Enable control. High to turn on the part. Don’t l eave it floated.
NC
5
No connection.
Absolute Maximum Ratings (Note 1)
LX, IN, EN ----------------------------------------------------------------------------------------------------------------26V
All other pins-------------------------- -------------------------------------------------------------------------------------4V
Power Dissipation, PD @ TA = 25°C SOT23-6 ------------------------------------ ---------------------------------0.6W
Package Thermal Resistance (Note 2)
θJA --------------------------------------------------------------------------------------------------------161°C/W
θJC --------------------------------------------------------------------------------------------------------130°C/W
Junction Temperature Range ----------------------------------------------------------------------------------------125°C
Lead Temperature (Soldering, 10 sec.) ----------------------------------------------------------------------------260°C
Storage Temperature Range ------------------------------------------------------------------------------- - 65°C to 150°C
Recommended Operating Conditions (Note 3)
Input Voltage Supply----------------------------------------------------------------------------------------------3V to 25V
Junction Temperature Range ------------------------------------------------------------------------------- - 40°C to 125°C
Ambient Temperature Range -------------------------------------------------------------------------------- -40°C to 85°C
AN_SY7208C Rev. 0.9 Silergy Corp. Confidential- Prepared for Customer Use Only
2
SY7208C
Electrical Characteristics
(VIN = 5V, VOUT=12V, IOUT=100mA, TA = 25°C unless otherwise specified)
Parameter
Input Voltage Range
Quiescent Current
Shutdown Current
Low Side Main FET
RON
Main FET Current
Limit
Switching Frequency
Feedback Reference
Voltage
IN UVLO Rising
Threshold
UVLO Hysteresis
Thermal Shutdown
Temperature
EN Rising Threshold
EN Falling Threshold
EN Pin Input Current
Symbol
V
IN
I
Q
I
SHDN
Test Conditions
Min
3
VFB=0.66V
EN=0
LIM1
Fsw
V
REF
V
0.8
0.588
U
VLO,HYS
T
1
0.6
1.2
0.612
MHz
V
2.3
V
V
°C
2
0
Unit
V
µA
µA
mΩ
mA
0.1
150
SD
EN
5
600
IN,UVLO
V
ENH
V
ENL
I
Max
25
100
1
150
Rds(on)
I
Typ
0.4
100
V
V
nA
Note 1: Stresses beyond “Absolute Maximum Ratings” m y ca use permanent damage to the device. These are for
stress ratings. Functional operation of the device at hese or any other conditions beyond those indicated in the
operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions may affect
device reliability.
Note 2: θJA is measured in the natural convection at TA = 25°C on a low effective single layer thermal con ductivity
test board of JEDEC 51-3 thermal measurement standard. Test condition: Device mounted on 2” x 2” FR-4 substrate
PCB, 2oz copper, with minimum rec mmended pad on top layer and thermal vias to bottom layer ground plane.
Note 3: The device is not guaranteed to function outside its operating conditions.
Note 4: IC could be start up in 2.7V.
AN_SY7208C Rev. 0.9 Silergy Corp. Confidential- Prepared for Customer Use Only
3
SY7208C
Typical Performance Characteristics
Load Transient
(VIN=5V, VOUT=12V, ILOAD=0.05-0.3A)
Efficiency (%)
VOUT(AC)
IO
0.1V/div
0.1A/div
Time (100µs/div)
Shutdown from VIN
VIN
(VIN=5.0V, VOUT=12V, IOUT=0.3A)
2V/div
VOUT
5V/div
Io
0.2A/div
Time (2ms/div)
Startup from Enable
(VIN=5.0V, VOUT=12V, IOUT=0.3A)
EN
2V/div
VOUT
5V/div
Io
0.2A/div
Time (200µs/div)
AN_SY7208C Rev. 0.9 Silergy Corp. Confidential- Prepared for Customer Use Only
4
SY7208C
Output Ripple
(VIN=5.0V, VOUT=12V, IOUT=20mA)
VOUT(AC)
10mV/div
IO
0.2A/div
VLX
5V/div
Time (400ns/div)
AN_SY7208C Rev. 0.9 Silergy Corp. Confidential- Prepared for Customer Use Only
5
SY7208C
Applications Information
Because of the high integration in the SY7208C IC, the
application circuit based on this regulator IC is rather
simple. Only input capacitor CIN, output capacitor COUT,
inductor L and feedback resistors (R1 and R2) need to be
selected for the targeted applications specifications.
Feedback resistor dividers R1 and R2:
Choose R1 and R2 to program the proper output voltage.
To minimize the power consumption under light loads, it
is desirable to choose large resistance values for both R1
and R2. A value of between 10k and 1M is recommended
for both resistors. If R2=120k is chosen, then R1 can be
calculated to be:
R1
= (VOUT − 0.6V) × R2
0.6V
⎛ VIN ⎞
L=⎜
2
⎟
(VOUT − VIN)
⎝ VOUT ⎠ FSW × IOUT, MAX × 40%
where FSW is the switching frequency and IOUT,MAX
is the maximum load current.
The SY7208C regulator IC is quite tolerant of different
ripple current amplitude. Consequently, the final choice
of inductance can be slightly off the calculation value
without significantly impacting the performance.
2)
The saturation current rating of the inductor must be
selected to be greater than the peak inductor current
under full load conditions.
⎛ VOUT ⎞
ISAT, MIN > ⎜
⎟
⎝ VIN ⎠
2
⎛ VIN ⎞ (VOUT − VIN)
× IOUT, MAX + ⎜
⎟
⎝ VOUT ⎠ 2 × FSW × L
Input capacitor CIN:
The ripple current through input capacitor is calculated
as:
I
CIN_RMS
= VIN ⋅ (VOUT − VIN)
2 3 ⋅ L ⋅ FSW ⋅ VOUT
To minimize the potential noise problem, place a typical
X7R or better grade ceramic capacitor really close to the
IN and GND pins. Care should be taken o minimize the
loop area formed by CIN, and IN/GND pins.
Output capacitor COUT:
The output capacitor is selected to ha dle the output
ripple noise requirements. Both steady state ripple and
transient requirements must be taken into consideration
when selecting this capacitor. For the best performance,
it is recommended to use X7R or better grade ceramic
capacitor with 25V rating and greater than 10uF
capacitance.
3) The DCR of the inductor and the core loss at the
switching frequency must be low enough to achi ve
the desired efficiency requirement. It is desirable to
choose an inductor with DCR
