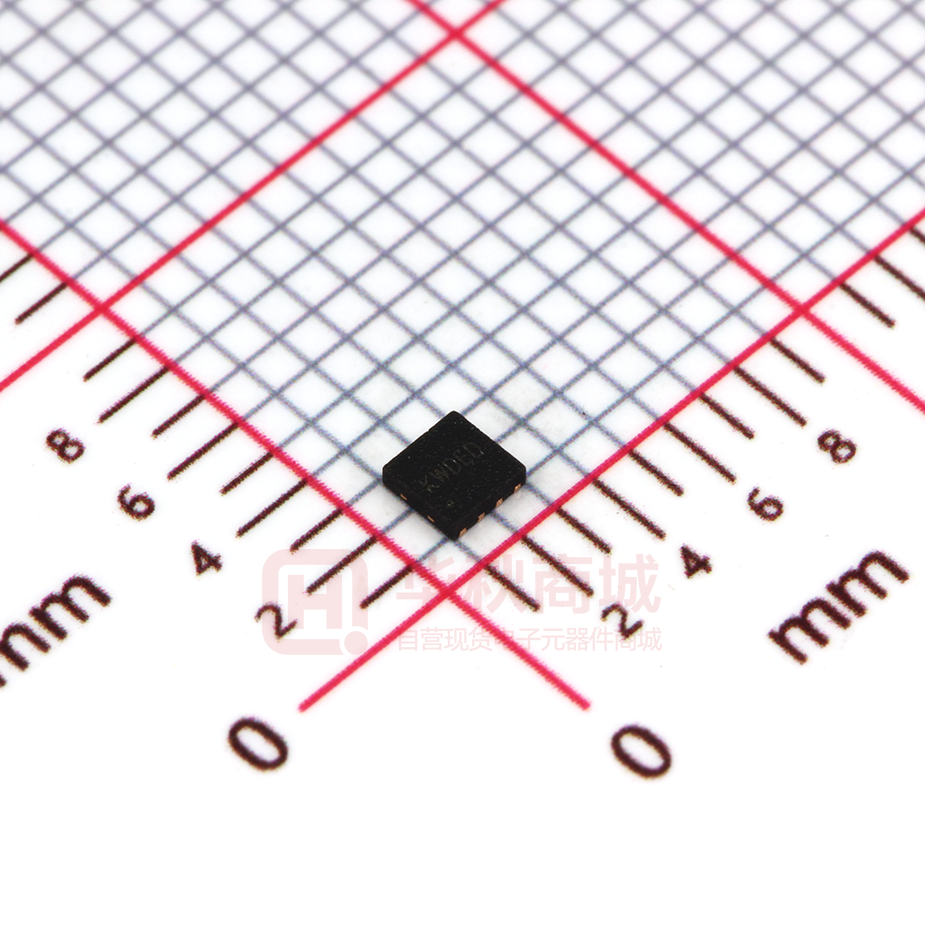

SY8003ADFC

Application Note: AN_SY8003/SY8003A High Efficiency 5.5V, 3A continuous, 1MHz Synchronous Step Down Regulator General Description Features The SY8003 and SY8003A are high-efficiency, high frequency synchronous step-down DC-DC regulator IC capable of delivering up to 3A output current. The SY8003 and SY8003A operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. • Low RDS(ON) for internal switches (top/bottom):110mΩ/80mΩ • • • 3A continuous load current capability 2.7-5.5V input voltage range High switching frequency minimizes the external components: 1MHz Internal softstart limits the inrush curre t Reliable short circuit protection: SY8003: Latch off pro ec ion SY8003A: Hic-cup m de protection Reliable over-voltage protection: SY8003: Latch off protection SY8003A: No latch off protection 100% dropout operation RoHS Compliant and Halogen Free Compact package: DFN2X2-8. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency. SY8003 and SY8003A integrate reliable short circuit and over-voltage protection. Ordering Information SY8003 ( ) □ □□ □ Package type DFN2x2-8 DFN2x2-8 • • • • Applications Temperature Code Package Code Optional Spec Code Ordering Number SY8003DFC SY8003ADFC • • Note① • • • • • LCD TV Set Top Box Net PC Mini-Notebook PC Access Point Router Typical Applications 2 VIN: 2.7-5.5V 3 PG IN LX CIN 22µF ON/ OFF 7 FB 6 L1:2.2µH 1 EN PGND SGND 4 8 Figure 1.Schematic diagram VOUT: 1.8V R1 200k R2 100k C1 COUT 22pF 22µFх2 Ef fic ie n cy ( % ) Figure 2. Efficiency vs Load Current AN_SY8003/A Rev. 0.9Silergy Corp. Confidential- Prepared for Customer Use Only 1 SY8003/SY8003A Pinout (top view) FB 1 PG 2 8 SGND 7 EN PGND IN 3 6 LX PGND 4 5 NC Part Number SY8003DFC SY8003ADFC Package type DFN2x2-8 DFN2x2-8 Top Mark① JDxyz KWxyz Note① ： x=year code, y=week code, z= lot number code. Pin Name EN PGND SGND LX IN PG Pin Number 7 4/Exposed Paddle 8 6 3 2 FB 1 NC 5 Pin Description Enable control. Pull high to turn on. Do not float. Power ground pin. Signal ground pin. Inductor pin. Connect this pin to the switching node of inductor. Power input pin. Decouple this pin to GND pin with at least 10µF ceramic cap. Power good indicator(Open drain output). Low if the output < 90% of regulation voltage or >120% regulation voltage; High otherwise. Connect a pull-up resistor to the input. Output Feedback Pin. Connect this pin to the center point of the output resistor divider (as shown in Figure 1) to progr m the output voltage: Vout=0.6*(1+R1/R2). No connection. Absolute Maximum Ratings (Note 1) Supply Input Voltage -----------------------------------------------------------------------------------------------0.3V to 6.0V Enable, FB Voltage------------------------------------------------------------------------------------------ - 0.3V to VIN + 0.6V LX Voltage----------------------------------------------------------------------------------------------------- - 0.3V（*1） to 6V（*2） Power Dissipation, PD @ TA = 25°C DFN2x2-8 , ------ -------------------------------------------------------------------1W Package Thermal Resistance (Note 2) θ JA ----------------------------------------------------------------------------------------------------------------120°C/W θ JC -----------------------------------------------------------------------------------------------------------------8.2°C/W Junction Temperature Range ----------------------------------------------------------------------------------------------150°C Lead Temperature (S ldering, 10 sec.) -----------------------------------------------------------------------------------260°C Storage Temperature Range -------------------------------------------------------------------------------------65°C to 150°C (*1) LX Voltage tested down to -5V
