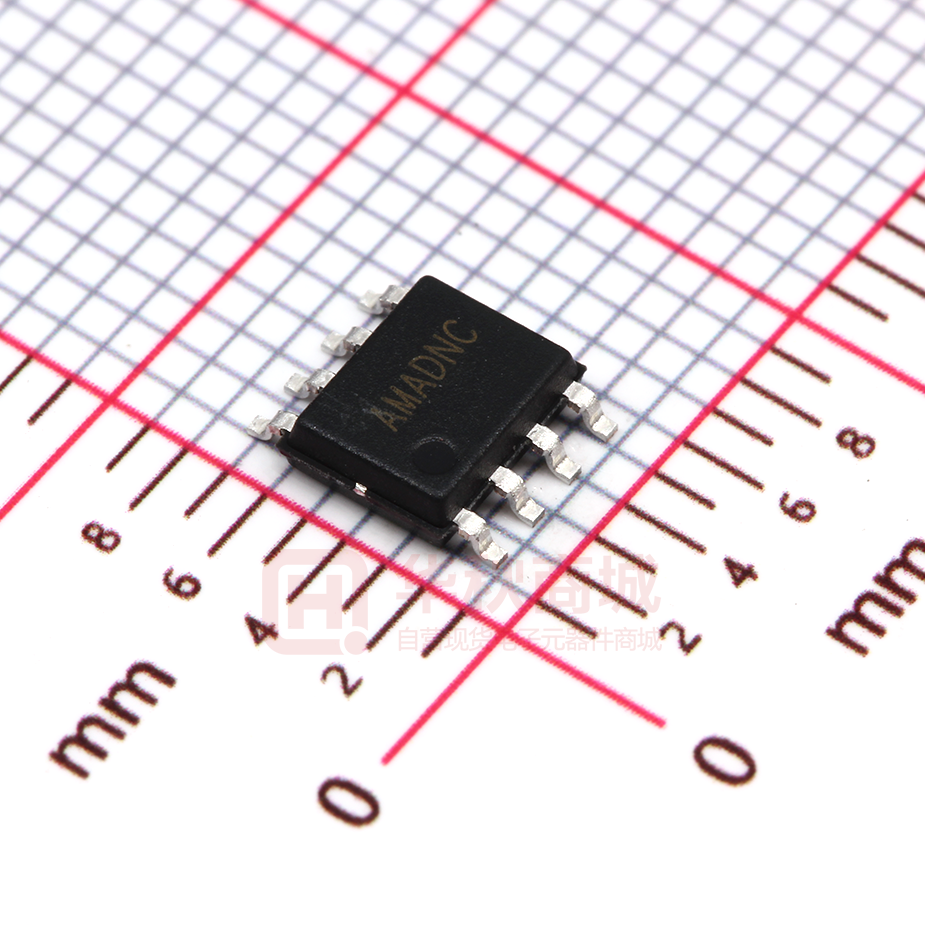

SY8501FCC

Application Note: SY8501 High Efficiency 500kHz, 1.0A 100V Input Synchronous Step Down Regulator Preliminary Specification General Description Features SY8501 develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1.0A current. The SY8501 operates over a wide input voltage range from 7V to 100V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. • low RDS(ON) for internal switches (top/bottom): 500mΩ/240mΩ • 7-100V input voltage range • 1A output current capability • Adjustable switching frequency • Instant PWM architecture to achieve fast transient responses. • 2ms internal softstart limits the inrush current • Precious +/-2% 1.2V reference • RoHS Compliant and Halogen Free • Compact SO8E package The device adopts the instant PWM architecture to achieve fast transient responses for high step down applications. fo r Ordering Information SY8501 □(□□ □□)□ □□ □ ar ed Applications Ordering Number SY8501FCC Package type SO8E Note -- Sil er gy Co rp .C on fid en Typical Applications • Non-Isolated Telecommunication Buck Regulator • Secondary High Voltage Post Regulator • Automotive Systems tia l-P re p Tempera ture Code Packa ge Code Optiona l Spec Code Figure 1. Schematic Diagram AN_SY8501 Rev. 0.1A Figure 2. Efficiency Silergy Corp. Confidential- Prepared for Customer Use Only 1 AN_SY8501 Pinout (top view) NC 1 IN 2 EN 3 RON 4 GND Exposed Pad 8 LX 7 BS 6 VCC 5 FB (SO8E) Top Mark: AMAxyz for SY8501FCC (Device code: AMA, x=year code, y=week code, z= lot number code) 4 5 VCC BS 6 7 LX GND 8 Exposed Pad Not connected. Input pin. Decouple this pin to GND with a low ESR ceramic cap. Enable control. The device has an accurate 1.2V rising threshold. This pin can also be used to program the Vin turn on voltage with resistor divider. Connect a resistor from this pin to IN to set the top switch ON time. Output Feedback Pin. Connect this pin to the center point of the output resistor divider (as shown in Figure 1) to program the output voltage: Vout=1.2*(1+R1/R2) Supply input of internal LDO. Boot-Strap Pin. Supply high side gate driver. Decouple this pin to LX pin with 0.1uF ceramic cap. Inductor pin. Connect this pin to the switching node of inductor Ground pin. r RON FB Pin Description fo Pin Number 1 2 3 fid en tia l-P re p ar ed Pin Name NC IN EN Absolute Maximum Ratings Sil er gy Co rp .C on (Note 1) Supply Input Voltage -------------------------------------------------------------------------------------------------------- 110V EN, LX----------------------------------------------------------------------------------------------------------------- VIN + 0.3V BS -------------------------------------------------------------------------------------------------------------------------- LX + 6V FB, RON Voltage -------------------------------------------------------------------------------------------------------------- 6V VCC ----------------------------------------------------------------------------------------------------------------------------- 30V Power Dissipation, PD @ TA = 25°C SO8E ----------------------------------------------------------------------------- 3.3W Package Thermal Resistance (Note 2) θ JA --------------------------------------------------------------------------------------------------------------- 30°C/W θ JC --------------------------------------------------------------------------------------------------------------- 10°C/W Junction Temperature Range ---------------------------------------------------------------------------------------------- 150°C Lead Temperature (Soldering, 10 sec.) ----------------------------------------------------------------------------------- 260°C Storage Temperature Range ------------------------------------------------------------------------------------ -65°C to 150°C Recommended Operating Conditions (Note 3) Supply Input Voltage ------------------------------------------------------------------------------------------------- 7V to 100V Junction Temperature Range ------------------------------------------------------------------------------------ -40°C to 125°C Ambient Temperature Range ------------------------------------------------------------------------------------- -40°C to 85°C AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 2 AN_SY8501 Sil er gy Co rp .C on fid en tia l-P re p ar ed fo r Block Diagram AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 3 AN_SY8501 Electrical Characteristics (VIN = 48V, VOUT = 12V, L = 47uH, COUT = 10uF, TA = 25°C, IOUT = 1A unless otherwise specified) Parameter Input Voltage Range Quiescent Current Shutdown Current Feedback Reference Voltage FB Input Current Top FET RON Bottom FET RON Top FET peak Current Limit Bottom FET Valley Current Limit EN Rising Threshold EN Falling Threshold Input UVLO Rising Threshold Input UVLO Hysteresis Programmable Switching Frequency Range Min ON Time Min OFF Time Thermal Shutdown Temperature Thermal Shutdown Hysteresis Symbol VIN IQ ISHDN VREF Test Conditions Min 7 IOUT=0, VFB=VREF*105% EN=0 1.176 IFB RDS(ON)1 RDS(ON)2 ILIM,Top VFB=3.3V Typ 5 1.2 -50 Max 100 400 10 1.224 Unit V µA µA V 50 nA mΩ mΩ A 500 240 1.8 ILIM,Bottom 1 r VENH VENL VUVLO VHYS FS tia l-P re p 550 Fs ( KHz ) = Ron ( MΩ) ar ed fo 0.8 6 TSD 1.2 6.5 7 V V V 1000 V kHz 0.5 200 120 350 150 ns ns °C 15 °C fid en THYS A Co rp .C on Note 1: Stresses beyond the “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only. Functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. er gy Note 2: θ JA is measured in the natural convection at TA = 25°C on a low effective 4-layer thermal conductivity test board of JEDEC 51-3 thermal measurement standard. Paddle of SO8E packages is the case position for θ JC measurement. Sil Note 3: The device is not guaranteed to function outside its operating conditions. AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 4 AN_SY8501 Typical Performance Characteristics Efficiency vs. Load Current Efficiency vs. Load Current 100 100 90 90 80 80 70 70 60 60 50 50 40 40 VIN=18V, VOUT=12V 30 20 VIN=7V, VOUT=5V 30 VIN=24V, VOUT=5V 20 VIN=48V, VOUT=12V 10 VIN=100V, VOUT=12V VIN=24V, VOUT=12V VIN=48V, VOUT=5V 10 VIN=100V, VOUT=5V 0 0 0.01 0.1 0.001 1 0.01 1 Load Current (A) fo Load Current (A) ar ed Load Regulation Load Regulation 12.1 5.02 12.0 4.98 4.96 VIN=7V, VOUT=5V 4.94 en VIN=24V, VOUT=5V VIN=48V, VOUT=5V 4.92 4.90 0.2 0.4 0.6 0.8 1 11.9 11.8 VIN=18V, VOUT=12V 11.7 VIN=24V, VOUT=12V 11.6 VIN=100V, VOUT=12V VIN=48V, VOUT=12V 11.5 0 1.2 .C on 0 fid VIN=100V, VOUT=5V Output Voltage (V) tia l-P re p 5.00 0.2 Load Current (A) er gy 4.98 0.6 0.8 1 1.2 Line Regulation 12.1 Co rp 5.00 0.4 Load Current (A) Line Regulation 5.02 12.0 11.9 11.8 4.96 IOUT=0A, VOUT=5V 4.94 Sil Output Voltage (V) 0.1 r 0.001 IOUT=0A, VOUT=12V 11.7 IOUT=0.1A, VOUT=5V IOUT=0.1A, VOUT=12V IOUT=1A, VOUT=5V 4.92 IOUT=1A, VOUT=12V 11.6 4.90 11.5 7 27 47 67 87 Input Voltage (V) AN_SY8501 Rev. 0.1A 107 18 38 58 78 98 118 Input Voltage (V) Silergy Corp. Confidential- Prepared for Customer Use Only 5 AN_SY8501 Output Ripple Output Ripple (VIN=24V, VOUT=5V, IO=1A) (VIN=48V, VOUT=5V, IO=1A) ∆VOUT 10mV/div ∆VOUT 10mV/div VLX 20V/div VLX 50V/div IL 1A/div IL Time (2µs/div) fo r Time (2µs/div) 1A/div Output Ripple Output Ripple 20mV/div VLX 20V/div tia l-P re p ∆VOUT (VIN=48V, VOUT=12V, IO=1A) ar ed (VIN=24V, VOUT=12V, IO=1A) 1A/div 20mV/div VLX 50V/div IL 1A/div Time (2µs/div) Sil er gy Co rp .C on Time (2µs/div) fid en IL ∆VOUT AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 6 AN_SY8501 Load Transient (VIN=48V, VOUT=12V, IO=0.25 ~ 0.75A) 0.2V/div ∆VOUT IO 0.5A/div fo r Time (400µs/div) Shutdown from VIN VIN 20V/div VOUT 5V/div VLX 10V/div IL 1A/div Time (4ms/div) .C on fid en tia l-P re p ar ed (VIN=24V, VOUT=5V, IO=1A) Startup from VIN 50V/div er gy VIN Co rp (VIN=48V, VOUT=5V, IO=1A) VOUT Sil VLX IL 5V/div 50V/div 1A/div Time (4ms/div) AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 7 AN_SY8501 Shutdown from VIN (VIN=24V, VOUT=12V, IO=1A) VIN 20V/div VOUT 10V/div VLX 20V/div IL 1A/div fo r Time (10ms/div) Startup from VIN 50V/div VOUT 10V/div VLX 50V/div IL 1A/div .C on Time (10ms/div) fid en VIN tia l-P re p ar ed (VIN=48V, VOUT=12V, IO=1A) Startup from Enable VEN 20V/div 5V/div er gy VOUT Co rp (VIN=24V, VOUT=5V, IO=1A) Sil VLX IL 20V/div 1A/div Time (2ms/div) AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 8 AN_SY8501 Startup from Enable (VIN=48V, VOUT=5V, IO=1A) VEN VOUT 20V/div 5V/div VLX 50V/div IL 1A/div fo r Time (2ms/div) Startup from Enable 20V/div VOUT 10V/div 20V/div IL 1A/div .C on Time (2ms/div) fid en VLX tia l-P re p VEN ar ed (VIN=24V, VOUT=12V, IO=1A) Startup from Enable Co rp (VIN=48V, VOUT=12V, IO=1A) 20V/div VOUT 10V/div er gy VEN Sil VLX IL 50V/div 1A/div Time (2ms/div) AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 9 AN_SY8501 VOUT Short Circuit Protection Short Circuit Protection (VIN=48V, VOUT=5V, IO=0A) (VIN=48V, VOUT=5V, IO=1A) 5V/div VOUT IL 1A/div 1A/div Time (200µs/div) Time (200µs/div) Short Circuit Protection Short Circuit Protection (VIN=48V, VOUT=12V, IO=0A) (VIN=48V, VOUT=12V, IO=1A) ar ed 5V/div VOUT tia l-P re p VOUT fo r IL 5V/div IL 1A/div 1A/div Time (200µs/div) Sil er gy Co rp .C on Time (200µs/div) fid en IL 5V/div AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 10 AN_SY8501 Operation Description The SY8501 operates over a wide input voltage range from 7V to 100V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. This regulator adopts the instant PWM architecture with an internal ripple control scheme using an on-time inversely proportional to VIN to achieve fast transient responses for high voltage step down applications. This architecture requires no loop compensation. In addition, it operates at pseudo-constant frequency under continuous conduction mode to minimize the size of inductor and capacitor. This regulator is well suited for 48 Volt telecom and the new 42V automotive power bus ranges. en Output Voltage Program. Co rp .C on fid Choose R1and R2 to program the proper output voltage. To minimize the power consumption under light loads, it is desirable to choose large resistance values for both R1 and R2. Vout er gy VFB is typical 1.2V. Sil FB Vout FS × I OUT _ MAX × 40% Where Fs is the switching frequency and IOUT_MAX is the maximum load current. The SY8501 regulator IC is quite tolerant of different ripple current amplitude. Consequently, the final choice of inductance can be slightly off the calculation value without significantly impacting the performance. fo ar ed 2) The saturation current rating of the inductor must be selected greater than the peak inductor current under full load conditions. I SAT _ MIN > I OUT _ MAX + VOUT × (1 − VOUT / VIN _ MAX ) FS × L2 × 2 3) The DCR of the inductor and the core loss at the switching frequency must be low enough to achieve the desired efficiency requirement. It is desirable to choose an inductor with smaller DCR to achieve a good overall efficiency. Input Capacitor CIN: The ripple current through input capacitor is calculated as：  ICIN _ RMS = IOUT _ MAX × D (1 − D) The capacitance of input capacitor is calculated as: R1 I ×V × (VIN − VOUT ) C IN = OUT OUT ∆VIN × FS ×η × VIN 2 R2 ∆VIN GND Output Inductor L: There are several considerations in choosing this inductor. AN_SY8501 Rev. 0.1A VOUT × (1 − VOUT / VIN _ MAX ) tia l-P re p Because of the high integration in the SY8501 IC, the application circuit based on this regulator IC is rather simple. Only on-timer resistor RON, feedback resistors (R1 and R2), input capacitor CIN, output capacitor COUT and output inductor L need to be selected for the targeted applications specifications. R1 = (1 + ) × VFB R2 L2 = r Applications Information 1) Choose the inductance to provide the desired ripple current. It is suggested to choose the ripple current to be about 40% of the maximum output current. The inductance is calculated as: is desired input voltage ripple To minimize the potential noise problem, place a typical X5R or better grade ceramic capacitor really close to the IN and GND pins. Care should be taken to minimize the loop area formed by CIN, and IN/GND pins. In this case, a 1uF low ESR ceramic capacitor is recommended. Silergy Corp. Confidential- Prepared for Customer Use Only 11 AN_SY8501 Output Capacitor COUT: The output capacitor is selected to handle the output ripple noise requirements. Both steady state ripple and transient requirements must be taken into consideration when selecting this capacitor. It is recommended to use X5R or better grade ceramic capacitor greater than 10uF capacitance. On Time The on-time for the SY8501 is determined by the RON resistor, and is inversely proportional to the input voltage, resulting in a nearly constant frequency as VIN is varied over its range. Enable Operation Pulling the EN pin low will shut down the device. During shut mode, the SY8501 shutdown current drops to lower than 10uA. Driving the EN pin high will turn on the IC again. Input UVLO can be programmed by EN rising threshold. Minimum VUVLO value need larger than 6.5V R VUVLO (V ) = (1 + 4 ) × Vth R5 Vth is EN rising threshold voltage, typical is 1.2V Frequency vs. Ron Resistor: 11× VO (V ) + 500 Ron ( M Ω) tia l-P re p Internal LDO Regulator ar ed Notice: Final switch frequency is not only effected by component tolerant but also minimum off and on time limit. fo r Fs (kHz ) = The SY8501 has a built-in soft-start to control the rise rate of the output voltage and limit the input current surge during IC start-up. The typical soft-start time is 2ms. Load Transient Considerations: The SY8501 regulator IC adopts the instant PWM architecture to achieve good stability and fast transient responses. Adding a Cff ceramic cap in parallel with R1 is recommended. .C on fid en The SY8501 consists of two internal LDOs for 4V_VDD from IN pin and VCC pin. Upon power up, the LDO regulator from IN sources current into the capacitor on internal 4V_VDD. When the voltage on the 4V_VDD reaches the under-voltage lockout threshold voltage, the buck switch is enabled. After soft start done and VCC pin voltage is larger than 4.2V, the VCC side LDO is enabled and IN side LDO is disabled. A 0.1uF ceramic capacitor is recommended for CVCC at most applications. Sil er gy Co rp In applications，the input pin (IN) can be connected directly to the line voltages up to 100 Volts, where power dissipation in the VCC regulator is a concern, an auxiliary voltage can be connected to the VCC pin via a diode. Setting the auxiliary voltage to 4.5 -28V will shut off the internal regulator from IN, reducing internal power dissipation. External Boot-strap Cap This capacitor provides the gate driver voltage for internal high side MOSEFET. A 100nF low ESR ceramic capacitor connected between BS pin and LX pin is recommended. Over Current Protection Soft Start AN_SY8501 Rev. 0.1A SY8501 provides cycle-by-cycle over current limiting on both high side MOSFET and low-side MOSFET. Under over current condition, if the output voltage drops below 33% of set-point, the device will Silergy Corp. Confidential- Prepared for Customer Use Only 12 AN_SY8501 fold back valley current limit to 0.5x typical value. 4) The PCB copper area associated with LX pin must be minimized to avoid the potential noise problem. Layout Design: The layout design of SY8501 is very important for proper operation. Following are the tips for good PCB layout. 1) It is desirable to maximize the PCB copper area connecting to GND pin to achieve the best thermal and noise performance. If the board space allowed, a ground plane is highly desirable. 2) CIN must be close to Pin IN and GND. The loop area formed by CIN and GND must be minimized. 6) If the system chip interfacing with the EN pin has a high impedance state at shutdown mode and the IN pin is connected directly to a power source such as a Li-Ion battery, it is desirable to add a pull down 1Mohm resistor between the EN and GND pins to prevent the noise from falsely turning on the regulator at shutdown mode. COUT CBS D1 CVCC Sil er gy Co rp .C on fid en CIN tia l-P re p ar ed fo r 3) CVCC should be placed close to VCC pin and GND pin. 5) The feedback components RUP and RDOWN, and the trace connecting to the FB pin must NOT be adjacent to the LX net on the PCB layout to avoid the noise problem. AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 13 AN_SY8501 tia l-P re p 5.80 - 6.20 6.10 ar ed fo r 3.80 - 4.00 SO8-E Package Outline & PCB layout 0.60 - 0.85 00.00 - 0.25 1.30 - 1.60 0.25 base Co rp ° -8 4.80 - 5.00 1.27 (TYP) er gy 0 45° 0.25 - 0.50 0.18 - 0.25 .C on fid en Recommended Pad Layout 0.30 – 0.50 Sil Notes: All dimension in MM All dimension don’t not include mold flash & metal burr AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 14 AN_SY8501 Taping & Reel Specification 1. Taping orientation SOP8-EP 3.9/4.1 ar ed fo r 11.7/12.3 1.45/1.55 Feeding direction Package types Tape width (mm) Pocket pitch(mm) Reel size (Inch) Reel width(mm) Trailer length(mm) Leader length (mm) Qty per reel Sil er gy Co rp .C on fid en tia l-P re p 2. Carrier Tape & Reel specification for packages 12 8 13" 12.4 400 400 2500 SOP8E 3. Others: NA AN_SY8501 Rev. 0.1A Silergy Corp. Confidential- Prepared for Customer Use Only 15
