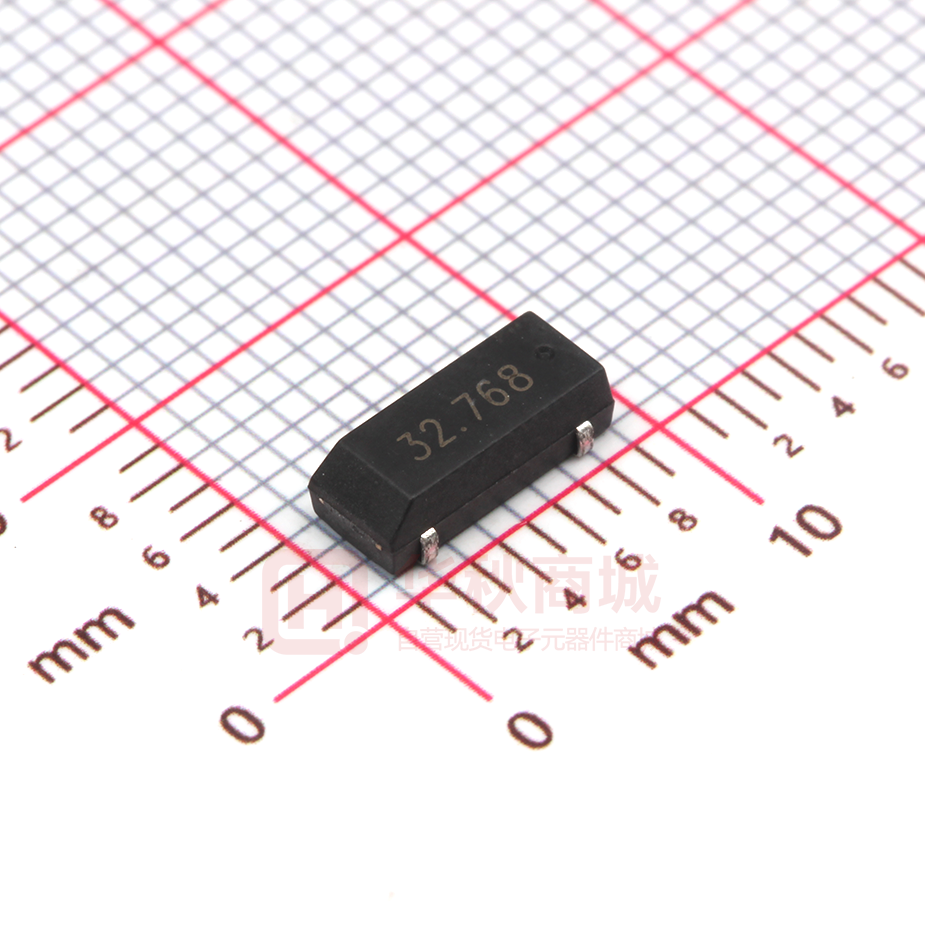

6LC32768E06UC

CRYSTAL RESONANCER SERIES 6LC, SMD 8.0*3.8MM TUNING FORK WATCH CRYSTAL 深圳市晶科鑫实业有限公司 Shenzhen Crystal Technology Industrial Co., Ltd APPROVAL SHEET CUSTOMER P/N: TYPE: DESCRIPTION： P N/ SJK： SMD CRYSTAL SMD308C 32.768KHZ MSL： -40~85℃ 6LC32768E06UC ENVIRONMENTAL： ■RoHS REVISION： 6PF ±10PPM A1 ■REACH ■HF □PAHS 2017-5-10 □other MOQ：3000pcs/real Levels 1 SIGNATURE SUPPLIER Issue Check CUSTOMER Approve QA SJK Signature FAE_EMAIL Date Date Check Approve： □accept Approve □unaccepted Note: Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 1 /4 CRYSTAL RESONANCER SERIES 6LC, SMD 8.0*3.8MM TUNING FORK WATCH CRYSTAL 1. FEATURE Wide Frequency range Small size Tape & Reel 2. APPLICATIONS Microprocessor Systems Consumer Electronics 3. ELECTRICAL SPECIFICATIONS Frequency 32.768KHz Frequency Tolerance(at 25°C) ±10ppm Load Capacitance(CL) 6PF ESR 50 KΩ Max Turnover Temperature 25 ± 3°C Frequency stability vs Temperature Range -40 °C to + 85 °C Frequency Temperature Curve -0.04ppm/°C²MAX Storage Temperature Range -55 °C to +125 °C Operating Temperature Range -40 °C to +85 °C Shunt Capacitance (C0) 0.9pF Typ Dynamic Capacitance (C1) 2.6fF Typ Driver Level (Typical) 1 µW Max Insulation Resistance 500MΩ MIN at DC100V±15V Aging @25°C 1st year (Max) ±3ppm/year max REMARK: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER. Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 2 /4 CRYSTAL RESONANCER SERIES 6LC, SMD 8.0*3.8MM TUNING FORK WATCH CRYSTAL 4. DIMENSION (Units: mm) 5. MARKING 6. REFLOW CONDITION 7. FREQUENCY VS TEMPERATURE CURVE Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 3 /4 CRYSTAL RESONANCER SERIES 6LC, SMD 8.0*3.8MM TUNING FORK WATCH CRYSTAL 8. RELIABILITY TEST SPECIFICATION 1.Mechanical Endurance No. Test Item Test Methods REF.DOC 1.1 Drop Test 150 cm height, 3 times on concrete floor. JIS C6701 1.2 Mechanical Shock 1.3 Vibration 1.4 Gross Leak Standard Sample For Automatic Gross Leak Detector, Test Pressure: 2Kg / cm2 MIL-STD-883E 1.5 Fine Leak Helium Bombing 4.5 Kg/ cm2 for 2 hr MIL-STD-883E 1.6 Solder ability Device are shocked to half sine wave ( 1000 G ) three mutually perpendicular axes each 3 times. 0.5m sec. duration time Frequency range 10 ~ 2000 Hz Amplitude 1.52 mm/20G Sweep time 20 minute Perpendicular axes each test time 4 hours (Total test time 12 hours) Temperature Immersing depth Immersion time Flux 245 ℃ ± 5℃ 0.5 mm minimum 5 ± 1 seconds Rosin resin methyl alcohol solvent ( 1 : 4 ) MIL-STD-202F MIL-STD-883E MIL-STD-883E 2.Environmental Endurance No. Test Item Test Methods 2.1 Resistance To Soldering Heat Pre-heat temperature Pre-heat time 60 ~ Test temperature Test time 2.2 2.3 High Temp. Storage Low Temp. Storage REF.DOC 125 ℃ 120 sec. 260 ± 5 ℃ 10 ± 1 sec. MIL-STD-202F + 125 ℃ ± 3 ℃ for 500 ± 12 hours MIL-STD-883E - 40 ℃ ± 3 ℃ for 500 ± 12 hours MIL-STD-883E Total 100 cycles of the following temperature cycle 2.4 2.5 2.6 Thermal Shock High Temp ＆Humidity Pressure Cooker Storage MIL-STD-883E 85℃ ± 3℃, RH 85% , 500Hrs JIS C5023 121 ± 3℃ , RH100% , 2 bar , 240Hrs JIS C6701 Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 4 /4
