M4

M4

  • 厂商:

    SLKOR(萨科微)

  • 封装:

    SMA(DO-214AC)

  • 描述:

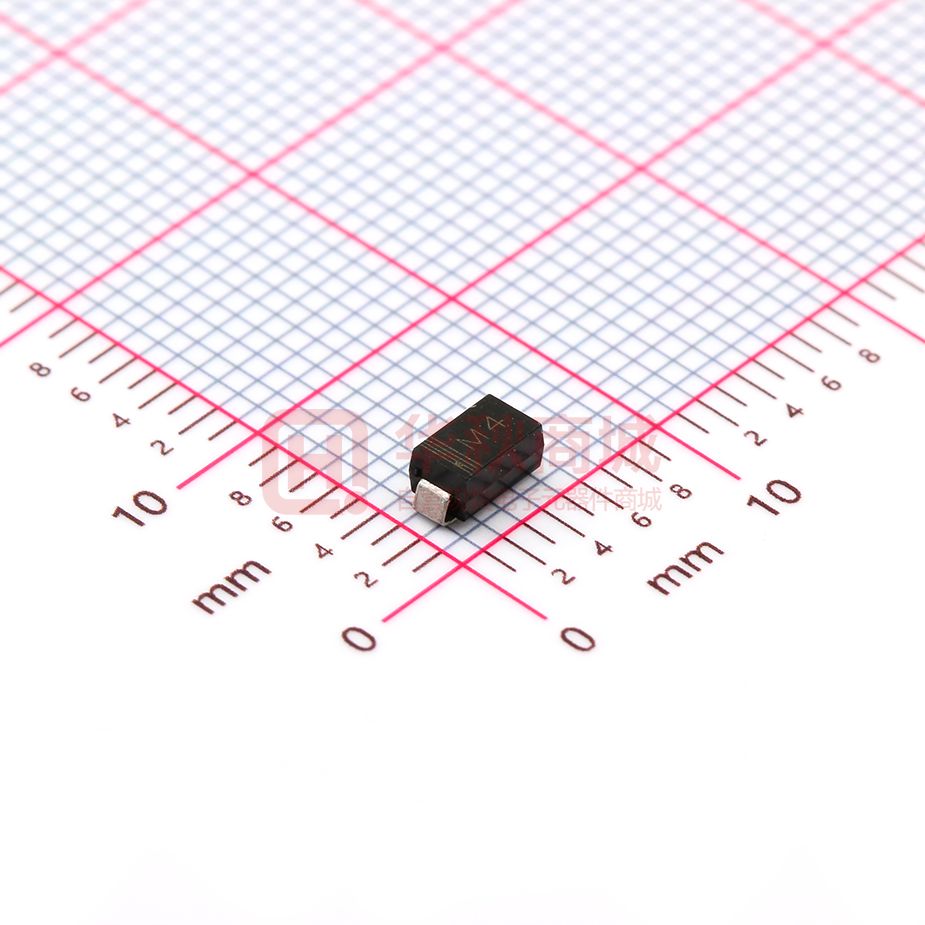

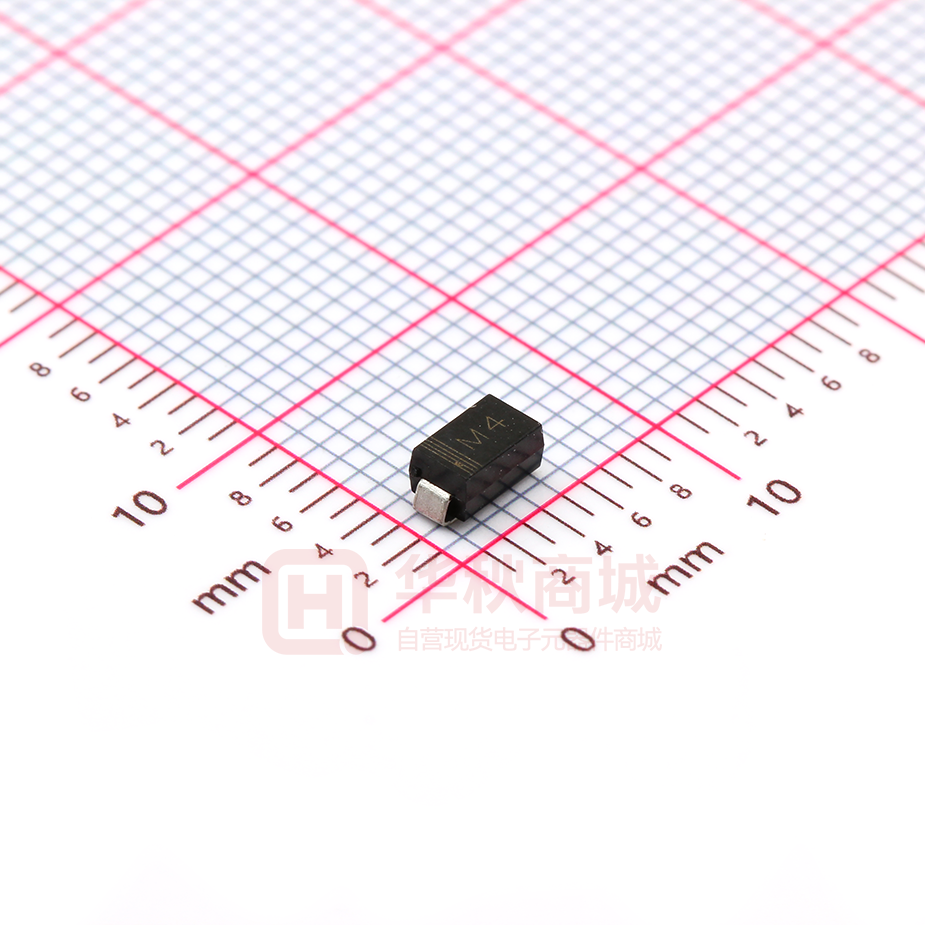

    整流二极管 VRRM=400V If=1A VF=1.1V CT=13pF SMA

  • 数据手册
  • 价格&库存
M4 数据手册
M1~M7 SURFACE MOUNT GENERAL RECTIFIER SMA/DO-214AC FEATURES • • • • • Low coat construction Low forward voltage drop Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension 0.177(4.50) 0.157(3.99) 0.012(0.305) 0.006(0.152) 0.096(2.42) 0.078(1.98) MECHANICAL DATA • • • • • 0.110(2.80) 0.100(2.54) 0.067 (1.70) 0.051 (1.30) Case: Transfer molded plastic Epoxy: UL94V-O rate flame retardant Polarity: Color band denotes cathode end Lead: Plated axial lead, solderable per MIL-STD-202E method 208C Mounting position: Any 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.208(5.28) 0.188(4.80) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS • • • Ratings at 25OC ambient temperature unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load For capacitive load derate current by 20% M1 50 35 50 SYMBOLS VRRM VRMS VDC Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 0.375”(9.5mm) lead length at T A= 25℃ Peak Forward Surge Current 8.3mS single half sine wave superimposed on rated load (JEDEC method) M2 100 70 100 M3 200 140 200 M4 400 280 400 M5 600 420 600 M6 800 560 800 M7 1000 700 1000 UNIT Volts Volts Volts I(AV) 1.0 Amps IFSM 30 Amps VF 1.1 5.0 50 Volts IR(AV) 30 µA CJ 13 pF Typical Thermal Resistance (Note 2) RθJA 50 ℃/W Operating Junction Temperature Range TJ TSTG -55 to +150 -55 to +150 ℃ Maximum Instantaneous Forward Voltage @ 1.0A Maximum DC Reverse Current at Rated DC Blocking Voltage per element TA = 25℃ TA = 100℃ Maximum Full Load Reverse Current, full cycle average 0.375”(9.5mm)lead length at TL=75℃ Typical Junction Capacitance (Note 1) Storage Temperature Range IR Notes: 1. Measured at 1.0MHz and Applied Reverse Voltage of 4.0V DC. 2. Thermal Resistance from junction to terminal 6.0mm2 copper pads to each terminal. www.slkormicro.com 1 µA ℃ M1~M7 RATING AND CHRACTERISTIC CURVES FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 0.8 0.6 0.4 Single Phase Half Wave 60Hz 0.2 Resistive or Inductive Load 0 25 0 100 75 50 150 125 25 CURRENT, (A) PEAK FORWARD SURGE 1.0 (A) AVERAGE FORWARD CURRENT, 1.2 8.3ms Single Half Sine-Wave (JEDEC Method) =T T j jmax 20 10 0 175 5 2 1 8 20 10 50 100 NUMBER OF CYCLES AT 60 Hz AMBIENT TEMPERATURE, (° C) FIG.3-TYPICAL INSTANTANEOUS FIG.4-TYPICAL REVERSE CHARACTERISTICS FORWARD CHARACTERISTICS 10 INSTANTANEOUS REVERSE CURRENT, (mA) 1 (A) INSTANTANEOUS FORWARD CURRENT, 10 0.1 T =25° C j Pulse Width=300us 1% Duty Cycle 0.01 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 Tj =100° C 1.0 0.1 Tj =25° C 0.01 0 INSTANTANEOUS FORWARD VOLTAGE,(V) 20 40 60 80 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) FIG.5-TYPICAL JUNCTION CAPACITANCE CAPACITANCE,(pF) 100 10 TJ=25° C F=1MHz 10 0.1 1.0 4.0 10.0 100 REVERSE VOLTAGE,(VOLTS) www.slkormicro.com 2 100 120 140
