EBC035

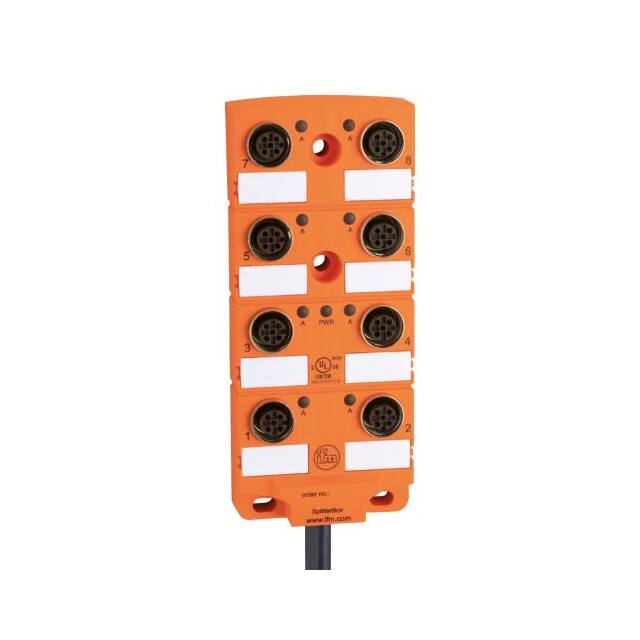

EBC035 Splitter box ZDO8H059MSS0010H11 Application Special feature Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability Free from silicone yes Electrical data Operating voltage [V] Protection class 10...30 DC; ("supply class 2" to cULus) II Max. current load per module/slot [A] 4 Max. current load total [A] 12 Outputs Electrical design PNP ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC035-01 — 05.11.2020 — EBC035 Splitter box ZDO8H059MSS0010H11 Operating conditions Ambient temperature [°C] -25...80 Ambient temperature (moving) [°C] -5...60 Protection IP 67; IP 68 Mechanical data Weight [g] Dimensions 1174.5 [mm] 22 x 54 x 127 Materials PA Moulded-body material PA Number of ports splitter box 8 Connector type M12 Drag chain suitability yes Drag chain suitability bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 5 x cable diameter travel speed max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² torsional strain ± 30 °/m bending cycles > 2 Mio. switching status 8 x LED, yellow operation 1 x LED, green Displays / operating elements Display Accessories Items supplied Protective caps: 2 labels: 8 Remarks Pack quantity 1 pcs. Electrical connection Cable: 10 m, PUR, Halogen-free, black, Ø 8.2 mm; 8 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 0.75 mm² (95 x Ø 0.1 mm ) Electrical connection - slot Connector: 8 x M12; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC035-01 — 05.11.2020 — EBC035 Splitter box ZDO8H059MSS0010H11 Connection Core colours : BK = black BN = brown BU = blue GN = green GN/YE = green/yellow GY = grey PK = pink RD = red VT = lilac WH = YE = white ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC035-01 — 05.11.2020 — yellow EBC035 Splitter box ZDO8H059MSS0010H11 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC035-01 — 05.11.2020 —
