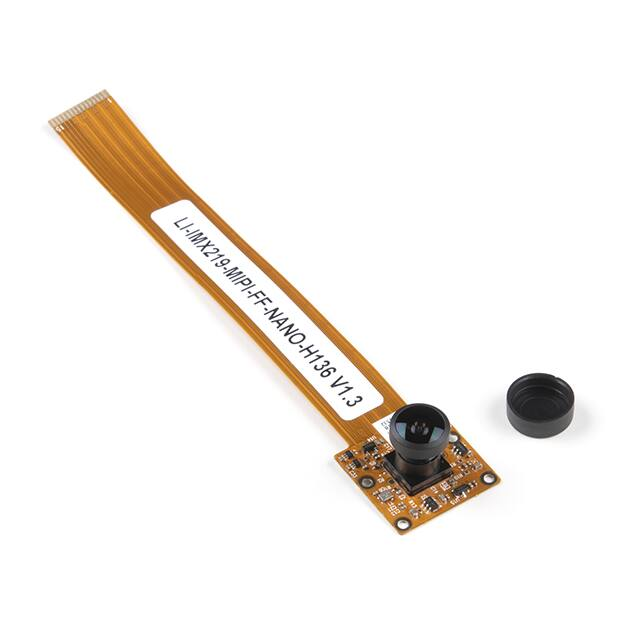

LI-IMX219-MIPI-FF-NANO SPECIFICATION Model: LI-IMX219-MIPI-FF-NANO-H90 LI-IMX219-MIPI-FF-NANO-H136 LI-IMX219-MIPI-FF-NANO-H145 Rev 1.4 Leopard Imaging Inc. LI-IMX219-MIPI-FF-NANO SPECIFICATION Contents Version History .........................................................................................................3 Key Information .......................................................................................................4 Pin Assignment .........................................................................................................5 Electrical Characteristics ........................................................................................6 1. Absolute Maximum Ratings ............................................................................6 2. Recommended Operating Conditions ............................................................6 3. Spectral Sensitivity Characteristics ................................................................6 4. DC Characteristics............................................................................................7 5. Electrical Characteristics .................................................................................7 6. AC Characteristics............................................................................................8 7. Power On Sequence ..........................................................................................9 8. Power Off Sequence........................................................................................10 Mechanical Drawing .............................................................................................. 11 2 LI-IMX219-MIPI-FF-NANO SPECIFICATION Version History Version 1.0 1.1 1.2 1.3 1.4 Description First Release Add H90 and H135 version Update the dimensions of H90 and H135 modules Remove H135 module Add H136 module Release Date 16. Mar. 2019 22. Mar. 2019 14. Apr. 2019 26. Apr. 2019 18. Oct. 2019 3 LI-IMX219-MIPI-FF-NANO SPECIFICATION Key Information Module Part# Compatible Platform Module Size Sensor Type Active Pixels Image Size F/No Focal Length FOV TV Distortion Focusing Range Pixel size IR Cutter Filter Temperature Range H90 H136 H145 Operating Storage Data Output Interface Maximum Image Transfer Rate Mating Part# Connector Number of Positions Pitch LI-IMX219-MIPI-FF-NANO NVIDIA® Jetson NanoTM Developer Kit 150.0 mm (L) x 25.0 mm (W) x 15.27 mm(H) 150.0 mm (L) x 25.0 mm (W) x 15.3 mm(H) 150.0 mm (L) x 25.0 mm (W) x 14.1 mm(H) Sony IMX219 8.08MP Color sensor 3280 (H) x 2464 (V) Diagonal 4.60 mm (Type 1/4.0) 2.6 (H90) / 2.0 (H136) / 2.5 (H145) 2.3mm (H90) / 1.58mm (H136) / 1.55 mm (H145) 90°(H) / 136°(H) /145°(H) < -10% (H90) / < -15%(H136) / < -15% (H145) 30cm - Infinity 1.12 um x 1.12 um Yes -20°C to +60°C -30°C to +80°C CSI-2 MIPI 2-lane 3280 x 2464 @ 21fps 1-1734248-5 15 0.039" (1.00mm) 4 LI-IMX219-MIPI-FF-NANO SPECIFICATION Pin Assignment No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Name GND MDN0 MDP0 GND MDN1 MDP1 GND MCN MCP GND RESET FSTROBE SCL SDA VCC3.3V Pin type Ground O O Ground O O Ground O O Ground I O I I/O Power Description MIPI data positive output MIPI data negative output MIPI data positive output MIPI data negative output MIPI clock negative output MIPI clock positive output Reset Strobe output 5 LI-IMX219-MIPI-FF-NANO SPECIFICATION Sensor Specifications 1. Absolute Maximum Ratings 2. Recommended Operating Conditions 3. Spectral Sensitivity Characteristics 6 LI-IMX219-MIPI-FF-NANO SPECIFICATION 4. DC Characteristics 5. Electrical Characteristics 7 LI-IMX219-MIPI-FF-NANO SPECIFICATION 6. AC Characteristics 8 LI-IMX219-MIPI-FF-NANO SPECIFICATION 7. Power On Sequence 9 LI-IMX219-MIPI-FF-NANO SPECIFICATION 8. Power Off Sequence 10 LI-IMX219-MIPI-FF-NANO SPECIFICATION 11 LI-IMX219-MIPI-FF-NANO SPECIFICATION 12 LI-IMX219-MIPI-FF-NANO SPECIFICATION 13
