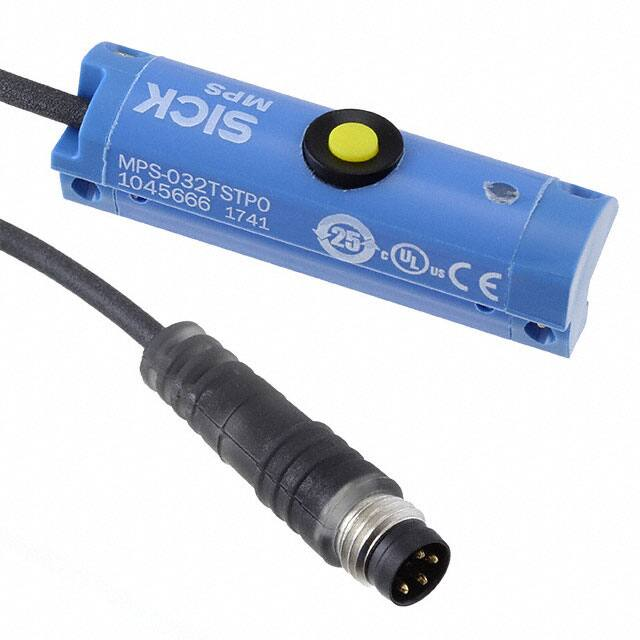

Product data sheet MPS-032TSTP0 MPS-T POSITION SENSORS MPS-032TSTP0 | MPS-T POSITION SENSORS A B C D E F Ordering information Type Part no. MPS-032TSTP0 1045666 Other models and accessories www.sick.com/MPS-T Detailed technical data Features H I J K L M N O P Q R S T Cylinder type T-slot Cylinder types with adapter Round body cylinder Profile cylinders and tie-rod cylinders Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 SMC cylinders with C-slot Measuring range 32 mm 1) Housing length 45 mm Output function Analog Electrical wiring DC 4-wire Analog output (voltage) 0 V ... 10 V 2) Analog output (current) 4 mA ... 20 mA 2) Teach-in ✔ Enclosure rating IP67 3) Adjustment Teach-in control panel Teaching in analog outputs Resetting the measuring range to factory settings 1) 2) 3)  , ± 1 mm.  The sensor only activates the wired output.  According to EN 60529. Mechanics/electronics Supply voltage 1) 2) 3) 4) 5) 6) 7) 2 15 V DC ... 30 V DC  Without load.  Voltage output.  FSR: Full Scale Range; max. measuring range.  At 25 ° C, linearity error (maximum deviation) depending on response curve and minimal deviation function.  At 25 ° C, repeatability magnet movement in one direction.  Only in standard mode, not in IO-Link mode.  The analog measured value can deviate under transient conditions. MAGNETIC CYLINDER SENSORS | SICK Product data sheet | 2021-10-22 14:31:43 Subject to change without notice MPS-032TSTP0 | MPS-T POSITION SENSORS Power consumption 22 mA 1) Max. load resistance ≤ 500 Ω Power Output, at 24 V Min. load resistance ≥ 2 kΩ 2) Protection class III Time delay before availability 1.5 s Required magnetic field sensitivity, typ. 4 mT ... 30 mT Resolution, typ. 0.03 % FSR (max. ≥ 0.05 mm) 3) Linearity error, typ. 0.3 mm 4) Repeat accuracy, typ. 0.06 % FSR (≥ 0.1 mm) 5) Sampling rate, typ. 1 ms 6) Status indicator LED ✔ Reverse polarity protection ✔ Short-circuit protection ✔ Ambient operating temperature –20 °C ... +70 °C Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm EMC According to EN 60947-5-2 7) Connection type Cable with M8 male connector, 4-pin, 0.3 m Connection type Detail Deep-freeze property Do not bend below 0 °C Conductor cross-section 0.08 mm² Cable diameter Ø 2.6 mm Bending radius With fixed installation > 5 x cable diameter For flexible use > 10 x cable diameter Cable outlet Axial Material Housing Plastic Cable PUR UL File No. 1) 2) 3) 4) 5) 6) 7) NRKH.E181493 & NRKH7.E181493  Without load.  Voltage output.  FSR: Full Scale Range; max. measuring range.  At 25 ° C, linearity error (maximum deviation) depending on response curve and minimal deviation function.  At 25 ° C, repeatability magnet movement in one direction.  Only in standard mode, not in IO-Link mode.  The analog measured value can deviate under transient conditions. Safety-related parameters MTTFD 387 years DCavg 0 % Classifications ECl@ss 5.0 27270104 ECl@ss 5.1.4 27270104 ECl@ss 6.0 27270104 2021-10-22 14:31:43 | Product data sheet  Subject to change without notice MAGNETIC CYLINDER SENSORS | SICK 3 MPS-032TSTP0 | MPS-T POSITION SENSORS A B C D E F ECl@ss 6.2 27270104 ECl@ss 7.0 27270104 ECl@ss 8.0 27270104 ECl@ss 8.1 27270104 ECl@ss 9.0 27270104 ECl@ss 10.0 27270104 ECl@ss 11.0 27270104 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 Installation note H I J K L M N O P Q R S T 0.25 - 0.35 Nm SW / AF 1.5 Connection diagram Cd-034 BN 1 BK 4 WH 2 BU 4 3 + (L+) Uout Iout - (M) MAGNETIC CYLINDER SENSORS | SICK Product data sheet | 2021-10-22 14:31:43 Subject to change without notice MPS-032TSTP0 | MPS-T POSITION SENSORS Dimensional drawing (Dimensions in mm (inch)) Ø 8.1 (0.26) L3 3 Measuring range (L2) mm Distance mounting screws (L3) mm 40 MPS-32 45 32 MPS-64 77 64 72 (0.23) MPS-96 109 96 104 MPS-128 141 128 136 MPS-160 173 160 168 MPS-192 205 192 200 MPS-224 237 224 232 MPS-256 269 256 264 13.6 24.2 (0.95) 1 Total length (L1) mm 5.8 (0.54) 37.1 (1.46) 2 14.2 5.8 6.5 (0.56) 13.6 L2 (0.54) (0.32) (0.23) Ø 2.6 L1 (0.10) Cable with connector M8, Teach-in 2 L = 300 mm M8 x 1 4 Pin 2 29 ... 37 (1.14 ... 1.46) Pin 4 Pin 1 Pin 3 ①  Function indicator ②  Fixing screw SW 1.5 ③  Teach-in button ④  Connection Recommended accessories Other models and accessories www.sick.com/MPS-T Brief description Type Part no. Mounting bracket for cylinder with dovetail slot, Aluminum, without mounting hardware BEF-KHZ-ST1 2022703 Mounting bracket for integrated profile cylinder/tie-rod cylinder, zinc diecast, mounting hardware included BEF-KHZ-PT1 2022702 1 piece, Mounting bracket on round body cylinder with piston diameter of 12 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-12 2077681 1 piece, Mounting bracket on round body cylinder with piston diameter of 16 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-16 2077680 1 piece, Mounting bracket on round body cylinder with piston diameter of 20 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-20 2077679 1 piece, Mounting bracket on round body cylinder with piston diameter of 25 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-25 2077678 1 piece, Mounting bracket on round body cylinder with piston diameter of 32 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-32 2077677 1 piece, Mounting bracket on round body cylinder with piston diameter of 40 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-40 2077676 1 piece, Mounting bracket on round body cylinder with piston diameter of 50 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-50 2077675 1 piece, Mounting bracket on round body cylinder with piston diameter of 63 mm, ambient temperature min 0 °C max 50 °C, plastic, Aluminum BEF-KHZ-RT-63 2077674 Brackets for cylinder sensors 2021-10-22 14:31:43 | Product data sheet  Subject to change without notice MAGNETIC CYLINDER SENSORS | SICK 5 MPS-032TSTP0 | MPS-T POSITION SENSORS A B C D E F Brief description Type Part no. 1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ... 130 mm, ambient temperature min –30 °C max 80 °C, stainless steel, Zinc cast BEF-KHZ-RT1-130 2077684 1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ... 25 mm, ambient temperature min –30 °C max 80 °C, stainless steel, Zinc cast BEF-KHZ-RT1-25 2077682 1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ... 63 mm, ambient temperature min –30 °C max 80 °C, stainless steel, Zinc cast BEF-KHZ-RT1-63 2077683 Mounting bracket for mounting on SMC rails CDQ2 (T-slot), Aluminum, without mounting hardware BEF-KHZ-TT2 2046440 Mounting bracket for mounting on SMC rails ECDQ2 (T-slot), Aluminum, without mounting hardware BEF-KHZ-TT1 2046439 CABLE CLIPS 2059322 LABEL HOLDER 2086019 Head A: female connector, M8, 4-pin, straight, A-coded Head B: Flying leads Cable: Sensor/actuator cable, PUR, halogen-free, unshielded, 2 m YF8U14020UA3XLEAX 2094791 Head A: female connector, M8, 4-pin, straight, A-coded Head B: Flying leads Cable: Sensor/actuator cable, PUR, halogen-free, unshielded, 5 m YF8U14050UA3XLEAX 2094792 Head A: female connector, M8, 4-pin, angled, A-coded Head B: Flying leads Cable: Sensor/actuator cable, PUR, halogen-free, unshielded, 2 m YG8U14020UA3XLEAX 2095589 Head A: female connector, M8, 4-pin, angled, A-coded Head B: Flying leads Cable: Sensor/actuator cable, PUR, halogen-free, unshielded, 5 m YG8U14050UA3XLEAX 2095590 Head A: female connector, M8, 4-pin, straight Head B: Cable: unshielded DOS-0804-G 6009974 Head A: female connector, M8, 4-pin, angled Head B: Cable: unshielded DOS-0804-W 6009975 Head A: male connector, M8, 4-pin, straight Head B: Cable: unshielded STE-0804-G 6037323 Other mounting accessories Cable clips T-slot, 10 pcs./bag 10 pieces, Label Holder, 2.5 mm to 3.5 mm, 10 pcs., TPU H I J K L M N O P Q R S T Plug connectors and cables 6 MAGNETIC CYLINDER SENSORS | SICK Product data sheet | 2021-10-22 14:31:43 Subject to change without notice Online data sheet SICK at a glance SICK is one of the leading manufacturers of intelligent sensors and sensor solutions for industrial applications. A unique range of products and services creates the perfect basis for controlling processes securely and efficiently, protecting individuals from accidents and preventing damage to the environment. We have extensive experience in a wide range of industries and understand their processes and requirements. With intelligent sensors, we can deliver exactly what our customers need. In application centers in Europe, Asia and North America, system solutions are tested and optimized in accordance with customer specifications. All this makes us a reliable supplier and development partner. Comprehensive services complete our offering: SICK LifeTime Services provide support throughout the machine life cycle and ensure safety and productivity. For us, that is “Sensor Intelligence.” Worldwide presence: Contacts and other locations – www.sick.com SICK AG | Waldkirch | Germany | www.sick.com
