COM-09117

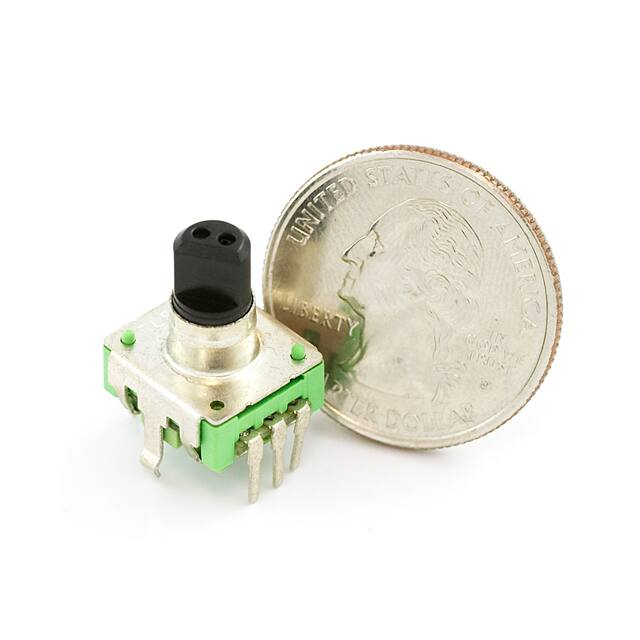

Date: 07-16-08 Ref.#: TW-700198 Rotary Encoder 318-ENC130175F-12PS .50±.40 (.02±.016) Dimensions: mm (in.) ø6±.10 (ø.236±.004) 4.5±.10 (.177±.004) C0.7 13.2 (.52) 5 (.20) 11.5 (.45) 17.5 (.689) 5 (.20) ø6.8±.20 (ø.267±.008) 5 (.20) 14 12.5 8.4 (.55) (.49) (.33) .90 6±.50 (.035) (.236±.02) 3.5±.50 (.137±.02) 2 (.079) 14.5 (.57) 7.5 (.295) 2-2±.10 (.078±.004) 2-2.1±.10 (.083±.004) 5-ø1±.10 hole (ø.04±.004) B 13.2 (.52) C A .90±.10 (.035±.004) 10.2 (.40) 3.5±.50 (.137±.02) 7 (.275) 5 (.20) (CW) off on off (B Term B~C) on (CCW) (A Term A~C) off on off (B Term B~C) on (A Term A~C) 7.5 (.295) Electrical Specifications: Mechanical Specifications: • Rating: 1mA/10VDC • Operating Temp: -10°C to 70°C • Insulation Resistance: 50VDC 10MΩ Min. • Storage Temp: -40°C to 85°C • Dielectric Strength: 50VAC for 1 min. • Rotational Torque: 50gf.cm max. • Resolution: 12 pulses/360° for each phase • No. and Pos. of detents: 12 detents (Step angle 30°±3°) Soldering Specifications: • Terminal Strength: A static load for 300gf.cm shall be applied to the tip of • Soldering: To be performed in 5 seconds within 260±5°C the terminals for 10 sec. in • Manual Soldering: To be performed in any direction 3 seconds within 350±5°C • Shaft push-pull strength: 5.1kgf • Preheating: The entire flow duration • Rotational life: 30,000 cycles should not exceed 2 min., and soldering Note: surface temperature (undersurface of • RoHS Compliant PCB) shall be settled within 100°C Available from Mouser Electronics www.mouser.com Push-on Switch Specifications: • Type: Single Pole Single Throw (Push on) • Rating: 10mA/5VDC • Switch Travel (mm): 0.5±0.4 • Operating Force: 200~460gf • Operating Life: 20,000 times (800) 346-6873 Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
