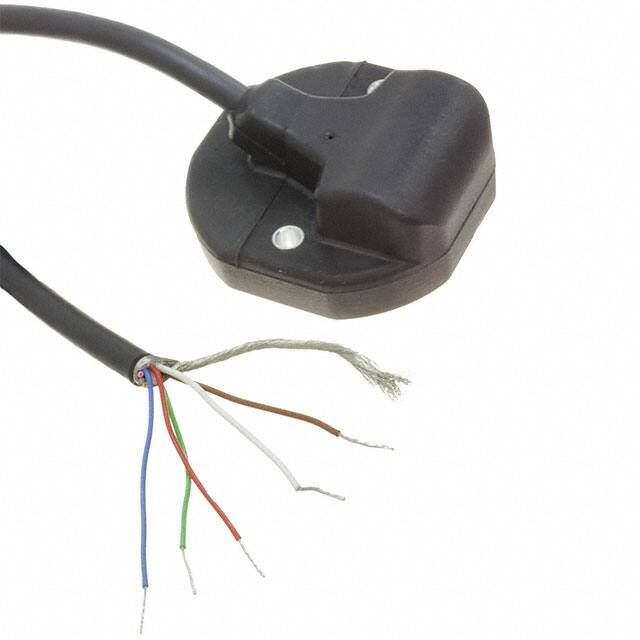

| TCW4 ANALOG ANALOG ABSOLUTE MULTI-TURN MODULAR SENSOR Sensata-BEI Sensors' TCW4 sensors provide absolute multi-turn measurement with analog outputs in an over-molded, two-part modular design that offers flexibility and protection from the environment. Features •  With its two-part design, the TCW4 absolute multi-turn offers maximum flexibility for installation •  Rugged and excellent resistance to shock and vibration •  Robust, proven magnetic technology •  Environmentally resistant, IP 67 standard (IP69K option) •  Extended operating range from -20° C to 85° C •  Uses universal supply 11 to 30 VDC – Analog output •  Available Resolution up to 12 bits per turn with up to 16 bits of turns counting •  Variety of magnet holders available Applications •  Factory Automation •  Process Automation SPECIFICATIONS Mechanical Terminations PVC Cable Housing Macromelt PA638 Weight 0,150 kg Electrical Electrical Angle 3600º Output Function 0– 10 Vdc, 0.5 to 4.5 Vdc, or 4 – 20 mA Minimal Cycle Time 1ms Resolution Multi-turn, 12 bits per turn with up to 16 bits of turns counting Accuracy +/-0.3% on 360° Repeatability +/-0.1% on 360° Supply Voltage 11 - 30 Vdc or 15-30 Vdc Start-up < 1s Response time < 10 ms (5L2 and 3L1 electronics), 10 kOhms (voltage out), 500 Ohms (current out) Current Requirements < 40mA Protection Overvoltage Protection: Yes Reverse Polarity Protection: Yes Short Circuit Protection: Yes EMC IEC 61000-4-2 Electrostatic discharge (ESD) 4 kV, 8 kV IEC 61000-4-3 Electromagnetic fields 10 V/m (80MHz - 1GHz), 3V/m (1.4GHz - 2GHz), 1V/m (2GHz - 2.7GHz) IEC 61000-4-4 Electrical fast transients (burst) 1 kV IEC 61000-4-6 Conducted disturbances, induced by RF-fields 10 Veff. Page 1 Copyright © 2020 Sensata Technologies, Inc. www.sensata.com Typical Output Output High Output 50% Etc. Output Low 0 degrees 180 degrees 360 degrees 180 degrees RAX DIMENSIONS All Dimensions are in millimeters. Shaft system with magnet to be ordered separately (see Accessories). 24 52 38 26 4 H10 27,5 2x 1° Advised mounting condition (magnet sold separately) 11,2 A 8 R2 1 A 30° Clockwise direction 0.5 to 3.5mm Advised mounting condition CONNECTIONS Funtion Vcc 0V Analog Out RAZ Reset Direction Ground Color Brown BN White WH Green GN Blue BU Red RD Shield NOTES Stray magnetic fields can interfere with accuracy and repeatability of the signal. Page 2 Copyright © 2020 Sensata Technologies, Inc. www.sensata.com Example : TCW4_00//3L13//03600// L5D020 ORDERING OPTIONS TCW4 _ 00 // (Contact the factory for special versions, ex : dimensions, connections... ) 3L1 3 // 03600 // L5 D020 Family TCW4: Absolute Multi-turn Sensor Shaft Ø 00: Modular Supply / Output Stage 3L1: 15 to 30 Vdc, 0-10V Output 5L2: 11 to 30 with 0.5 to 4.5 Vdc Output 3L3: 15 to 30 Vdc, 4 – 20 mA Output Direction 3: with direction input Range 03600: 3600° range Connection L5: 5 Conductor PVC Cable Connection Orientation D020: Diagonal cable 2m long ACCESSORIES KXX: Where XX is the shaft mounting diameter in mm. Standards are 06, 08, 10, 11, and 14 mm. i.e M9105/K10 mounts to a 10 mm shaft. A W Z 0 V -0,5 X H7 Y SECTION A-A A M9105/K06 M9105/K08 M9105/K10 M9105/K11 M9105/K14 X 06 H7 08 H7 10 H7 11 H7 14 H7 V 20 20 26 26 29 W 9,3 9,3 10 10 10 Y 12,5 12,5 14 14 14 Z 15 15 15 15 18 Page 3 Copyright © 2020 Sensata Technologies, Inc. www.sensata.com 10 12,5 Index 3 H10 26 36 h7 Magnet 2x CHc M4x12 Screws 12 25 50% of output signal visual mark 10 g7 20 10±0.10 2.50±0.10 Page 4 Sensata Technologies, Inc. (“Sensata”) data sheets are solely intended to assist designers (“Buyers”) who are developing systems that incorporate Sensata products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains responsible for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products. Sensata data sheets have been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements, improvements and other changes to its data sheets or components without notice. Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS ARE PROVIDED “AS IS”. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO SENSATA DATA SHEETS OR USE THEREOF. All products are sold subject to Sensata’s terms and conditions of sale supplied at www.sensata.com SENSATA ASSUMES NO LIABILITY FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS’ PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS, AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION OR SUPPORT THAT MAY BE PROVIDED BY SENSATA. Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA. Copyright © 2020 Sensata Technologies, Inc. No. 02317-00 Rev.05/05/20 CONTACT US Americas +1 (800) 350 2727 sales.beisensors@sensata.com EMEA position-info.eu@sensata.com +33 (3) 88 20 8080 Asia Pacific sales.isasia@list.sensata.com China +86 (21) 2306 1500 Japan +81 (45) 277 7117 Korea +82 (31) 601 2004 India +91 (80) 67920890 Rest of Asia +886 (2) 27602006 ext 2808 www.sensata.com
