RVP510

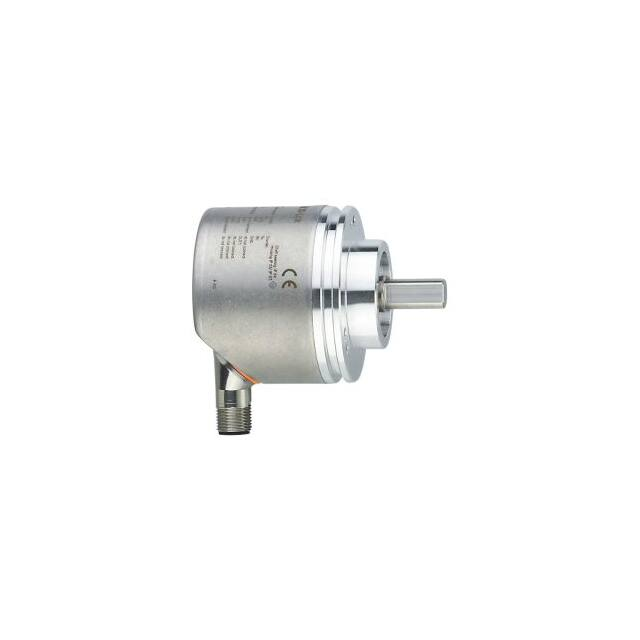

RVP510 Incremental encoder with solid shaft and display INCREMENTAL ENCODER PERFORMANCE LINE 1 2 3 M4 x 0.7 Depth 6 mm M3 x 0.5 Depth 6 mm display Product characteristics Resolution 1...10000; (parameterisable; Factory setting: 1024) resolution Communication interface IO-Link Shaft design Shaft diameter solid shaft [mm] 10 Application Function principle incremental Detection system magnetic Application encoder; Speed monitor; counter Electrical data Operating voltage Current consumption [V] [mA] Protection class < 350 III Reverse polarity protection Max. revolution electrical 4.75...30 DC yes [U/min] 12000 Outputs Electrical design Switching frequency HTL/TTL [kHz] Factory setting Output function: HTL (50 mA) Short-circuit protection Phase difference A and B 1000 yes [°] 90 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RVP510-01 — 04.03.2016 — RVP510 Incremental encoder with solid shaft and display INCREMENTAL ENCODER PERFORMANCE LINE Measuring/setting range Resolution 1...10000; (parameterisable; Factory setting: 1024) resolution Speed monitor Set point SP -9994...9999 U/min -166.6...166.7 Hz Reset point rP -9999...9994 U/min -166.7...166.6 Hz Counter Preset point 1...9999 Accuracy / deviations Accuracy [°] 0.1 Software / programming Parameter setting options encoder; Resolution; direction of rotation; HTL; TTL; Speed monitor; Resolution Interfaces Communication interface IO-Link Transmission type COM2 (38,4 kBaud) IO-Link revision 1.1 SIO mode yes Min. process cycle time [ms] 2.3 Ambient temperature [°C] -40...85 Storage temperature [°C] -40...85 Max. relative air humidity [%] 95; (condensation not permissible) Operating conditions Protection IP 65; (on the housing: IP 67; on the shaft: IP 64) Tests / approvals Shock resistance 100 g Vibration resistance 20 g MTTF [years] 218 [g] 429 Mechanical data Weight Dimensions [mm] Materials flange: aluminium; housing: stainless steel (1.4521 / 444); display window: PEI Max. revolution, mechanical [U/min] Max. starting torque Reference temperature torque 12000 [Nm] 1 [°C] 20 Shaft design Shaft diameter Ø 58 / L = 80.2 solid shaft [mm] Shaft material 10 stainless steel Max. shaft load axial (at the shaft end) [N] 40 Max. shaft load radial (at the shaft end) [N] 60 Fixing flange clamping flange ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RVP510-01 — 04.03.2016 — RVP510 Incremental encoder with solid shaft and display INCREMENTAL ENCODER PERFORMANCE LINE Displays / operating elements 10-segment display, red/ green 4-digit parameterisable Display 2 x LED, yellow 5 x LED, green Electrical connection Connector: 1 x M12, radial, can also be used axially; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m; (IO-Link: max. 20 m) IO-Link 1 L+ 2 not to be used 3 L- 4 IO-Link 5 not to be used 6 not to be used 7 not to be used 8 not to be used Screen plug encoder 1 UB 2 A 3 GND 4 Z/0-Pulse (90 deg) 5 B 6 A- 7 B- 8 Z- Screen plug ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RVP510-01 — 04.03.2016 — RVP510 Incremental encoder with solid shaft and display INCREMENTAL ENCODER PERFORMANCE LINE Preset counter 1 UB 2 IN1 3 GND 4 not to be used 5 OUT1 6 not to be used 7 not to be used 8 not to be used Screen plug Speed monitor 1 UB 2 OUT2 3 GND 4 not to be used 5 OUT1 6 OUT2- 7 OUT1- 8 not to be used Screen plug Diagrams and graphs Pulse diagram direction of rotation clockwise (looking at the shaft) ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RVP510-01 — 04.03.2016 —
