MK5215

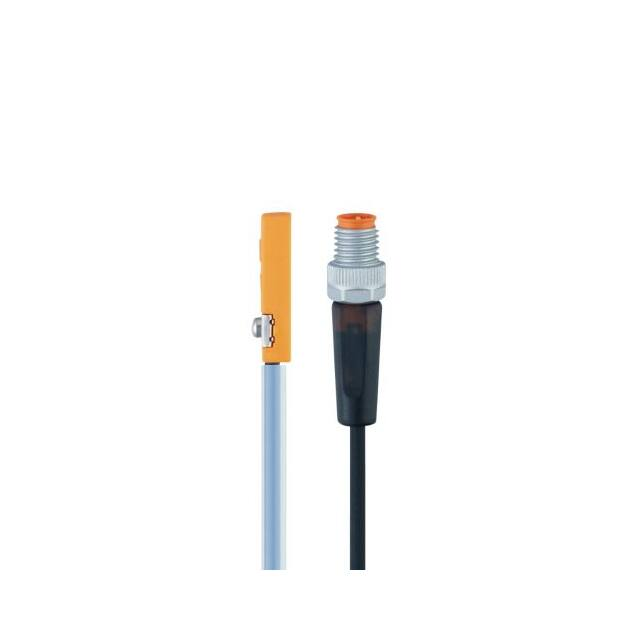

MK5215 T-slot cylinder sensor MKT3028BBPKG/G/WFI/0,3M/ZH/ASR 1 2 fastening clamp Sensing face Product characteristics Electrical design PNP Output function normally open Dimensions [mm] 25 x 5 x 6.5 Application Special feature Magnetic-field immune Operating principle suppression of extraneous fields Application welding applications Magnetic-field immune yes Electrical data Operating voltage Current consumption [V] [mA] Protection class < 10 III Reverse polarity protection Max. power-on delay time 10...30 DC yes [ms] 300 Outputs Electrical design PNP Output function normally open Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 100 Switching frequency DC [Hz] 9 Short-circuit protection yes Overload protection yes ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5215-01 — 11.03.2014 — MK5215 T-slot cylinder sensor MKT3028BBPKG/G/WFI/0,3M/ZH/ASR Detection zone Response sensitivity [mT] 2.8 Travel speed [m/s] < 0.25 Hysteresis [mm] < 1.5 Repeatability [mm] < 0.2 [°C] -25...85 Accuracy / deviations Operating conditions Ambient temperature Protection IP 65; IP 67 Tests / approvals EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EMC EN 61000-4-6 HF conducted 10 V EN 55011 class B EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z) UL Approval no. C003 Vibration resistance Shock resistance UL approval Mechanical data Weight [g] 17 Mounting flush mountable Type of mounting fastening clamp with combined slot / hexagon socket, width across flats 1.5 Cylinder type Dimensions T-slot cylinders [mm] Materials 25 x 5 x 6.5 housing: PA; fastening clamp: stainless steel; knurled nut: PTFE coated; protective tube: PTFE coated Displays / operating elements Display switching status 1 x LED, yellow Accessories Items supplied rubber placeholder: 1 Cable clip: 1 Remarks Remarks Pack quantity operating voltage "supply class 2" according to cULus 1 pcs. Electrical connection - plug Cable: 0.3 m, PUR; protective tube Connector: 1 x M8; Locking: knurled nut, rotatable ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5215-01 — 11.03.2014 — MK5215 T-slot cylinder sensor MKT3028BBPKG/G/WFI/0,3M/ZH/ASR Connection ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5215-01 — 11.03.2014 —
