UM7222

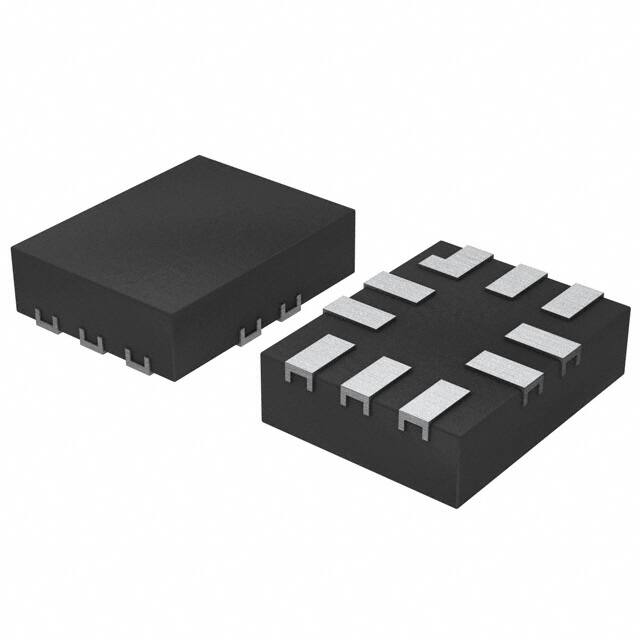

UM7222MA/7222 High-Speed USB2.0 (480 Mbps) DPDT Switch UM7222MA MSOP10 UM7222 QFN10 1.8×1.4 General Description The UM7222MA/UM7222 is a dual port high-speed, low-power data switch optimized for USB 2.0 signal switching. The UM7222MA/UM7222 switch is configured in double-pole/ double-throw DPDT. It handles bidirectional signal flow, achieving a 550 MHz -3dB bandwidth, and a port to port crosstalk and isolation at -50dB at 250MHz. The UM7222MA/UM7222 operates from a single +2.7V to +5.5V supply, with current consumption less than 1 microampere. The UM7222MA/UM7222 features wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signal with good signal integrity, offers little or no attenuation of the high-speed signals at the outputs. Its high channel-to-channel crosstalk rejection results in minimal noise interface. Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480Mbps). The control logic threshold is guaranteed to be compatible with 1.8V logic. The UM7222MA is available in Pb-free MSOP10 package, while the UM7222 is available in Pb-free QFN10 package (1.4mm×1.8mm×0.55mm). They are ideal for portable high speed mix signal switching application. Applications Features         Differential Signal Data Routing USB2.0 Signal Routing Cell Phone, PDA, Digital Camera and Notebook LCD Monitor, TV and Set-Top Box         Ron is Typically 6.5Ω at VCC=3.0V Low Bit-to-Bit Skew: Typically 50ps OVT on D+ and D- up to 5.5V Power OFF Protection: When VCC=0V, D+ and D- can Tolerate up to 5.5V Low Crosstalk: -50dB (250MHz) Low Current Consumption: 1µA Near-Zero Propagation Delay: 250ps Channel On-Capacitance: 6.5pF(Typical) VCC Operating Range: +2.7V to +5.5V 550MHz Bandwidth (or Data Frequency) Lead (Pb)-Free MSOP10 and QFN10 Packages ESD Rating: ±4kV I/O to GND ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 1/13 UM7222MA/7222 Pin Configurations Top View 10 9 8 7 6 UM7222 MA XX 1 2 3 4 5 XX: Week Code UM7222MA MSOP10 (Top View) OE 8 VCC 9 S 10 HSD1- HSD2- 7 6 CONTROL 1 2 HSD1+ HSD2+ 5 D- 4 GND 3 D+ M: Month Code UM7222 QFN10 1.8×1.4 Pin Description Pin UM7222MA 2 3 4 5 6 7 8 9 UM7222 1 2 3 4 5 6 7 10 1 9 10 8 Name Function HSD1+ HSD2+ D+ GND DHSD2HSD1- Data Ports Data Ports Data Ports Ground Connection Data Ports Data Ports Data Ports ______ Output Enable OE VCC S Positive Supply Voltage Select Input ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 2/13 UM7222MA/7222 Ordering Information Part Number Packaging Type Marking Code UM7222MA MSOP10 UM7222MA UM7222 QFN10 1.8×1.4 AC S X 0 1 HSD1+, HSD1OFF ON OFF Shipping Qty 4000pcs/13 Inch Tape & Reel 3000pcs/7 Inch Tape & Reel Function Table OE 1 0 0 HSD2+, HSD2OFF OFF ON Absolute Maximum Ratings Symbol VCC VIS VIN ID PD TO TSTG Parameter Supply Voltage Analog Switch Input Voltage Digital Select Input Voltage Continuous DC Current Power Dissipation Operating Temperature Range Storage Temperature Range Limit -0.5 to +6.5 -0.5 to +6.5 -0.5 to +6.5 50 0.5 -40 to +85 -65 to +150 Unit V mA W °C ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 3/13 UM7222MA/7222 DC Electrical Characteristics Symbol Parameter IIN Input Leakage Current 0≤VIS≤VCC 3.6 Full -1.0 1.0 μA 0≤VIS≤VCC 0 Full -1.0 1.0 μA VIN=2.6V 3.6 Full 10 μA 0≤VIS≤VCC 3.6 Full 1.0 μA VIS=VCC or GND 3.6 Full 1.0 μA IOFF ICCT IOZ ICC Power Off Leakage Current Increase in ICC per Control Voltage OFF State Leakage Current Quiescent Supply Current Input High Voltage VIL Input Low Voltage VIK Clamp Diode Voltage IIS=-18mA On-Resistance (Note 2) On Resistance Match Between Channels (Note 2, 3) On Resistance Flatness (Note 2, 3) ΔRON RFLAT Temp 3.0 to 3.6 3.0 to 3.6 VIH RON VCC (V) Limits (-40°C to 85°C) Typ Min Max (Note1) Test Conditions Full -1.0 1.3 Unit V Full 0.5 V 3.0 Full -1.2 V VIS=0 to 0.4V ID=8mA 3.0 Full 6.5 9 Ω VIS=0 to 0.4V ID=8mA 3.0 Full 0.35 Ω VIS=0 to 1.0V ID=8mA 3.0 Full 4.5 Ω Note 1: Typically values are at VCC=3.3V and TA=+25°C. Note 2: Guaranteed by design. Resistance measurements do not include test circuit or package resistance. Note 3: Parameter is characterized but not tested in production. ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 4/13 UM7222MA/7222 AC Electrical Characteristics Symbol Parameter Test Conditions tON Turn On Time VIS=0.8V tOFF Turn Off Time VIS=0.8V tBBM Break Before Make Time (Note 4) VIS=0.8V tPD Propagation Delay CL=10pF tSK(O) Channel to Channel Skew CL=10pF OIRR Off Isolation XTALK Crosstalk BW -3dB Bandwidth RL=50Ω, f=250MHz RL=50Ω, f=250MHz RL=50Ω VCC (V) 3.0 to 3.6 3.0 to 3.6 3.0 to 3.6 3.0 to 3.6 3.0 to 3.6 3.0 to 3.6 3.0 to 3.6 3.0 to 3.6 Temp Limits (-40°C to 85°C) Typ Min Max (Note1) Unit Full 13 30 ns Full 12 25 ns 4.7 6.5 ns Full Full 2 0.25 ns 0.05 ns Full -25 dB Full -48 dB Full 550 MHz 2.5 pF 4.5 pF 7.0 pF Capacitance CIN COFF CON Control Pin Input Capacitance (Note 5) HSD+ HSD- Off Capacitance (Note 5) HSD+ HSD- ON Capacitance (Note 5) VCC=0V VCC=VIS=3.3V, OE=3.3V VCC=3.3V, OE=0V Note 4: Guaranteed by design. Note 5: TA=+25°C, f=1MHz, Capacitance is characterized but not tested in production. ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 5/13 UM7222MA/7222 Typical Performance Characteristics RON vs VD and Single Supply Voltage O T=25°C T=25 C ION =8mA ON 30 RON-ON Resistance (ohm) 30 V+=3.0V RON-ON Resistance(ohm) 35 25 V+=3.3V 20 15 V+=3.6V 10 5 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 25 V+=3.3V ION=8mA 0 T=25°C T=25 C 15 10 5 0.5 1.0 Switching Threshold vs Supply Voltage 2.0 2.5 3.0 3.5 Supply Current vs Input Switching Frequency 25 20 VIH V+=3.6V 15 I+-Supply Current(uA) VT-Switching Threshold(V) 1.5 VD-Analog Voltage(V) VD-Analog Voltage(V) 1.20 1.15 1.10 1.05 1.00 0.95 0.90 0.85 0.80 0.75 0.70 0.65 0.60 0.55 0.50 3.0 0 T=85°C T=85 C 20 0 0.0 4.0 RON vs Analog Voltage and Temperature VIL 10 5 0 -5 V+=3.3V -10 V+=3.0V -15 -20 3.1 3.2 3.3 3.4 V+-Supply Voltage(V) 3.5 3.6 -25 10 100 1K 10K 100K 1M Input Switching Frequency(Hz) ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 6/13 10M UM7222MA/7222 Typical Performance Characteristics (Continued) Bandwidth 0.3 1 10 100 1000 100 1000 Frequency (MHz) Off Isolation 0.3 1 10 Frequency (MHz) ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 7/13 UM7222MA/7222 Typical Performance Characteristics (Continued) Crosstalk 0.3 1 10 100 1000 Frequency (MHz) Eye Pattern: 480Mbps USB Signal with No Switch (Through Path) ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 8/13 UM7222MA/7222 Typical Performance Characteristics (Continued) Eye Pattern: 480Mbps USB Signal with Switch HSD1+ and HSD1- Path Eye Pattern: 480Mbps USB Signal with Switch HSD2+ and HSD2- Path ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 9/13 UM7222MA/7222 Applications Information Power-Off Protection For a VBUS short circuit, the switch is expected to withstand such a condition for at least 24 hours. The UM7222 has specially designed circuitry which prevents unintended signal bleed through as well as guaranteed system reliability during a power-down, over-voltage condition. The protection has been added to the common pins (D+, D-). Power-On Protection The USB 2.0 specification also notes that the USB device should be capable of withstanding a VBUS short during transmission of data. This modification works by limiting current flow back into the V+ rail during the over-voltage event so current remains within the safe operating range. In this application, the switch passes the full 5.25V input signal through to the selected output while maintaining specified off isolation on the un-selected pins. ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 10/13 UM7222MA/7222 Package Information UM7222MA MSOP10 Outline Drawing DIMENSIONS Symbol MILLIMETERS INCHES Min Typ Max Min Typ Max A - - 1.10 - - 0.043 A1 0.00 - 0.15 0.000 - 0.006 A2 0.75 0.85 0.95 0.030 0.033 0.037 A3 0.25 0.35 0.39 0.010 0.014 0.015 b 0.18 - 0.28 0.007 - 0.011 c 0.09 - 0.23 0.004 - 0.009 D 2.90 3.00 3.10 0.114 0.118 0.122 E 2.90 3.00 3.10 0.114 0.118 0.122 E1 4.70 4.90 5.10 0.185 0.193 0.201 e 0.50BSC 0.020BSC L 0.40 0.60 0.80 0.016 0.024 0.031 θ 0° - 8° 0° - 8° Land Pattern NOTES: 1. Compound dimension: 3.00×3.00; 2. Unit: mm; 3. General tolerance ±0.05mm unless otherwise specified; 4. The layout is just for reference. Tape and Reel Orientation ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 11/13 UM7222MA/7222 UM7222 QFN10 1.8×1.4 Outline Drawing DIMENSIONS Symbol Max Min Typ Max A 0.50 0.55 0.60 0.020 0.022 0.024 A1 0.00 - 0.05 0.000 - 0.002 A3 A 0.15REF A3 0.006REF b 0.15 0.20 0.25 0.006 0.008 0.010 D 1.35 1.40 1.45 0.053 0.055 0.057 E 1.75 1.80 1.85 0.069 0.071 0.073 e A1 INCHES Typ L e E MILLIMETERS Min 0.40BSC 0.016BSC L 0.30 0.40 0.50 0.012 0.016 0.020 L1 0.40 0.50 0.60 0.016 0.020 0.024 Land Pattern NOTES: 1. Compound dimension: 1.80×1.40; 2. Unit: mm 3. General tolerance ±0.05mm unless otherwise specified; 4. The layout is just for reference. Tape and Reel Orientation ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 12/13 UM7222MA/7222 GREEN COMPLIANCE Union Semiconductor is committed to environmental excellence in all aspects of its operations including meeting or exceeding regulatory requirements with respect to the use of hazardous substances. Numerous successful programs have been implemented to reduce the use of hazardous substances and/or emissions. All Union components are compliant with the RoHS directive, which helps to support customers in their compliance with environmental directives. For more green compliance information, please visit: http://www.union-ic.com/index.aspx?cat_code=RoHSDeclaration IMPORTANT NOTICE The information in this document has been carefully reviewed and is believed to be accurate. Nonetheless, this document is subject to change without notice. Union assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the contained information, or to notify a person or organization of any update. Union reserves the right to make changes, at any time, in order to improve reliability, function or design and to attempt to supply the best product possible. Union Semiconductor, Inc Add: Unit 606, No.570 Shengxia Road, Shanghai 201210 Tel: 021-51093966 Fax: 021-51026018 Website: www.union-ic.com ________________________________________________________________________ http://www.union-ic.com Rev.11 May.2020 13/13
