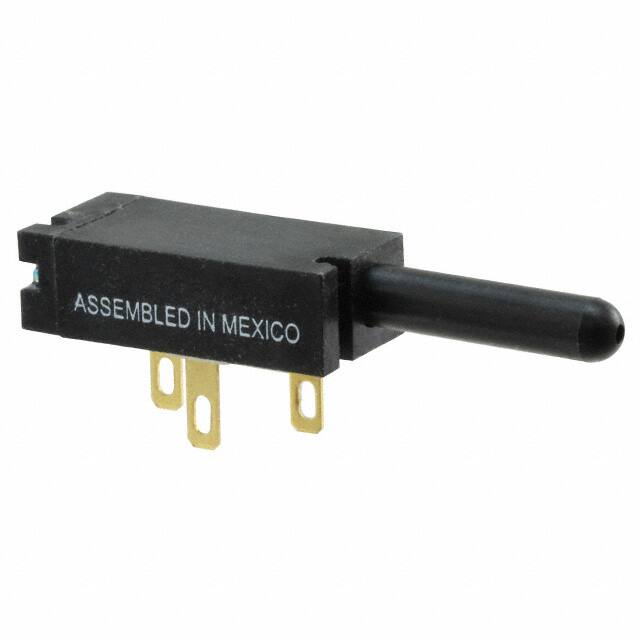

|9600 SERIES Spring Return Linear Position Sensor Introduction The 9600 Series Linear Position Sensor, is designed for a variety of spacelimited feedback applications that require high accuracy. It is ideally suited for Industrial, vehicular, appliance, machine tool and robotic applications due to the unit’s high temperature stability. The solderable terminal tabs, suitable for use with .110” (2.8mm) PDQ styled crimped wiring lugs, and durable springloaded plunger, make installation and operation easy. The 9600 Series is available in three standard sizes and provides excellent life at 1,000,000 full cycles (5 million dither cycles), which means high reliability in demanding installations. SPECIFICATIONS Mechanical 9605 9610 9615 0.25 0.50 0.75 Mechanical Travel ± .015 (± 0.4) (B) inches (mm) 0.56 (14.2) 1.06 (26.9) 1.56 (39.6) Housing Length ± .015 (± 0.4) (C) inches (mm) 1.06 (26.9) 1.56 (39.6) 2.06 (52.3) Terminal Spacing (D) inches (mm) 0.30 (7.6) 0.50 (12.7) 0.80 (20.3) (E) inches (mm) 0.20 (5.1) 0.50 (12.7) 0.70 (17.8) 0.810 (20.6) 1.310 (33.3) 1.810 (46.0) Power Rating at 70ºC, Watts Fully Extended Length ± .015 (± 0.4) (F) inches (mm) Electrical 9605 Part Number Total Electrical Travel (A) inches(mm) Total DC Resistance ± 25% 9615 9605R1.7KL2.0 9610R3.4KL2.0 9615R5.1KL2.0 0.50 (12.7) 1.00 (25.4) 1.50 (38.1) 1.7K 3.4K 5.1K ± 0.5% ± 0.35% Linearity Over Active Electrical Travel Best Practical Linearity (Option) 9610 ± 2% ± 1.0% Page 1 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Environmental Mechanical Life 1,000,000 Full Cycles; 5,000,000 Dither Cycles Stop Strength oz. (Newtons) Actuation Force oz. (Newtons) 360 (100) 14.4 (4.0) Maximum, supplied with internal spring to return actuator to extended position Humidity 95% @ 38ºC Vibration 15g’s 50 to 1,000Hz, 2 hrs, each axis Shock Up to 50g’s Temperature Limits -40ºC to +135ºC NOTES & TABLES: All notes and tables referred to in the text can be found in this document. DIMENSIONS TOLERANCES: .XX = ±0.01, .XXX = ± 0.005 All dimensions are in inches [millimeters] ORDERING OPTIONS Order the 9600 series linear potentiomters by the part number as show in the Electrical Specifications table on the first page Page 2 Sensata Technologies, Inc. (“Sensata”) data sheets are solely intended to assist designers (“Buyers”) who are developing systems that incorporate Sensata products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains responsible for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products. Sensata data sheets have been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements, improvements and other changes to its data sheets or components without notice. Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS ARE PROVIDED “AS IS”. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO SENSATA DATA SHEETS OR USE THEREOF. All products are sold subject to Sensata’s terms and conditions of sale supplied at www.sensata.com SENSATA ASSUMES NO LIABILITY FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS’ PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS, AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION OR SUPPORT THAT MAY BE PROVIDED BY SENSATA. Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA. Copyright © 2018 Sensata Technologies, Inc. Specification No.:BE0018-9850GII-1001 Rev.02/12/18 CONTACT US Americas +1 (800) 350 2727 sensors@sensata.com Europe, Middle East & Africa +33 (3) 88 20 8080 position-info.eu@sensata.com Asia Pacific sales.isasia@list.sensata.com China +86 (21) 2306 1500 Japan +81 (45) 277 7117 Korea +82 (31) 601 2004 India +91 (80) 67920890 Rest of Asia +886 (2) 27602006 ext 2808 www.sensata.com
