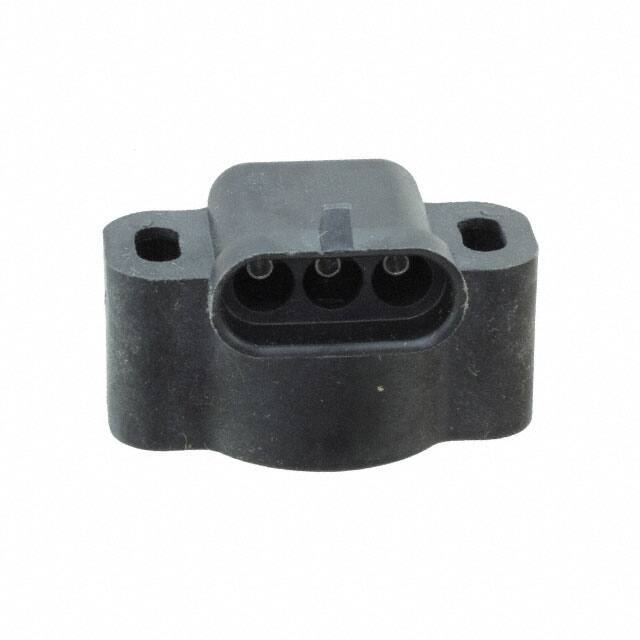

9800 SERIES | THROTTLE POSITION / AND INDUSTRIAL CONTROL SENSOR MODULES THROTTLE POSITION AND INDUSTRIAL CONTROL SENSOR MODULES Product Description The Duncan 9800 Series Sensor is designed for rugged, continuous under hood environments. Features include high temperature, stable materials; insert molded integral connector/body design to eliminate weak/stress points or leaks during engine wash-down or water exposure. To meet a variety of mounting area needs and interconnection requirements, fourteen standard models are available. For engineering assistance or special configurations of the 9800 Series to meet specific applications, contact a Duncan representative or the factory. SPECIFICATIONS Electrical Specifications Active Electrical Rotation Total Resistance Linearity Power Rating at 70°C Shaft Rotation Direction 85° ± 2° (See Fig. 1) 5,000 ohms ±20% Std ±2.0% over active electrical rotation (See Fig. 1) Spec. ±0.5% over active electrical rotation (See Fig. 1) 0.15 Watts CW Models: Female — 9801, 9805, 9811 Male — 9803, 9807, 9813 Leadwire — 9831 CCW Models: Female — 9802, 9806, 9812 Male — 9804, 9808, 9814 Leadwire — 9832 Environmental Specifications Temperature Limits -40°C to +135°C Vibration 15 G’s 50 to 1,000 Hz 2 Hrs. each plane Humidity 95% @ 38°C Shock 50 G’s Page 1 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Mechanical Specifications Mechanical Rotation (Nominal) Mechanical Life 120° (Except 130° for 9831, 9832) 1,000,000 Full Cycles, 5,000,000 Dither Cycles Stop Strength 0.68 Nm max. Torque 0.11 Nm max. Mounting Torque 1.35 Nm max. CURVES AND INFO Figure 1 Spring Return Orientation Mating Connector / Interface Information Spring returns slider to counter-clockwise end on CW sensors. Spring returns slider to clockwise on CCW sensors. Sensor Female Connector Mates with Packard Electric Weather Pack Connector • Three-way Tower with Seal (1 Required) P/N 12015793 • Male Pin (3 required) P/N 12033674 (for 18 AWG wire) • Wire Cable Seal (3 required) P/N 12015284 Note: Custom Drive-Arm/ Actuator Configurations Available Most specifications may be altered to meet specific requirements Page 2 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com DIMENSIONS AND DIAGRAMS Dimensions in mm 9811 (CW) and 9812 (CCW) Models 9811-9814 90° Connector Style Notes: 1 Nominal Midpoint of Mechanical Rotation for CCW Rotation. 2 Nominal Midpoint of Mechanical Rotation for CW Rotation. 3 Nominal 10% Output Position for CCW Rotation. 4 Nominal 10% Output Position for CW Rotation. 5 Both Driving Blades and Shaft are Shown in Midpoint Position. 6 All Dimensions and Values Shown in Metric. Page 3 Revised 01/10/17 Sensata Technologies, Inc. (“Sensata”) data sheets are solely intended to assist designers (“Buyers”) who are developing systems that incorporate Sensata products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains responsible for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products. Sensata data sheets have been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements, improvements and other changes to its data sheets or components without notice. Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS ARE PROVIDED “AS IS”. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO SENSATA DATA SHEETS OR USE THEREOF. All products are sold subject to Sensata’s terms and conditions of sale supplied at www.sensata.com SENSATA ASSUMES NO LIABILITY FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS’ PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS, AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION OR SUPPORT THAT MAY BE PROVIDED BY SENSATA. Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA. Copyright © 2018 Sensata Technologies, Inc. CONTACT US Americas +1 (800) 350 2727 – Option 1 sales.beisensors@sensata.com Europe, Middle East & Africa +33 (3) 88 20 8080 position-info.eu@sensata.com Asia Pacific sales.isasia@list.sensata.com China +86 (21) 2306 1500 Japan +81 (45) 277 7117 Korea +82 (31) 601 2004 India +91 (80) 67920890 Rest of Asia +886 (2) 27602006 ext 2808 www.sensata.com
