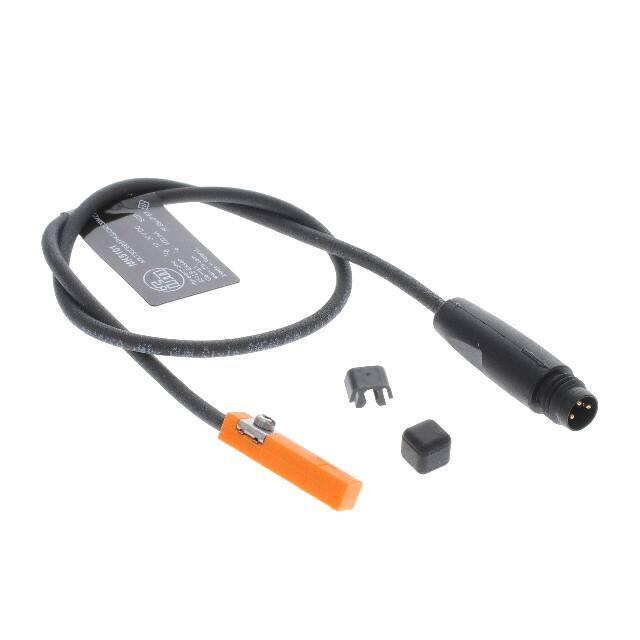

MK5101

MK5101 T-slot cylinder sensor MKT3028BBPKG/G/0,3M/ZH/AS 1 2 fastening clamp Sensing face Product characteristics Electrical design PNP Output function normally open Dimensions [mm] 25 x 5 x 6.5 Electrical data Operating voltage Current consumption [V] [mA] Protection class < 10 III Reverse polarity protection Max. power-on delay time 10...30 DC; ("supply class 2" to cULus) yes [ms] 30 Outputs Electrical design PNP Output function normally open Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 100 Switching frequency DC [Hz] 10000 Short-circuit protection yes Overload protection yes Detection zone Response sensitivity [mT] 2.8 Travel speed [m/s] > 10 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5101-00 — 14.09.2009 — MK5101 T-slot cylinder sensor MKT3028BBPKG/G/0,3M/ZH/AS Accuracy / deviations Hysteresis [mm] < 1.5 Repeatability [mm] < 0.2 [°C] -25...85 Operating conditions Ambient temperature Protection IP 65; IP 67 Tests / approvals EMC MTTF EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B [years] UL approval 3694 UL Approval no. C003 Mechanical data Weight [g] 12.1 Mounting flush mountable Type of mounting fastening clamp with combined slot / hexagon socket, width across flats 1.5 Cylinder type Dimensions T-slot cylinders [mm] Materials 25 x 5 x 6.5 housing: PA; fastening clamp: stainless steel Displays / operating elements Display switching status 1 x LED, yellow Accessories Items supplied rubber placeholder: 1 Cable clip: 1 Remarks Pack quantity 1 pcs. Electrical connection - plug Cable: 0.3 m, PUR Connector: 1 x M8; Locking: snap-fit ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5101-00 — 14.09.2009 — MK5101 T-slot cylinder sensor MKT3028BBPKG/G/0,3M/ZH/AS Connection ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5101-00 — 14.09.2009 —
