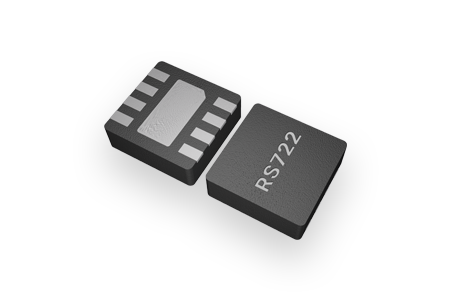

RS722PXK

RS722PXK

  • 厂商:

    RUNIC(润石)

  • 封装:

    SOIC8_150MIL

  • 描述:

    IC OPAMP GP 2 CIRCUIT 8SOP

  • 数据手册
  • 价格&库存
RS722PXK 数据手册
RS721P, RS722P, RS724P 10MHz, Precision, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES DESCRIPTION • HIGH GAIN BANDWIDTH:10MHz • RAIL-TO-RAIL INPUT AND OUTPUT 0.8mV Max Vos INPUT VOLTAGE RANGE: -0.2V to +5.7V with Vs = 5.5V • • SUPPLY RANGE: +2.5V to +5.5V • • SPECIFIED UP TO +125°C Micro SIZE PACKAGES: SOT23-5 SOT353(SC70-5) The RS721P, RS722P, RS724P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (10MHz) and slew rate of 6V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The RS721P, RS722P and RS724P has lower offset, which is guaranteed not upper than 0.5mV at 25°C with Vs = 5V, VCM = Vs/2. The devices are ideal for sensor interfaces, active filters and portable applications. The RS721P, RS722P, RS724P families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V. APPLICATIONS • SENSORS • • ACTIVE FILTERS TEST EQUIPMENT • • DRIVING A/D CONVERTERS PHOTODIODE AMPLIFICATION Device Information (1) PART NUMBER RS721P RS722P RS724P PACKAGE BODY SIZE(NOM) SOT23-5 2.90mm×1.60mm SOIC-8(SOP8) 4.90mm×3.90mm MSOP-8 3.00mm×3.00mm SOT353(SC70-5) 2.10mm×1.25mm SOIC-8(SOP8) 4.90mm×3.90mm MSOP-8 3.00mm×3.00mm TSSOP-8 3.00mm×4.40mm TDFN2×2-8 2.00mm×2.00mm SOIC-14(SOP14) 8.65mm×3.90mm TSSOP-14 5.00mm×4.40mm (1) For all available packages, see the orderable addendum at the end of the data sheet. REV B.5 1 www.run-ic.com RS721P, RS722P, RS724P Pin Configuration and Functions (Top View) RS721P 2 +IN 3 V+ +IN 1 V- 2 -IN 3 5 V+ + - 4 -IN SOT23-5/SOT353(SC70-5) 4 NC 1 -IN 2 +IN 3 V- 4 + V- 5 - 1 + OUT RS721P RS721BP 8 NC 7 V+ 6 OUT OUT SOT23-5/SOT353(SC70-5) 5 NC SOIC-8(SOP8),MSOP-8 Pin Description NAME -IN +IN NC OUT VV+ RS721P SOT23-5/ SOT353(SC 70-5) 4 3 1 2 5 PIN RS721BP SOT23-5/ SOT353(SC 70-5) 3 1 4 2 5 RS721P SOIC8(SOP8)/ MSOP8 2 3 1,5,8 6 4 7 I/O DESCRIPTION I I O - Negative (inverting) input Positive (noninverting) input No internal connection (can be left floating) Output Negative (lowest) power supply Positive (highest) power supply RS722P OUT A 8 1 -IN A 2 +IN A 3 V- RS722P 4 + A B+ V+ OUT A 1 Pin 1 Indicator 8 V+ 7 OUTB -IN A 2 7 OUTB 6 -IN B +IN A 3 6 -IN B 5 +IN B V- 4 5 +IN B TDFN2x2-8 SOIC-8(SOP8),MSOP-8,TSSOP-8 Thermal Pad on Bottom (can be left floating) Pin Description NAME -INA +INA -INB +INB OUTA OUTB VV+ PIN SOIC-8(SOP8)/MSOP8/ TSSOP-8/TDFN2×2-8 2 3 6 5 1 7 4 8 I/O DESCRIPTION I I I I O O - Inverting input, channel A Noninverting input, channel A Inverting input, channel B Noninverting input, channel B Output, channel A Output, channel B Negative (lowest) power supply Positive (highest) power supply 2 www.run-ic.com RS721P, RS722P, RS724P Pin Configuration and Functions (Top View) RS724P OUT A 1 14 OUT D -IN A 2 13 -IN D +IN A 3 12 +IN D V+ 4 11 V- +IN B 5 10 +IN C 9 -IN C 8 OUT C -IN B 6 OUT B 7 A - + - + B D + - + C SOIC-14(SOP14),TSSOP-14 Pin Description NAME -INA +INA -INB +INB -INC +INC -IND +IND OUTA OUTB OUTC OUTD VV+ PIN SOIC-14(SOP14)/TSSOP-14 2 3 6 5 9 10 13 12 1 7 8 14 11 4 I/O DESCRIPTION I I I I I I I I O O O O - Inverting input, channel A Noninverting input, channel A Inverting input, channel B Noninverting input, channel B Inverting input, channel C Noninverting input, channel C Inverting input, channel D Noninverting input, channel D Output, channel A Output, channel B Output, channel C Output, channel D Negative (lowest) power supply Positive (highest) power supply 3 www.run-ic.com RS721P, RS722P, RS724P SPECIFICATIONS Absolute Maximum Ratings Over operating free-air temperature range (unless otherwise noted) (1) MIN Supply, Vs=(V+) - (V-) Signal input pin (2) Signal output pin (3) Signal input pin (2) Signal output pin (3) Output short-circuit (4) Operating range, TA Junction, TJ Storage, Tstg Voltage Current Temperature MAX UNIT 7 (V-)-0.5 (V+) + 0.5 (V-)-0.5 (V+) + 0.5 -10 10 -150 150 Continuous -40 125 150 -65 150 V mA mA °C (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be currentlimited to 10mA or less. (3) Output terminals are diode-clamped to the power-supply rails. Output signals that can swing more than 0.5V beyond the supply rails should be current-limited to ±150mA or less. (4) Short-circuit to ground, one amplifier per package. ESD Ratings VALUE V(ESD) Electrostatic discharge Human-body model (HBM) 3000 Machine Model (MM) 200 UNIT V Recommended Operating Conditions Over operating free-air temperature range (unless otherwise noted) MIN Supply voltage, Vs= (V+) - (V-) Signal-supply Dual-supply Specified temperature NOM MAX 2.5 5.5 ±1.25 ±2.75 -40 125 UNIT V °C Thermal Information:RS721P RS721P 5PINS THERMAL METRIC (1) 8PINS UNIT SOT23-5 SOT353 (SC70-5) SOIC-8 MSOP8 RϴJA Junction-to-ambient thermal resistance 273.8 214.7 116 165 °C/W RϴJC(top) Junction-to-case(top) thermal resistance Junction-to-board thermal resistance 126.8 85.9 127.1 60.0 60 56 53 87 °C/W RϴJB ѰJT ѰJB Junction-to-top characterization parameter Junction-to-board characterization parameter 10.9 84.9 33.4 59.8 12.8 98.3 4.9 85 °C/W °C/W RϴJC(bot) Junction-to-case(bottom) thermal resistance N/A N/A N/A N/A °C/W 4 °C/W www.run-ic.com RS721P, RS722P, RS724P Thermal Information:RS722P RS722P 8PINS THERMAL METRIC (1) SOIC-8 MSOP8 UNIT TSSOP-8 TDFN2×2-8 RϴJA Junction-to-ambient thermal resistance 116 165 192 80.1 °C/W RϴJC(top) Junction-to-case(top) thermal resistance 60 53 64.3 100 °C/W RϴJB Junction-to-board thermal resistance 56 87 105.3 45 °C/W ѰJT ѰJB Junction-to-top characterization parameter Junction-to-board characterization parameter 12.8 98.3 4.9 85 7.6 105.5 6.8 45.2 °C/W °C/W RϴJC(bot) Junction-to-case(bottom) thermal resistance N/A N/A N/A 22.7 °C/W Thermal Information:RS724P RS724P 14PINS THERMAL METRIC (1) UNIT SOIC-14 TSSOP-14 RϴJA Junction-to-ambient thermal resistance 83.8 120.8 °C/W RϴJC(top) Junction-to-case(top) thermal resistance 70.7 34.3 °C/W RϴJB Junction-to-board thermal resistance 59.5 62.8 °C/W ѰJT ѰJB Junction-to-top characterization parameter Junction-to-board characterization parameter 11.6 37.7 1 56.5 °C/W °C/W RϴJC(bot) Junction-to-case(bottom) thermal resistance N/A N/A °C/W 5 www.run-ic.com RS721P, RS722P, RS724P PACKAGE/ORDERING INFORMATION Orderable Device Package Type Pin Channel Op Temp(°C) Device Marking Package Qty RS721PXF SOT23-5 5 1 -40°C ~125°C 721P Tape and Reel,3000 RS721PXC5 SOT353(SC70-5) 5 1 -40°C ~125°C 721P Tape and Reel,3000 RS721BPXF SOT23-5 5 1 -40°C ~125°C 721BP Tape and Reel,3000 RS721BPXC5 SOT353(SC70-5) 5 1 -40°C ~125°C 721BP Tape and Reel,3000 RS721PXK SOIC-8(SOP8) 8 1 -40°C ~125°C RS721P Tape and Reel,2500 RS721PXM MSOP-8 8 1 -40°C ~125°C RS721P Tape and Reel,3000 RS722PXK SOIC-8(SOP8) 8 2 -40°C ~125°C RS722P Tape and Reel,2500 RS722PXM MSOP-8 8 2 -40°C ~125°C RS722P Tape and Reel,3000 RS722PXQ TSSOP-8 8 2 -40℃~125℃ RS722P Tape and Reel,3000 RS722PXTDE8 TDFN2x2-8 8 2 -40°C ~125°C RS722P Tape and Reel,3000 RS724PXP SOIC-14(SOP14) 14 4 -40°C ~125°C RS724P Tape and Reel,2500 RS724PXQ TSSOP-14 14 4 -40°C ~125°C RS724P Tape and Reel,3000 6 www.run-ic.com RS721P, RS722P, RS724P ELECTRICAL CHARACTERISTICS (At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, and VOUT = VS/2, unless otherwise noted.) PARAMETER CONDITIONS TJ RS721P, RS722P, RS724P MIN TYP MAX UNITS POWER SUPPLY Vs Operating Voltage Range 25C IQ Quiescent Current/Amplifier 25C PSRR Ton Power-Supply Rejection Ratio Vs=2.5V to 5.5V, VCM=(V-)+0.5V Turn-on Time 25C -40C to 125C 2.5 1.1 75 5.5 V 1.55 mA 97 dB 65 13 25C us INPUT Vos Vos TC Input Offset Voltage VCM= VS/2 Input Offset Voltage Average Drift -40C to125C 25C -0.8 ±0.3 0.8 2.6 mV uV/C IB Input Bias Current 25C 1 10 pA IOS Input Offset Current 25C 1 10 pA VCM Common-Mode Voltage Range 5.7 V CMRR Vs= 5.5V 25C -0.2 Vs= 5.5V, VCM =-0.2V to 4V 25C 77 Common-Mode Rejection Ratio Vs= 5.5V, VCM =-0.2V to 5.7V -40C to 125C 25C -40C to 125C 97 67 65 81 dB 57 OUTPUT RL=2KΩ, Vo= 0.15V to 4.85V AOL Open-Loop Voltage Gain RL=10KΩ, Vo= 0.05V to 4.95V Output Swing From Rail Iout RL=2KΩ 25C -40C to 125C 25C -40C to 125C 25C RL=10KΩ Output Current Source 95 103 65 100 110 dB 66 12 3 mV 25C 140 mA Slew Rate 25C 6 V/us Gain-Bandwidth Product 25C 10 MHz Phase Margin 25C 62 ° Setting Time,0.1% 25C 0.7 us VIN·Gain≥VS, G=-100 25C 3.2 us f = 1KHz 25C 9.5 nV/√Hz f = 10KHz 25C 6.5 nV/√Hz FREQUENCY RESPONSE SR GBP PM ts Overload Recovery Time NOISE en Input Voltage Noise Density 7 www.run-ic.com RS721P, RS722P, RS724P TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. Gain Phase 100 160 120 80 100 60 80 40 60 20 40 0 20 -20 10 100 1K 120 100 80 60 40 0 10K 100K 1M 10M 100M 20 1 Frequency(Hz) INPUT VOLTAGE NOISE SPECTRAL DENSITY vs FREQUENCY 120 10 100 1K Frequency(KHz) Vs=5V 10K POWER−SUPPLY REJECTION RATIO vs FREQUENCY 100 PSRR(dB) Voltage Noise(nV/√Hz) 100 10 80 60 40 20 1 10 100 1K 10K Frequency(Hz) 1 100K QUIESCENT CURRENT vs TEMPERATURE 1.3 Quiescent Current(mA) 1.3 Quiescent Current(mA) COMMON−MODE REJECTION RATIO vs FREQUENCY 140 CMRR(dB) Open-Loop Gain(dB) 120 Phase Margin (°) OPEN-LOOP GAIN AND PHASE vs FREQUENCY 1.2 1.1 1 0.9 0.8 10 100 1K Frequency(KHz) Vs=5V 10K QUIESCENT CURRENT vs TEMPERATURE 1.2 1.1 1 0.9 0.8 0.7 -40 -20 0 -40 -20 0 20 40 60 80 100 120 140 Temperature(℃) Vs=2.5V 20 40 60 80 100 120 140 Temperature(℃) Vs=5V 8 www.run-ic.com RS721P, RS722P, RS724P TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. SINK CURRENT vs TEMPERATURE 170 Source Current(mA) Sink Current(mA) 160 150 140 130 120 110 130 120 -40 -20 0 INPUT BIAS CURRENT vs TEMPERATURE 10 1 0.1 20 40 60 80 100 120 140 Temperature(℃) Quiescent Current vs Supply Voltage 1400 Quiescent Current(uA) Input Bias Current(pA) 140 Temperature(℃) 100 1200 1000 800 600 400 -40 -20 0 20 40 60 80 100 120 140 2.5 Temperature(℃) 3 3.5 4 4.5 5 5.5 Supply Voltage(V) Offset Voltage vs. Common-Mode Voltag 0.1HZ to 10HZ Input Voltage Noise 0 5uV/div Offset Voltage(mV) 150 20 40 60 80 100 120 140 1K 0.5 160 110 -40 -20 0 10K SOURCE CURRENT vs TEMPERATURE -0.5 -1 -1.5 -2 -1 0 1 2 3 4 5 Time(1s/div) 6 Common-Mode Voltage(V) 9 www.run-ic.com RS721P, RS722P, RS724P TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. POSITIVE OVERVOLTAGE RECOVERY VIN 200mV/div 0V 0V 1V/div VIN 0V VOUT 0V Vs=±2.5V G=-100 VOUT 1V/div 200mV/div NEGATIVE OVERVOLTAGE RECOVERY Time(1us/div) Time(1us/div) LARGE-SIGNAL STEP RESPONSE LARGE-SIGNAL STEP RESPONSE VS=2.5V 1V/div 500mV/div 2V/div 1V/div VS=5V Time(4us/div) Time(4us/div) Closed Loop Output Voltage Swing 6 Setting Time vs Closed-Loop Gain 10 5 Setting Time(us) Output Voltage(Vpp) VS=±2.5V G=-100 4 3 2 1 1 0 0.1 1 10 100 Frequency(kHz) 1000 10000 1 10 10 Closed-Loop Gain(V/V) 100 www.run-ic.com RS721P, RS722P, RS724P TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. Output Voltage vs.Output Current 1 2 1 0 -1 -3 0 -0.5 -1.5 0 20 40 60 80 100 120 0 Output Current(mA) VS=5V 5 10 15 20 25 30 35 Output Current(mA) VS=2.5V Offset Voltage Production Distribution 14 12 10 8 6 4 2 0.5 0.4 0.3 0.2 0 0.1 -0.1 -0.2 -0.3 -0.4 0 -0.5 Percentage of Amplifiers(%) 0.5 -1 -2 16 Output Voltage vs.Output Current 1.5 Output Voltage(V) Output Voltage(V) 3 Offset Voltage(mV) 11 www.run-ic.com RS721P, RS722P, RS724P Detailed Description Overview The RS72XP devices are unity-gain stable, dual and qual-channel op amps with low noise and distortion. The device consists of a low noise input stage with a folded cascade and a rail-to-rail output stage. This topology exhibits superior noise and distortion performance across a wide range of supply voltages that are not delivered by legacy commodity audio operational amplifiers. Phase Reversal Protection The RS72XP family has internal phase-reversal protection. Many op amps exhibit phase reversal when the input is driven beyond the linear common-mode range. This condition is most often encountered in noninverting circuits when the input is driven beyond the specified common-mode voltage range, causing the output to reverse into the opposite rail. The input of the RS72XP prevents phase reversal with excessive common-mode voltage. Instead, the appropriate rail limits the output voltage. This performance is shown in figure 1. 3 Voltage (V) 2 1 0 -1 -2 -3 VIN VOUT Time (125us/div) C004 Figure 1. Output Waveform Devoid of Phase Reversal During an Input Overdrive Condition EMI Rejection Ratio (EMIRR) The electromagnetic interference (EMI) rejection ratio, or EMIRR, describes the EMI immunity of operational amplifiers. An adverse effect that is common to many operational amplifiers is a change in the offset voltage as a result of RF signal rectification. An operational amplifier that is more efficient at rejecting this change in offset as a result of EMI has a higher EMIRR and is quantified by a decibel value. Measuring EMIRR can be performed in many ways, but this document provides the EMIRR IN+, which specifically describes the EMIRR performance when the RF signal is applied to the noninverting input pin of the operational amplifier. In general, only the noninverting input is tested for EMIRR for the following three reasons: • Operational amplifier input pins are known to be the most sensitive to EMI, and typically rectify RF signals better than the supply or output pins. • The noninverting and inverting operational amplifier inputs have symmetrical physical layouts and exhibit nearly matching EMIRR performance. • EMIRR is easier to measure on noninverting pins than on other pins because the noninverting input pin can be isolated on a printed-circuit-board (PCB). This isolation allows the RF signal to be applied directly to the noninverting input pin with no complex interactions from other components or connecting PCB traces. 12 www.run-ic.com RS721P, RS722P, RS724P Detailed Description(continued) The EMIRR IN+ of the RS72XP is plotted versus frequency in Figure 2. If available, any dual and quad operational amplifier device versions have approximately identical EMIRR IN+ performance. The RS72XP unitygain bandwidth is 10MHz. EMIRR performance below this frequency denotes interfering signals that fall within the operational amplifier bandwidth. 100 90 EMIRR(dB) 80 70 60 50 40 30 20 10 10M 100M 1G Frequency(Hz) PRF=-10dBm Figure 2.RS72XP EMIRR vs Frequency EMIRR IN+ Test Configuration Figure 3 shows the circuit configuration for testing the EMIRR IN+. An RF source is connected to the operational amplifier noninverting input pin using a transmission line. The operational amplifier is configured in a unity-gain buffer topology with the output connected to a low-pass filter (LPF) and a digital multimeter (DMM). A large impedance mismatch at the operational amplifier input causes a voltage reflection; however, this effect is characterized and accounted for when determining the EMIRR IN+. The resulting dc offset voltage is sampled and measured by the multimeter. The LPF isolates the multimeter from residual RF signals that can interfere with multimeter accuracy. Ambient temperature: 25° C +VS 50Ω Low-Pass Filter + RF source DC Bias: 0 V Modulation: None (CW) Frequency Sweep: 201 pt. Log -VS Not shown: 0.1 µ F and 10 µ F supply decoupling Sample / Averaging Digital Multimeter Figure 3. EMIRR IN+ Test Configuration Schematic 13 www.run-ic.com RS721P, RS722P, RS724P APPLICATION NOTE The RS721P, RS722P, RS724P are high precision, rail-to-rail operational amplifiers that can be run from a single-supply voltage 2.5V to 5.5V (±1.25V to ±2.75V). Supply voltages higher than 7V (absolute maximum) can permanently damage the amplifier. Rail-to-rail input and output swing significantly increases dynamic range, especially in low-supply applications. Good layout practice mandates use of a 0.1uF capacitor place closely across the supply pins. Typical Applications 25-kHz Low-pass Filter R4 2.94 kΩ Input R1 590Ω C5 1 nF R3 499Ω Output + RS72XP C2 39 nF Figure 4. 25-kHz Low-Pass Filter Design Requirements Low-pass filters are commonly employed in signal processing applications to reduce noise and prevent aliasing. The RS72XP devices are ideally suited to construct high-speed, high-precision active filters. Figure 4 shows a second-order, low-pass filter commonly encountered in signal processing applications. Use the following parameters for this design example: • Gain = 5 V/V (inverting gain) • Low-pass cutoff frequency = 25 kHz • Second-order Chebyshev filter response with 3-dB gain peaking in the passband Detailed Design Procedure The infinite-gain multiple-feedback circuit for a low-pass network function is shown in Figure 4. Use Equation 1 to calculate the voltage transfer function. (1) This circuit produces a signal inversion. For this circuit, the gain at dc and the low-pass cutoff frequency are calculated by Equation 2: ( ) (2) Application Curve Figure 5. Low-pass filter transfer function 14 www.run-ic.com RS721P, RS722P, RS724P LAYOUT Layout Guideline Attention to good layout practices is always recommended. Keep traces short. When possible, use a PCB ground plane with surface-mount components placed as close to the device pins as possible. Place a 0.1uF capacitor closely across the supply pins. These guidelines should be applied throughout the analog circuit to improve performance and provide benefits such as reducing the EMI susceptibility. Layout Example + VIN A + VIN B VOUT A RG VOUT B RG RF RF Figure 6. Schematic Representation Place compon ents close to device and to each other to reduce parasitic e rro rs. OUT A VS+ OUT A V+ -IN A OUT B +IN A -IN B Use low-ESR, ceramic bypass capacitor. Pla ce as close to the d evice as possible. GND RF OUT B GND RG VIN A RF GND RG V- Use low-ESR, ceramic bypass capacitor. Pla ce as close to the d evice as possible. +IN B Ground (GND) plane on another layer GND VS- VIN B Keep input traces short and run the input tra ces as far aw ay from the supply lines as possible. Figure 7. Layout Example 15 www.run-ic.com RS721P, RS722P, RS724P PACKAGE OUTLINE DIMENSIONS SOT23-5 D 1.90 b 2.59 E1 E 0.99 0.95 0.69 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 c θ L A1 Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 16 www.run-ic.com RS721P, RS722P, RS724P SOT353(SC70-5) D 1.30 b 1.9 E E1 0.75 Pin1 Index Area 0.65 0.4 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 c θ L A1 Symbol Dimensions In Millimeters L1 Dimensions In Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 c 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.650(BSC) 0.026(BSC) e1 1.300(BSC) 0.051(BSC) L 0.260 L1 θ 0.460 0.010 0.525 0° 0.018 0.021 8° 17 0° 8° www.run-ic.com RS721P, RS722P, RS724P MSOP-8 b e E E1 4.8 1.02 D 0.65 0.41 RECOMMENDED LAND PATTERN (Unit: mm) A2 c A A1 L Symbol Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.250 0.380 0.010 0.015 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 e 0.650(BSC) 0.026(BSC) E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° 18 www.run-ic.com RS721P, RS722P, RS724P TSSOP-14 e b 5.6 E1 E 1.78 D 0.65 0.42 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol H C A θ L Dimensions In Millimeters Min Max A Dimensions In Inches Min Max 1.200 0.047 A1 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 4.860 5.100 0.191 0.201 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 e L 0.650(BSC) 0.500 H θ 0.026(BSC) 0.700 0.020 0.25(TYP) 1° 0.028 0.01(TYP) 7° 19 1° 7° www.run-ic.com RS721P, RS722P, RS724P SOIC-8(SOP8) b e 5.2 E E1 2.2 D 1.27 0.6 RECOMMENDED LAND PATTERN (Unit: mm) A2 c A A1 L Symbol Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 c 0.170 0.250 0.007 0.010 D 4.800 5.000 0.189 0.197 e 1.270(BSC) 0.050(BSC) E 5.800 6.200 0.228 0.244 E1 3.800 4.000 0.150 0.157 L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 20 www.run-ic.com RS721P, RS722P, RS724P SOIC-14(SOP14) e b 5.2 1.27 E E1 0.6 D 1.27 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 A c θ L Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.310 0.510 0.012 0.020 c 0.100 0.250 0.004 0.010 D 8.450 8.850 0.333 0.348 e 1.270(BSC) 0.050(BSC) E 5.800 6.200 0.228 0.244 E1 3.800 4.000 0.150 0.157 L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 21 www.run-ic.com RS721P, RS722P, RS724P TSSOP-8 e b 5.6 E1 E 1.78 D 0.65 0.42 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol H C A θ L Dimensions In Millimeters Min Max A Dimensions In Inches Min Max 1.200 0.047 A1 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 2.900 3.100 0.114 0.122 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 e L 0.650(BSC) 0.500 H θ 0.026(BSC) 0.700 0.020 0.25(TYP) 1° 0.028 0.01(TYP) 7° 22 1° 7° www.run-ic.com RS721P, RS722P, RS724P TDFN2x2-8 E e D E1 L b D1 TOP VIEW BOTTOM VIEW 0.50 0.70 A1 1.95 A2 A 0.65 0.24 1.20 SIDE VIEW RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 0.700 0.800 0.028 0.031 A1 0.000 0.050 0.000 0.002 A2 0.203(TYP) 0.008(TYP) b 0.180 0.300 0.007 0.012 D 1.900 2.100 0.075 0.083 D1 1.100 1.300 0.043 0.051 E 1.900 2.100 0.075 0.083 E1 0.600 0.800 0.024 0.031 e L 0.500(TYP) 0.250 0.020(TYP) 0.450 23 0.010 0.018 www.run-ic.com
