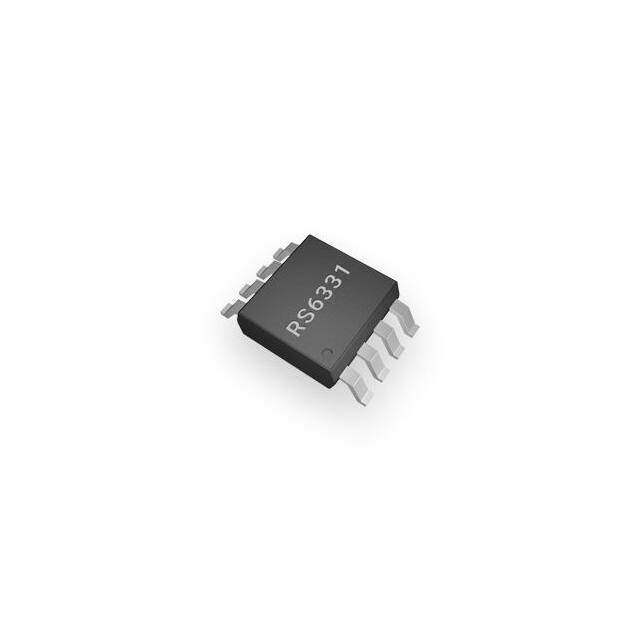

RS6331BPXF

RS6331S, RS6332S RS6331, RS6332, RS6334 1.1MHz, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES DESCRIPTION  HIGH GAIN BANDWIDTH:1.1MHz  RAIL-TO-RAIL INPUT AND OUTPUT 0.6mV Typical Vos  INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V  SUPPLY RANGE: +2.2V to +5.5V  SHUTDOWN: RS6331S/RS6332S  SPECIFIED UP TO +125°C  Micro SIZE The RS6331, RS6332, RS6334, RS6331S, RS6332S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters, and portable applications. The RS6331S, RS6332S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The RS6331, RS6332, RS6334, RS6331S, RS6332S families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.2V to 5.5V. PACKAGES: SOT23-5, SOT23-6 APPLICATIONS  SENSORS  PHOTODIODE AMPLIFICATION   ACTIVE FILTERS TEST EQUIPMENT  DRIVING A/D CONVERTERS Device Information (1) PART NUMBER RS6331 RS6331S RS6332 RS6332S RS6334 REV C.2 PACKAGE BODY SIZE(NOM) SOT23-5 2.90mm×1.60mm SOIC-8(SOP8) 4.90mm×3.90mm MSOP-8 3.00mm×3.00mm SOT23-6 2.90mm×1.60mm SOIC-8(SOP8) 4.90mm×3.90mm SOIC-8(SOP8) 4.90mm×3.90mm MSOP-8 3.00mm×3.00mm TSSOP-8 3.00mm×4.40mm TDFN2x2-8L 2.00mm×2.00mm TDFN3x3-8L 3.00mm×3.00mm MSOP-10 3.00mm×3.00mm SOIC-14(SOP14) 8.65mm×3.90mm TSSOP-14 5.00mm×4.40mm TQFN3x3-16 3.00mm×3.00mm 1 / 23 www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 Pin Configuration and Functions (Top View) V- 2 +IN 3 5 V+ +IN 1 V- 2 -IN 3 5 V+ + - 4 -IN 4 SOT23-5 OUT NC 1 -IN 2 +IN 3 V- 4 SOT23-5 + 1 + OUT RS6331 RS6331B - RS6331 8 NC 7 V+ 6 OUT 5 NC SO IC-8(SO P8),MSO P-8 Pin Description SOT23-5 SOT23-5 4 3 1 2 5 3 1 4 2 5 -IN +IN NC OUT VV+ RS6331 SOIC-8(SOP8)/ MSOP8 2 3 1,5,8 6 4 7 I/O DESCRIPTION I I O - Negative (inverting) input Positive (noninverting) input No internal connection (can be left floating) Output Negative (lowest) power supply Positive (highest) power supply RS6331S RS6331S OUT 1 6 V+ V- 2 5 EN +IN 3 4 -IN + - NC 1 -IN 2 +IN 3 V- 4 SO T23-6 8 EN 7 V+ + PIN RS6331B - NAME RS6331 6 OUT 5 NC SO IC-8(SOP8) Pin Description NAME -IN +IN OUT PIN RS6331S SOT23-6 SOIC-8(SOP8) 4 2 3 3 1 6 I/O DESCRIPTION I I O Inverting input Noninverting input Output Enable pin. This pin turns the regulator on or off. Low = disabled, high = normal operation (pin must be driven) No internal connection (can be left floating) Negative (lowest) power supply Positive (highest) power supply EN 5 8 I NC VV+ 2 6 1,5 4 7 - 2 / 23 www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 Pin Configuration and Functions (Top View) 1 -IN A 2 +IN A 3 V- 4 + A B+ OUT A 1 OUTB -IN A 2 - 6 -IN B +IN A 3 + OUT A 5 +IN B V- 4 En A 5 8 V+ 7 SOIC-8(SOP8),MSOP-8,TSSOP8, TDFN2x2-8L, TDFN3x3-8L A B 10 V+ 9 OUT B - 8 -IN B + RS6332S RS6332 7 +IN B 6 En B MSOP-10 Pin Description PIN RS6332S -INA +INA -INB +INB OUTA OUTB RS6332 SOIC-8(SOP8)/MSOP8/TSSOP-8/TDFN2x28L/TDFN3x3-8L 2 3 6 5 1 7 EnA NAME I/O DESCRIPTION 2 3 8 7 1 9 I I I I O O - 5 I EnB - 6 I VV+ 4 8 4 10 - Inverting input, channel A Noninverting input, channel A Inverting input, channel B Noninverting input, channel B Output, channel A Output, channel B Enable pin, channel A. This pin turns the regulator on or off. Low = disabled, high = normal operation (pin must be driven) Enable pin, channel B. This pin turns the regulator on or off. Low = disabled, high = normal operation (pin must be driven) Negative (lowest) power supply Positive (highest) power supply MSOP10 3 / 23 www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 Pin Configuration and Functions (Top View) 3 12 +IN D V+ 4 11 V- +IN B + - 5 -IN B 6 OUT B 7 - + B + C 10 +IN C 9 -IN C 8 OUT C +IN A 1 V+ 2 +IN B 3 13 RS6334 12 +IN D 11 V- 10 +IN C 9 -IN C TQFN3x3-16L -IN B SO IC-14(SOP14),TSSOP-14 4 5 6 7 8 OUT C +IN A - + 14 N.C. -IN D 2 15 N.C. 13 -IN A 16 OUT B D OUT D -IN D A 14 OUT D 1 OUT A OUT A -IN A RS6334 Pin Description NAME -INA +INA -INB +INB -INC +INC -IND +IND OUTA OUTB OUTC OUTD VV+ PIN SOIC-14(SOP14)/TSSOP14 2 3 6 5 9 10 13 12 1 7 8 14 11 4 TQFN3x3-16L 16 1 4 3 9 10 13 12 15 5 8 14 11 2 4 / 23 I/O DESCRIPTION I I I I I I I I O O O O - Inverting input, channel A Noninverting input, channel A Inverting input, channel B Noninverting input, channel B Inverting input, channel C Noninverting input, channel C Inverting input, channel D Noninverting input, channel D Output, channel A Output, channel B Output, channel C Output, channel D Negative (lowest) power supply Positive (highest) power supply www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 SPECIFICATIONS Absolute Maximum Ratings Over operating free-air temperature range (unless otherwise noted) (1) MIN MAX 7 (V-)-0.5 (V+) +0.5 (V-)-0.5 (V+) +0.5 -10 10 -100 100 Continuous -40 125 150 -65 150 Supply, Vs=(V+) - (V-) Signal input pin (2) Signal output pin (3) Signal input pin (2) Signal output pin (3) Output short-circuit (4) Operating range, TA Junction, TJ Storage, Tstg Voltage Current Temperature UNIT V mA mA °C (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be currentlimited to 10mA or less. (3) Output terminals are diode-clamped to the power-supply rails. Output signals that can swing more than 0.5V beyond the supply rails should be current-limited to ±100mA or less. (4) Short-circuit to ground, one amplifier per package. ESD Ratings V(ESD) Electrostatic discharge Human-body model (HBM) Machine Model (MM) VALUE UNIT ±5000 ±400 V Recommended Operating Conditions Over operating free-air temperature range (unless otherwise noted) Supply voltage，Vs= (V+) - (V-） MIN 2.2 ±1.1 -40 Single-supply Dual-supply Specified temperature NOM MAX 5.5 ±2.75 125 UNIT 8PINS SOIC-8 MSOP8 116 165 UNIT V °C Thermal Information:RS6331 THERMAL METRIC (1) RS6331 6PINS SOT23-6 187.3 RϴJA Junction-to-ambient thermal resistance 5PINS SOT23-5 273.8 RϴJC(top) Junction-to-case(top) thermal resistance 126.8 126.5 60 53 °C/W RϴJB Junction-to-board thermal resistance 85.9 32.6 56 87 °C/W ѰJT ѰJB Junction-to-top characterization parameter Junction-to-board characterization parameter 10.9 84.9 24.1 32.1 12.8 98.3 4.9 85 °C/W °C/W RϴJC(bot) Junction-to-case(bottom) thermal resistance N/A N/A N/A N/A °C/W 5 / 23 °C/W www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 Thermal Information:RS6332 RS6332 8PINS THERMAL METRIC (1) RϴJA RϴJC(top) RϴJB ѰJT ѰJB RϴJC(bot) UNIT SOIC-8 MSOP-8 MSOP-10 TSSOP-8 TDFN2 ×2-8L TDFN3 ×3-8L 116 165 169.5 200.8 80.1 66.9 °C/W 60 53 84.1 95.3 100 54.5 °C/W 56 87 113 128.5 45 40.4 °C/W 12.8 4.9 15.8 26.5 6.8 1.9 °C/W 98.3 85 111.6 125.9 45.2 40.4 °C/W N/A N/A N/A N/A 22.7 10.8 °C/W Junction-to-ambient thermal resistance Junction-to-case(top) thermal resistance Junction-to-board thermal resistance Junction-to-top characterization parameter Junction-to-board characterization parameter Junction-to-case(bottom) thermal resistance Thermal Information:RS6334 SOIC-14 83.8 RS6334 14PINS TSSOP-14 120.8 TQFN3×3-16L 68.5 °C/W THERMAL METRIC (1) UNIT RϴJA Junction-to-ambient thermal resistance RϴJC(top) Junction-to-case(top) thermal resistance 70.7 34.3 70.4 °C/W RϴJB Junction-to-board thermal resistance 59.5 62.8 42.6 °C/W ѰJT ѰJB Junction-to-top characterization parameter Junction-to-board characterization parameter 11.6 37.7 1 56.5 5.3 40.9 °C/W °C/W RϴJC(bot) Junction-to-case(bottom) thermal resistance N/A N/A N/A °C/W 6 / 23 www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 PACKAGE/ORDERING INFORMATION Orderable Device Package Type Pin Channel Op Temp(°C) Device Marking(1) Package Qty RS6331XF SOT23-5 5 1 -40℃~125℃ 6331 Tape and Reel,3000 RS6331BXF SOT23-5 5 1 -40℃~125℃ 6331B Tape and Reel,3000 RS6331XK SOIC-8(SOP8) 8 1 -40℃~125℃ RS6331 Tape and Reel,4000 RS6331XM MSOP-8 8 1 -40℃~125℃ RS6331 Tape and Reel,4000 RS6331SXK SOIC-8(SOP8) 8 1 -40℃~125℃ RS6331S Tape and Reel,4000 RS6331SXH SOT23-6 6 1 -40℃~125℃ 6331S Tape and Reel,3000 RS6332XK SOIC-8(SOP8) 8 2 -40℃~125℃ RS6332 Tape and Reel,4000 RS6332XM MSOP-8 8 2 -40℃~125℃ RS6332 Tape and Reel,4000 RS6332XTDE8 TDFN2x2-8L 8 2 -40℃~125℃ 6332 Tape and Reel,3000 RS6332XTDC8 TDFN3x3-8L 8 2 -40℃~125℃ RS6332 Tape and Reel,5000 RS6332XQ TSSOP-8 8 2 -40℃~125℃ RS6332 Tape and Reel,4000 RS6332SXN MSOP-10 10 2 -40℃~125℃ RS6332S Tape and Reel,4000 RS6334XP SOIC-14(SOP14) 14 4 -40℃~125℃ RS6334 Tape and Reel,4000 RS6334XQ TSSOP-14 14 4 -40℃~125℃ RS6334 Tape and Reel,4000 RS6334XTQC16 TQFN3x3-16L 16 4 -40℃~125℃ RS6334 Tape and Reel,5000 NOTE: (1) There may be additional marking, which relates to the lot trace code information(data code and vendor code) ， the logo or the environmental category on the device. 7 / 23 www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 ELECTRICAL CHARACTERISTICS (At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, and VOUT = VS/2, unless otherwise noted.) PARAMETER CONDITIONS TJ RS6331S, RS6332S, RS6331, RS6332, RS6334 MIN TYP MAX UNIT 5.5 V 80 uA POWER SUPPLY Vs Operating Voltage Range 25C IQ Quiescent Current/Amplifier 25C PSRR Power-Supply Rejection Ratio Vs=2.2V to 5.5V, Vcm=(V-)+0.5V 2.2 58 25C 72 -40C to 125C 65 90 dB INPUT Vos IB Input Offset Voltage Input Offset Voltage Average Drift Input Bias Current Ios Input Offset Current Vos TC Vcm CMRR Common-Mode Voltage Range Common-Mode Rejection Ratio 0.6 25C 2 -40C to 125C mV uV/C 25C 1 10 pA 25C 1 10 pA 5.6 V Vs= 5.5V 25C -0.1 Vs= 5.5V, Vcm =-0.1V to 4V 25C 71 -40C to 125C 68 25C 60 -40C to 125C 57 25C 94 Vs= 5.5V, Vcm =-0.1V to 5.6V 3 90 dB 80 OUTPUT AOL Open-Loop Voltage Gain RL=10KΩ, Vo= 0.05V to 4.95V RL=2KΩ RL=10KΩ -40C to 125C 85 25C 100 -40C to 125C 90 105 dB 110 25C 25 8 mV 25C 55 mA Slew Rate 25C 0.5 V/us Gain-Bandwidth Product 25C 1.1 MHz Phase Margin 25C 64 ° Output Swing From Rail Iout RL=2KΩ, Vo= 0.15V to 4.85V Output Short-Circuit Current FREQUENCY RESPONSE SR GBP PM ts Setting Time,0.1% Overload Recovery Time VIN·Gain≥VS 1.3 us 2.3 us NOISE en Input Voltage Noise Density f = 1KHz 25C 22 nV/√Hz f = 10KHz 25C 20 nV/√Hz 25C
