| P1K
Pressure Sensor
Description
The P1K series of pressure sensors incorporates a piezo-resistive sensing element in a compact package. Using a 5 VDC supply voltage, the P1K
provides a 0.25 VDC to 4.0 VDC output proportional to pressure. Internal temperature compensation provides and accurate, easy to use sensor. The
industry standard terminal pins provides ease of use for your printed circuit board designs.
Features
• Compact Package
• Amplified Temperature Compensated Linear Output
• No Position Sensitivity Above 0-2” H2O
• EMI/RFI and ESD Protected
• Superior Output Signal Stability
• Printed Circuit Board through Hole Mounting
Applications
• Variable Air Volume Systems
• Filter Pressure Monitoring
• Duct Air Flow
• Modulated Furnace Controls
• Combustion Airflow
• Gaseous Leak Detection
• Medical Applications:
Oxygen Concentrators, Ventilators, Anesthesia Equipment, CPAP,
Wound Therapy.
MAIN FEATURES
Pressure Ranges
2, 5, 10, +/-1, +/-2, +/- 5 inches of water;
2.5, 5, 12.5, 25, +/-2.5, +/- 5, +/- 12.5 mbar
Electrical Connection
PCB thru hole terminal pins, 2.54 mm [.100 inch] pitch
Pressure Connection
Barbed port, 1.9[.08] diameter
Housing Material
PPS, 40% glass filled, black
Terminal Pin Material
Phosphor bronze, tin plated
Supply Voltage
5.00 Vdc ± 0.25 Vdc
Output Signal
Ratiometric analog; 5% to 80% of supply voltage
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
TECHNICAL SPECIFICATIONS
Pressure Ranges
from 0 to...
2” H2O
5” H2O
10” H2O
+/- 1” H2O
+/- 2” H2O
+/- 5” H2O
from 0 to...
5mbar
12.5mbar
20mbar
+/- 2.5 mbar
+/- 5mbar
+/- 12.5 mbar
Proof Pressure (min)
1.0 PSI/
(70mbar)
1.0 PSI/
(70mbar)
1.0 PSI/
(70mbar)
1.0 PSI/
(70mbar)
1.0 PSI/
(70mbar)
1.0 PSI/
(70mbar)
Burst Pressure Factor
1.8 PSI/
(125mbar)
1.8 PSI/
(125mbar)
1.8 PSI/
(125mbar)
1.8 PSI/
(125mbar)
1.8 PSI/
(125mbar)
1.8 PSI/
(125mbar)
Physical
Expected Operating Life
10 million full pressure life cycles
Shelf Life
10 years minimum
Stability
+/- 0.5% of full scale span for 1 year
Vibration
10 G’s peak to peak sinusoidal (20 to 1600Hz)
Shock Resistance
Weight
50 G’s ½ Sinewave, 11 mSec pulse, 18 pulses (6 per axis)
3.5g max.
Operating Temperature
-20°C to 85°C
Storage Temperature
-40°C to 125°C
Humidity
Media
Up to 92% RH in a non-condensing environment
Dry air
Performance
Accuracy
Temp. Error (0 to 60°C)
Temp. Error (-20 to 0°C and 60 to 85°C 0 to
60°C)
0.25% Max (% of full scale span) (RSS of linearity, hysteresis and repeatability)
0.05%/ C [% of full scale span]
5% full scale span
Electrical
Output Impedance
100 Ohms max.
Excitation Current
4mA max
Minimum Load
25k Ohms between output and ground
Response Time
5 mSec max (63% full scale)
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
DIMENSIONS
Dimensions in mm [Inch]
Page 3
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

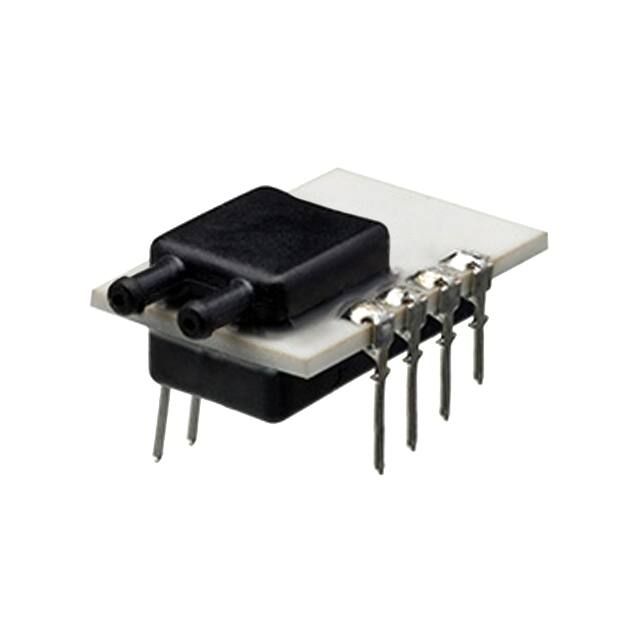

Example: P1K-1-2X16PA
ORDERING OPTIONS
P1K
Family
P1K Pressure sensor 0 -1” H20, .25 to 4.0 VDC output, no internal material seal,
barbed tube fitting port with PCB Terminal Pin connection, no external material
seal
1
2
X
16
P
A
P1K
Pressure Ranges
1B:
2:
2B:
5:
5B:
10:
2.5MBB:
5MB:
5MBB:
12.5MB:
12.5MBB:
25MB:
+/- 1” H2O
0-2” H2O
+/- 2” H2O
0-5” H2O
+/- 5” H2O
0-10” H2O
0-2.5 mbar
0-5 mbar
+/- 5 mbar
0-12.5 mbar
+/-12.5 mbar
0-25 mbar
Output Type
2: 0.25 – 4.0 VDC
Seal Material
X: None
Pressure Connection
16: Barb or Tube Fitting
Built-in Connector
P: PCB Terminal Pins
Seal Material
A: None
AGENCY APPROVALS & CERTIFICATIONS
Page 4
Revised 4/10/18
