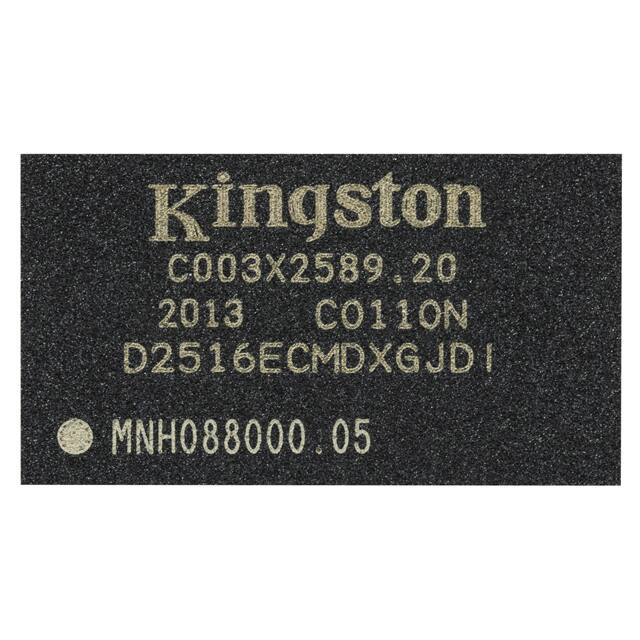

D2516ECMDXGJDI-U

KINGSTON.COM Kingston DDR3/3L DRAM for embedded applications Kingston DDR3/3L Kingston on-board DRAM is designed to meet the needs of embedded applications and offers a low-voltage option for lower power consumption. DDR3/3L Part Numbers and Specifications 30nm DDR3/3L Part Number Capacity Description Package Size Configuration (words x bits) Speed VDD, VDDQ Operating Temperature D1216ECMDXGJD 2Gb 96 ball FBGA DDR3/3L I-Temp 7.5x13.5x1.2 128Mx16 1866 Mbps 1.35V 0°C ~ +95°C D2568ECMDPGJD 2Gb 78 ball FBGA DDR3/3L I-Temp 7.5x13.5x1.2 256Mx8 1866 Mbps 1.35V 0°C ~ +95°C D2516ECMDXGJD 4Gb 96 ball FBGA DDR3L 7.5x13.5x1.2 256Mx16 1866 Mbps 1.35V* 0°C ~ +95°C D5128ECMDPGJD 4Gb 78 ball FBGA DDR3L 7.5x10.6x1.2 512Mx8 1866 Mbps 1.35V* 0°C ~ +95°C D2516ECMDXGME 4Gb 96 ball FBGA DDR3L 7.5x13.5x1.2 256Mx16 2133 Mbps 1.35V* 0°C ~ +95°C *Backward compatible to 1.5V VDD, VDDQ Key Features • Double-data-rate architecture: two data transfers per clock cycle • The high-speed data transfer is realized by the 8 bits prefetch pipelined architecture • Bi-directional differential data strobe (DOS and /DQS) is transmitted/received with data for capturing data at the receiver • DOS is edge-aligned with data for READS; center-aligned with data for WRITES • Differential clock inputs (CK and /CK) • DLL aligns DQ and DOS transitions with CK transitions • Commands entered on each positive CK edge; data and data mask referenced to both edges of DQS • Data mask (DM) for write data • Posted /CAS by programmable additive latency for better command and data bus efficiency • On-Die Termination (ODD for better signal quality — Synchronous ODT — Dynamic CDT — Asynchronous ODT • Multi Purpose Register (MPR) for pre-defined pattern read out • ZQ calibration for DO drive and ODT • Programmable Partial Array Self-Refresh (PASR) • RESET pin for Power-up sequence and reset function • SRT range: Normal/extended • Programmable Output driver impedance control THIS DOCUMENT SUBJECT TO CHANGE WITHOUT NOTICE ©2020 Kingston Technology Corporation, 17600 Newhope Street, Fountain Valley, CA 92708 USA. All rights reserved. All trademarks and registered trademarks are the property of their respective owners.  MKF-585.2US
