NJM8068
LOW NOISE, BIPOLAR INPUT
DUAL AUDIO OPERATIONAL AMPLIFIER
FEATURES
DESCRIPTION
● Designed for High-Quality Sound
● Low Noise
3.5 nV/√Hz at 1kHz
● Low Distortion
0.001%
● Slew Rate
6.8V/µs
● Gain Bandwidth Product
19 MHz
● Open-Loop Voltage Gain
120dB
● Unity-Gain Stable
.
● Bipolar Input
● Supply Voltage
±4V to ±18V
● Operating Temperature
-40°C to 125°C
● Supply Current (All Amplifiers)
5 mA typ.
● Package

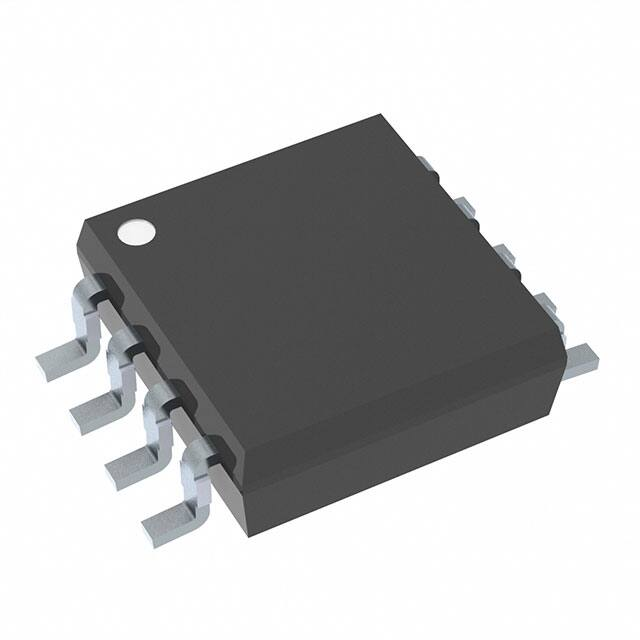

SOP8
MSOP8 (TVSP8)*
NJM8068 is a low noise bipolar input dual audio
operational amplifier has 3.5 nV/√Hz at 1kHz.
The NJM8068 features Low distortion, high slew rate, wide
bandwidth and high open-loop gain. In addition, unity-gain
stable allows voltage-follower operation. These features
make NJM8068 ideal for audio pre amplifier, microphone
amplifier, line amplifier and other audio applications.
NJM8068 operate over a wide temperature range of -40°C
to 125°C, making this IC ideal for use in industrial
measurement instruments
The NJM8068 is available in 8-pin SOP and MSOP
(TVSP) packages.
* meet JEDEC MO-187-DA / thin type
■ RELATED PRODUCT
APPLICATIONS
● Professional Audio Sets
● Audio Pre / Microphone Amplifiers
● Analog / Digital Mixers
● AV Receivers
● Car Audio
● Industrial Measurement Instruments
PRODUCT NAME
NJM8080
FEATURES
5nV/√Hz, 0.0005%, 5V/μs, 15MHz
(Low noise, low distortion audio Op-Amp)
■ EQUIVALENT CIRCUIT
Ver.3.1
http://www.njr.com/
-1-
NJM8068
■ PIN CONFIGURATIONS
PRODUCT NAME
NJM8068G
NJM8068B1
Package
SOP8
MSOP8 (TVSP8)
(Top View)
Pin Functions
A OUTPUT
1
8
V+
A -INPUT
2
7
B OUTPUT
A +INPUT
3
6
B -INPUT
V-
4
5
B +INPUT
■ PRODUCT NAME INFORMATION
NJM8068
RB1
Part Number
(TE1)
Package
Taping Form
■ ORDER INFORMATION
PRODUCT
NAME
PACKAGE
RoHS
HALOGENFREE
TERMINAL
FINISH
MARKING
WEIGHT
(mg)
MOQ
(pcs)
SOP8
Yes
Yes
Pure Sn
8068
88
2500
MSOP8 (TVSP8)
Yes
Yes
Sn2Bi
8068
18
2000
NJM8068G
NJM8068RB1
■ ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
RATING
UNIT
V /V
±18
V
VID
±36
V
+
Supply Voltage
(1)
Differential Input Voltage
(2)
Input Voltage
-
VIN
Output Terminal Input Voltage
VO
(3)
-
V -0.3 to V⁻+36
-
+
V -0.3 to V +0.3
V
V
(4)
Power Dissipation
2-Layer / 4-Layer
PD
690 / 1000
510 / 680
mW
Storage Temperature Range
Tstg
-65 to 150
°C
Maximum Junction Temperature
Tjmax
150
°C
SYMBOL
VALUE
SOP8
MSOP8 (TVSP8)
■ THERMAL CHARACTERISTICS
PACKAGE
UNIT
(4)
Junction-to-Ambient Thermal Resistance
2-Layer / 4-Layer
Θja
SOP8
MSOP8 (TVSP8)
Junction-to-Top of Package Characterization Parameter
°C/W
181 / 125
245 / 184
(4)
2-Layer / 4-Layer
Ψjt
°C/W
SOP8
49 / 43
MSOP8 (TVSP8)
51 / 45
(1) Differential voltage is the voltage difference between +INPUT and -INPUT.
+
(2) Input voltage is the voltage should be allowed to apply to the input terminal independent of the magnitude of V .
The normal operation will establish when any input is within the “Common-Mode Input Voltage Range” of electrical characteristics.
(3) Power dissipation is the power that can be consumed by the IC at Ta=25°C, and is the typical measured value based on JEDEC
condition.
(4) 2-Layer: Mounted on glass epoxy board. (76.2×114.3×1.6 mm: based on EIA/JDEC standard, 2-layer FR-4)
4-Layer: Mounted on glass epoxy board. (76.2×114.3×1.6 mm: based on EIA/JDEC standard, 4-layer FR-4), internal Cu area: 74.2 x 74.2
mm
Ver.3.1
http://www.njr.com/
-2-
NJM8068
■ POWER DISSIPATION vs. AMBIENT TEMPERATURE
Power Dissipation vs. Temperature
Power Dissipation vs. Temperature
4-Layer
1200
1200
1100
1100
1000
1000
Power Dissipation PD [mW]
Power Dissipation PD [mW]
2-Layer
900
800
700
600
SOP8
500
400
300
MSOP8(TVSP8)
200
900
800
700
SOP8
600
500
400
MSOP8(TVSP8)
300
200
100
100
0
0
0
25
50
75
100
125
0
150
25
50
75
100
125
150
Ambient Temperature [°C]
Ambient Temperature [°C]
■ RECOMMENDED OPERATING CONDITIONS
PARAMETER
Supply Voltage
Operating Temperature Range
SYMBOL
+
-
CONDITIONS
Ta=25°C
V /V
Topr
VALUE
UNIT
±4 to ±18
V
-40 to 125
°C
■ ELECTRICAL CHARACTERISTICS (V+/V-=±15V, Ta=25°C, unless otherwise noted.)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
-
0.3
3
mV
-
260
1000
nA
INPUT/OUTPUT CHARACTERISTICS
Input Offset Voltage
Input Bias Current
VIO
RS 10kΩ
IB
Input Offset Current
IIO
Open-Loop Voltage Gain
AV
-
5
200
nA
90
120
-
dB
CMR
80
110
-
dB
Input Resistance
RIN
50
300
-
kΩ
Common-Mode Input Voltage Range
VICM
±12
±13.5
-
V
Maximum Output Voltage
VOM
±12
±13.5
-
V
Common-Mode Rejection Ratio
RL=2kΩ, VO=±10V
RL 2kΩ
POWER SUPPLY
Supply Current (All Amplifiers)
ISUPPLY
-
5
8
mA
Supply Voltage Rejection Ratio
SVR
80
120
-
dB
f=100kHz
-
19
-
MHz
fT
GV=0dB
-
7.5
-
MHz
SR
RL 2kΩ
-
6.8
-
V/μs
f=1kHz
-
3.5
-
nV/√Hz
FLAT, f=20Hz to 20kHz
-
0.5
0.7
µVrms
THD+N
-
0.001
-
%
CS
-
120
-
dB
AC CHARACTERISTICS
Gain Bandwidth Product
Unity Gain Frequency
Slew Rate
GBW
Noise, Distortion
Equivalent Input Noise Voltage
Total Harmonic Distortion + Noise
Channel Separation
Ver.3.1
en
http://www.njr.com/
-3-
NJM8068
■ TYPICAL CHARACTERISTICS
80dB Gain/Phase vs. Frequency
V+/V-=±15V, Ta=25ºC
Ta=125ºC
0
Ta=25ºC
40
-30
Ta=-40ºC
Phase
20
-60
0
-90
Ta=125ºC
-20
-120
Ta=25ºC
Ta=-40ºC
100
1k
10k
100k
1M
Frequency [Hz]
-150
10M
-180
100M
Phase [deg]
60
Equivalent Input Noise Voltage [nV/Hz]
Gain
80
Voltage Gain [dB]
Voltage Noise vs. Frequency
V+/V- = ±15V, Gv=80dB, RL=2kΩ, CL=100pF
100
16
14
12
10
8
6
4
2
0
1
Maximum Output Voltage vs. Load Resistance
10
100
1k
Frequency [Hz]
10k
100k
Maximum Output Voltage vs. Output Current
V+/V-=±15V, Gv=open
V+/V-=±15V
15
15
Maximum Output Voltage [V]
Maximum Output Voltage [V]
Ta=-40ºC
10
Ta=25ºC
5
Ta=125ºC
0
Ta=125ºC
-5
Ta=25ºC
-10
Ta=25ºC
10
Ta=-40ºC
5
Ta=125ºC
0
Ta=125ºC
-5
-10
Ta=-40ºC
Ta=25ºC
Ta=-40ºC
-15
-15
10
100
1k
10k
Load Resistance [Ω]
100k
0
Supply Current vs. Supply Voltage
100
Supply Current vs. Temperature
RL=
6
50
Output Current [mA]
RL=
7.0
Ta=25ºC
6.5
4
Ta=-40ºC
Supply Current [mA]
Supply Current [mA]
5
Ta=125ºC
3
2
1
V+/V-=±15V
5.5
5.0
4.5
V+/V-=±4V
4.0
3.5
0
3.0
0
Ver.3.1
6.0
±2
±4 ±6 ±8 ±10 ±12 ±14 ±16 ±18
Supply Voltage V+/V- [V]
-50
http://www.njr.com/
-25
0
25 50 75 100 125 150
Ambient Temperature [ºC]
-4-
NJM8068
■ TYPICAL CHARACTERISTICS
Input Offset Voltage vs. Temperature
3
2
2
1
Input Offset Voltage [mV]
Input Offset Voltage [mV]
Input Offset Voltage vs. Supply Voltage
3
Ta=105ºC
Ta=25ºC
0
-1
Ta=125ºC
Ta=-40ºC
-2
V+/V-=±4V
1
0
-1
V+/V-=±15V
-2
-3
-3
0
±2
±4 ±6 ±8 ±10 ±12 ±14 ±16 ±18
Supply VoltageV+/V- [V]
-50
Input Offset Voltage
vs. Common-Mode Input Voltage
-25
0
25 50 75 100 125 150
Ambient Temperature [ºC]
Input Offset Voltage
vs. Common-Mode Input Voltage
V+/V-=±4V
3
3
2
2
Ta=-40ºC
1
Ta=25ºC
Input Offset Voltage [mV]
Input Offset Voltage [mV]
V+/V-=±15V
Ta=105ºC
0
-1
Ta=125ºC
-2
Ta=25ºC
1
0
Ta=125ºC
-1
-3
-15
-10
-5
0
5
10
Common-Mode Input Voltage [V]
15
-4
-3
-2
-1
0
1
2
3
Common-Mode Input Voltage [V]
4
Common Mode and Supply Voltage
Rejection Ratio vs. Temperature
Input Bias Current vs. Temperature
V+/V-=±15V
140
Common Mode and Supply Voltage
Rejection Ratio [dB]
600
500
Input Bias Current [nA]
Ta=105ºC
-2
-3
400
300
200
100
0
130
SVR
120
110
100
90
CMR @V+/V-=±15V
80
70
60
50
40
-50
Ver.3.1
Ta=-40ºC
-25
0
25 50 75 100 125 150
Ambient Temperature [ºC]
-50
http://www.njr.com/
-25
0
25 50 75 100 125 150
Ambient Temperature [ºC]
-5-
NJM8068
■ TYPICAL CHARACTERISTICS
Open-Loop Voltage Gain vs. Temperature
Maximum Output Voltage vs. Temperature
V+/V-=±15V, VO=±10V
140
15
Maximum Output Voltage [V]
Open-Loop Voltage Gain [dB]
130
120
110
100
90
80
70
60
10
V+/V-=±15V
V+/V-=±4V
5
0
-5
V+/V-=±4V
V+/V-=±15V
-10
50
40
-15
-50
-25
-50
-25
0
25 50 75 100 125 150
Ambient Temperature [ºC]
Maximum Output Voltage vs. Supply Voltage
THD+N vs. Output Voltage
RL=2kΩ
V+/V-=±15V, RS=20, RF=2k, RG=10k, Ta=25°C
18
1
Ta=125ºC
12
0.1
Ta=-40ºC
6
THD+N [%]
Maximum Output Voltage [V]
0
25 50 75 100 125 150
Ambient Temperature [°C]
Ta=25ºC
0
Ta=25ºC
-6
f=20kHz
0.01
V+
0.1uF
0.001
-12
+
200uF
RF
Ta=-40ºC
RS
f=1kHz
20Hz
Ta=125ºC
1kHz
RG
0.1uF
20kHz
+
200uF
f=20Hz
V-
-18
0
Ver.3.1
±2
±4 ±6 ±8 ±10 ±12 ±14 ±16 ±18
Supply Voltage V+/V- [V]
0.0001
0.01
http://www.njr.com/
0.1
1
10
Output Voltage [Vrms]
100
-6-
NJM8068
■ TEST CIRCUITS
● ISUPPLY
● VIO, CMR, SVR
RG=50Ω, RF=50kΩ
V+
RF
A
V+
RG
VO
RG
V-
RF
V-
VS=V+-V-
● VOH, VOL
VOH; Vin+ = 1V, Vin- = -1V
VOL; Vin+ = -1V, Vin- = 1V
V+
VO
RL
V-
Vin+
Vin-
● SR
RL=2kΩ
90%
V+
Vo
VO
50Ω
Ver.3.1
V-
90%
ΔV ΔV
10%
Δt
Δt
10%
RL
http://www.njr.com/
-7-
NJM8068
SOP8
Unit: mm
■ PACKAGE DIMENSIONS
DE TAI L F
D
T
e/2
5
8
E
E1
1
4
U
h × 45 °
6 ×e
∞0 M
U M
θ
A2
CC C Z
A
A1
Z
S EA TIN G
PL ANE
8 ×b
b bb M
D ESCRIP TION
TO TA L THI CKN ESS
SYMBOL
A
MIN
.053
INCH
NCM
MAX
.069
STAND OFF
A1
.004
.010
0.10
0. 25
MOL D T HICK NES S
LE AD WID TH
A2
b
.04 9
.014
.019
1.25
0.35
0.4 9
L/F T HICKN ESS
C
. 007
.010
0.19
0.25
D
.189
.197
4.80
5.00
E1
.150
.1 57
3 .80
4.00
E
.228
.2 44
5.80
BO DY SIZ E
LEAD PITCH
e
.05 0 BSC
6.20
.015
.049
0.4 0
1.2 5
h
.010
.020
0.2 5
0.5 0
0°
5°
θ2
2°
7°
7°
15 °
0°
5°
12 °
2°
7°
15 °
7°
LEAD EDGE OFF SET
LEA D O F FSET
∞O
b bb
.010
.010
0 . 25
0.2 5
COPLA NA R ITY
CCC
.0 04
0. 10
Ver.3.1
θ1
1 .27 B SC
L
θ
θ1
Z U S T S
M IL LIM ET ER
MIN
NCM
MA X
1.35
1. 75
θ2
C
12 °
http://www.njr.com/
[ 0.2 5]
L
DE TAI L F
-8-
NJM8068
SOP8
Unit: mm
■ EXAMPLE OF SOLDER PADS DIMENSIONS
0 . 72
5.72
1.27
1 . 27
3. 8 1
Ver.3.1
http://www.njr.com/
-9-
NJM8068
MSOP8 (TVSP8)
JEDEC MO-187-DA/THIN TYPE
Unit: mm
■ PACKAGE DIMENSIONS
2. 9 ± 0 .1
0 ∼ 10 ﾟ
1
0 .55 ± 0 .1
4.0 ±0 .2
5
2.8 ±0 .1
8
4
0. 127
0. 65
+0.05
-0.03
0 .08
0. 2 ± 0 .05
0. 05 M
0 .1 ±0 .05
1.0m ax
0 .4 75 ± 0 .1
■ EXAMPLE OF SOLDER PADS DIMENSIONS
0.65
3. 5
1 .0
0.23
1.95
Ver.3.1
http://www.njr.com/
- 10 -
NJM8068
SOP8
Unit: mm
■ PACKING SPEC
REEL DIMENSIONS / TAPING DIMENSIONS
8
12
3 30
Fee d di rec ti on
8
12.4
TAPING STATE
Insert direction
Sealing with covering tape
(TE2)
Feed direction
Empty tape
Devices
Empty tape
Trailer 60pcs
2500pcs/reel
Leader 60pcs
PACKING STATE
Label
Label
ESD Label
Ver.3.1
http://www.njr.com/
- 11 -
NJM8068
MSOP8 (TVSP8)
MEET JEDEC MO-187-DA/THIN TYPE
Unit: mm
■ PACKING SPEC
TAPING DIMENSIONS
Feed d ir ec ti on
P2
P0
φD 0
SYMBOL
A
B
D0
D1
E
F
P0
P1
P2
T
T2
W
W1
B
W1
W
F
E
T
A
P1
T2
φD 1
DIMENSION
4.4
3.2
1.5 +0.1
0
1.5 +0.1
0
1.75±0.1
5.5±0.05
4.0±0.1
8.0±0.1
2.0±0.05
0.30±0.05
1.75 (MAX.)
12.0±0.3
9.5
REMARKS
BOTTOM DIMENSION
BOTTOM DIMENSION
THICKNESS 0.1max
REEL DIMENSIONS
W1
C
SYMBOL
A
B
C
D
E
W
W1
B
A
D
E
DIMENSION
φ254±2
φ100±1
φ 13±0.2
φ 21±0.8
2±0.5
13.5±0.5
2.0±0.2
W
TAPING STATE
Insert direction
Sealing with covering tape
(TE1)
Devices
Empty tape
Feed direction
more than 20pitch
2000pcs/reel
Empty tape
Covering tape
more than 20pitch reel more than 1round
PACKING STATE
Label
Label
Put a reel into a box
Ver.3.1
http://www.njr.com/
- 12 -
NJM8068
■ RECOMMENDED MOUNTING METHOD
INFRARED REFLOW SOLDERING PROFILE
f
260°C
e
230°C
220°C
a
d
b
180°C
c
d
e
f
g
150°C
Temperature ramping rate
Pre-heating temperature
Pre-heating time
Temperature ramp rate
220°C or higher time
230°C or higher time
Peak temperature
Temperature ramping rate
1 to 4°C/s
150 to 180°C
60 to 120s
1 to 4°C/s
shorter than 60s
shorter than 40s
lower than 260°C
1 to 6°C/s
The temperature indicates at the surface of mold package.
Room
Temp.
a
Ver.3.1
b
c
g
http://www.njr.com/
- 13 -
NJM8068
[ CAUTION ]
1.
NJR strives to produce reliable and high quality semiconductors. NJR’s semiconductors are intended for specific applications
and require proper maintenance and handling. To enhance the performance and service of NJR's semiconductors, the devices,
machinery or equipment into which they are integrated should undergo preventative maintenance and inspection at regularly
scheduled intervals. Failure to properly maintain equipment and machinery incorporating these products can result in
catastrophic system failures
2.
The specifications on this datasheet are only given for information without any guarantee as regards either mistakes or
omissions. The application circuits in this datasheet are described only to show representative usages of the product and not
intended for the guarantee or permission of any right including the industrial property rights.
All other trademarks mentioned herein are the property of their respective companies.
3.
To ensure the highest levels of reliability, NJR products must always be properly handled.
The introduction of external contaminants (e.g. dust, oil or cosmetics) can result in failures of semiconductor products.
4.
NJR offers a variety of semiconductor products intended for particular applications. It is important that you select the proper
component for your intended application. You may contact NJR's Sale's Office if you are uncertain about the products listed in
this datasheet.
5.
Special care is required in designing devices, machinery or equipment which demand high levels of reliability. This is
particularly important when designing critical components or systems whose failure can foreseeably result in situations that
could adversely affect health or safety. In designing such critical devices, equipment or machinery, careful consideration
should be given to amongst other things, their safety design, fail-safe design, back-up and redundancy systems, and diffusion
design.
6.
The products listed in this datasheet may not be appropriate for use in certain equipment where reliability is critical or where
the products may be subjected to extreme conditions. You should consult our sales office before using the products in any of
the following types of equipment.
7.
8.
9.
Ver.3.1
Aerospace Equipment
Equipment Used in the Deep Sea
Power Generator Control Equipment (Nuclear, steam, hydraulic, etc.)
Life Maintenance Medical Equipment
Fire Alarms / Intruder Detectors
Vehicle Control Equipment (Airplane, railroad, ship, etc.)
Various Safety Devices
NJR's products have been designed and tested to function within controlled environmental conditions. Do not use products
under conditions that deviate from methods or applications specified in this datasheet. Failure to employ the products in the
proper applications can lead to deterioration, destruction or failure of the products. NJR shall not be responsible for any bodily
injury, fires or accident, property damage or any consequential damages resulting from misuse or misapplication of the
products. The products are sold without warranty of any kind, either express or implied, including but not limited to any implied
warranty of merchantability or fitness for a particular purpose.
Warning for handling Gallium and Arsenic (GaAs) Products (Applying to GaAs MMIC, Photo Reflector). These products use
Gallium (Ga) and Arsenic (As) which are specified as poisonous chemicals by law. For the prevention of a hazard, do not burn,
destroy, or process chemically to make them as gas or power. When the product is disposed of, please follow the related
regulation and do not mix this with general industrial waste or household waste.
The product specifications and descriptions listed in this datasheet are subject to change at any time, without notice.
http://www.njr.com/
- 14 -
工商网监
湘ICP备2023018690号
