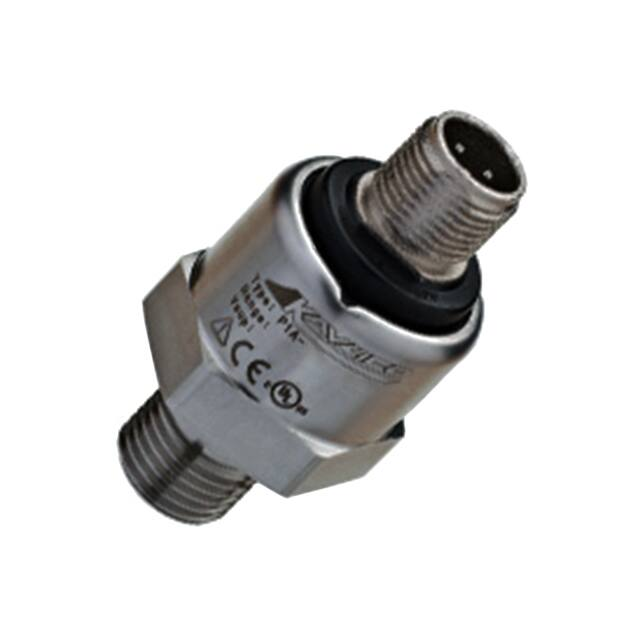

P1A-55G-1-A-06-C-E

| P1A Pressure Sensor Description P1A family features a highly modular compact geometry. This modularity and extensive range of options offered by the P1A family make the advantages of Ceramic Capacitive technology in low-pressure sensing now available to the broadest spectrum of industrial applications. Besides the multiple standard configurations available, customized adaptations can also be considered. Kavlico’s P1A Ceramic Capacitive Pressure Sensor incorporates the latest generation sensing elements with state-of-the-art ASICs. Designed to withstand harsh environments, it features superior EMI protection, outstanding shock and vibration performance, impressive longevity and lifetime performance and high quality. It is tested to parameters that match or exceed those of competing products on the market. Features • Small Compact Size • Highly Modular Product Configurations • Kavlico Ceramic Capacitive Technology • Outstanding Long Term Stability and Performance • Vacuum to 16 Bar Gage and Absolute • Media Resistant CCAP Technology Applications • Vacuum Machinery / Plant • Medical and Laboratory Sterilizers / Autoclaves • HVAC Systems • Water Pump Booster Sets • Pneumatic Systems • Waste and Water Management • Industrial OEM Applications MAIN FEATURES Pressure Ranges 0 to 0.25 up to 0 to 16 bar (gage) 0 to 1.6 up to 0 to 16 bar (absolute) -1 to 0 up to -1 to 0 bar (gage) * Electrical Connection Packard Electric Metri-Pack 150 Series * Pressure Connection G1/4A DIN 3852-E, 1/4 - 1/8 NPTF * Housing Material 304 Stainless Steel (1.4301) Connector Material PBT (30% Glass Fibre) Output Signal 4 - 20 mA, 0.5 - 4.5 VDC, 0 - 5 VDC, 0 - 10 VDC Page 1 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com TECHNICAL SPECIFICATIONS Pressure Ranges from 0 to... bar (gage) from 0 to... bar (absolute) 0.25 0.4 0.6 1 1.6 2.5 4 6 10 16 1.6 2.5 4 6 10 16 Proof Pressure Factor 4x 4x 4x 4x 4x 4x 3x 3x 3x 2x Burst Pressure Factor 6x 6x 6x 6x 6x 6x 5x 5x 4x 3x 15 20 30 50 75 100 150 200 20 30 50 75 100 150 200 from -1 to... bar (gage) 0 1 Proof Pressure bar (gage) -1 / +4 -1 / +4 Burst Pressure bar (gage) 6 6 from 0 to... PSI (gage) 5 10 from 0 to... PSI (absolute) Proof Pressure Factor 4x 4x 4x 4x 4x 4x 3x 3x 3x 2x Proof Pressure Factor 6x 6x 6x 6x 6x 6x 5x 5x 4x 3x Physical Shock Resistance min. 10 million full pressure cycles over the full range IEC 60068-2-64 (RANDOM) 20 PSD 100 g minimum according to DIN EN 60068-2-27 Drop Test 1 meter drop on concrete as per SAE J1455 / DIN EN 60068-2-3-1 Weight ≤ 50 grams Ingress Protection IP 65 or IP67 - depending on electrical connector Medium Temperature -30°C to + 120°C (others on request) Environmental Temperature -30°C to + 100°C (depending on internal and external seal ring capability) 1 Storage Temperature -30°C to + 100°C (depending on internal and external seal ring capability) 1 Media All class II fluids and gases compatible with stainless steel 304 (1.4301) and the internal and external (optional) seal ring material Operating Life Cycle Vibration Resistance Performance Accuracy 2 ≤ 1 % of span 4 Non-linearity 3 0.2 % of span 4 Non-repeatability 0.1 % of span 4 1-year stability 0.2 % of span 4 Temp. Coefficients - Zero 0.2 % of span / 10 K within temperature range 0°C to + 80°C.2 % Temp. Coefficients - Span 0.2 % of span / 10 K within temperature range 0°C to + 80°C.2 % Page 2 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Electrical 4…20 mA 0.5…4.5 VDC ratiometric 0…5 VDC 0…10 VDC Operating Supply Signal 9-30 VDC 4 5 VDC ± 5% 4 8-30 VDC 4 14-30 VDC 4 Power Consumption ≤ 600 mW ≤ 25 mW ≤ 600 mW ≤ 600 mW Overvoltage Protection min. 33 VDC min. 33 VDC min. 33 VDC min. 33 VDC Short-circuit Proofness not applicable Yes Yes Yes 5 Insulation Voltage 500 VDC 500 VDC 500 VDC 500 VDC Reverse Polarity Protection Yes 6 Yes 6 Yes 6 Yes 6 Load ≤ (Vsup-8 VDC)/(0.02 A) [Ω] ≥ 4.7 kΩ ≥ 4.7 kΩ ≥ 4.7 kΩ Response Time ≤ 5 ms max. to 63% of full scale pressure with step change on input Output Signal 5 5 DIMENSIONS Dimensions in mm [Inch] Pressure Sensor with Electrical Connection M12 Pin Call Outs Output Pin 1 Pin 2 Pin 3 Pin 4 4-20 mA Vsup ... lout ... 0.5-4.5 VDC ratiometric Vsup ... Vout GND Vsup ... Vout GND 0-5 VDC 0-10 VDC 18 mm Pin Call Outs Output Pin 1 Pin 2 Pin 3 Pin 4 4-20 mA Vsup lout ... ... 0.5-4.5 VDC ratiometric Vsup Vout GND ... Vsup Vout GND ... 0-5 VDC 0-10 VDC Page 3 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Packard (metri-pack 150) Pin Call Outs Output Pin 1 Pin 2 Pin 3 4-20 mA lout Vsup ... 0.5-4.5 VDC ratiometric GND Vsup Vout GND Vsup Vout 0-5 VDC 0-10 VDC Pressure Connections and Recommended Installation Torque G1/4A DIN 3852-E 7/16-20 UNF-2B SAE J1926-1 7/16-20 UNF-2A SAE J1926-2 G1/4A DIN 3852-A Thread External Internal External External Torque 20 Nm 20 Nm 20 Nm 20 Nm Name Name 1/4-19 BSPT R1/4 PER DIN EN 10226 1/4-18 NPTF 1/8-27 NPTF Thread External External Internal Torque 20 Nm 20 Nm 20 Nm Note: Recommended torque may varify according to material and specific application GENERAL NOTES * for more options see How to Order 2 Including non-linearity, hysteresis, non-repeatability, zero point and full scale error (corresponds to error of measurement per IEC 61298-2). Adjusted in vertical mounting position with pressure port down. 3 BFSL according to IEC 61298-2 reference conditions to EN 61298-1 4 Others on request 4 Unit shall be supplied by a power supply with double/reinforced insulation (SELV) and limited energy in accordance to UL/EN/IEC 61010-1 or LPS in accordance to UL/EN/IEC 60950-1 or class 2 per UL1310/UL1585 (NEC or CEC). The power supply shall be approved for usage above 2000m if the pressure sensor is used in this enviroment. For indoor and outdoor use, not exposed to direct sunlight. 5 for min. 3 intervals at 5 minutes each 6 for min. 10 seconds on assigned pins Page 4 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Example : P1A-06G-1-A-01-A-D ORDERING OPTIONS P1A Family 06 P1A Sensor, 0 - 2.5 bar Gage, 4 - 20 mA Output, No External Seal Ring, G1/4 DIN 3852-E Pressure Connection, with 18mm, EN 175301-803-A003MS, 4 pole Electrical Connector and Fluorocarbon FKM Internal Seal Ring G 1 A 01 A D P1A Pressure Ranges 01 0 - 0.25 Bar 02 0 - 0.4 Bar 03 0 - 0.6 Bar 04 0 - 1 Bar 05 0 - 1.6 Bar 06 0 - 2.5 Bar 07 0 - 4 Bar 08 0 - 6 Bar 09 0 - 10 Bar 10 0 - 16 Bar 30 -1 - 0 Bar 31 -1 - 1 Bar 50 0 - 5 PSI 51 0 - 10 PSI 52 0 - 15 PSI 53 0 - 20 PSI 54 0 - 30 PSI 55 0 - 50 PSI 56 0 - 75 PSI 57 0 - 100 PSI 58 0 - 150 PSI 59 0 - 200 PSI Reference A: Absolute G: Gage Output 1: 4-20 mA 2: 0.5-4.5 VDC radiometric 3: 0-5 VDC 4: 0-10 VDC External Seal Ring A: None B: Fluorocarbon FKM (Viton) Only for pressure connection port option 1 lower temperature limited to -20°C C: Aluminium Washer G1/4 Only for pressure connection port option 4 D: Copper Washer G1/4 Only for pressure connection port option 4 F: Ethylene Propylene - EPDM Only for pressure connection port option 1 Pressure Connection (Port) 01: G 1/4A DIN 3852-E 05: 1/4-19 BSPT 02: 7/16-20UNF-2B (female) SAE J1926-1 (modified) Is equivalent to 1/4-19PT and R1/4 per DIN EN 10226 5 With 45° cone and schrader 06: 1/4-18 NPTF 03: 7/16-20UNF-2A (male) SAE J1926-2 (modified) 11: 1/8-27 NPTF With 45° cone 04: G1/4A DIN 3852-A Built-In Electrical Connection A: 18mm, EN 175301-803-A003MS, 4 pole D: Packard Metri-Pack 150, 3 pole Sensor delivered without mating connector Sensor delivered without mating connector C: M12, 4 pole according to IEC 61076-2-101 Sensor delivered without mating connector Internal Seal Ring C: Neoprene - CR Operating Temp: - 30 to 120°C D: Fluorocarbon - FKM (VITON) Operating Temp: - 20 to 120°C E: Fluorosilicone - FVMQ Operating Temp: - 30 to 120°C F: Ethylene Propylene - EPDM Operating Temp: - 30 to 120°C Before installation and operation, ensure that the appropriate pressure sensor has been selected in terms of pressure range, design and specific measuring conditions. Noncompliance can result in serious injury and/or damage to the equipment. Warning: The product information contained in this catalogue is given purely as information and does not constitute a representation, warranty or any form of contractual commitment. Kavlico reserve the right to modify their products without notice. It is imperative that we should be consulted over any particular use or application of our products and it is the responsibility of the buyer to establish, particularly through all the appropriate tests, that the product is suitable for the use or application. Under no circumstances will our warranty apply, nor shall we be held responsible for any application (such as any modification, addition, deletion, use in conjunction with other electrical or electronic components, circuits or assemblies, or any other unsuitable material or substance) which has not been expressly agreed by us prior to the sale of our products. Page 5 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com AGENCY APPROVALS & CERTIFICATIONS Pressure equipment directive 97/23/EC EMC directive 2004/108/EG, IEC 61326 Emission (Group 1, Class B) and Immunity (industrial locations) 2011/65/EU ROHS Directive In Process Page 6 Sensata Technologies, Inc. (“Sensata”) data sheets are solely intended to assist designers (“Buyers”) who are developing systems that incorporate Sensata products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains responsible for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products. Sensata data sheets have been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements, improvements and other changes to its data sheets or components without notice. Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS ARE PROVIDED “AS IS”. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO SENSATA DATA SHEETS OR USE THEREOF. All products are sold subject to Sensata’s terms and conditions of sale supplied at www.sensata.com SENSATA ASSUMES NO LIABILITY FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS’ PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS, AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION OR SUPPORT THAT MAY BE PROVIDED BY SENSATA. Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA. Copyright © 2018 Sensata Technologies, Inc. Rev.07/04/18 CONTACT US Americas +1 (800) 350 2727 sensors@sensata.com Europe, Middle East & Africa +33 (3) 88 20 8080 position-info.eu@sensata.com Asia Pacific sales.isasia@list.sensata.com China +86 (21) 2306 1500 Japan +81 (45) 277 7117 Korea +82 (31) 601 2004 India +91 (80) 67920890 Rest of Asia +886 (2) 27602006 ext 2808 www.sensata.com
