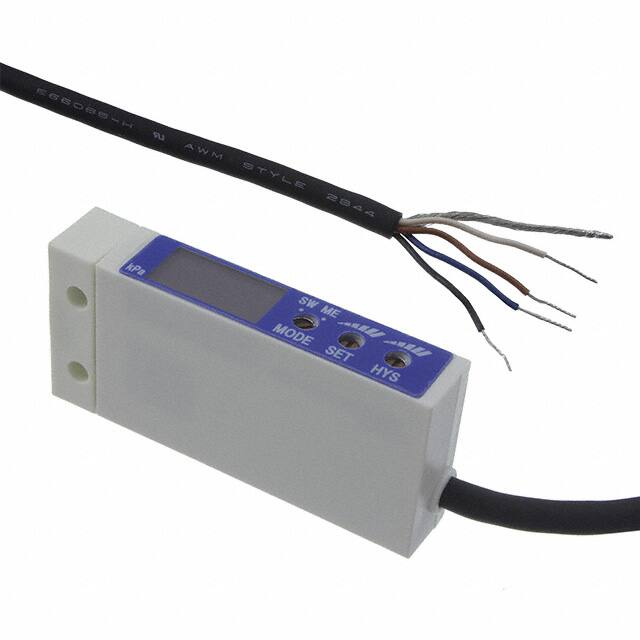

PS6-102V-NAM

PRESSURE SWITCHES WITH GAUGE PS6 マーキング EMC指令適合 INTERNAL STRUCTURE (M5 female screw) marking Compatible with EMC directive 13 4 2 6 5 Part name ■ FEATURES ● Solidstate pressure switch with no mechanical moving parts ● 2 types of pressure ports are available ● Open collector output of either NPN or PNP is available ● Analog output type available Material POM (Polyoxymethylene) 1 Pressure port 2 Housing PC (Polycarbonate) 3 “O” ring Fluoro-rubber 4 Sensor module board 5 Protection panel 6 Main panel ——— PET (Polyethyleneterephthalate) ■ MODEL NUMBER DESIGNATION P S 6 - 1 0 2 V - N A R Series name Pressure port Rated pressure range R：R1/8 male screw with M5 female screw M：M5 female screw 102：100 kPa 103：1000 kPa Output Pressure reference A：1 SW output and adjustable hysteresis + Analog output W：2 SW outputs G：Gauge V：Gauge (Vacuum) Switch output interface N：NPN open collector P：PNP open collector ■ LIST OF MODEL NUMBERS Pressure port R 1/8 male screw M 5 female screw Switch output Outputs Adjustable hysteresis switch output + Analog output Switch outputs (2 points) Adjustable hysteresis switch output + Analog output Switch outputs (2 points) 102V 0 ~ −100 kPa 102G 0 ~ 100 kPa 103G 0 ~ 1000 kPa NPN open collector output 　　　PS6-102V-NAR　　　　　　PS6-102G-NAR　　　　　 PS6-103G-NAR PNP open collector output 　　　PS6-102V-PAR　　　　　　PS6-102G-PAR　 PS6-103G-PAR NPN open collector output 　　　PS6-102V-NWR　　　　　 PS6-102G-NWR　 PS6-103G-NWR PNP open collector output 　　　PS6-102V-PWR　　　　　　PS6-102G-PWR　 PS6-103G-PWR NPN open collector output 　　　PS6-102V-NAM　　　　　　PS6-102G-NAM PS6-103G-NAM PNP open collector output 　　　PS6-102V-PAM　　　　　　PS6-102G-PAM　 PS6-103G-PAM NPN open collector output 　　　PS6-102V-NWM　　　　　　PS6-102G-NWM　 PS6-103G-NWM PNP open collector output 　　　PS6-102V-PWM　　　　　　PS6-102G-PWM　 PS6-103G-PWM ※ Verify the above model numbers when placing orders. PS6 PRESSURE SWITCHES WITH GAUGE ■ STANDARD SPECIFICATIONS ● Unless otherwise specified, the specs are defined at an ambient temperature of 25 ± 5 °C and excitation voltage of 12 V DC. Item PS6 Model number 102V General specifications Pressure reference Gauge kPa Maximum pressure kPa 200 200 1500 Break-down pressure kPa 500 500 2000 Operating temp. range 0 ~ −100 0 ~ 100 Operating humidity Storage temp. 0 ~ 50 35 ~ 85（No condensation） %RH −20 ~ 70（Atmospheric pressure, humidity 65 %RH maximum） °C Pressure medium Insulation resistance Power Net weight Supply voltage Consumption current Non-corrosive gases MΩ min. 100 (500 V DC) 500 V AC, 60 s（Leakage current 1 mA maximum） R 1/8（Female screw）or M5 Approx. 50（Including cable） g V DC 12 ~ 24 V ± 10 %（Including ripple percentage） mA max. 35 Display element Display 0 ~ 1000 −10 ~ 60 °C Compensated temp. range °C Pressure port 2-digit LED Rated display range −0 ~ −99 kPa 0 ~ 99 kPa Display accuracy .0 ~ .99 MPa ± 3 %F.S. ± 2counts 0 〜 50℃ （Reference temp. 25 °C） 1 count Resolution No. of outputs 1 or 2 Output interface Switch output 103G Rated pressure range Dielectric strength （NPN/PNP） 　Open collector output (NPN or PNP) Setting method Adjustable by VR ※1 Adjustable range 0 ~ 100 of rated pressure ※2 Red LED ON (W type only : SW1 Red, SW2 Green) Display Accuracy 0 〜 50℃ （Reference temp. 25 °C） ±3 %F.S. Switch hysteresis Approx. 0 ~ 15 % of the set value (W type only 2 % F.S. maximum) 30 V 80 mA maximum Switching capacity Residual voltage V maximum Responsems Analog output 102G 0.8 (NPN), 1.2 (PNP) Approx. 2 Output voltage V 1~5 Zero voltage V 1 ± 0.1 Span voltage V 4 ± 0.1 Output current mA maximum 1（Load resistance 5 kΩ minmum） ※ 1：Please set adjusting torque at 30 mN·m maximum. ※ 2：The actual setting range adjustable by VR has a little overrunning margin beyond the rated display of 0 through 99. This could cause the setting value of VR may be under “0” or over “99”. PS6 PRESSURE SWITCHES WITH GAUGE ■ ENVIRONMENTAL CHARACTERISTICS Test item Test conditions Permissible change Vibration 10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s2, 3 directions for 2 hours each Shock 196 m/s2, 3 directions for 3 times each Moisture resistance 40 °C, 90 ~ 95 %RH, 240 hrs. Pressure cycling 0 ~ Rated pressure, 106 cycles EMC EMI : EN55011: 2007, A2 : 2007 Group 1, class B　 EMS : EN61326-1 : 2006 Table 2 Pressure indication, switch operating pressure and analog output variation : ± 2 %F.S., maximum each after test Pressure indication, switch operating pressure and analog output variation : ± 5 %F.S., maximum during test ■ CIRCUIT DIAGRAMS ● NAM, NAR (NPN/Adjustable hysteresis switch) 1 ● PAM, PAR (PNP/Adjustable hysteresis switch) LED Indicator LED Indicator 1 Power B Power B Load Pressure Sensor Main circuit S.Output A.Output Pressure Sensor Main circuit A.Output S.Output Load Common LED Common FG LED Pressure indication Pressure indication ● NWM, NWR (NPN/2 switch outputs) 1 2 FG ● PWM, PWR (PNP/2 switch outputs) LED Indicator 1 2 LED Indicator Power B Sensor Main circuit Power B Load Load Pressure S.Output1 S.Output2 Pressure Sensor Main circuit S.Output1 S.Output2 Load Common Load Common FG FG ■ SWITCHING OPERATION ● The switch turns on at the set pressure and turns off at the set pressure minus the hysteresis. ● PS6-102V ● PS6- ＊＊＊ G Hysteresis ON ON OFF OFF －100 kPa Set value Barometic pressure Barometic pressure ※＊ A ＊ is adjustable hysteresis type. Hysteresis Set value Rated pressure PS6 PRESSURE SWITCHES WITH GAUGE ■ OUTLINE DIMENTIONS Unless otherwise specified, tolerance : ± 0.5 (Unit: mm) ● (NAR, PAR, NWR, PWR) Switch status LED 2 (Green) ※Only for two-switch output model Switch status LED 1 (Red) Pressure indication Polyacetal Hysteresis setting VR ※Used to set the switch 2 for two-switch output model Recommended adjusting torque 30 mN·m maximum Display selector switch (ME/SW) ※For two-output switch (ME/S1/S2) Recommended adjusting torque 25 mN·m maximum Pressure setting VR ※Used to set the switch 1 for two-output type Recommended adjusting torque 30 mN·m maximum 2 – φ 3.3 Mounting hole R1/8 12 25 Polycarbonate Pressure port M5 depth 5 10 8.5 4.5 ( φ 3.8) 4-core shielded cable L = 1500 ± 50 AWG26 ULNo.2844 52.5 ● (NAM, PAM, NWM, PWM) Switch status LED 2 (Green) ※Only for two-switch output model Switch status LED 1 (Red) Pressure indication Polyacetal Display selector switch (ME/SW) ※For two-output switch (ME/S1/S2) Recommended adjusting torque 25 mN·m maximum Hysteresis setting VR ※Used to set the switch 2 for two-switch output model Recommended adjusting torque 30 mN·m maximum Pressure setting VR ※Used to set the switch 1 for two-switch output model Recommended adjusting torque 30 mN·m maximum 10 5 2 – φ 3.3 Mounting hole Pressure port M5 Depth 5 12 25 19 Polycarbonate 4.5 2 – M3 Depth 4.5 52.5 PS6 (NAM,NAR, PAM, PAR) Wire color Connection ( φ 3.8) 4-core shielded cable L = 1500 ± 50 AWG26 ULNo.2844 PS6 (NWM, NWR, PWM, PWR) Wire color Connection Brown Power B Brown Power B Black Switch output Black Switch output 1 White Analog output White Switch output 2 Blue Common Blue Common Shield N.C. Shield N.C.
