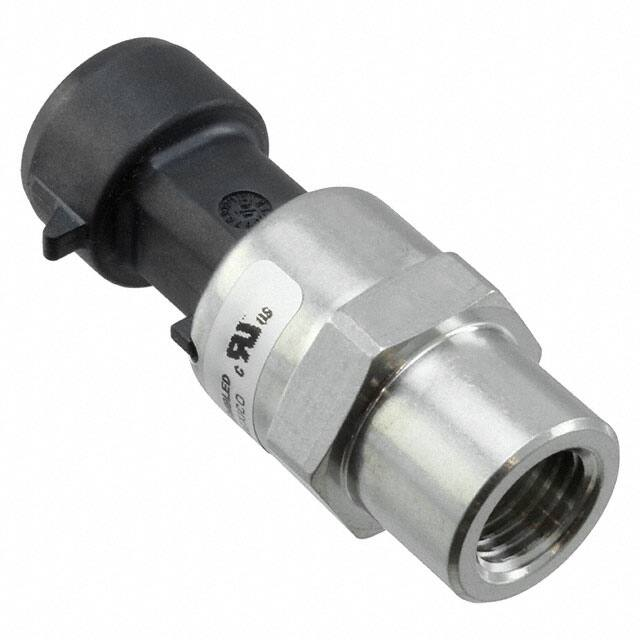

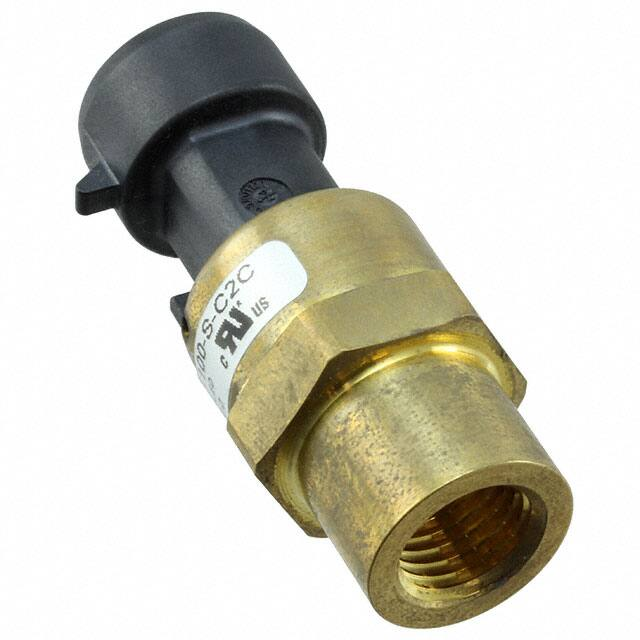

| P528 Pressure Sensor Description The P528 incorporates Kavlico’s 4th generation ceramic capacitive sense element with the latest state of the art proprietary ASIC. Available in brass or stainless steel housings, this multi-purpose sensor is rugged by design. Highly reliable, the P528 is ideal for measuring a broad range of process media including hydrocarbon based fluids, air, and gases. The P528 package has a built-in Metri-Pack 150 series sealed electrical connector and is available with popular pressure connection thread options. The sensor is offered with seal materials suitable for diverse applications. Standard pressure ranges are available in PSI or Bar. Features • Small Size (3/4” Hex) • External Hex for Easy Installation • Linear Amplified Output • Temperature Compensated • Superior Long-Term Stability • Low Power Consumption • Minimum Life Expectancy: Ten Million Cycles Applications • Compressors • Process Controls • Instruments & Test Equipment • Sterilizers • Air Pressure • Oil & Fuel Pressure • Coolant Pressure • Agricultural Equipment • CNG & Natural Gas Engines MAIN FEATURES Pressure Ranges 0 - 6 up to 0 - 70 Bar and 0 - 100 up to 0 - 1000 PSI Electrical Connection Packard Electric Metri-Pack 150 Series Pressure Connection 1/4”SAE Female Flare w/ Schrader Deflator 7/16”-20 UNF-2A external threads 1/4”-18 NPT 1/8”-27 NPT (external threads) Housing Material Output Voltage Brass (up to 300 psi) and stainless steel (above 300 psi) 0.5 to 4.5 Vdc Page 1 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com TECHNICAL SPECIFICATIONS Pressure Ranges Bar A, S or G PSI A, S or G 0-1 0 - 1.6 0 - 2.5 0-4 0-6 0 - 10 0 - 16 0 - 25 0 - 40 0 - 50 0 - 70 0 - 15 0 - 20 0 - 30 0 - 50 0 - 75 0 - 100 0 - 150 0 - 200 0 - 300 0 - 500 0 - 750 0 - 1000 For custom pressure ranges consult Kavlico Pressure Sensors. Physical Durability/Service Life 10 million full pressure cycles (minimum) Proof Pressure 3X FS Pressure (upto 14 Bar / 200 PSI) 2X FS Pressure (above 14 Bar / 200 PSI) Burst Pressure 1500 PSI (upto 24 Bar / 300 PSI) 2500 PSI (above 24 Bar / 300 PSI) Humidity 93 +/- 3% RH Vibration 10 g’s peak to peak sine (10 - 2000 Hz) Shock Drop Test Weight Ingress Protection 75 g’s, 1/2 Sine Wave 1 meter drop on concrete as per SAE J1455 < 50 gm IP67 Performance Linearity Error Total Error Band Stability Coefficient ≤ +/- 0.5% of span +/-1.5% of span (0 ≤ T ≤ 85 C°) +/-2.0% of span (T < 0 C°,T < 85 C°) +/-0.3 % of Full span over 1 year Operating Temperature -40 C° to 125 C° (Seal material dependent. See Ordering Options) Storage Temperature -40 C° to 125 C° (Seal material dependent. See Ordering Options) Page 2 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Electrical Supply Voltage 5.0 Vdc +/- 0.5 Output Voltage 0.5 to 4.5 Vdc Supply Current ≤ 5 mA Output Impedance ≤ 100 Ω Output load ≥ 10 KΩ Output response time ≤ 2 ms to 63 % of final output voltage with step change in input pressure Overvoltage protection 36 Vdc Reverse Voltage -36 Vdc Short Circuit protected Isolation Voltage Warmup time Output to supply, Output to Ground: Indefinite R ≥ 100 MΩ, 500 Vdc / 1 min 3 mSec Max. EMC Meets ISO 7637-3, ISO 11452-4, ISO 11452-2, CISPR 25, MIL-STD 461 E ESD IEC 1000-4.2 (8kV contact, 15kV air), ISO 10605 (8kV contact, 25kV air) Page 3 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com DIMENSIONS Dimensions in mm [Inch] Pressure Sensor with Electrical Connection Pressure Connections and Recommended Installation Torque Name 1/4 - 18 NPT 1/8 - 27 NPT Schrader deflator Thread External External Internal Torque 25 Nm 14 Nm 15 Nm Name 7/16 – 20 UNF 2A Thread External Torque 16 Nm Note: Recommended torque may varify according to material and specific application. Page 4 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Example: P528-16B-A-C1A ORDERING OPTIONS P528 Sensor, 0 - 16 Bar Absolute, Fluorosilicone Seal Material, 1/4 - 18 NPT Pressure Connection, P528 Family 16B A C 1 A P528 Pressure Ranges 6B: 0 – 6 Bar 10B: 0 – 10 Bar 16B: 0 – 16 Bar 25B: 0 – 25 Bar 40B: 0 – 40 Bar 50B: 0 – 50 Bar 70B: 0 – 70 Bar 100: 0 – 100 PSI 150: 0 – 150 PSI 300: 0 – 300 PSI 400: 0 – 400 PSI 500: 0 – 500 PSI 600: 0 – 600 PSI 750: 0 – 750 PSI 1000: 0 – 1000 PSI Reference A: Absolute G: Gage S: Sealed Gage (Referenced to 14.7 PSIA) Seal Material C: Neoprene (-30° to 120°C) F: Ethylene Propylene (-40° to 120°C) H: HNBR (-20° to 125°C) Pressure Connection (Port) 1: 1/4 - 18 NPT (External Threads) 2: 1/4 SAE Female flare w/schrader deflator 3: 7/16 - 20 UNF 2A (External threads) 4: 1/8 - 27 NPT (External threads) Built-in Electrical Connection A: With Mating Connector, w/12”, 18 AWG Leads C: Without Mating Connector Page 5 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com AGENCY APPROVALS & CERTIFICATIONS EN 61326-1, 2006 IEC 61000-4-2, 2001 IEC 61000-4-3, 2006 IEC 61000-4-8, 2001 2002/95/EC RoHS Directive File # SA10552 Page 6 Revised 2/7/18 Sensata Technologies, Inc. (“Sensata”) data sheets are solely intended to assist designers (“Buyers”) who are developing systems that incorporate Sensata products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains responsible for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products. Sensata data sheets have been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements, improvements and other changes to its data sheets or components without notice. Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS ARE PROVIDED “AS IS”. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO SENSATA DATA SHEETS OR USE THEREOF. All products are sold subject to Sensata’s terms and conditions of sale supplied at www.sensata.com SENSATA ASSUMES NO LIABILITY FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS’ PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS, AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION OR SUPPORT THAT MAY BE PROVIDED BY SENSATA. Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA. Copyright © 2018 Sensata Technologies, Inc. CONTACT US Americas +1 (800) 350 2727 sensors@sensata.com switches@sensata.com Europe, Middle East & Africa +359 (2) 809 1826 pressure-info.eu@sensata.com Asia Pacific sales.isasia@list.sensata.com China +86 (21) 2306 1500 Japan +81 (45) 277 7117 Korea +82 (31) 601 2004 India +91 (80) 67920890 Rest of Asia +886 (2) 27602006 ext 2808 www.sensata.com
