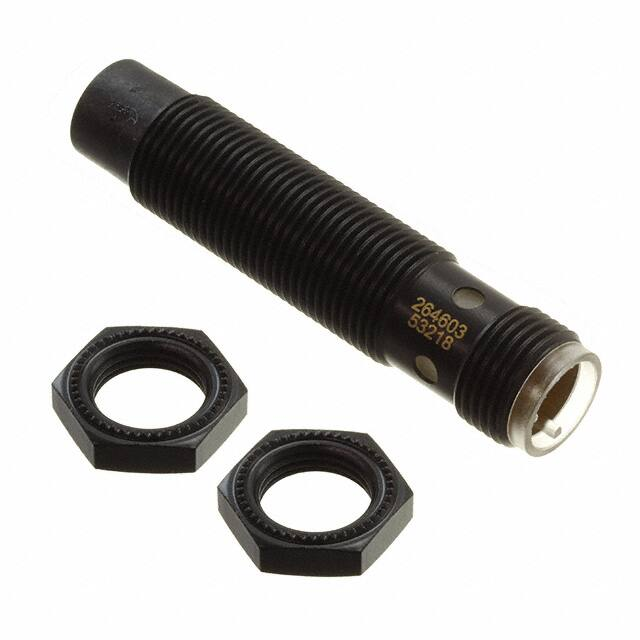

NRN10-12GM40-E2-C-V1

Inductive sensor NRN10-12GM40-E2-C-V1 < Reduction factor = 1 < Magnetic field resistant < Weld Immune Dimensions 55 39 45 4 8 M12 x 1 17 Release date: 2020-03-24 Date of issue: 2020-03-30 Filename: 264603_eng.pdf 6 LED Technical Data General specifications Switching function Normally open (NO) Output type Rated operating distance PNP sn Installation non-flush Output polarity Assured operating distance 10 mm DC sa 0 ... 8.1 mm Reduction factor rAl 1 Reduction factor rCu 1 Reduction factor r304 1 Reduction factor rSt37 1 Output type 3-wire Nominal ratings Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 1 Inductive sensor NRN10-12GM40-E2-C-V1 Technical Data Operating voltage UB 10 ... 30 V DC Switching frequency f 0 ... 1000 Hz Hysteresis H typ. 5 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Voltage drop Ud ≤2V Rated insulation voltage UBIS 60 V Operating current IL 0 ... 200 mA Off-state current Ir 0 ... 0.5 mA typ. 0.1 µA at 25 °C No-load supply current I0 ≤ 14 mA Time delay before availability tv max. 15 ms Constant magnetic field B 200 mT Alternating magnetic field B 200 mT Switching state indicator Multihole-LED, yellow Functional safety related parameters MTTFd 1393 a Mission Time (TM) 20 a Diagnostic Coverage (DC) 0% Compliance with standards and directives Standard conformity Standards EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates Protection class II Rated insulation voltage Ui 60 V Rated impulse withstand voltage Uimp 800 V UL approval cULus Listed, General Purpose Class 2 power source CCC approval CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Storage temperature -40 ... 85 °C (-40 ... 185 °F) Release date: 2020-03-24 Date of issue: 2020-03-30 Filename: 264603_eng.pdf Mechanical specifications Connection type Connector plug M12 x 1 , 4-pin Housing material Brass, PTFE coated Sensing face PPS Degree of protection IP67 Mass 15 g General information Scope of delivery 2 self locking nuts in scope of delivery Connection 1 L+ 4 3 L- Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 2 Inductive sensor NRN10-12GM40-E2-C-V1 Connection Assignment 1 4 2 3 Wire colors in accordance with EN 60947-5-2 1 2 3 4 BN WH BU BK (brown) (white) (blue) (black) Accessories Mounting flange, 12 mm V1-G-OR2M-POC Female cordset single-ended M12 A-coded 4-pin, TPE cable welding-bead resistant orange Release date: 2020-03-24 Date of issue: 2020-03-30 Filename: 264603_eng.pdf BF 12 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 3
