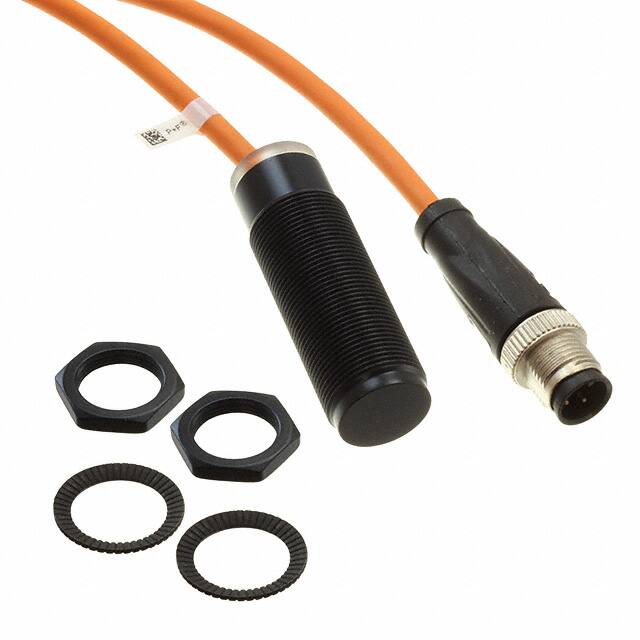

NMB5-18GM55-Z3-C-FE-300MM-V1

Inductive sensor NMB5-18GM55-Z3-C-FE-300MM-V1 < < < < < < Stainless steel sensing face Sensing range 5 mm 2-wire DC Weld field immune Weld slag resistant coating Ferrous targets Dimensions 2.5 M12 x 1 55 47 4 M18x1 24 LED Release date: 2020-03-24 Date of issue: 2020-03-30 Filename: 905038_eng.pdf 300 Technical Data General specifications Switching function Normally open (NO) Output type Rated operating distance Two-wire sn Installation flush Output polarity Assured operating distance 5 mm DC sa 0 ... 4.05 mm Actuating element Ferrous targets Reduction factor rAl 0 Reduction factor rCu 0 Reduction factor r304 0.6 - 0.8 Reduction factor rSt37 1 Reduction factor rBrass 0 Output type 2-wire Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 1 Inductive sensor NMB5-18GM55-Z3-C-FE-300MM-V1 Technical Data Nominal ratings Operating voltage UB 6 ... 30 V DC Switching frequency f 0 ... 5 Hz Hysteresis H 3 ... 15 typ. 5 % Reverse polarity protection reverse polarity tolerant Short-circuit protection no Voltage drop Ud ≤ 5.5 V DC Operating current IL 2 ... 100 mA Off-state current Ir ≤ 800 µA Switching state indicator LED, red Mag. Field strength, AC fields 250 mT Mag. Field strength, DC fields 250 mT Compliance with standards and directives Standard conformity Standards EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approval cULus Listed, General Purpose CSA approval cCSAus Listed, General Purpose CCC approval CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection type 300 mm POC cable with 3-pin , M12 x 1 connector Core cross-section 0.34 mm2 Housing material Xylan coated - Stainless steel 1.4305 / AISI 303 Sensing face Xylan coated - Stainless steel 1.4305 / AISI 303 Degree of protection IP67 / IP68 / IP69K - cordset dependent according to cable specification Connection 1 Release date: 2020-03-24 Date of issue: 2020-03-30 Filename: 905038_eng.pdf 4 +/– –/+ Connection Assignment 1 4 3 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 2 Inductive sensor NMB5-18GM55-Z3-C-FE-300MM-V1 Wire colors in accordance with EN 60947-5-2 1 3 4 BN BU BK (brown) (blue) (black) Accessories Mounting aid V1-G-OR2M-POC Female cordset single-ended M12 A-coded 4-pin, TPE cable welding-bead resistant orange Release date: 2020-03-24 Date of issue: 2020-03-30 Filename: 905038_eng.pdf AB-18 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 3
