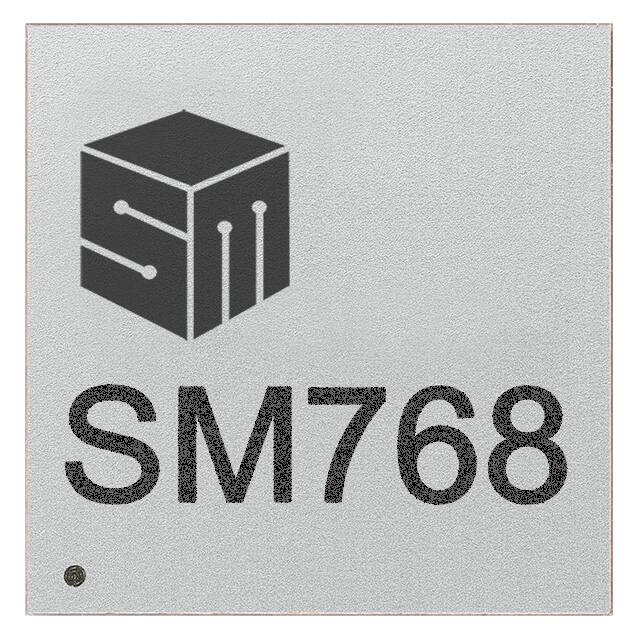

SM768GE0B0000-AB

SM768 High Performance 4K Graphics Processor SM768 is high performance graphics processor which provides dual display channels and supports multiple output interfaces, including HDMI, DisplayPort, DVI, VGA, LVDS and digital interfaces. SM768 has 128-bit graphics engine to accelerate graphics displays and provides color space conversion and scaling features. Display resolution supports up to 4K UHD (3840x2160@30p) or 2K/Full HD@60p. SM768 supports H.264/MJPEG hardware video decoding. There's also an option to embed 256MB DDR3 memory into a single 19x19mm package. SM768 connects to host via USB 3.0 device interface or PCIe 2.0 interface and can support various applications, ex: USB display, Thin/Zero client, Signage and Embedded displays. SMI's Content Adaptive Technology(CAT) use adaptive algorithms to compress content and can send through USB or network for displays. SM768 also has an internal four ports USB 2.0 Host/Hub for connecting peripherals such as keyboard and mouse. APPLICATIONS USB Display Adapter/Monitor Factory Automation/IPC Universal Docking Station Gaming Machine Thin/Zero Client POS (Point-of-Sale) Terminal Digital Signage/Video Wall Small Form Factor, Low Power Embedded Graphics FEATURES System Interfaces USB 3.0 Device Interface - Connect to USB Host PCI-Express Gen2 x1/x2 lane device slave Interface USB 2.0 Hub with Four (4) Port for peripherals One ZV port to capture incoming video from cameras or other devices Memory Support Supports 256MB internal DDR3 memory or up to 1GB external DDR 2/3 memory Use embedded memory for power efficient and small Software Support Windows operating systems: Windows 7, 8, 10 and Windows Server 32-bit or 64-bit, Windows Multipoint Server (WMS) Linux OS (Ubuntu, Red Hat, SUSE, etc) macOS X Android SPECIFICATION Graphics Engine 128-bit 2D Engine w/ Video Decoder Host Interface USB 3.0 form factor applications Display Features HW Video decoder supports: H.264 MVC/AVS+, H.263, MPEG-4, MPEG2, M-JPEG, RealVideo, VC-1, & Theora Support Dual idependent channels up to 4K UHD - PCIe 2.0 x1 or x2 Int. Memory 256MB DDR3 (option) Ext. Memory 1GB DDR2/3 (max) Resolution Up to 4K UHD (3840x2160) Operation Commercial (0°C to +70°C) Temperature Industrial (-40°C to +85°C) Package 425-pin BGA MCM (19mm x 19mm) 3840x2160 @ 30p or 2K/Full HD@60p 128-bit high performance graphics engine. Hardware acceleration of Bitblt, Stretch Blt, Line Draw, Polygon Fill, full ROP3 Four display layers supported per channel: Graphics, Hardware cursor, Video overlay and Alpha layers. Content Adaptive Technology (CAT) to accelerate USB/ Network display by display content compression. Embedded 1x HDMI v1.4 transmitter, output supports up to 4K UHD resolution. Dual 24-bit LVDS channels for direct LCD panel connections – Two separate, or single high-res panel Dual 24-bit digital video interface to connect with transmitters with various display output Dual 8-bit DACs with pixel rate up to 350 MHz Resolution support: VGA (640x480), SVGA, SXGA, WXGA, WXGA+, WSXGA+, Full HD (1920x1080), QWXGA, WQXGA (2560x1600) and 4k UHD (3840x2160) Modes: Extended Desktop Single & Dual View, Clone, Portrait/Landscape modes www.siliconmotion.com © Copyright 2020 Silicon Motion, Inc. SM768-PB-202004
