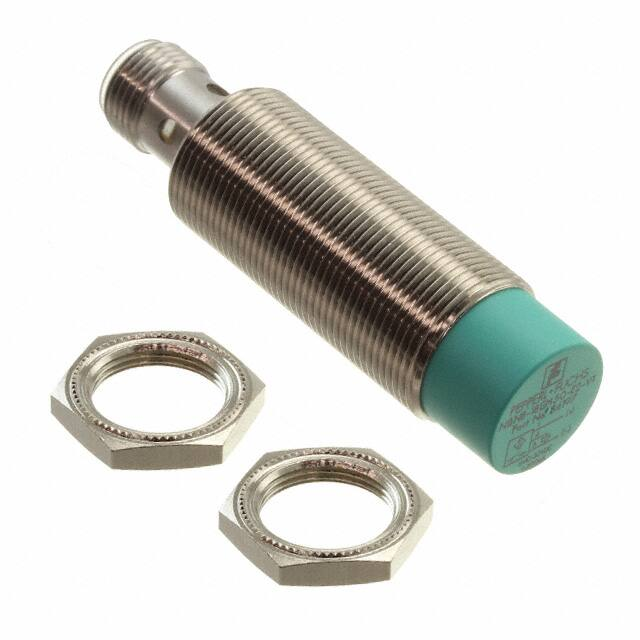

NBN8-18GM50-E2-V1

Inductive sensor NBN8-18GM50-E2-V1 < 8 mm non-flush < Extended temperature range Dimensions 55 65 50 4 10 M18 x 1 24 6 LED M12 x 1 Release date: 2020-03-20 Date of issue: 2020-03-30 Filename: 084197_eng.pdf Technical Data General specifications Switching function Normally open (NO) Output type Rated operating distance PNP sn Installation non-flush Output polarity Assured operating distance 8 mm DC sa 0 ... 6.48 mm ( -25 ... 70 °C (-13 ... 158 °F) ) 0 ... 6.08 mm ( -40 ... -25 °C (-40 ... -13 °F) ) Reduction factor rAl 0.5 Reduction factor rCu 0.4 Reduction factor r304 0.7 Nominal ratings Operating voltage UB 10 ... 30 V Switching frequency f 0 ... 500 Hz Hysteresis H typ. 5% Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 1 Inductive sensor NBN8-18GM50-E2-V1 Technical Data Voltage drop Ud ≤3V Operating current IL 0 ... 200 mA Off-state current Ir 0 ... 0.5 mA typ. 0.1 µA at 25 °C No-load supply current I0 ≤ 18 mA Switching state indicator Multihole-LED, yellow Functional safety related parameters MTTFd 1190 a Mission Time (TM) 20 a Diagnostic Coverage (DC) 0% Compliance with standards and directives Standard conformity Standards EN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates EAC conformity TR CU 020/2011 UL approval cULus Listed, General Purpose CSA approval cCSAus Listed, General Purpose CCC approval CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature -40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Connection type Connector M12 x 1 , 4-pin Housing material brass, nickel-plated Sensing face PBT Degree of protection IP67 Connection 1 L+ 4 3 L- Release date: 2020-03-20 Date of issue: 2020-03-30 Filename: 084197_eng.pdf Connection Assignment 1 4 2 3 Wire colors in accordance with EN 60947-5-2 1 2 3 4 BN WH BU BK (brown) (white) (blue) (black) Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 2 Inductive sensor NBN8-18GM50-E2-V1 Accessories Mounting flange, 18 mm V1-G-2M-PUR Female cordset, M12, 4-pin, PUR cable V1-W-2M-PUR Female cordset, M12, 4-pin, PUR cable Release date: 2020-03-20 Date of issue: 2020-03-30 Filename: 084197_eng.pdf BF 18 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 3
