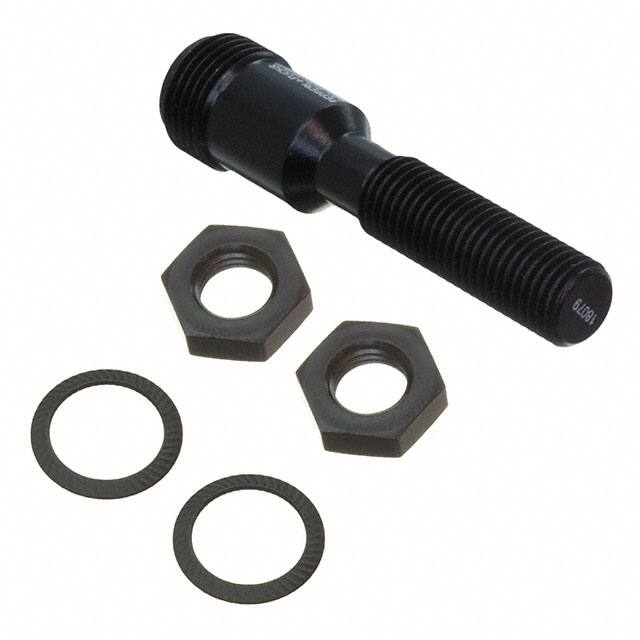

NMB1.5-8GM50-E2-C-FE-V1

Inductive sensor NMB1,5-8GM50-E2-C-FE-V1 < < < < < < Stainless steel sensing face 1.5 mm flush 3-wire DC Weld field immune Weld slag resistant coating Ferrous targets Dimensions 25 4 M8 x 1 50 13 LED Release date: 2020-03-23 Date of issue: 2020-03-30 Filename: 904963_eng.pdf M12 x 1 Technical Data General specifications Switching function Normally open (NO) Output type Rated operating distance PNP sn Installation flush Output polarity Assured operating distance 1.5 mm DC sa 0 ... 1.215 mm Actuating element Ferrous targets Reduction factor rAl 0 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 1 Inductive sensor NMB1,5-8GM50-E2-C-FE-V1 Technical Data Reduction factor rCu 0 Reduction factor r304 0.6 Reduction factor rSt37 1 Reduction factor rBrass 0 Nominal ratings Operating voltage UB 10 ... 30 V DC Switching frequency f 0 ... 5 Hz Hysteresis H 5 ... 15 typ. 10 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Voltage drop Ud ≤2V Operating current IL 0 ... 100 mA Current consumption ≤ 10 mA Off-state current Ir ≤ 10 µA Switching state indicator LED, red Mag. Field strength, AC fields 250 mT Mag. Field strength, DC fields 250 mT Compliance with standards and directives Standard conformity Standards EN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approval cULus Listed, General Purpose CSA approval cCSAus Listed, General Purpose CCC approval CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature -25 ... 75 °C (-13 ... 167 °F) Mechanical specifications Connection type Connector M12 x 1 , 4-pin Housing material stainless steel 1.4305 / AISI 303, black PTFE coated Sensing face stainless steel 1.4305 / AISI 303, black PTFE coated Degree of protection IP67 Connection 1 Release date: 2020-03-23 Date of issue: 2020-03-30 Filename: 904963_eng.pdf L+ 4 3 L- Connection Assignment 1 4 2 3 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 2 Inductive sensor NMB1,5-8GM50-E2-C-FE-V1 Wire colors in accordance with EN 60947-5-2 1 2 3 4 BN WH BU BK (brown) (white) (blue) (black) Accessories Mounting flange, 8 mm V1-G-OR2M-POC Female cordset single-ended M12 A-coded 4-pin, TPE cable welding-bead resistant orange Release date: 2020-03-23 Date of issue: 2020-03-30 Filename: 904963_eng.pdf BF 8 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 3
