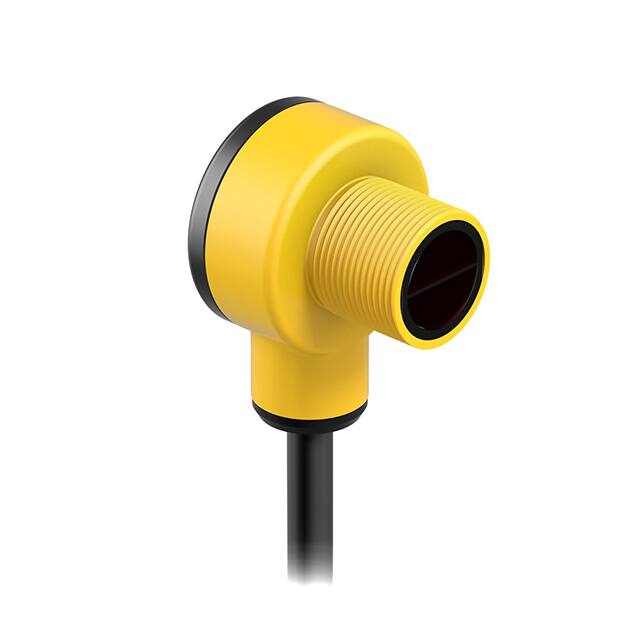

T18SP6D

T18 Series Sensors (DC Voltage) Installation Guide For complete technical information about this product, including dimensions, accessories, and specifications, see www.bannerengineering.com and search for your model number. See also document number 121526. WARNING: • Do not use this device for personnel protection • Using this device for personnel protection could result in serious injury or death. • This device does not include the self-checking redundant circuitry necessary to allow its use in personnel safety applications. A device failure or malfunction can cause either an energized (on) or de-energized (off) output condition. Models Models 1 Sensing Mode Range LED Output T186E - T18SN6R Opposed NPN 20 m (66 ft) T18SP6R Infrared, 950 nm T18SN6L Retroreflective with Gain Control T18SP6L T18SN6LP NPN PNP 2 m (79 in) 2 Polarized Retroreflective T18SP6LP T18SN6D Diffuse with Gain Control T18SP6D T18SN6FF25 Visible Red, 680 nm 500 mm (20 in) Fixed Field T18SP6FF50 T18SN6FF100 PNP 50 mm (2 in) Cutoff PNP NPN PNP NPN 100 mm (4 in) Cutoff T18SP6FF100 PNP NPN Infrared, 880 nm T18SN6FF50 NPN NPN 25 mm (1 in) Cutoff T18SP6FF25 PNP PNP Wiring Diagrams Cabled Emitters 1 3 QD Emitters 1 + 10–30 V dc 3 − 2 4 Key + 10–30 V dc − 1. 2. 3. 4. Brown White Blue Black 1 Standard 2 m (6.5 ft) cable models are listed. • To order the 9 m (30 ft) cable models, add suffix W/30 (for example, T186E W/30). • To order the 4-pin M12/Euro-style QD models, add suffix Q (for example, T186EQ). A model with a QD connector requires a mating cable. 2 Use polarized models when shiny objects will be sensed. Original Document 116163 Rev. E 17 September 2019 116163 T18 Series Sensors (DC Voltage) NPN Standard 3 1 4 2 NPN Alarm 1 3 4 2 - 10-30 V dc + Load Load PNP Standard 1 3 4 2 − 10-30 V dc + Load Alarm PNP Alarm + 10-30 V dc − Load Load 3 1 4 2 + 10-30 V dc − Load Alarm Wiring for the quick disconnect (QD) models is functionally identical. Dimensions Cabled Models QD Models Jam Nut (Supplied) M18 x 1 Thread ø 30.0 mm (1.18") 30.0 mm (1.18") ø 15 mm (0.59") ø 30.0 mm (1.18") Green LED Power Indicator Yellow LED Output Indicator 41.5 mm (1.64") Single-turn Sensitivity (Gain) Control (D and L Models) 53.7 mm (2.11") 11.5 mm (0.45") Specifications Supply Voltage and Current 10 to 30 V dc (10% maximum ripple) Supply current (exclusive of load current): Emitters, non-polarized retroreflective, retroreflective, diffuse models: 25 mA Receivers: 20 mA Polarized retroreflective models: 30 mA Fixed-field models: 35 mA Output Response Time Opposed mode models: 3 ms ON, 1.5 ms OFF Retroreflective, fixed-field, and diffuse mode models: 3 ms ON and OFF NOTE: 100 ms delay on power-up; outputs do not conduct during this time. Supply Protection Circuitry Protected against reverse polarity and transient voltages Adjustments Non-polarized retroreflective and diffuse models (only) have a single-turn rear-panel sensitivity control (turn clockwise to increase gain) Output Configuration SPDT solid-state dc switch; Choose NPN (current sinking) or PNP (current sourcing) models Light Operate: N.O. output conducts when sensor sees its own (or the emitter’s) modulated light Dark Operate: N.C. output conducts when the sensor sees dark; the N.C. (normally closed) output may be wired as a normally open marginal signal alarm output, depending upon wiring to power supply (U.S. patent 5087838) Output Rating 150 mA maximum (each) in standard wiring. When wired for alarm output, the total load may not exceed 150 mA. OFF-state leakage current: < 1 microamp at 30 V dc ON-state saturation voltage: < 1 V at 10 mA dc; < 1.5 V at 150 mA dc Output Protection Circuitry Protected against false pulse on power-up and continuous overload or short circuit of outputs 2 Repeatability Opposed mode models: 375 μs Retroreflective, fixed-field, and diffuse mode models: 750 μs Repeatability and response are independent of signal strength. Indicators Two LEDs (green and amber): Green on: power to sensor is on Green flashing: output is overloaded Amber on: N.O. output is conducting Amber flashing: excess gain marginal (1 to 1.5×) in light condition Construction Housing: PBT polyester housing Lens: polycarbonate (opposed-mode) or acrylic (other models) Connections 2 m (6.5 ft) integral cable; 9 m (30 ft) integral cable; or 4-pin M12/Euro-style quick-disconnect fitting www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 116163 Rev. E T18 Series Sensors (DC Voltage) Required Overcurrent Protection Environmental Rating Leakproof design rated NEMA 6P and IEC IP67 per IEC 60529 IP69K per DIN40050 for quick disconnect and cable models when the cables are protected from direct spray WARNING: Electrical connections must be made by qualified personnel in accordance with local and national electrical codes and regulations. Operating Conditions –40 °C to +70 °C (–40 °F to +158 °F) 90% at +50 °C maximum relative humidity (non-condensing) Vibration and Mechanical Shock All models meet MIL-STD-202F, Method 201A (Vibration: 10 Hz to 60 Hz maximum, 0.06 inch (1.52 mm) double amplitude, 10G acceleration) requirements. Method 213B conditions H&I. Shock: 75G with device operating; 100G for non-operation Certifications Overcurrent protection is required to be provided by end product application per the supplied table. Overcurrent protection may be provided with external fusing or via Current Limiting, Class 2 Power Supply. Supply wiring leads < 24 AWG shall not be spliced. For additional product support, go to www.bannerengineering.com. Supply Wiring (AWG) Required Overcurrent Protection (Amps) 20 5.0 22 3.0 24 2.0 26 1.0 28 0.8 30 0.5 All models, except T186E are UL approved. Accessories Cordsets 4-Pin Threaded M12/Euro-Style Cordsets—Single Ended Model Length MQDC-406 1.83 m (6 ft) MQDC-415 4.57 m (15 ft) MQDC-430 9.14 m (30 ft) MQDC-450 15.2 m (50 ft) MQDC-406RA 1.83 m (6 ft) MQDC-415RA 4.57 m (15 ft) MQDC-430RA 9.14 m (30 ft) Style Dimensions 44 Typ. Straight M12 x 1 ø 14.5 3 4 1 = Brown 2 = White 3 = Blue 4 = Black 30 Typ. [1.18"] 15.2 m (50 ft) 2 1 32 Typ. [1.26"] Right-Angle MQDC-450RA Pinout (Female) M12 x 1 ø 14.5 [0.57"] Sensor Status Indicators S15L Series In-Line Sensor Status Indicator Model Input Type S15LGYPQ PNP LED Color Dimensions NPN P/N 116163 Rev. E Input Active = Yellow Male Wiring 57.8 [2.27] Power ON = Green S15LGYNQ Female 27.9 [1.1] 15.0 [0.59] 1 4 www.bannerengineering.com - Tel: + 1 888 373 6767 2 3 2 3 1 4 1 = Brown, 10 V dc to 30 V dc 2 = White 3 = Blue, dc common 4 = Black, Sensor Input 3 T18 Series Sensors (DC Voltage) Banner Engineering Corp. Limited Warranty Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product. THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE. This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE. Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection applications when the product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval by Banner Engineering Corp will void the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product specifications or update documentation at any time. Specifications and product information in English supersede that which is provided in any other language. For the most recent version of any documentation, refer to: www.bannerengineering.com. For patent information, see www.bannerengineering.com/patents. © Banner Engineering Corp. All rights reserved
