LD32CND15PPT

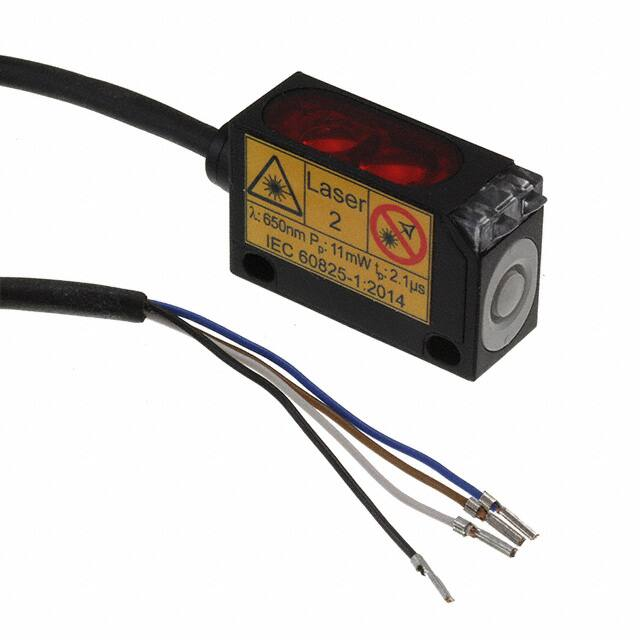

Photoelectrics Laser, Diffuse-reflective (Colour Mark Sensor) Type LD32CND15 • • • • • • • • • • • Product Description Miniature sensor range Range: 150 mm Sensitivity adjustment by Teach-In programming Modulated, red laser light 650 nm (class 2) Supply voltage: 10 to 30 VDC Output: 100 mA, NPN or PNP preset Make and break switching function programmable LED for output indication, signal stability and power ON Protection: reverse polarity, short circuit and transients Excellent EMC performance Accurate detection of small printing marks Ordering Key LD32CND15PPM5T adjustment of the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is programmable (NO or NC). The small laser spot makes the diffuse-reflective sensor useful as colour mark sensor. Type Housing style Housing size Housing material Housing length Detection principle Sensing distance Output type Output configuration Connection type Teach-In Housing WxHxD Range Sn Ordering no. NPN & PNP cable Make & break switching Ordering no. NPN & PNP plug Make & break switching 12 x 32 x 20 mm 150 mm LD 32 CND 15 NPT LD 32 CND 15 PPT LD 32 CND 15 NPM5T LD 32 CND 15 PPM5T The LD32CND15 sensor family comes in a compact 12 x 32 x 20 mm reinforced PMMA/ABS-housing. The sensors are useful in applications where highaccuracy detection as well as small size is required. The Teach-In function for Type Selection Specifications Rated operating distance (Sn) Up to 150 mm, reference target Kodak test card R 27, white, 90% reflectivity, 100 x 100 mm Optimal working distance as colour mark sensor is 70-100 mm. Blind zone None Sensitivity Adjustable by Teach-In (push button or wire) Temperature drift ≤ 1%/ºC Hysteresis (H) (differential travel) ≤ 10% 10 to 30 VDC Rated operational volt. (UB ) (ripple included) Ripple (Urpp ) ≤ 10% Output current Continuous (Ie) ≤ 100 mA Short-time (I) ≤ 100 mA (max. load capacity 100 nF) ≤ 25 mA @ 24 VDC No load supply current (Io) Specifications are subject to change without notice (10.02.06) Minimum operational current (Im) OFF-state current (Ir ) Voltage drop (Ud ) Protection Laser protection class Average power Pulse width Pulse repetition time MTBF Light source Light type Sensing angle Ambient light Light spot Operating frequency Response time OFF-ON (tON) ON-OFF (tOFF ) Power ON delay (tv) 0.5 mA ≤ 100 µA ≤ 2.4 VDC @ 100 mA Short-circuit, reverse polarity and transients Class 2 - according to EN60825-1-3/97 < 1 mW t = 3 µs f = 5 kHz > 50’000 h @ Ta = 40ºC Laser, red light, 650 nm red, modulated < 0.8º 5,000 lux < 0.7 mm @ focus 1000 Hz ≤ 0.5 ms ≤ 0.5 ms ≤ 300 ms 1 LD32CND15 Specifications (cont.) Output function NPN and PNP NO/NC switching function External Teach (ET) Same function as button Locked (disable teach button) Operating mode Indication Output ON Signal stability ON and power ON Environment Installation category Pollution degree Degree of protection Ambient temperature Operating Storage Vibration Preset Set up by button Shock 10 to 30 VDC 0 to 2.5 VDC Not connected Rated insulation voltage Housing material Body Front material Connection Cable LED, yellow LED, green II (IEC 60664/60664A; 60947-1) 3 (IEC 60664/60664A; 60947-1) IP 67 (IEC 60529; 60947-1) Plug Weight CE-marking 10 to 55 Hz, 0.5 mm/7.5 g (IEC 60068-2-6) 30 g/11 ms, 3 pos, 3 neg per axis (IEC 60068-2-6, 60068-2-32) 500 VAC (rms) ABS, black PMMA, red PUR, black, 2 m 4 x 0.14 mm2, Ø = 3.6 mm M8, 4-pin Cable type: 40 g Plug type: 10 g Yes -20 to +60∞ C (-4 to +140∞ F) -20 to +80∞ C (-4 to +176∞ F) Operation Diagram tv = Power ON delay Power supply Object/target present Break (NC) Output ON Make (NO) Output ON Wiring Diagrams NPN 1 BN PNP +V 1 BN + 4 BK ET 2 WH ET Teach input is active when 2 WH wire is connected to V+ (1 BN). 2 WH 4 BK 3 BU 3 BU - - V ET = External Teach Installation Hints To avoid interference from inductive voltage/ current peaks, separate the prox. switch power cables from any other power cables, e.g. motor, contactor or solenoid cables Relief of cable strain Protection of the sensing face Switch mounted on mobile carrier A proximity switch should not serve as mechanical stop Any repetitive flexing of the cable should be avoided Incorrect Correct The cable should not be pulled 2 Specifications are subject to change without notice (10.02.06) LD32CND15 Dimensions Plug version Cable version Accessories Signal Stability Indication Mounting bracket APD32-MB3 14 Excesslevel gain Signal 6 7.5 150% 3.3 100% Time 30 18.75 70% 5 Yellow LED ON 3.3 1.2 3.3 Green LED ON 20 For further information refer to “Accessories” Delivery Contents • Photoelectric switch: LD 32 CND 15 • Installation instruction • Packaging: Cardboard box Specifications are subject to change without notice (10.02.06) 3 LD32CND15 Adjustment Sensitivity adjustment, with static object 1. Line up the sensor with the object. Yellow LED and green LED are ON. 2. Press the button for 3 s until both LED’s flash simultaneously (the first switching point is stored). 3. Place the object outside the detection area. 4. Press the button for 1 s. a) The green LED flashes and stays ON: the second switching point is stored, and the sensor is ready to operate. b) Both LED’s flash simultaneously: the sensor cannot detect the object, no switching points are stored. 1 2 3s 3 4 1s Programming of make and break switching function 13 s 1. Press the button for 13 s. Both LED’s flash alternately. 2. Release the button: the green LED flashes. 3. While the green LED flashes, the output is inverted each time the button is pressed. This is indicated by the yellow LED. When the button is not pressed for 10 s, the current output function is stored. The sensor is now ready for operation. Default setting 1. No object in the detection area: Press the button for 3s 3 s, until both LED’s flash simultaneously. 2. No object in the detection area: 1s Press the button for 1 s. The sensor is set to maximum sensitivity. NB! The Teach Input (2 WH) will work similarly to the push button, active High. Sensitivity adjustment, with only one object 1. Line up the sensor with the object. Yellow LED and green LED are ON. 2. Press the button for 3 s until both LED’s flash simultaneously (the first switching point is stored). 3. Leave the object in the detection area, press the button for 1 s. The green LED flashes and stays on: the second switching point is stored, and the sensor is ready to operate. Sensitivity adjustment, with a running process 1. Line up the sensor with the object. Green LED is ON. At this stage the status of the yellow LED can be ignored. 2. The running process must be the only “object” within the detection area. Press the button for 3 s until both LED’s flash simultaneously. 3s 3. Press the button for at least the duration of one process cycle. 1 cycle a) b) 4 The green LED flashes and stays ON: both switching points have been stored, and the sensor is ready to operate. Both LED’s flash simultaneously: the sensor cannot detect the object, no switching points are stored. Specifications are subject to change without notice (10.02.06)
