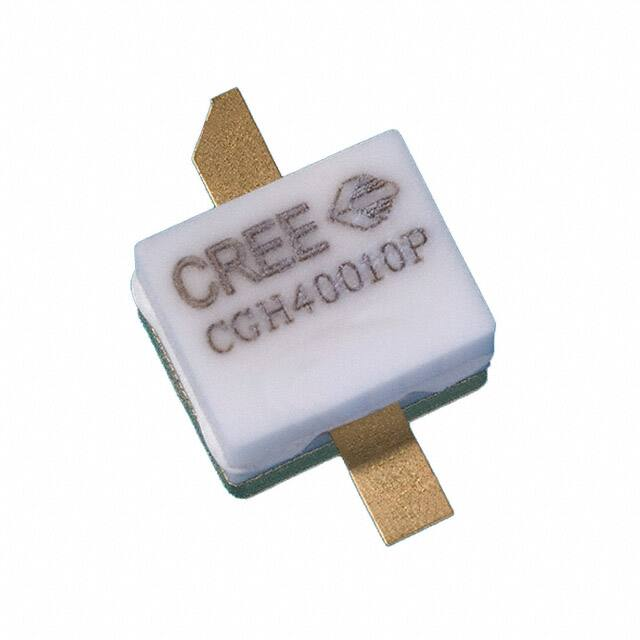

CGH40010P

CGH40010 10 W, DC - 6 GHz, RF Power GaN HEMT Description Cree’s CGH40010 is an unmatched, gallium nitride (GaN) high electron mobility transistor (HEMT). The CGH40010, operating from a 28 volt rail, offers a general purpose, broadband solution to a variety of RF and microwave applications. GaN HEMTs offer high efficiency, high gain and wide bandwidth capabilities making the CGH40010 ideal for linear and compressed amplifier circuits. The transistor is available in both screw-down, flange and solder-down, pill packages. Package Types: 440166 & 440196 PN’s: CGH40010F & CGH40010P Features Applications • • • • • • • • • • • Up to 6 GHz Operation 16 dB Small Signal Gain at 2.0 GHz 14 dB Small Signal Gain at 4.0 GHz 13 W typical PSAT 65 % Efficiency at PSAT 28 V Operation 2-Way Private Radio Broadband Amplifiers Cellular Infrastructure Test Instrumentation Class A, AB, Linear amplifiers suitable for OFDM, W-CDMA, EDGE, CDMA waveforms Large Signal Models Available for ADS and MWO Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 2 Absolute Maximum Ratings (not simultaneous) at 25˚C Case Temperature Parameter Symbol Rating Units Conditions Drain-Source Voltage VDSS 120 Volts 25˚C Gate-to-Source Voltage VGS -10, +2 Volts 25˚C Storage Temperature TSTG -65, +150 ˚C Operating Junction Temperature TJ 225 ˚C Maximum Forward Gate Current IGMAX 4.0 mA 25˚C Maximum Drain Current1 IDMAX 1.5 A 25˚C Soldering Temperature TS 245 ˚C τ 40 in-oz Thermal Resistance, Junction to Case RθJC 8.0 ˚C/W Case Operating Temperature3,4 TC -40, +150 ˚C 2 Screw Torque 3 85˚C Notes: 1 Current limit for long term, reliable operation 2 Refer to the Application Note on soldering at www.cree.com/RF/Document-Library 3 Measured for the CGH40010F at PDISS = 14 W. 4 See also, the Power Dissipation De-rating Curve on Page 6. Electrical Characteristics (TC = 25˚C) Characteristics Symbol Min. Typ. Max. Units Conditions Gate Threshold Voltage VGS(th) -3.8 -3.0 -2.3 VDC VDS = 10 V, ID = 3.6 mA Gate Quiescent Voltage VGS(Q) – -2.7 – VDC VDS = 28 V, ID = 200 mA Saturated Drain Current IDS 2.9 3.5 – A VDS = 6.0 V, VGS = 2.0 V Drain-Source Breakdown Voltage VBR 84 – – VDC VGS = -8 V, ID = 3.6 mA DC Characteristics1 RF Characteristics (TC = 25˚C, F0 = 3.7 GHz unless otherwise noted) 2 Small Signal Gain GSS 12.5 14.5 – dB VDD = 28 V, IDQ = 200 mA Power Output3 PSAT 10 12.5 – W VDD = 28 V, IDQ = 200 mA Drain Efficiency η 55 65 – % Output Mismatch Stress VSWR – – 10 : 1 Y VDD = 28 V, IDQ = 200 mA, PSAT No damage at all phase angles, VDD = 28 V, IDQ = 200 mA, POUT = 10 W CW Input Capacitance CGS – 4.5 – pF VDS = 28 V, Vgs = -8 V, f = 1 MHz Output Capacitance CDS – 1.3 – pF VDS = 28 V, Vgs = -8 V, f = 1 MHz Feedback Capacitance CGD – 0.2 – pF VDS = 28 V, Vgs = -8 V, f = 1 MHz 4 Dynamic Characteristics Notes: 1 Measured on wafer prior to packaging. 2 Measured in CGH40010-AMP. 3 PSAT is defined as IG = 0.36 mA. 4 Drain Efficiency = POUT / PDC Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 CGH40010 Nominal Fixture Performance Typical Performance Small Signal Gain and Return Loss vs Frequency of the CGH40010 in the CGH40010-AMP S parameters Gain (dB), Return Loss (dB) 20 3.4 GHz 14.9 dB 3.8 GHz 14.31 dB 3.6 GHz 14.89 dB 10 0 3.7 GHz 14.7 dB 3.7 GHz -7.49 dB -10 DB(|S(2,1)|) Fixture_2_G28V1L2w1_43_42 3.4 GHz -10.65 dB DB(|S(1,1)|) Fixture_2_G28V1L2w1_43_42 3.6 GHz -7.497 dB 3.8 GHz -8.549 dB -20 2.5 3 3.5 Frequency (GHz) Frequency (GHz) 4 4.5 PSAT , Gain, and Drain Efficiency vs Frequency of the CGH40010F in the CGH40010-AMP Psat, Gain, and Drain Efficiency vs Frequency of the VDD = 28inV, IDQCGH40010-TB = 200 mA CGH40010F the VDD = 28 V, IDQ = 200 mA 80 70 16 60 15 50 14 40 13 30 Psat 12 Drain Efficiency (%) 17 Drain Efficiency (%) PSAT (W), Gain (dB) PSAT (W), Gain (dB) 18 20 Gain Drain Eff 11 10 3.50 10 3.55 3.60 3.65 3.70 3.75 3.80 3.85 0 3.90 Frequency (GHz) (GHz) Frequency Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com 3 CGH40010 4 Typical Performance Swept CW Data of CGH40010F vs. Output Power with Source and Load Impedances Optimized for Drain Efficiency at 2.0 GHz Swept CW Data of Power VCGH40015F = 28 V,vs. IDQOutput = 200 mAwith Source DD and Load Impedances Optimized for Drain Efficiency at 2.0 GHz VDD = 28 V, IDQ = 200 mA, Freq = 2.0 GHz 18 80 Gain (dB) Gain (dB) 16 50 15 40 30 14 Drain Efficiency (%) 60 Drain Efficiency (%) 70 17 20 13 10 12 0 26 28 30 32 34 36 38 40 42 PoutPower (dBm) (dBm) Output Swept CW Data of CGH40010F vs. Output Power with Source and Load Impedances Optimized for Drain Efficiency at 3.6 GHz Swept CW Data of Power VCGH40015F = 28 V,vs. IDQOutput = 200 mAwith Source DD and Load Impedances Optimized for Drain Efficiency at 3.6 GHz VDD = 28 V, IDQ = 200 mA, Freq = 3.6 GHz 16 80 72 15 Gain (dB) Gain (dB) 48 13 40 32 12 24 Drain Efficiency (%) 56 14 Drain Efficiency (%) 64 16 11 8 10 0 23 25 27 29 31 33 35 37 39 41 43 Pout Pout(dBm) (dBm) Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 5 Typical Performance Swept CW Data of CGH40010F vs. Output Power with Source and Load Impedances Optimized for P1 Power at 3.6 GHz Swept CW Data of CGH40015F Output VDD = 28 V, Ivs. = 200Power mA with Source DQ for P1 Power at 3.6 GHz and Load Impedances Optimized VDD = 28 V, IDQ = 200 mA, Freq = 3.6 GHz 14 60 54 13 Gain (dB) Gain (dB) 36 11 30 24 10 18 Drain Efficiency (%) 42 12 Drain Efficiency (%) 48 12 9 6 8 0 23 25 27 29 31 33 35 37 39 41 43 Pout (dBm) Pout (dBm) K Factor MAG (dB) Simulated Maximum Available Gain and K Factor of the CGH40010F VDD = 28 V, IDQ = 200 mA Frequency (GHz) Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 6 Typical Noise Performance Noise Resistance (Ohms) Minimum Noise Figure (dB) Simulated Minimum Noise Figure and Noise Resistance vs Frequency of the CGH40010F VDD = 28 V, IDQ = 100 mA Frequency (GHz) Electrostatic Discharge (ESD) Classifications Parameter Symbol Class Test Methodology Human Body Model HBM 0B (125 to < 250 V) JEDEC JESD22 A114-D Charge Device Model CDM C0b (< 100 V) JEDEC JESD22 C101-C Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 7 Source and Load Impedances D Z Source Z Load G Frequency Z Source Z Lead 500 20.2 + j16.18 51.7 + j15.2 1000 8.38 + j9.46 41.4 + j28.5 1500 7.37 + j0 28.15 + j29 2500 3.19 - j4.76 19 + j9.2 3500 3.18 - j13.3 14.6 + j7.45 S Note 1. VDD = 28V, IDQ = 200mA in the 440166 package. Note 2. Optimized for power, gain, PSAT and PAE. Note 3. When using this device at low frequency, series resistors should be used to maintain amplifier stability. Power Dissipation (W) CGH40010 Power Dissipation De-rating Curve Maximum Case Temperature (°C) Note 1. Area exceeds Maximum Case Operating Temperature (See Page 2). Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 8 CGH40010-AMP Demonstration Amplifier Circuit Bill of Materials Designator Description Qty R1,R2 RES,1/16W,0603,1%,0 OHMS 1 R3 RES,1/16W,0603,1%,47 OHMS 1 R4 RES,1/16W,0603,1%,100 OHMS 1 C6 CAP, 470PF, 5%,100V, 0603 1 C17 CAP, 33 UF, 20%, G CASE 1 C16 CAP, 1.0UF, 100V, 10%, X7R, 1210 1 C8 CAP 10UF 16V TANTALUM 1 C14 CAP, 100.0pF, +/-5%, 0603 1 C1 CAP, 0.5pF, +/-0.05pF, 0603 1 C2 CAP, 0.7pF, +/-0.1pF, 0603 1 C10,C11 CAP, 1.0pF, +/-0.1pF, 0603 2 C4,C12 CAP, 10.0pF,+/-5%, 0603 2 C5,C13 CAP, 39pF, +/-5%, 0603 2 C7,C15 CAP,33000PF, 0805,100V, X7R 2 J3,J4 CONN SMA STR PANEL JACK RECP 1 J2 HEADER RT>PLZ.1CEN LK 2 POS 1 J1 HEADER RT>PLZ .1CEN LK 5POS 1 - PCB, RO4350B, Er = 3.48, h = 20 mil 1 - STAINLESS STEEL, SOCKET HEAD SCREWS, TYPE 2-56, LENGTH 1/4” 2 Q1 CGH40010F or CGH40010P 1 CGH40010-AMP Demonstration Amplifier Circuit Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 9 CGH40010-AMP Demonstration Amplifier Circuit Schematic CGH40010-AMP Demonstration Amplifier Circuit Outline Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 10 Typical Package S-Parameters for CGH40010 (Small Signal, VDS = 28 V, IDQ = 100 mA, angle in degrees) Frequency Mag S11 Ang S11 Mag S21 Ang S21 Mag S12 Ang S12 Mag S22 Ang S22 500 MHz 0.909 -123.34 17.19 108.22 0.027 21.36 0.343 -90.81 600 MHz 0.902 -133.06 14.86 101.82 0.028 15.60 0.329 -98.65 700 MHz 0.897 -140.73 13.04 96.45 0.028 10.87 0.321 -104.84 800 MHz 0.894 -146.96 11.58 91.78 0.029 6.84 0.317 -109.84 900 MHz 0.891 -152.16 10.41 87.61 0.029 3.33 0.316 -113.95 1.0 GHz 0.890 -156.60 9.43 83.82 0.029 0.19 0.318 -117.42 1.1 GHz 0.889 -160.47 8.62 80.31 0.029 -2.66 0.321 -120.40 1.2 GHz 0.888 -163.90 7.93 77.02 0.029 -5.28 0.326 -123.02 1.3 GHz 0.887 -166.99 7.34 73.90 0.029 -7.72 0.332 -125.36 1.4 GHz 0.887 -169.80 6.82 70.92 0.029 -10.01 0.338 -127.51 1.5 GHz 0.887 -172.39 6.38 68.05 0.029 -12.18 0.345 -129.50 1.6 GHz 0.887 -174.80 5.98 65.28 0.028 -14.24 0.353 -131.37 1.7 GHz 0.887 -177.07 5.63 62.59 0.028 -16.21 0.360 -133.15 1.8 GHz 0.887 -179.22 5.32 59.97 0.028 -18.09 0.369 -134.87 1.9 GHz 0.887 178.73 5.04 57.41 0.028 -19.91 0.377 -136.54 2.0 GHz 0.888 176.76 4.78 54.89 0.027 -21.66 0.385 -138.17 2.1 GHz 0.888 174.86 4.55 52.42 0.027 -23.35 0.393 -139.77 2.2 GHz 0.888 173.02 4.34 49.99 0.027 -24.98 0.402 -141.34 2.3 GHz 0.888 171.23 4.15 47.60 0.026 -26.56 0.410 -142.90 2.4 GHz 0.889 169.48 3.97 45.24 0.026 -28.08 0.418 -144.45 2.5 GHz 0.889 167.76 3.81 42.90 0.026 -29.55 0.426 -145.99 2.6 GHz 0.890 166.07 3.66 40.59 0.025 -30.98 0.434 -147.53 2.7 GHz 0.890 164.39 3.53 38.30 0.025 -32.36 0.442 -149.06 2.8 GHz 0.890 162.74 3.40 36.03 0.025 -33.69 0.450 -150.59 2.9 GHz 0.891 161.10 3.28 33.78 0.024 -34.97 0.458 -152.12 3.0 GHz 0.891 159.46 3.17 31.55 0.024 -36.20 0.465 -153.65 3.2 GHz 0.892 156.21 2.97 27.12 0.023 -38.51 0.479 -156.72 3.4 GHz 0.893 152.96 2.79 22.73 0.022 -40.63 0.493 -159.80 3.6 GHz 0.893 149.69 2.64 18.38 0.022 -42.52 0.505 -162.90 3.8 GHz 0.894 146.38 2.50 14.05 0.021 -44.17 0.517 -166.03 4.0 GHz 0.894 143.03 2.38 9.72 0.020 -45.56 0.527 -169.19 4.2 GHz 0.894 139.61 2.28 5.40 0.019 -46.67 0.537 -172.39 4.4 GHz 0.895 136.11 2.18 1.07 0.019 -47.46 0.546 -175.64 4.6 GHz 0.895 132.53 2.09 -3.29 0.018 -47.90 0.554 -178.95 4.8 GHz 0.895 128.85 2.01 -7.68 0.017 -47.96 0.561 177.69 5.0 GHz 0.895 125.06 1.94 -12.10 0.017 -47.61 0.568 174.25 5.2 GHz 0.895 121.15 1.88 -16.58 0.016 -46.84 0.573 170.72 5.4 GHz 0.895 117.11 1.82 -21.12 0.016 -45.67 0.578 167.10 5.6 GHz 0.895 112.94 1.77 -25.73 0.015 -44.12 0.582 163.38 5.8 GHz 0.895 108.62 1.72 -30.42 0.015 -42.30 0.586 159.54 6.0 GHz 0.895 104.15 1.68 -35.20 0.015 -40.33 0.589 155.56 To download the s-parameters in s2p format, go to the CGH40010 Product page and click on the documentation tab. Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 11 Typical Package S-Parameters for CGH40010 (Small Signal, VDS = 28 V, IDQ = 200 mA, angle in degrees) Frequency Mag S11 Ang S11 Mag S21 Ang S21 Mag S12 Ang S12 Mag S22 Ang S22 500 MHz 0.911 -130.62 18.41 105.41 0.022 19.44 0.303 -112.24 0.906 -139.65 15.80 99.47 0.023 14.31 0.299 -119.83 0.902 -146.70 13.80 94.50 0.023 10.17 0.298 -125.50 0.899 -152.41 12.22 90.19 0.023 6.68 0.299 -129.85 0.898 -157.17 10.96 86.34 0.024 3.67 0.302 -133.28 0.896 -161.24 9.92 82.82 0.024 0.99 0.305 -136.05 0.896 -164.79 9.06 79.56 0.024 -1.41 0.309 -138.34 0.895 -167.95 8.33 76.49 0.024 -3.62 0.314 -140.30 0.895 -170.80 7.70 73.57 0.023 -5.66 0.320 -142.01 0.894 -173.41 7.17 70.78 0.023 -7.56 0.326 -143.54 0.894 -175.82 6.70 68.08 0.023 -9.35 0.332 -144.94 0.894 -178.09 6.28 65.47 0.023 -11.05 0.338 -146.24 0.894 179.78 5.92 62.92 0.023 -12.66 0.345 -147.48 0.894 177.75 5.59 60.43 0.023 -14.19 0.352 -148.68 0.894 175.81 5.30 57.99 0.023 -15.65 0.358 -149.84 0.894 173.94 5.04 55.59 0.022 -17.05 0.365 -150.99 0.894 172.13 4.80 53.23 0.022 -18.39 0.372 -152.12 0.894 170.37 4.58 50.91 0.022 -19.67 0.379 -153.26 0.895 168.65 4.38 48.61 0.022 -20.90 0.386 -154.39 0.895 166.96 4.20 46.33 0.021 -22.08 0.393 -155.54 0.895 165.30 4.03 44.08 0.021 -23.20 0.400 -156.69 0.895 163.66 3.88 41.84 0.021 -24.27 0.407 -157.85 0.895 162.04 3.74 39.63 0.021 -25.28 0.414 -159.03 0.895 160.43 3.60 37.43 0.020 -26.25 0.420 -160.22 0.896 158.83 3.48 35.24 0.020 -27.16 0.427 -161.42 0.896 157.24 3.37 33.06 0.020 -28.02 0.433 -162.64 0.896 154.06 3.16 28.74 0.019 -29.57 0.446 -165.13 0.896 150.87 2.98 24.44 0.019 -30.88 0.457 -167.69 0.896 147.66 2.82 20.16 0.018 -31.95 0.468 -170.31 0.897 144.41 2.68 15.89 0.018 -32.76 0.478 -173.00 0.897 141.10 2.56 11.61 0.017 -33.30 0.488 -175.77 0.897 137.72 2.45 7.33 0.017 -33.55 0.497 -178.61 0.897 134.26 2.35 3.03 0.017 -33.50 0.505 178.47 0.897 130.71 2.26 -1.31 0.016 -33.18 0.512 175.46 0.896 127.06 2.17 -5.68 0.016 -32.58 0.518 172.36 0.896 123.30 2.10 -10.09 0.016 -31.74 0.524 169.16 0.896 119.42 2.04 -14.57 0.016 -30.72 0.529 165.86 0.896 115.41 1.98 -19.10 0.016 -29.60 0.534 162.44 0.896 111.26 1.92 -23.71 0.016 -28.46 0.537 158.89 0.895 106.97 1.87 -28.40 0.017 -27.41 0.540 155.20 0.895 102.53 1.82 -33.19 0.017 -26.54 0.543 151.36 600 MHz 700 MHz 800 MHz 900 MHz 1.0 GHz 1.1 GHz 1.2 GHz 1.3 GHz 1.4 GHz 1.5 GHz 1.6 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.0 GHz 2.1 GHz 2.2 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 2.8 GHz 2.9 GHz 3.0 GHz 3.2 GHz 3.4 GHz 3.6 GHz 3.8 GHz 4.0 GHz 4.2 GHz 4.4 GHz 4.6 GHz 4.8 GHz 5.0 GHz 5.2 GHz 5.4 GHz 5.6 GHz 5.8 GHz 6.0 GHz To download the s-parameters in s2p format, go to the CGH40010 Product page and click on the documentation tab. Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 12 Typical Package S-Parameters for CGH40010 (Small Signal, VDS = 28 V, IDQ = 500 mA, angle in degrees) Frequency 500 MHz 600 MHz 700 MHz 800 MHz 900 MHz 1.0 GHz 1.1 GHz 1.2 GHz 1.3 GHz 1.4 GHz 1.5 GHz 1.6 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.0 GHz 2.1 GHz 2.2 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 2.8 GHz 2.9 GHz 3.0 GHz 3.2 GHz 3.4 GHz 3.6 GHz 3.8 GHz 4.0 GHz 4.2 GHz 4.4 GHz 4.6 GHz 4.8 GHz 5.0 GHz 5.2 GHz 5.4 GHz 5.6 GHz 5.8 GHz 6.0 GHz Mag S11 Ang S11 Mag S21 Ang S21 Mag S12 Ang S12 Mag S22 Ang S22 0.914 -135.02 18.58 103.70 0.020 18.36 0.300 -126.80 0.909 -143.57 15.88 98.05 0.020 13.67 0.302 -133.51 0.906 -150.23 13.83 93.33 0.021 9.90 0.304 -138.40 0.904 -155.61 12.23 89.23 0.021 6.77 0.307 -142.08 0.903 -160.09 10.95 85.56 0.021 4.08 0.311 -144.94 0.902 -163.93 9.91 82.21 0.021 1.71 0.314 -147.23 0.901 -167.29 9.04 79.09 0.021 -0.41 0.319 -149.10 0.901 -170.29 8.31 76.15 0.021 -2.35 0.323 -150.69 0.900 -173.00 7.69 73.35 0.021 -4.12 0.328 -152.07 0.900 -175.50 7.15 70.66 0.021 -5.78 0.333 -153.29 0.900 -177.81 6.69 68.07 0.021 -7.32 0.338 -154.41 0.900 -179.98 6.27 65.54 0.021 -8.77 0.344 -155.44 0.900 177.96 5.91 63.08 0.020 -10.15 0.349 -156.43 0.899 176.00 5.59 60.67 0.020 -11.45 0.355 -157.38 0.899 174.12 5.30 58.30 0.020 -12.68 0.361 -158.30 0.899 172.31 5.04 55.97 0.020 -13.85 0.366 -159.22 0.899 170.54 4.80 53.67 0.020 -14.96 0.372 -160.14 0.900 168.83 4.58 51.40 0.020 -16.01 0.378 -161.06 0.900 167.15 4.39 49.16 0.019 -17.01 0.384 -161.99 0.900 165.49 4.21 46.94 0.019 -17.95 0.390 -162.93 0.900 163.87 4.04 44.73 0.019 -18.85 0.396 -163.88 0.900 162.26 3.89 42.54 0.019 -19.69 0.402 -164.86 0.900 160.66 3.75 40.37 0.019 -20.48 0.407 -165.85 0.900 159.08 3.62 38.21 0.019 -21.21 0.413 -166.86 0.900 157.51 3.50 36.05 0.018 -21.89 0.418 -167.89 0.900 155.93 3.39 33.91 0.018 -22.52 0.424 -168.95 0.900 152.79 3.18 29.65 0.018 -23.61 0.435 -171.12 0.900 149.64 3.00 25.40 0.017 -24.48 0.445 -173.38 0.900 146.45 2.85 21.17 0.017 -25.11 0.454 -175.73 0.900 143.23 2.71 16.93 0.017 -25.51 0.463 -178.17 0.900 139.94 2.58 12.69 0.017 -25.67 0.471 179.30 0.900 136.58 2.47 8.43 0.016 -25.60 0.479 176.67 0.899 133.14 2.38 4.15 0.016 -25.32 0.486 173.94 0.899 129.61 2.29 -0.17 0.016 -24.85 0.492 171.12 0.899 125.97 2.21 -4.53 0.016 -24.24 0.498 168.18 0.898 122.23 2.13 -8.94 0.016 -23.54 0.503 165.13 0.898 118.36 2.07 -13.41 0.016 -22.80 0.507 161.96 0.898 114.36 2.01 -17.95 0.017 -22.11 0.511 158.66 0.897 110.22 1.95 -22.56 0.017 -21.54 0.514 155.22 0.897 105.94 1.90 -27.26 0.018 -21.16 0.517 151.63 0.897 101.51 1.86 -32.04 0.019 -21.04 0.519 147.87 To download the s-parameters in s2p format, go to the CGH40010 Product page and click on the documentation tab. Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 13 Product Dimensions CGH40010F (Package Type ­— 440166) Product Dimensions CGH40010P (Package Type ­— 440196) Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 14 Part Number System CGH40010F Package Power Output (W) Upper Frequency (GHz) Cree GaN High Voltage Table 1. Parameter Value Units Upper Frequency1 6.0 GHz Power Output 10 W Package Flange or Pill - Note1: Alpha characters used in frequency code indicate a value greater than 9.9 GHz. See Table 2 for value. Table 2. Rev 4.3 – October 2020 Character Code Code Value A 0 B 1 C 2 D 3 E 4 F 5 G 6 H 7 J 8 K 9 Examples: 1A = 10.0 GHz 2H = 27.0 GHz 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 15 Product Ordering Information Order Number Description Unit of Measure CGH40010F GaN HEMT Each CGH40010P GaN HEMT Each CGH40010F-AMP Test board with GaN HEMT installed Each Rev 4.3 – October 2020 Image 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com CGH40010 16 For more information, please contact: 4600 Silicon Drive Durham, North Carolina, USA 27703 www.wolfspeed.com/RF Sales Contact RFSales@cree.com Notes Disclaimer Specifications are subject to change without notice. “Typical” parameters are the average values expected by Cree in large quantities and are provided for information purposes only. Cree products are not warranted or authorized for use as critical components in medical, life-saving, or life-sustaining applications, or other applications where a failure would reasonably be expected to cause severe personal injury or death. No responsibility is assumed by Cree for any infringement of patents or other rights of third parties which may result from use of the information contained herein. No license is granted by implication or otherwise under any patent or patent rights of Cree. © 2006-2020 Cree, Inc. All rights reserved. Wolfspeed® and the Wolfspeed logo are registered trademarks of Cree, Inc. Rev 4.3 – October 2020 4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
