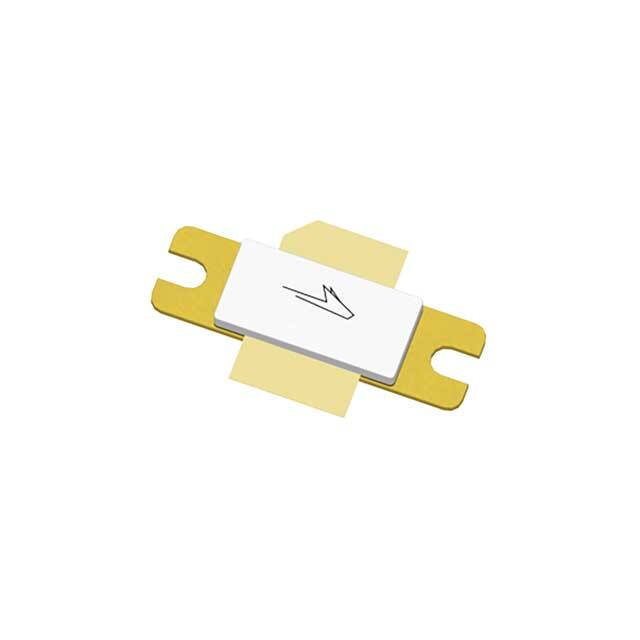

PTVA104501EH
Thermally-Enhanced High Power RF LDMOS FET
450 W, 50 V, 960 – 1215 MHz
Description
The PTVA104501EH LDMOS FET is designed for use in power amplifier applications in the 960 to 1215 MHz frequency band. Features
include high gain and thermally-enhanced package with bolt-down
flange. Manufactured with Wolfspeed's advanced LDMOS process, this
device provides excellent thermal performance and superior reliability.
Power Sweep, Pulsed RF
Features
VDD = 50 V, IDQ = 200 mA, TCASE = 25°C,
128 µs pulse width, 10% duty cycle
• Integrated ESD protection
55
45
45
35
35
960 MHz
1030 Mhz
1090 MHz
25
15
25
1150 MHz
1215 MHz
a104501eh_g1
28
30
32
34
• High gain and efficiency
65
Output power
Efficiency
55
POUT (dBm)
• Broadband internal input and output matching
36
38
PIN (dBm)
40
42
Efficiency (%)
65
PTVA104501EH
Package H-33288-2
44
• Human Body Model Class 2 (per ANSI/ESDA/
JEDEC JS-001)
• Low thermal resistance
• Excellent ruggedness
• Pb-free and RoHS compliant
• Capable of withstanding a 10:1 load mismatch
(all phase angles) at 450 W peak under RF pulse,
128 µS, 10% duty cycle.
15
RF Characteristics
Pulsed RF Performance (tested in Wolfspeed test fixture)
VDD = 50 V, IDQ = 200 mA, POUT = 450 W (peak), ƒ1 = 960 MHz, ƒ2 = 1090 MHz, ƒ3 = 1215 MHz, RF pulse 128 µs,
10% duty cycle
Characteristic
Symbol
Min
Typ
Max
Unit
Gain
Gps
16.5
17.5
—
dB
Drain Efficiency
hD
53
58
—
%
Gain Flatness
DG
—
0.85
1.8
dB
Return Loss
IRL
—
–9.5
–6
dB
All published data at TCASE = 25°C unless otherwise indicated
ESD: Electrostatic discharge sensitive device—observe handling precautions!
Rev. 03, 2018-06-14
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA104501EH
2
RF Characteristics
Typical RF Performance (not subject to production test, verified by design/characterization in Wolfspeed test fixture)
VDD = 50 V, IDQ = 200 mA, Input signal (tr = 7.0 ns, tf = 7.0 ns), 128 µs pulse width, 10% duty cycle, class AB test
Mode of
Operation
128 µs, 10%
ƒ
(MHz)
IRL
(dB)
P1dB
Gain
(dB)
Eff
(%)
P3dB
POUT
(W)
Gain
(dB)
Eff
(%)
POUT
(W)
Max
Pdroop (pulse)
@ P1dB
tr (ns)
@P1dB
tf (ns)
@P1dB
960
–7.5
18.0
56
460
16.0
53
490
0.15
5
