CGHV96100F2
100 W, 8.4 - 9.6 GHz, 50-ohm, Input/Output
Matched GaN HEMT
Description

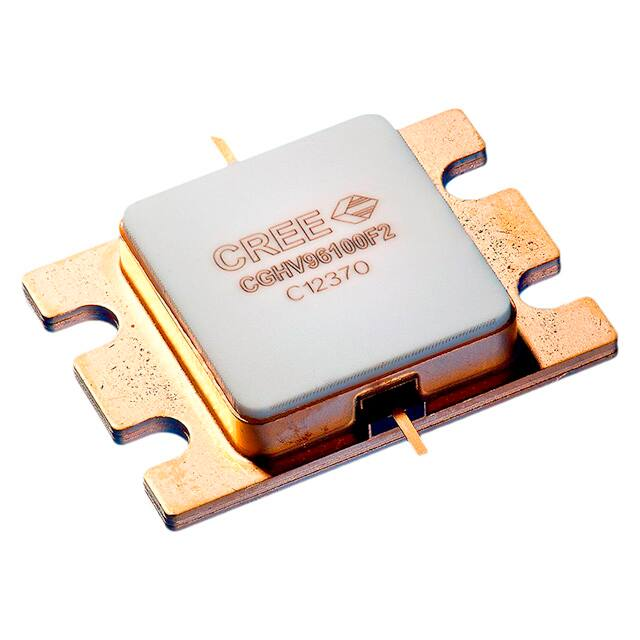

Cree’s CGHV96100F2 is a gallium nitride (GaN) High Electron Mobility Transistor
(HEMT) on Silicon Carbide (SiC) substrates. This GaN Internally Matched (IM) FET
offers excellent power added efficiency in comparison to other technologies.
GaN has superior properties compared to silicon or gallium arsenide, including
higher breakdown voltage, higher saturated electron drift velocity and higher
thermal conductivity. GaN HEMTs also offer greater power density and wider
bandwidths compared to GaAs transistors. This IM FET is available in a metal/
ceramic flanged package for optimal electrical and thermal performance.
PN: CGHV96100F2
Package Type: 440217
Typical Performance Over 8.4 - 9.6 GHz (TC = 25˚C)
Parameter
8.4 GHz
8.8 GHz
9.0 GHz
9.2 GHz
9.4 GHz
9.6 GHz
Units
Linear Gain
13.8
12.8
13.0
12.4
11.8
11.4
dB
Output Power
171
163
160
150
137
131
W
Power Gain
10.3
10.1
10.0
9.7
9.4
9.1
dB
Power Added Efficiency
45.5
42.8
41.5
39.2
35.5
35.4
%
Note: Measured in CGHV96100F2-TB (838179) under 100 μS pulse width, 10% duty, Pin 42.0 dBm (16 W)
Features
Applications
•
•
•
•
•
•
•
•
•
•
•
8.4 - 9.6 GHz Operation
145 W POUT typical
10 dB Power Gain
40% Typical PAE
50 Ohm Internally Matched
PLZ .1CEN LK 9POS
1
J4
CONNECTOR, SMB, STRAIGHT JACK
1
-
PCB, TEST FIXTURE, TACONICS RF35P,
20 MIL THK, 440210 PKG
1
-
2-56 SOC HD SCREW 1/4 SS
4
-
#2 SPLIT LOCKWASHER SS
4
Q1
CGHV96100F2
1
CGHV96100F2-AMP Demonstration Amplifier Circuit
Rev 3.1 - April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV96100F2
8
CGHV96100F2-AMP Demonstration Amplifier Circuit Schematic
CGHV96100F2-AMP Demonstration Amplifier Circuit Outline
Rev 3.1 - April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV96100F2
9
Power dissipation derating curve vs. Max TCase
CGHV96100F2 Power Dissipation De-ratingCW
Curve
& Pulse (100 uS/ 10% duty)
260
240
220
Power Dissipation (W)
Power Dissipation (W)
200
180
Pulse 100uS / 10%
160
140
Note 1
120
100
80
60
40
20
0
0
25
50
75
100
125
150
175
Maximum Case Temperature (C)
200
225
250
Maximum Case Temperature (°C)
Note. Shaded area exceeds Maximum Case Operating Temperature (See Page 2)
CGHV96100F2 Transient Curve
CGHV96100F
6 W/mm
1.2
1.1
ThetaJC ((⁰C/W)
ThetaJC (⁰C/W)
1
0.9
0.8
0.7
10% Duty Cycle
0.6
0.5
1.0E-05
1.0E-04
1.0E-03
1.0E-02
1.0E-01
1.0E+00
Time (sec)
Time (sec)
Electrostatic Discharge (ESD) Classifications
Parameter
Symbol
Class
Test Methodology
Human Body Model
HBM
1A > 250 V
JEDEC JESD22 A114-D
Charge Device Model
CDM
II (200 < 500 V)
JEDEC JESD22 C101-C
Rev 3.1 - April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV96100F2
10
Product Dimensions CGHV96100F2 (Package Type — 440217)
Rev 3.1 - April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV96100F2
11
Part Number System
CGHV96100F2
Package, Power Test
Power Output (W)
Upper Frequency (GHz)
Cree GaN HEMT High Voltage
Table 1.
Parameter
Value
Units
Upper Frequency1
9.6
GHz
Power Output
100
W
Package
Flange
-
Note1: Alpha characters used in frequency code indicate a value
greater than 9.9 GHz. See Table 2 for value.
Table 2.
Rev 3.1 - April 2020
Character Code
Code Value
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
J
8
K
9
Examples:
1A = 10.0 GHz
2H = 27.0 GHz
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV96100F2
12
Product Ordering Information
Order Number
Description
Unit of Measure
CGHV96100F2
GaN HEMT
Each
CGHV96100F2-AMP
Test board with GaN HEMT
Each
Rev 3.1 - April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV96100F2
13
For more information, please contact:
4600 Silicon Drive
Durham, North Carolina, USA 27703
www.wolfspeed.com/RF
Sales Contact
RFSales@wolfspeed.com
RF Product Marketing Contact
RFMarketing@wolfspeed.com
Notes
Disclaimer
Specifications are subject to change without notice. Cree, Inc. believes the information contained within this data sheet
to be accurate and reliable. However, no responsibility is assumed by Cree for any infringement of patents or other rights
of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Cree. Cree makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose. “Typical” parameters are the average values expected by Cree in large quantities and are provided for
information purposes only. These values can and do vary in different applications and actual performance can vary over
time. All operating parameters should be validated by customer’s technical experts for each application. Cree products
are not designed, intended or authorized for use as components in applications intended for surgical implant into the
body or to support or sustain life, in applications in which the failure of the Cree product could result in personal injury
or death or in applications for planning, construction, maintenance or direct operation of a nuclear facility.
© 2013 - 2020 Cree, Inc. All rights reserved. Wolfspeed® and the Wolfspeed logo are registered trademarks of Cree, Inc.
Rev 3.1 - April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
