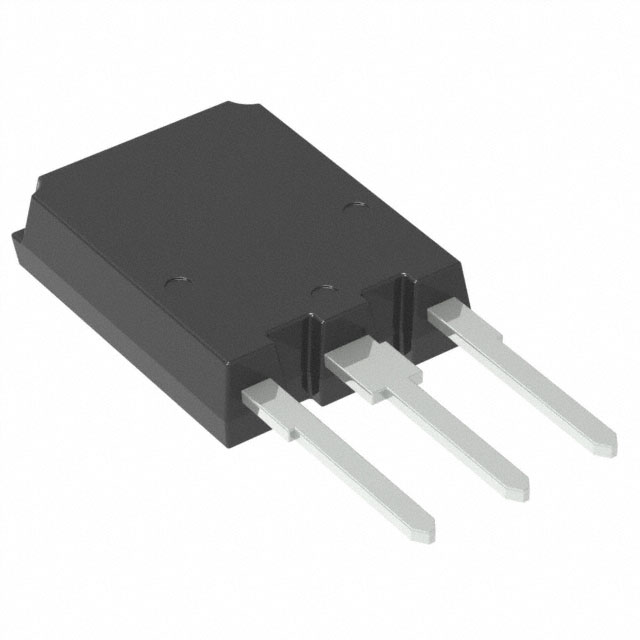

SCT1675CS Technical Data Data Sheet N2072, Rev.- SCT1675CS 75A SCRs 1 2 3 CircuitTO-247S Diagram TO-247J K(1) A(2) G(3) TO-247S Description With high ability to withstand the shock loading of large current, SCT1675 SCRs provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc. Maximum Ratings: Characteristics Symbol - Max. Units Tstg -40-150 ℃ Tj - -40-125 ℃ Repetitive peak off-state voltage(Tj=25℃) VDRM - 1600 V Repetitive peak reverse voltage(Tj=25℃) VRRM - 1600 V Non repetitive surge peak Off-state voltage VDSM - VDRM +100 V Non repetitive peak reverse voltage VRSM - VRRM +100 V Storage junction temperature range Operating junction temperature range Average on-state current RMS on-state current Non repetitive surge peak on-state current (tp=10ms) I2t value for fusing (tp=10ms) Critical rate of rise of on-state current (IG=2×IGT) Peak gate current Average gate power dissipation Peak gate power Condition IT(AVA) TO-247S(TC=80℃) 48 A I(TRMS) TO-247S(TC=80℃) 75 A 750 A ITSM - I2t - 2800 A2 s dI/dt - 150 A/μs IGM 4 A PG(AV) - 1 W PGM - 5 W  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  SCT1675CS Technical Data Data Sheet N2072, Rev.- Electrical Characteristics(Tj=25℃ unless otherwise specified) Symbol IGT Value Test Condition VD=12V RL=33Ω VGT VGD VD=VDRM Tj=125℃ RL=3.3KΩ Unit MIN. TYP. MAX. 10 - 80 mA - - 1.5 V 0.25 - - V IL IG=1.2IGT - - 150 mA IH IT=1A - - 120 mA 1000 - - V/μs dV/dt VD=2/3VDRM Gate Open Tj=125℃ Static Characteristics Symbol VTM IDRM IRRM Condition ITM=100A tp=380μs,Tj=25℃ VD=VDRM VR=VRRM, Tj=25℃ VD=VDRM VR=VRRM, Tj=125℃ Max. Units 1.8 50 10 V μA mA Value Units 0.6 ℃/W Thermal Resistances Symbol Rth(j-c) Condition Junction to case(AC) TO-247S Ordering Information S CT 16 75 CS SMC Diode Solutions CS:TO-247S SCRs 16:VDRM/VRRM ≥ 1600V Device SCT1675CS IT(RMS):75A Package TO-247S Shipping 30pcs/ Tube  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  SCT1675CS Technical Data Data Sheet N2072, Rev.- Marking Diagram Where XXXXX is YYWWL SCT1675CS YY WW L = Part name = Year = Week = Lot Number Mechanical Dimensions TO-247CS Millimeters SYMBOL Min. Typ. Inches Max. Min. Typ. A B C D E 15.1 19.8 13.8 3.00 2.75 16.1 20.8 14.8 4.00 3.35 0.594 0.78 0.543 0.118 0.108 0.634 0.819 0.583 0.157 0.132 F 1.30 1.50 0.051 0.059 G H J 5.10 4.50 1.45 5.80 5.50 2.15 0.201 0.177 0.057 0.228 0.217 0.085 K 1.90 2.80 0.075 0.110 L P 0.55 2.00 0.80 2.40 0.022 0.079 0.031 0.094 Ratings and Characteristics Curves FIG.1 Maximum power dissipation versus RMS on-state current FIG.2: RMS on-state current versus case temperature IT(RMS) (A) 90 P(w) 120 100 75 80 60 60 45 40 30 20 15 0 0 15 IT(RMS) (A) 30 45 60 75 0 0 α=180° TO-247S Tc (℃) 25 50 75 100 FIG.3: Surge peak on-state current versus FIG.4: On-state characteristics (maximum number of cycles China - Germany - Korea - Singapore values) - United States  ITM (A) ITSM (A)  http://www.smc-diodes.com - sales@ smc-diodes.com  770 660 700 tp=10ms One cycle Max. Tj=125℃ 125 80 60 60 45 40 30 Technical Data 20 Data Sheet N2072, Rev.0 0 15 IT(RMS) (A) 30 45 15 SCT1675CS 60 75 FIG.3: Surge peak on-state current versus number of cycles Tc (℃) 0 0 25 50 75 100 125 FIG.4: On-state characteristics (maximum values) ITM (A) 700 ITSM (A) 770 tp=10ms One cycle 660 Tj=125℃ 550 100 440 330 10 220 110 Tj=25℃ 0 1 10 Number of cycles 100 1000 FIG.5: Non-repetitive surge peak on-state current for a sinusoidal pulse with width tp
