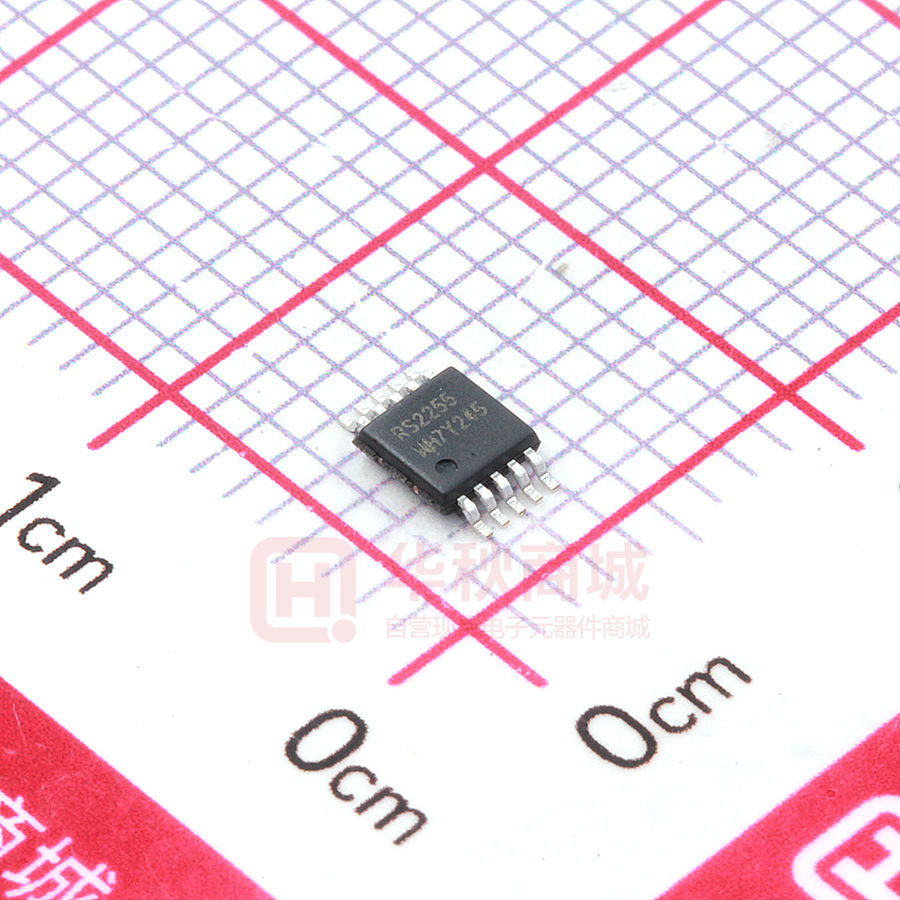

RS2255XN

RS2255 CMOS 4-Channel Analog Multiplexer/Demultiplexer FEATURES • -3dB Bandwidth: 180MHz • Single Supply Operation +2.5V to +5.5V • Low ON Resistance, 24Ω(TYP) With 5V Supply • High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz) • Break-Before-Make Switching • Binary Address Decoding on Chip • Operating Temperature Range: -40°C to +125°C • PACKAGES: MSOP-10 DESCRIPTION The RS2255 is a CMOS analog IC configured as 4channel multiplexers. This CMOS device can operate from 2.5 V to 5.5 V. The RS2255 device are digitally-controlled analog switches. It has low on-resistance (24 Ω TYP) and very low off-leakage current (1nA TYP). The RS2255 is available in Green MSOP-10 packages. It operates over an ambient temperature range of -40°C to +125°C. Functional Diagrams of RS2255 APPLICATIONS • Sensors • Analog and Digital Multiplexing and Demultiplexing • A/D and D/A Conversion • Signal Gating • Battery-Operated Equipment • Factory Automation • Appliances • Communications Circuits ENA BLE B X0 A BA 00 X1 01 X 10 X2 11 X3 RS2255 REV C.3 1 www.run-ic.com RS2255 PIN CONFIGURATIONS RS2255(TOP VIEW) X2 1 10 Vcc X3 2 9 X X1 3 8 X0 ENABLE 4 7 A GND 5 6 B MSOP-10 PIN DESCRIPTION NAME X2 X3 X1 PIN 1 2 3 ENABLE 4 GND B A X0 X VCC 5 6 7 8 9 10 FUNCTION Analog Switch Normally Open Inputs 2. Analog Switch Normally Open Inputs 3. Analog Switch Normally Open Inputs 1. Inhibit. Drive ENABLE low or connect to GND for normal operation. Drive ENABLE high or connect to VCC to turn all switches off. Ground. Digital Address “B” Input. Digital Address “A” Input. Analog Switch Normally Open Inputs 0. Analog Switch Common. Positive Analog and Digital Supply Voltage. FUNCTION TABLE ENABLE INPUT 1 0 0 0 0 INPUT STATES B X 0 0 1 1 A X 0 1 0 1 X=Don’t care NOTE: Input and output pins are identical and interchangeable. Either may be considered an input or output; signals pass equally well in either direction. ON CHANNEL(S) NONE X0 X1 X2 X3 2 www.run-ic.com RS2255 SPECIFICATIONS Absolute Maximum Ratings Over operating free-air temperature range (unless otherwise noted) (1) SYMBOL PARAMETER MIN MAX VCC Supply Voltage -0.3 6 VIN Input Voltage (All inputs) -0.3 VCC+0.3 IIN Switch Input Current Any one input -20 +20 IPEAK Peak Switch Current Pulsed at 1ms Duration,
