CGHV60040D

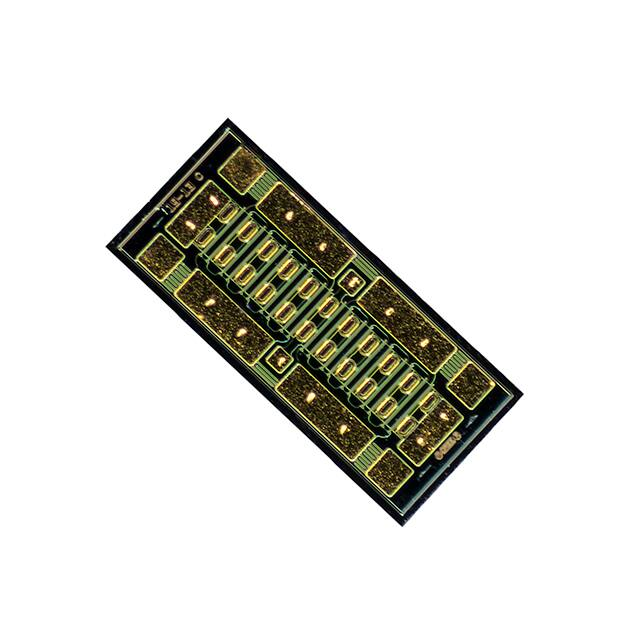

40 W, 6.0 GHz, GaN HEMT Die
Description
Cree’s CGHV60040D is a gallium nitride (GaN) High Electron
Mobility Transistor (HEMT). GaN has superior properties compared
to silicon or gallium arsenide, including higher breakdown voltage,
higher saturated electron drift velocity, and higher thermal
conductivity. GaN HEMTs offer greater power density and wider
bandwidths compared to Si and GaAs transistors.
PN: CGHV60040D
Features
Applications
•
•
•
•
•
•
•
•
•
18 dB Typical Small Signal Gain at 4 GHz
17 dB Typical Small Signal Gain at 6 GHz
65% Typical Power Added Efficiency
40 W Typical PSAT
50 V Operation
High Breakdown Voltage
Up to 6 GHz Operation
Cellular Infrastructure
Class A, AB, Linear amplifiers suitable for OFDM,
W-CDMA, LTE, EDGE, CDMA waveforms
Packaging Information
•
•
Bare die are shipped in Gel-Pak® containers
Non-adhesive tacky membrane immobilizes die during shipment
Large Signal Models Available for ADS and MWO
Rev 1.2 – April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV60040D
2
Absolute Maximum Ratings (not simultaneous)
Parameter
Symbol
Rating
Units
Conditions
Drain source Voltage
VDSS
150
VDC
25˚C
Gate source Voltage
VGS
-10, +2
VDC
25˚C
Storage Temperature
TSTG
-65, +150
˚C
Operating Junction Temperature
TJ
225
˚C
Maximum Drain Current
IMAX
3.2
A
25˚C
IGMAX
5.2
mA
25˚C
Thermal Resistance, Junction to Case (packaged)
RθJC
5.10
˚C/W
85˚C, 20.8W Dissipation
Thermal Resistance, Junction to Case (die only)
RθJC
3.27
˚C/W
85˚C, 20.8W Dissipation
Mounting Temperature
TS
320
˚C
30 seconds
1
Maximum Forward Gate Current
2
Notes:
1
Current limit for long term, reliable operation
2
Eutectic die attach using 80/20 AuSn mounted to a 10 mil thick Cu15Mo85 carrier
Electrical Characteristics (Frequency = 6 GHz unless otherwise stated; TC = 25˚C)
Characteristics
Symbol Min.
Typ.
Max.
Units Conditions
Gate Pinch-Off Voltage
VP
-3.8
-3.0
-2.3
V
VDS = 10 V, ID = 5.2 mA
Drain Current1
IDSS
4.2
5.2
–
A
VDS = 6 V, VGS = 2.0 V
Drain-Source Breakdown Voltage
VBD
125
–
–
V
VGS = -8 V, ID = 5.2 mA
On Resistance
RON
–
0.56
–
Ω
VDS = 0.1 V
Gate Forward Voltage
VG-ON
–
1.9
–
V
IGS = 5.2 mA
GSS
–
17
–
dB
VDD = 50 V, IDQ = 65 mA
Saturated Power Output
PSAT
–
40
–
W
VDD = 50 V, IDQ = 65 mA
Drain Efficiency4
η
–
65
–
%
VDD = 50 V, IDQ = 65 mA,= PSAT = 40 W
Intermodulation Distortion
IM3
–
-30
–
dBc
VDD = 50 V, IDQ = 65 mA, POUT = 40 W PEP
Output Mismatch Stress
VSWR
–
–
10 : 1
Y
No damage at all phase angles,
VDD = 50 V, IDQ = 65 mA, P = 40 W CW
Input Capacitance
CGS
–
7.1
–
pF
VDS = 50 V, Vgs = -8 V, f = 1 MHz
Output Capacitance
CDS
–
1.6
–
pF
VDS = 50 V, Vgs = -8 V, f = 1 MHz
Feedback Capacitance
CGD
–
0.15
–
pF
VDS = 50 V, Vgs = -8 V, f = 1 MHz
DC Characteristics
RF Characteristics
Small Signal Gain
2,3
OUT
Dynamic Characteristics
Notes:
1
Scaled from PCM data
2
PSAT is defined as IG = 0.52 mA
3
Pulsed 100 μsec, 10%
4
Drain Efficiency = POUT / PDC
Rev 1.2 – April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV60040D
3
DIE Dimensions (units in microns)
Overall die size 820 x 1800 (+0/- 50) microns, die thickness 100 microns.
All Gate and Drain pads must be wire bonded for electrical connection.
Pad
Size (microns)
Drain
464 x 156
Gate
464 x 156
Interconnect
156 x 152
Assembly Notes:
•
Recommended solder is AuSn (80/20) solder. Refer to Cree’s website for the Eutectic Die Bond Procedure
application note at http://www.cree.com/products/wireless_documents.asp
•
•
•
•
•
•
Vacuum collet is the preferred method of pick-up
The backside of the die is the Source (ground) contact
Die back side gold plating is 5 microns thick minimum
Thermosonic ball or wedge bonding are the preferred connection methods
Gold wire must be used for connections
Use the die label (XX-YY) for correct orientation
Rev 1.2 – April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV60040D
4
Typical Performance
Figure 1. CGHV60040D Output Power, Gain and Efficiency vs. Input Power at Tcase = 25°C
VDD = 50 V, IDQ = 65 mA, Frequency = 2.7 GHz
Gain (dB)
Power (dBm) and Eff (%)
CW Transfer
Power (dBm)
Figure 2. CGHV60040D GMAX and K Factor vs. Frequency at Tcase = 25°C
VDD = 50 V, IDQ = 65 mA
K-Factor
Gmax (dB)
Gmax & K-Factor
Frequency (GHz)
Rev 1.2 – April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV60040D
5
Typical Die S-Parameters (Small Signal, VDS = 50 V, IDQ = 65 mA, magnitude / angle)
Frequency
Mag S11
Ang S11
Mag S21
Ang S21
Mag S12
Ang S12
Mag S22
Ang S22
0.500
0.935
-124.81
17.697
105.17
0.018
16.26
0.468
-61.04
0.600
0.932
-132.78
15.111
99.07
0.019
10.39
0.461
-66.42
0.700
0.930
-138.77
13.108
93.98
0.019
5.52
0.462
-71.19
0.800
0.929
-143.42
11.520
89.59
0.019
1.35
0.468
-75.54
0.900
0.929
-147.12
10.235
85.69
0.019
-2.32
0.478
-79.56
1.000
0.929
-150.12
9.175
82.18
0.019
-5.62
0.491
-83.30
1.100
0.930
-152.61
8.287
78.96
0.018
-8.62
0.506
-86.79
1.200
0.931
-154.70
7.532
75.98
0.018
-11.38
0.521
-90.07
1.300
0.932
-156.49
6.884
73.19
0.018
-13.94
0.537
-93.16
1.400
0.933
-158.04
6.320
70.57
0.018
-16.34
0.553
-96.07
1.500
0.934
-159.39
5.827
68.10
0.018
-18.59
0.570
-98.82
1.600
0.936
-160.58
5.391
65.75
0.017
-20.72
0.586
-101.42
1.700
0.937
-161.64
5.003
63.51
0.017
-22.73
0.602
-103.88
1.800
0.939
-162.59
4.657
61.38
0.017
-24.64
0.617
-106.22
1.900
0.940
-163.45
4.346
59.35
0.016
-26.45
0.633
-108.45
2.000
0.941
-164.24
4.065
57.40
0.016
-28.18
0.647
-110.56
2.100
0.943
-164.95
3.810
55.53
0.016
-29.82
0.661
-112.57
2.200
0.944
-165.61
3.579
53.73
0.016
-31.39
0.675
-114.49
2.300
0.946
-166.22
3.367
52.01
0.015
-32.89
0.688
-116.32
2.400
0.947
-166.79
3.174
50.35
0.015
-34.32
0.701
-118.07
2.500
0.948
-167.32
2.996
48.75
0.015
-35.70
0.713
-119.74
2.600
0.950
-167.82
2.833
47.21
0.014
-37.01
0.724
-121.34
2.700
0.951
-168.29
2.682
45.73
0.014
-38.26
0.735
-122.87
2.800
0.952
-168.73
2.542
44.29
0.014
-39.47
0.745
-124.33
2.900
0.953
-169.14
2.413
42.91
0.014
-40.62
0.755
-125.74
3.000
0.954
-169.54
2.294
41.57
0.013
-41.73
0.765
-127.08
3.200
0.957
-170.27
2.079
39.03
0.013
-43.81
0.782
-129.62
3.400
0.959
-170.94
1.892
36.65
0.012
-45.72
0.798
-131.95
3.600
0.960
-171.55
1.729
34.42
0.012
-47.49
0.812
-134.12
3.800
0.962
-172.11
1.585
32.31
0.011
-49.12
0.825
-136.13
4.000
0.964
-172.64
1.458
30.33
0.011
-50.63
0.837
-137.99
4.200
0.965
-173.13
1.346
28.45
0.010
-52.03
0.848
-139.73
4.400
0.966
-173.59
1.246
26.67
0.010
-53.32
0.857
-141.35
4.600
0.967
-174.02
1.156
24.99
0.009
-54.51
0.866
-142.87
4.800
0.969
-174.43
1.076
23.38
0.009
-55.62
0.874
-144.29
5.000
0.970
-174.82
1.004
21.85
0.009
-56.64
0.882
-145.63
5.200
0.970
-175.19
0.939
20.39
0.008
-57.59
0.888
-146.88
5.400
0.971
-175.54
0.880
19.00
0.008
-58.46
0.894
-148.07
5.600
0.972
-175.88
0.826
17.66
0.008
-59.27
0.900
-149.18
5.800
0.973
-176.20
0.777
16.37
0.007
-60.01
0.905
-150.24
6.000
0.973
-176.51
0.732
15.14
0.007
-60.69
0.910
-151.24
To download the s-parameters in s2p format, go to the CGHV60040D Product Page and click on the documentation tab.
Rev 1.2 – April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV60040D
6
Part Number System
CGHV60040D
Die
Power Output (W)
Upper Frequency (GHz)
Cree GaN High Voltage
Table 1.
Parameter
Value
Units
Upper Frequency1
6.0
GHz
Power Output
40
W
Package
Bare Die
-
Note1: Alpha characters used in frequency code indicate a value
greater than 9.9 GHz. See Table 2 for value.
Table 2.
Rev 1.2 – April 2020
Character Code
Code Value
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
J
8
K
9
Examples:
1A = 10.0 GHz
2H = 27.0 GHz
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV60040D
7
Product Ordering Information
Order Number
Description
Unit of Measure
CGHV60040D
GaN HEMT
Each
Rev 1.2 – April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
CGHV60040D
8
For more information, please contact:
4600 Silicon Drive
Durham, North Carolina, USA 27703
www.wolfspeed.com/RF
Sales Contact
RFSales@cree.com
Notes
Disclaimer
Specifications are subject to change without notice. “Typical” parameters are the average values expected by Cree in
large quantities and are provided for information purposes only. Cree products are not warranted or authorized for use
as critical components in medical, life-saving, or life-sustaining applications, or other applications where a failure would
reasonably be expected to cause severe personal injury or death. No responsibility is assumed by Cree for any infringement of patents or other rights of third parties which may result from use of the information contained herein. No license
is granted by implication or otherwise under any patent or patent rights of Cree.
© 2014-2020 Cree, Inc. All rights reserved. Wolfspeed® and the Wolfspeed logo are registered trademarks of Cree, Inc.
Rev 1.2 – April 2020
4600 Silicon Drive | Durham, NC 27703 | wolfspeed.com
