TSM300NB06DCR
Taiwan Semiconductor
Dual N-Channel Power MOSFET
60V, 25A, 30mΩ
FEATURES
KEY PERFORMANCE PARAMETERS
● Low RDS(ON) to minimize conductive losses
PARAMETER
VALUE
UNIT
VDS
60
V
● Low gate charge for fast power switching
● 100% UIS and Rg tested
● RoHS Compliant
● Halogen-free according to IEC 61249-2-21
RDS(on) (max)
VGS = 10V
30
VGS = 7V
42.3
mΩ
Qg
APPLICATIONS
17
nC
● BLDC Motor Control
● Battery Power Management
● DC-DC Converter
● Secondary Synchronous Rectification

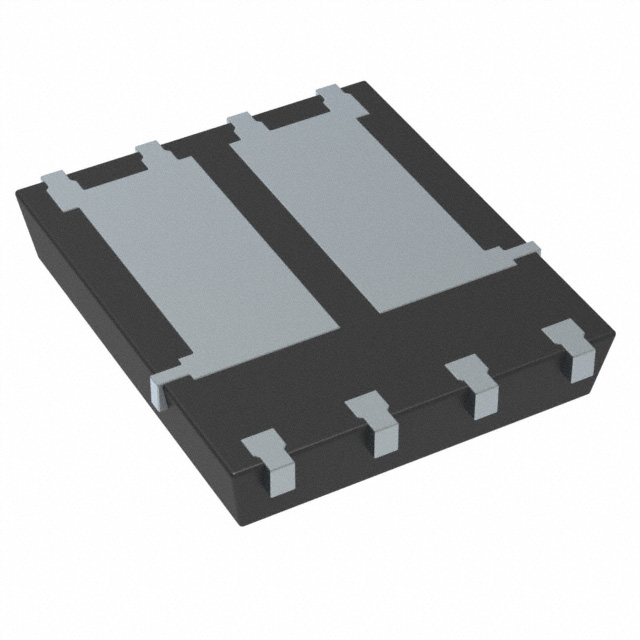

PDFN56 Dual
Note: MSL 1 (Moisture Sensitivity Level) per J-STD-020
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
PARAMETER
SYMBOL
LIMIT
UNIT
Drain-Source Voltage
VDS
60
V
Gate-Source Voltage
VGS
±20
V
Continuous Drain Current
TC = 25°C
(Note 1)
ID
TA = 25°C
Pulsed Drain Current
(Note 2)
Single Pulse Avalanche Current
(Note 2)
Single Pulse Avalanche Energy
Total Power Dissipation
Total Power Dissipation
TC = 25°C
TC = 125°C
TA = 25°C
TA = 125°C
Operating Junction and Storage Temperature Range
25
6
A
IDM
100
A
IAS
EAS
12
22
A
mJ
PD
PD
40
8
2
0.4
W
W
TJ, TSTG
- 55 to +150
°C
THERMAL PERFORMANCE
PARAMETER
SYMBOL
MAXIMUM
UNIT
Junction to Case Thermal Resistance
RӨJC
3.1
°C/W
Junction to Ambient Thermal Resistance
RӨJA
61
°C/W
Thermal Performance Note: RӨJA is the sum of the junction-to-case and case-to-ambient thermal resistances. The casethermal reference is defined at the solder mounting surface of the drain pins. R ӨJC is guaranteed by design while RӨCA is
2
determined by the user’s board design. The RӨJA limit presented here is based on mounting on a 1 in pad of 2 oz copper.
1
Version: A1908
TSM300NB06DCR
Taiwan Semiconductor
ELECTRICAL SPECIFICATIONS (TA = 25°C unless otherwise noted)
PARAMETER
CONDITIONS
SYMBOL
MIN
TYP
MAX
UNIT
Static
Drain-Source Breakdown Voltage
VGS = 0V, ID = 250µA
BVDSS
60
--
--
V
Gate Threshold Voltage
VGS = VDS, ID = 250µA
VGS(TH)
2.5
3.2
4.5
V
Gate-Source Leakage Current
VGS = ±20V, VDS = 0V
IGSS
--
--
±100
nA
--
--
1
--
--
100
--
25
30
--
29
42.3
gfs
--
24
--
Qg
--
17
--
Qg
--
12
--
Qgs
--
6
--
Qgd
--
4
--
Ciss
--
1079
--
Coss
--
68
--
Crss
--
16
--
Rg
0.7
2.4
4.8
td(on)
--
6
--
tr
--
3
--
td(off)
--
12
--
tf
--
2
--
VSD
--
--
1.2
V
VGS = 0V, VDS = 60V
Drain-Source Leakage Current
IDSS
VGS = 0V, VDS = 60V
TJ = 125°C
Drain-Source On-State Resistance
VGS = 10V, ID = 6A
(Note 3)
VGS = 7V, ID = 5A
Forward Transconductance
Dynamic
(Note 3)
RDS(on)
VDS = 10V, ID = 6A
µA
mΩ
S
(Note 4)
VGS = 10V, VDS = 30V,
Total Gate Charge
ID = 6A
Total Gate Charge
VGS = 7V, VDS = 30V,
Gate-Source Charge
ID = 5A
Gate-Drain Charge
Input Capacitance
VGS = 0V, VDS = 30V
Output Capacitance
f = 1.0MHz
Reverse Transfer Capacitance
Gate Resistance
Switching
f = 1.0MHz
nC
pF
Ω
(Note 4)
Turn-On Delay Time
Turn-On Rise Time
VGS = 10V, VDS = 30V,
Turn-Off Delay Time
ID = 6A, RG = 2Ω
Turn-Off Fall Time
ns
Source-Drain Diode
Forward Voltage
(Note 3)
VGS = 0V, IS = 6A
Reverse Recovery Time
IS = 6A,
trr
--
17
--
ns
Reverse Recovery Charge
dI/dt = 100A/μs
Qrr
--
13
--
nC
Notes:
1.
2.
3.
4.
Silicon limited current only.
L = 0.3mH, VGS = 10V, VDD = 25V, RG = 25Ω, IAS = 12A, Starting TJ = 25°C
Pulse test: Pulse Width ≤ 300µs, duty cycle ≤ 2%.
Switching time is essentially independent of operating temperature.
ORDERING INFORMATION
ORDERING CODE
PACKAGE
PACKING
TSM300NB06DCR RLG
PDFN56 Dual
2,500pcs / 13” Reel
2
Version: A1908
TSM300NB06DCR
Taiwan Semiconductor
CHARACTERISTICS CURVES
(TA = 25°C unless otherwise noted)
Transfer Characteristics
30
25
25
ID, Drain Current (A)
ID, Drain Current (A)
Output Characteristics
30
VGS=10V
VGS=9V
VGS=8V
VGS=7V
VGS=6V
VGS=5.5V
20
15
10
VGS=5V
5
20
15
25℃
10
-55℃
5
150℃
0
0
0
1
2
3
4
0
On-Resistance vs. Drain Current
3
4
5
6
Gate-Source Voltage vs. Gate Charge
0.05
10
VGS, Gate to Source Voltage (V)
RDS(ON), Drain-Source On-Resistance (Ω)
2
VGS, Gate to Source Voltage (V)
VDS, Drain to Source Voltage (V)
0.045
0.04
0.035
VGS=7V
0.03
0.025
VGS=10V
0.02
0.015
0.01
VDS=30V
ID=6A
8
6
4
2
0
0
10
20
30
0
2.5
VGS=10V
ID=6A
1.5
1
0.5
0
-75
-50
-25
0
25
50
75
10
15
20
100 125 150
On-Resistance vs. Gate-Source Voltage
RDS(on), Drain-Source On-Resistance (Ω)
On-Resistance vs. Junction Temperature
2
5
Qg, Gate Charge (nC)
ID, Drain Current (A)
RDS(on), Drain-Source On-Resistance
(Normalized)
1
TJ, Junction Temperature (°C)
0.06
0.055
0.05
0.045
0.04
0.035
ID=6A
0.03
0.025
0.02
0.015
0.01
5
6
7
8
9
10
VGS, Gate to Source Voltage (V)
3
Version: A1908
TSM300NB06DCR
Taiwan Semiconductor
CHARACTERISTICS CURVES
(TA = 25°C unless otherwise noted)
BVDSS vs. Junction Temperature
Capacitance vs. Drain-Source Voltage
1200
BVDSS (Normalized)
Drain-Source Breakdown Voltage
C, Capacitance (pF)
1400
CISS
1000
800
600
400
CRSS
200
COSS
1.2
ID=1mA
1.1
1
0.9
0.8
0
0
10
20
30
40
50
-75
60
Maximum Safe Operating Area, Junction-to-Case
-25
0
25
50
75
100 125 150
Source-Drain Diode Forward Current vs. Voltage
100
IS, Reverse Drain Current (A)
1000
ID, Drain Current (A)
-50
TJ, Junction Temperature (°C)
VDS, Drain to Source Voltage (V)
100
RDS(ON)
10
1
SINGLE PULSE
RӨJC=3.1°C/W
TC=25°C
0.1
10
150℃
25℃
-55℃
1
0.1
0.1
1
10
100
0.2
0.4
0.6
0.8
1
1.2
VSD, Body Diode Forward Voltage (V)
VDS, Drain to Source Voltage (V)
Normalized Thermal Transient Impedance, Junction-to-Case
Normalized Effective Transient
Thermal Impedance, ZӨJC
10
SINGLE PULSE
RӨJC=3.1°C/W
1
Duty=0.5
Duty=0.2
Duty=0.1
Duty=0.05
Duty=0.02
Duty=0.01
Single
0.1
0.01
0.0001
0.001
Notes:
Duty = t1 / t2
TJ = TC + PDM x ZӨJC x RӨJC
0.01
0.1
t, Square Wave Pulse Duration (sec)
4
Version: A1908
TSM300NB06DCR
Taiwan Semiconductor
PACKAGE OUTLINE DIMENSIONS (Unit: Millimeters)
PDFN56 Dual
SUGGESTED PAD LAYOUT (Unit: Millimeters)
MARKING DIAGRAM
TSC
300NB06D
YWWLF
Y
WW
L
F
= Year Code
= Week Code (01~52)
= Lot Code (1~9,A~Z)
= Factory Code
5
Version: A1908
TSM300NB06DCR
Taiwan Semiconductor
