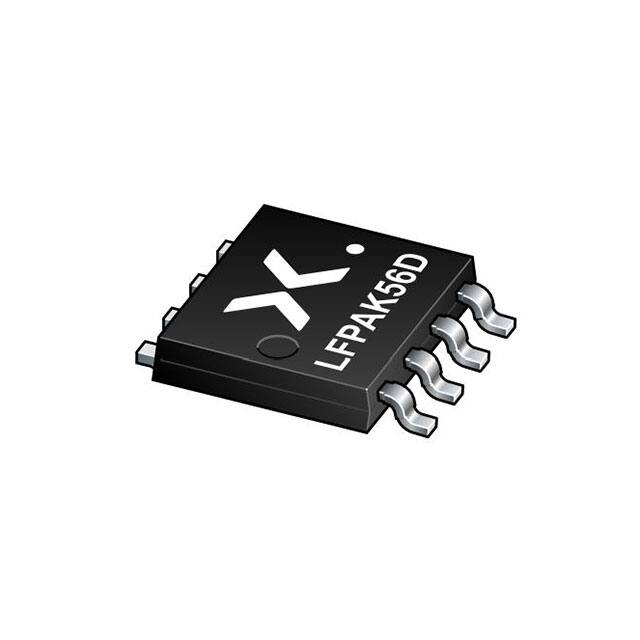

PSMN4R2-40VSH Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) 16 August 2021 Product data sheet 1. General description D1 Dual, standard level N-channel MOSFET in an LFPAK56D package (halfbridge configuration), using NextpowerS3 technology. An internal connection is made between the source (S1) of the high-side FET to the drain (D2) of the low-side FET, making the device ideal to use as a half-bridge switch in high-performance PWM and space constrained motor drive applications G1 S1, D2 G2 S2 aaa-028081 2. Features and benefits • • • • • • • LFPAK56D package with half-bridge configuration enables: • Reduced PCB layout complexity • Module shrinkage through reduced component count • Improved system level Rth(j-amb) due to optimized package design • Lower parasitic inductance to support higher efficiency • Footprint compatibility with LFPAK56D Dual package NextpowerS3 technology Low power losses, high power density Superior avalanche performance Repetitive avalanche rated LFPAK copper clip packaging provides high robustness and reliability Gull wing leads support high manufacturability and Automated Optical Inspection (AOI) 3. Applications • • • • Handheld power tools, portable appliance and space constrained applications Brushless or brushed DC motor drive DC-to-DC systems LED lighting 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit - - 40 V - - 98 A - - 85 W -55 - 175 °C Limiting values FET1 and FET2 VDS drain-source voltage 25 °C ≤ Tj ≤ 175 °C ID drain current VGS = 10 V; Tmb = 25 °C; Fig. 2 Ptot total power dissipation Tmb = 25 °C; Fig. 1 Tj junction temperature [1] PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) Symbol Parameter Conditions Min Typ Max Unit VGS = 10 V; ID = 20 A; Tj = 25 °C; Fig. 8 - 3.5 4.2 mΩ 1.4 4.7 9.4 nC 17 26 37 nC Static characteristics FET1 and FET2 RDSon drain-source on-state resistance Dynamic characteristics FET1 and FET2 QGD gate-drain charge QG(tot) total gate charge [1] ID = 20 A; VDS = 32 V; VGS = 10 V; Fig. 10; Fig. 11 98A Continuous current has been successfully demonstrated during application tests. Practically the current will be limited by PCB, thermal design and operating temperature. 5. Pinning information Table 2. Pinning information Pin Symbol Description 1 S2 source2 2 G2 gate2 3 S1 source1 4 G1 gate1 5 D1 drain1 6 D1 drain1 7 S1, D2 source1, drain2 8 S1, D2 source1, drain2 Simplified outline 8 7 6 Graphic symbol 5 D1 G1 S1, D2 G2 1 2 3 4 S2 LFPAK56D; Dual LFPAK (SOT1205) aaa-028081 6. Ordering information Table 3. Ordering information Type number Package PSMN4R2-40VSH Name Description Version LFPAK56D; Dual LFPAK plastic, single ended surface mounted package (LFPAK56D); 8 leads SOT1205 7. Marking Table 4. Marking codes Type number Marking code PSMN4R2-40VSH 4H2S40V 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit Limiting values FET1 and FET2 VDS drain-source voltage 25 °C ≤ Tj ≤ 175 °C - 40 V VDSM peak drain-source voltage tp = 20 ns; f = 500 kHz; EDS(AL) = 200 nJ; pulsed - 45 V PSMN4R2-40VSH Product data sheet All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 2 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) Symbol Parameter Conditions Min Max Unit VDGR drain-gate voltage 25 °C ≤ Tj ≤ 175 °C; RGS = 20 kΩ - 40 V VGS gate-source voltage Tj ≤ 175 °C -20 20 V Ptot total power dissipation Tmb = 25 °C; Fig. 1 - 85 W ID drain current VGS = 10 V; Tmb = 25 °C; Fig. 2 - 98 A VGS = 10 V; Tmb = 100 °C; Fig. 2 - 69.5 A pulsed; tp ≤ 10 µs; Tmb = 25 °C; Fig. 3 - 393 A [1] IDM peak drain current Tstg storage temperature -55 175 °C Tj junction temperature -55 175 °C Tsld(M) peak soldering temperature - 260 °C Source-drain diode FET1 and FET2 IS source current Tmb = 25 °C - 85 A ISM peak source current pulsed; tp ≤ 10 µs; Tmb = 25 °C - 393 A - 42.3 mJ - 82.6 A Avalanche ruggedness FET1 and FET2 EDS(AL)S non-repetitive drainID = 82.6 A; Vsup ≤ 40 V; RGS = 50 Ω; source avalanche energy VGS = 10 V; Tj(init) = 25 °C; unclamped; tp = 20 µs IAS non-repetitive avalanche Vsup = 40 V; VGS = 10 V; Tj(init) = 25 °C; current RGS = 50 Ω [1] [2] [2] 98A Continuous current has been successfully demonstrated during application tests. Practically the current will be limited by PCB, thermal design and operating temperature. Protected by 100% test 03aa16 120 Pder (%) aaa-032380 100 ID (A) 80 80 60 40 40 20 0 Fig. 1. 0 50 100 150 Tmb (°C) 0 200 Fig. 2. Product data sheet 25 50 75 100 125 150 175 Tmb (°C) 200 VGS ≥ 10 V (1) 98A continuous current has been successfully demonstrated during application tests. Practically the current will be limited by PCB, thermal design and operating temperature. Normalized total power dissipation as a function of mounting base temperature PSMN4R2-40VSH 0 Continuous drain current as a function of mounting base temperature, FET1 and FET2 All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 3 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) ID (A) aaa-032382 103 Limit RDSon = VDS / ID 102 tp = 10 µs 100 µs 10 DC 1 ms 10 ms 100 ms 1 10-1 10-1 1 10 102 VDS (V) Tmb = 25 °C; IDM is a single pulse Fig. 3. Safe operating area; continuous and peak drain currents as a function of drain-source voltage, FET1 and FET2 9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Rth(j-mb) Conditions thermal resistance from Fig. 4 junction to mounting base Min Typ Max Unit - 1.64 1.76 K/W aaa-032383 10 Zth(j-mb) (K/W) 1 δ = 0.5 0.2 0.1 P 10-1 0.05 δ= tp T 0.02 single shot 10-2 10-6 Fig. 4. 10-5 t tp 10-4 10-3 10-2 T 10-1 tp (s) 1 Transient thermal impedance from junction to mounting base as a function of pulse duration, FET1 and FET2 PSMN4R2-40VSH Product data sheet All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 4 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit drain-source breakdown voltage ID = 250 µA; VGS = 0 V; Tj = 25 °C 40 - - V ID = 250 µA; VGS = 0 V; Tj = -55 °C 36 - - V VGS(th) gate-source threshold voltage ID = 1 mA; VDS=VGS; Tj = 25 °C 2.4 3 3.6 V ΔVGS(th)/ΔT gate-source threshold voltage variation with temperature 25 °C ≤ Tj ≤ 150 °C - -6.2 - mV/K IDSS drain leakage current VDS = 40 V; VGS = 0 V; Tj = 25 °C - 0.01 1 µA VDS = 16 V; VGS = 0 V; Tj = 125 °C - 0.3 10 µA VGS = 20 V; VDS = 0 V; Tj = 25 °C - 2 100 nA Static characteristics FET1 and FET2 V(BR)DSS IGSS gate leakage current VGS = -20 V; VDS = 0 V; Tj = 25 °C - 2 100 nA RDSon drain-source on-state resistance VGS = 10 V; ID = 20 A; Tj = 25 °C; Fig. 8 - 3.5 4.2 mΩ VGS = 10 V; ID = 20 A; Tj = 175 °C; Fig. 9 - - 8.8 mΩ gate resistance f = 1 MHz; Tj = 25 °C 0.72 1.8 4.5 Ω ID = 20 A; VDS = 32 V; VGS = 10 V; Fig. 10; Fig. 11 17 26 37 nC ID = 0 A; VDS = 0 V; VGS = 10 V - 13 - nC ID = 20 A; VDS = 32 V; VGS = 10 V; Fig. 10; Fig. 11 4.7 7.8 12 nC 3 5.1 7.7 nC RG Dynamic characteristics FET1 and FET2 QG(tot) total gate charge QGS gate-source charge QGS(th) pre-threshold gatesource charge QGS(th-pl) post-threshold gatesource charge 1.6 2.7 4 nC QGD gate-drain charge 1.4 4.7 9.4 nC VGS(pl) gate-source plateau voltage ID = 20 A; VDS = 32 V; Fig. 10; Fig. 11 - 4.4 - V Ciss input capacitance 1202 1850 2590 pF Coss output capacitance VDS = 25 V; VGS = 0 V; f = 1 MHz; Tj = 25 °C; Fig. 12 367 565 791 pF Crss reverse transfer capacitance 27 91 200 pF td(on) turn-on delay time - 7 - ns tr rise time - 9 - ns td(off) turn-off delay time - 19 - ns tf fall time - 11.8 - ns Qoss output charge VGS = 0 V; VDS = 25 V; f = 1 MHz; Tj = 25 °C - 22 - nC IS = 20 A; VGS = 0 V; Tj = 25 °C; Fig. 13 - 0.81 1 V VDS = 30 V; RL = 1.5 Ω; VGS = 10 V; RG(ext) = 5 Ω Source-drain diode FET1 and FET2 VSD source-drain voltage PSMN4R2-40VSH Product data sheet All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 5 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) Symbol Parameter Conditions Min Typ Max Unit trr reverse recovery time - 18.6 - ns Qr recovered charge IS = 20 A; dIS/dt = -100 A/µs; VGS = 0 V; VDS = 20 V; Fig. 14 [1] - 9.2 - nC ta reverse recovery rise time - 10.3 - ns tb reverse recovery fall time - 8.2 - ns [1] includes capacitive recovery ID (A) aaa-032384 80 VGS = 5.5 V 5V 64 8 48 6 10 V 32 0 Fig. 5. 4 4.5 V 16 2 4V 0 1 2 3 VDS (V) aaa-032385 10 RDSon (mΩ) 0 4 0 4 8 12 16 VGS (V) 20 Tj = 25 °C Tj = 25 °C; ID = 20 A Output characteristics; drain current as a Fig. 6. function of drain-source voltage; typical values, FET1 and FET2 Drain-source on-state resistance as a function of gate-source voltage; typical values, FET1 and FET2 aaa-033171 160 ID (A) aaa-032387 20 RDSon (mΩ) 4.5 V 5V 16 120 12 80 8 40 175°C 5.5 V 4 25°C 6V 0 0 1 2 3 4 5 6 VGS (V) 0 7 VDS = 8 V Fig. 7. Product data sheet 16 32 48 64 ID (A) 80 Tj = 25 °C Transfer characteristics; drain current as a function of gate-source voltage; typical values, FET1 and FET2 PSMN4R2-40VSH 0 VGS = 10 V 8V Fig. 8. Drain-source on-state resistance as a function of drain current; typical values, FET1 and FET2 All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 6 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) a aaa-032388 2.4 VGS (V) aaa-032389 10 8 1.8 6 1.2 32 V 4 VDS = 14 V 0.6 0 -60 2 -30 0 30 60 90 120 150 Tj (°C) 0 180 0 4 8 12 16 20 24 28 QG (nC) 32 Tj = 25 °C; ID = 20 A Fig. 9. Normalized drain-source on-state resistance factor as a function of junction temperature, FET1 and FET2 Fig. 10. Gate-source voltage as a function of gate charge; typical values, FET1 and FET2 aaa-032390 104 C (pF) VDS ID Ciss 103 Coss VGS(pl) 102 VGS(th) Crss VGS QGS2 QGS1 QGS 10 10-1 QGD QG(tot) PSMN4R2-40VSH Product data sheet 10 VDS (V) 102 VGS = 0 V; f = 1 MHz 003aaa508 Fig. 11. Gate charge waveform definitions 1 Fig. 12. Input, output and reverse transfer capacitances as a function of drain-source voltage; typical values, FET1 and FET2 All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 7 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) IS (A) 003aal160 aaa-033170 102 ID (A) trr ta tb 0 10 0.25 IRM 175°C 1 0 0.2 0.4 Tj = 25°C 0.6 0.8 1 VSD (V) IRM t (s) 1.2 VGS = 0 V Fig. 14. Reverse recovery timing definition Fig. 13. Source-drain (diode forward) current as a function of source-drain (diode forward) voltage; typical values, FET1 and FET2 PSMN4R2-40VSH Product data sheet All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 8 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) 11. Package outline Plastic single ended surface mounted package LFPAK56D; 8 leads E SOT1205 A A b1 c1 L1 mounting base D H D1 D2 L 1 2 3 e b (8x) 4 w X c A E1 E2 A1 C θ Lp detail X 0 2.5 mm 5 mm scale Dimensions Unit y C A max 1.05 nom min 1.02 D(1) D1(1) D2 (ref) E(1) E1(1) 4.4 0.25 0.30 4.70 4.55 3.5 5.30 1.8 0.85 4.1 0.19 0.24 4.45 4.35 3.4 4.95 1.6 0.60 A1 b b1 0.1 0.50 0.0 0.35 c c1 E2 e 1.27 H L L1 Lp 6.2 1.3 0.55 0.85 5.9 0.8 0.30 0.40 w y 0.25 0.1 Note 1. Plastic or metal protrusions of 0.2 mm maximum per side are not included. Outline version References IEC JEDEC JEITA θ 8° 0° sot1205_po European projection Issue date 14-08-21 14-10-28 SOT1205 Fig. 15. Package outline LFPAK56D; Dual LFPAK (SOT1205) PSMN4R2-40VSH Product data sheet All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 9 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) 12. Soldering Footprint information for reflow soldering of LFPAK56D package SOT1205 5.85 0.57 0.025 0.57 0.7 1.97 0.65 1.27 1.9 3.325 3.175 3.2 2.0 1.275 0.8 1.875 2.1 2.7 1.0 3.85 3.975 0.025 1.1 1.15 0.65 1.27 1.1 1.44 solder land solder land plus solder paste solder paste deposit solder resist occupied area Dimensions in mm Issue date 0.7 14-07-28 20-04-20 sot1205_fr Fig. 16. Reflow soldering footprint for LFPAK56D; Dual LFPAK (SOT1205) PSMN4R2-40VSH Product data sheet All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 10 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) 13. Legal information injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Data sheet status Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Document status [1][2] Product status [3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the internet at https://www.nexperia.com. Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal PSMN4R2-40VSH Product data sheet Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Non-automotive qualified products — Unless this data sheet expressly states that this specific Nexperia product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Nexperia accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Nexperia’s warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Nexperia’s specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Nexperia for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Nexperia’s standard warranty and Nexperia’s product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 11 / 12 PSMN4R2-40VSH Nexperia Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) Contents 1. General description...................................................... 1 2. Features and benefits.................................................. 1 3. Applications.................................................................. 1 4. Quick reference data....................................................1 5. Pinning information......................................................2 6. Ordering information....................................................2 7. Marking.......................................................................... 2 8. Limiting values............................................................. 2 9. Thermal characteristics............................................... 4 10. Characteristics............................................................ 5 11. Package outline.......................................................... 9 12. Soldering................................................................... 10 13. Legal information......................................................11 © Nexperia B.V. 2021. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 16 August 2021 PSMN4R2-40VSH Product data sheet All information provided in this document is subject to legal disclaimers. 16 August 2021 © Nexperia B.V. 2021. All rights reserved 12 / 12
