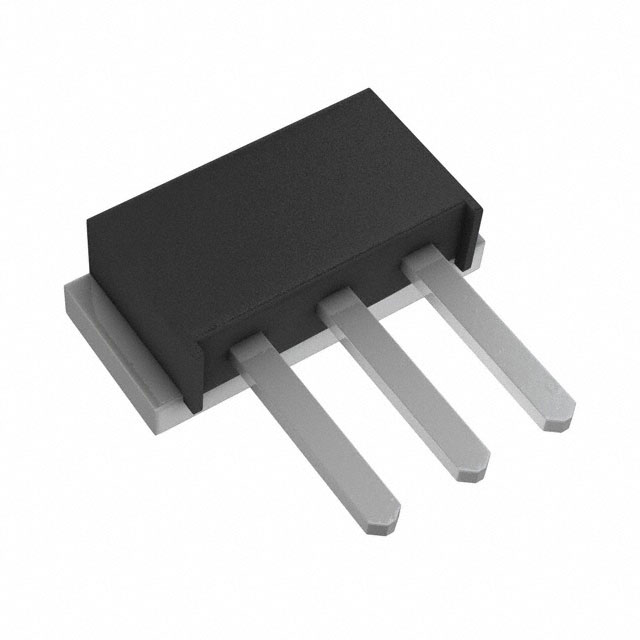

84CNQ035SMS2

84CNQ SERIES Technical Data Data Sheet N1063, Rev. A 84CNQ035/84CNQ040/84CNQ045 SCHOTTKY RECTIFIER Applications     Features Switching power supply Converters Free-Wheeling diodes Reverse battery protection           125℃ TJ operation Center tap module Very Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High frequency operation Guard ring for enhanced ruggedness and long term reliability Low profile, high current package This is a Pb − Free Device All SMC parts are traceable to the wafer lot Additional electrical and life testing can be performed upon request 84CNQ… 84CNQ…SL 84CNQ…SM PRM2 PRM2-SL PRM2-SM Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(Per leg) Non-Repetitive Avalanche Energy (Peg leg) Repetitive Avalanche Current(Peg leg) Symbol VRRM VRWM VR Condition - Max. 35 (84CNQ035) 40 (84CNQ040) 45 (84CNQ045) 40(Per Leg) 80(Per Device) Units V IF (AV) 50% duty cycle @TC =132°C, rectangular wave form IFSM 8.3 ms, half Sine pulse 750 A EAS TJ=25℃,IAS=8A,L=1.7mH 54 mJ IAR Current decaying linearly to zero in 1 μsec Frequency limited by TJ max. VA=1.5×VR typical 8 A  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  A 84CNQ SERIES Technical Data Data Sheet N1063, Rev. A Electrical Characteristics: Characteristics Forward Voltage Drop (Per leg) * Reverse Current (Per leg) * Junction Capacitance (Per leg) Symbol Typ. Max. 0.43 0.52 0.49 0.62 V VF2 @ 40A, Pulse, TJ = 25 C @ 80A, Pulse, TJ = 25 C @ 40A, Pulse, TJ = 125 C @ 80A, Pulse, TJ = 125 C 0.38 0.49 0.44 0.60 V IR1 @VR = rated VR TJ = 25 C 1.5 5 mA IR2 @VR = rated VR TJ = 125 C 600 800 mA CT @VR = 5V, TC = 25 C fSIG = 1MHz 2100 2600 pF VF1 Condition Units * Pulse width < 300 µs, duty cycle < 2% Thermal-Mechanical Specifications: Characteristics Junction Temperature Storage Temperature Typical Thermal Resistance Junction to Case (per leg) Typical Thermal Resistance Junction to Case (per package) Typical Thermal Resistance, case to Heat Sink Symbol TJ Tstg Condition - Specification -55 to +125 -55 to +125 Units C C RJC DC operation 0.85 C/W RJC DC operation 0.42 C/W Rcs Mounting surface, smooth and greased 0.30 C/W Mounting Torque TM Approximate Weight Case Style wt PRM2 PRM2-SL PRM2-SM 40(min) 58(max) 7.8  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  Kg-cm g 84CNQ SERIES Technical Data Data Sheet N1063, Rev. A Ratings and Characteristics Curves Marking Diagram Where XXXX is YYWW 1st row SS YYWWL 2nd row 84CNQ035/SL/SM 3rd row 1 2 3 (pin) SS = SS YY = Year WW = Week Cautions：Molding resin Epoxy resin UL:94V-0  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  84CNQ SERIES Technical Data Data Sheet N1063, Rev. A Ordering Information Device Package Terminals finish Baseplate finish Shipping 84CNQ035 PRM2 Nickel plated Nickel plated 48pcs / box 84CNQ035S2 PRM2 Pure Sn dipped (dipped heigh 6-8mm) Nickel plated 48pcs / box 84CNQ035SL PRM2-SL Pure Sn plated Pure Sn plated 100pcs / box 84CNQ035SM PRM2-SM Nickel plated Nickel plated 48pcs / box 84CNQ035SMS2 PRM2-SM Pure Sn dipped (dipped heigh 6-8mm) Nickel plated 48pcs / box 84CNQ040 PRM2 Nickel plated Nickel plated 48pcs / box 84CNQ040S2 PRM2 Pure Sn dipped (dipped heigh 6-8mm) Nickel plated 48pcs / box 84CNQ040SL PRM2-SL Pure Sn plated Pure Sn plated 100pcs / box 84CNQ040SM PRM2-SM Nickel plated Nickel plated 48pcs / box 84CNQ040SMS2 PRM2-SM Pure Sn dipped (dipped heigh 6-8mm) Nickel plated 48pcs / box 84CNQ045 PRM2 Nickel plated Nickel plated 48pcs / box 84CNQ045S2 PRM2 Pure Sn dipped (dipped heigh 6-8mm) Nickel plated 48pcs / box 84CNQ045SL PRM2-SL Pure Sn plated Pure Sn plated 100pcs / box 84CNQ045SM PRM2-SM Nickel plated Nickel plated 48pcs / box 84CNQ045SMS2 PRM2-SM Pure Sn dipped (dipped heigh 6-8mm) Nickel plated 48pcs / box Mechanical Dimensions PRM2 (Inches/Millimeters)  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  84CNQ SERIES Technical Data Data Sheet N1063, Rev. A Mechanical Dimensions PRM2-SL (Inches/Millimeters) Mechanical Dimensions PRM2-SM (Inches/Millimeters)  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  84CNQ SERIES Technical Data Data Sheet N1063, Rev. A DISCLAIMER: 1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of the datasheet(s). 2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’ fail-safe precautions or other arrangement . 3- In no event shall SMC Diode Solutions be liable for any damages that may result from an accident or any other cause during operation of the user’s units according to the datasheet(s). SMC Diode Solution assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC Diode Solutions. 6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC Diode Solutions. 7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations..  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com 
