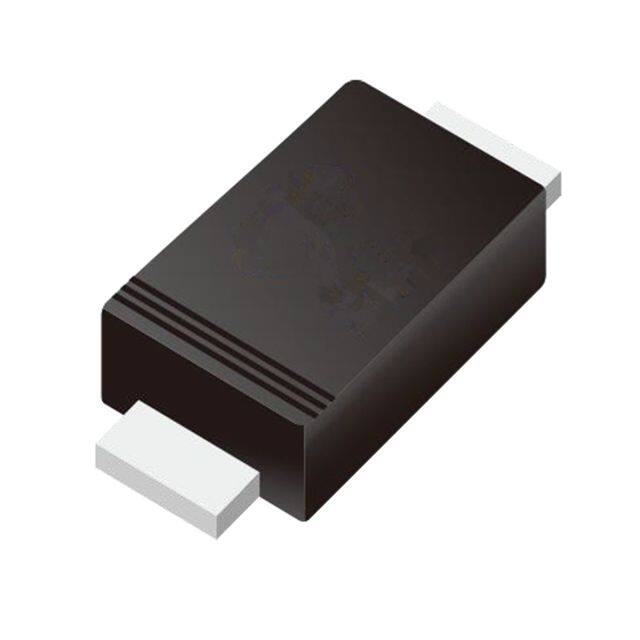

ES1JF

ES1AF THRU ES1JF Reverse Voltage - 50 to 600 Volts Forward Current - 1.0 Ampere SURFACE MOUNT SUPER FAST RECOVERY RECTIFIER Features SMAF  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Low reverse leakage  Built-in strain relief,ideal for automated  placement High forward surge current capability  High temperature soldering guaranteed: 0.106(2.70) 0.094(2.40) 0.063 (1.60) 0.051 (1.30) 0.146(3.70) 0.130(3.30)  260°C/10 seconds at terminals Glass passivated chip junction 0.047(1.20) 0.035(0.90) 0.008(0.20) 0.005(0.12) 0.047(1.20) 0.031(0.80) Mechanical Data 0.193(4.90) 0.173(4.40) Case : JEDEC SMAF Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.0018 ounce, 0.064 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=55℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ VRRM VRMS VDC I(AV) MDD ES1AF MDD ES1BF MDD ES1CF MDD ES1DF MDD ES1EF MDD ES1GF MDD ES1JF UNITS 50 35 50 100 70 100 150 105 150 200 140 200 300 210 300 400 280 400 600 420 600 V V V IFSM VF IR TA=125℃ trr 1.0 A 30 A 0.95 1.25 5.0 50 1.70 V uA 35 ns CJ 15.0 pF Typical thermal resistance (NOTE 3) RJA 60.0 ℃/W Operating junction and storage temperature range TJ,TSTG -55 to +150 ℃ Maximum reverse recovery time (NOTE 1) Typical junction capacitance (NOTE 2) Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas http://www.microdiode.com Rev:2024A1 Page :1 ES1AF THRU ES1JF Reverse Voltage - 50 to 600 Volts Forward Current - 1.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 0.6 Single Phase Half Wave 60Hz Resistive or inductive Load 0.4 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 25 20 15 10 175 5.0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 20 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 1 0.1 ES1AF-ES1DF ES1EF-ES1GF ES1JF 0.01 0 0.4 0.8 1.2 1.6 1.8 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 10 1,000 100 10 TJ=100 C 1 0.1 TJ=25 C 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=25 C 10 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% TRANSIENT THERMAL IMPEDANCE, C/W JUNCTION CAPACITANCE, pF FIG. 5-TYPICAL JUNCTION CAPACITANCE 200 100 100 NUMBER OF CYCLES AT 60 Hz FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 1 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2 ES1AF THRU ES1JF Reverse Voltage - 50 to 600 Volts Forward Current - 1.0 Ampere Packing information P0 P1 unit:mm d E Item F B A Symbol Tolerance A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SMAF W Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width P D2 T D1 C W1 D 2.80 4.75 1.42 1.50 178.00 54.40 13.00 1.75 5.05 4.00 4.00 2.00 0.30 8.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE SMAF REEL SIZE 7" REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) APPROX. GROSS WEIGHT (kg) 3,000 4.0 6,000 210*208*203 178 400*265*400 120,000 10.0 Suggested Pad Layout Symbol Unit (mm) Unit (inch) A 1.8 0.071 B 1.6 3.8 0.150 D 2.2 0.087 E 5.4 0.213 C http://www.microdiode.com 0.063 Rev:2024A1 Page :3
